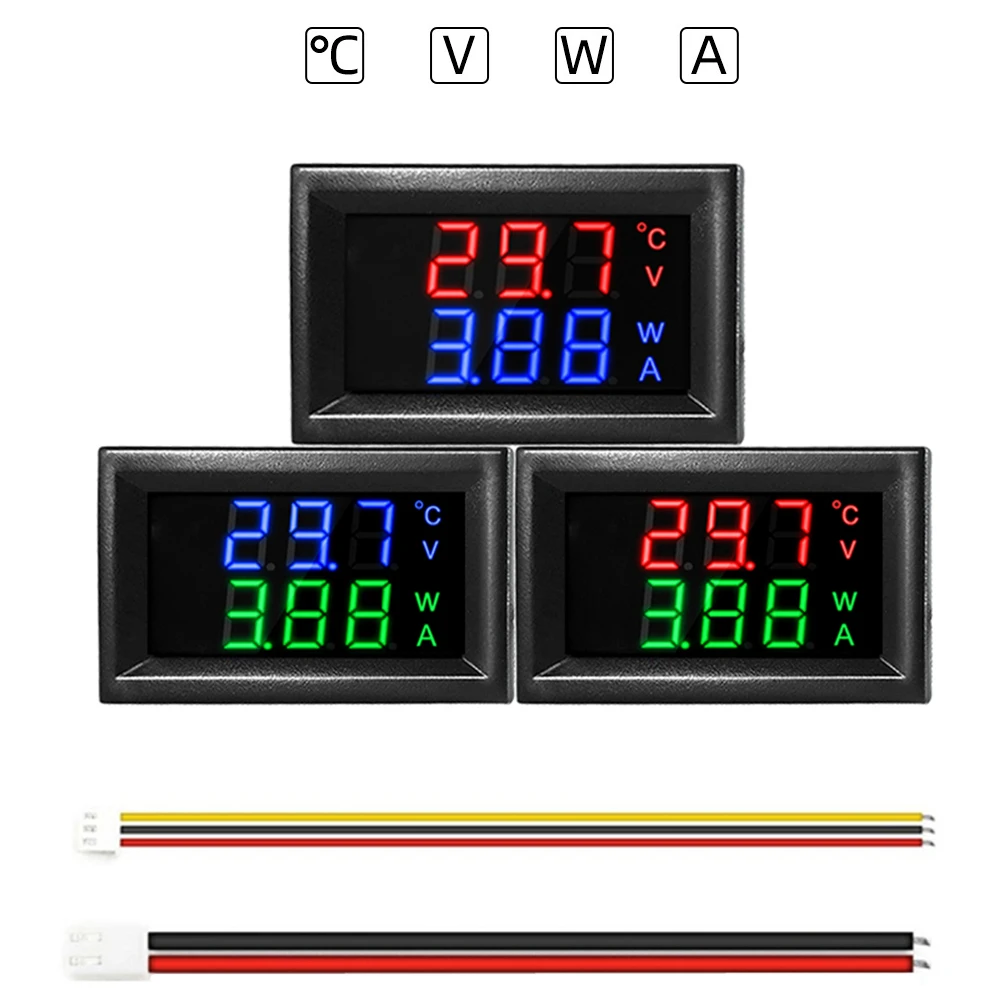

High Quality DC 100V 10A Voltmeter Ammeter LED Amp Dual Digital Volt Meter Gauge Power meter Ampere meter Thermometer

Shopping Note: Longer sensor cables need to be purchased separately

Working voltage: DC4~30V

Voltage range: DC0V~100V (0.02V jump)

Voltage error: ± 1V

Current range: 10A (0.03A jump)

Current error: ± 0.1A

Product size: 47.63×28.66×23.74mm

Installation opening: 45.11×26.00mm

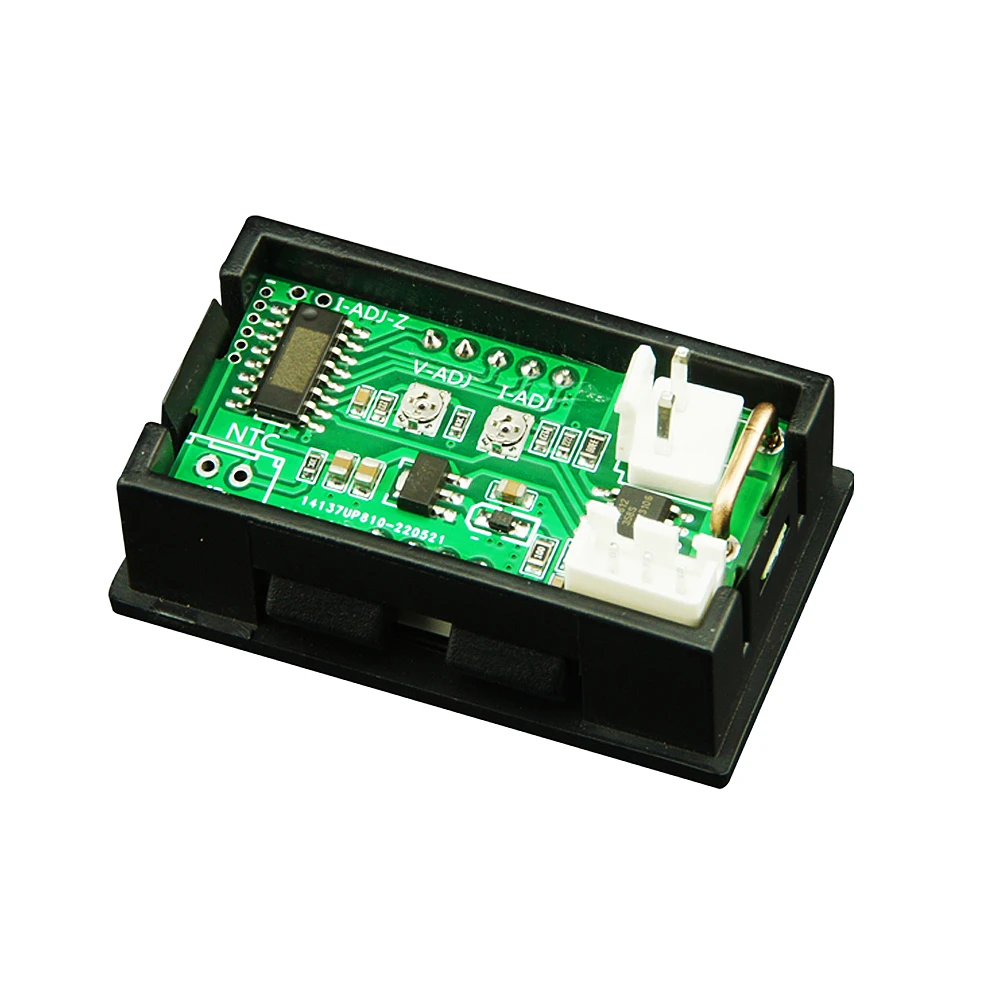

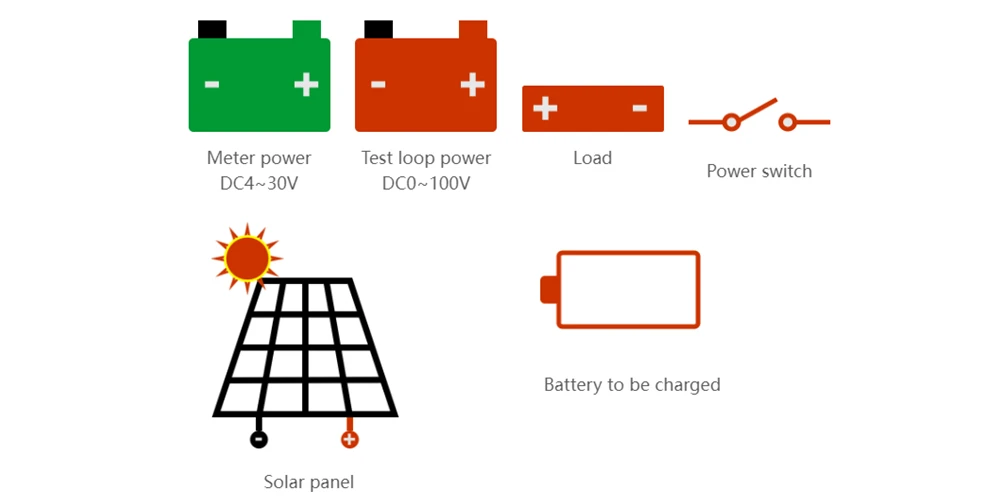

Wiring legend

Basic operation: Check the metter Wiring as shown below, the meter displays the voltage, the current is 000, the product is qualified

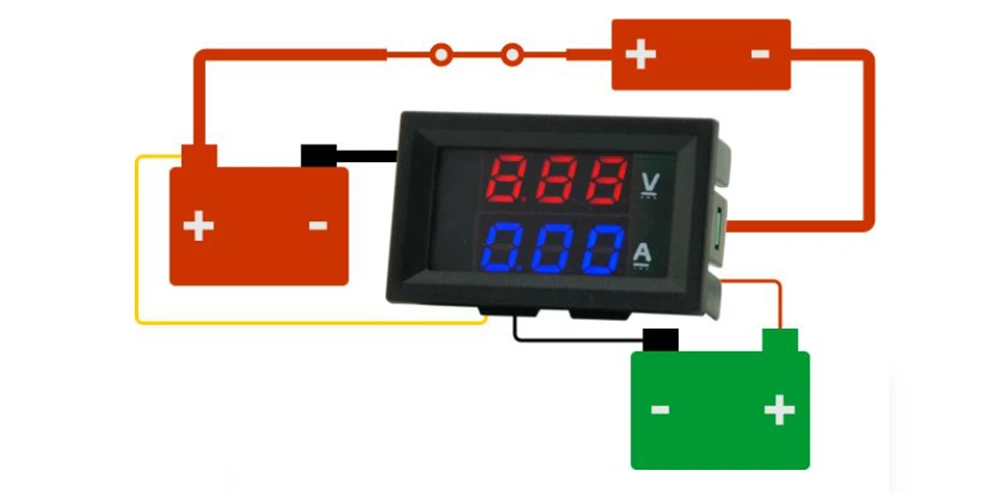

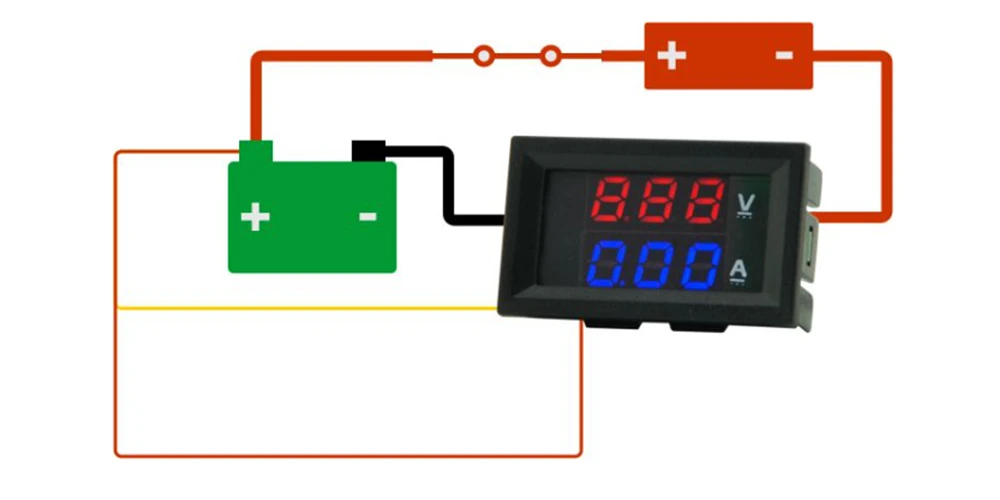

Common power supply Test 4~30V loop wiring The thick red wire is connected to the negative pole of the load; the thin black wire is not connected to prevent short circuit.

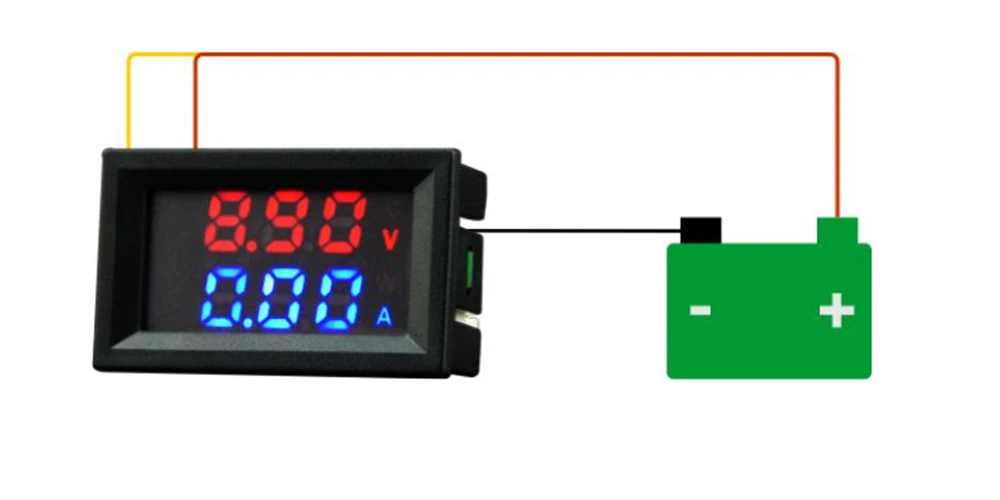

Independent power supply to measure 0~100V loop The thin red and thin black wires cannot exceed 30V。

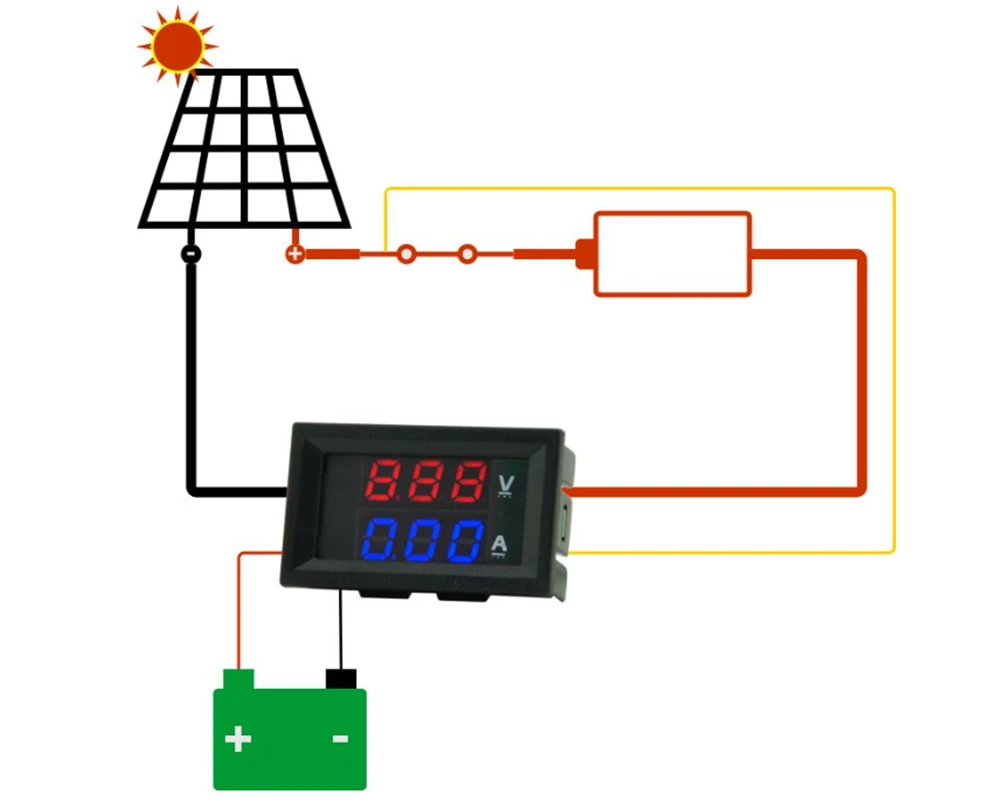

Measure the wiring method of solar charging

Shopping Note: Longer sensor cables need to be purchased separately

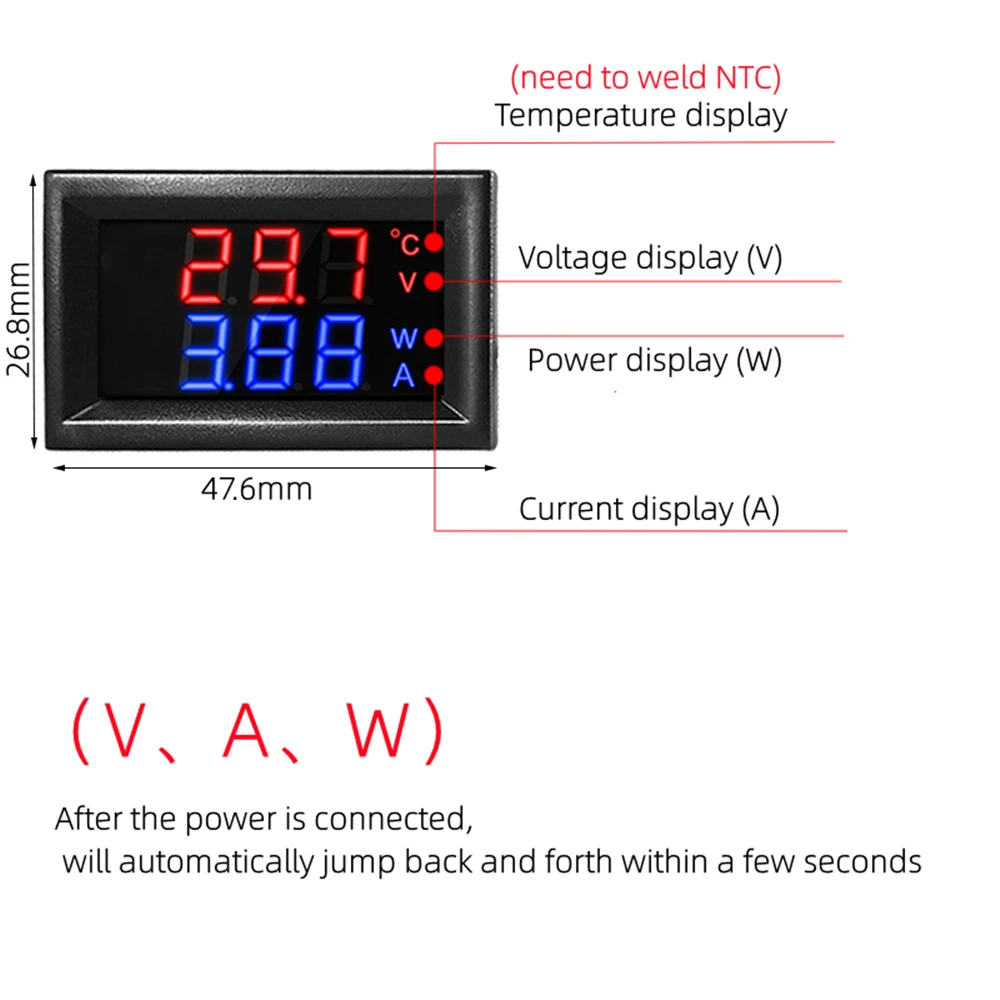

Real-time power is displayed alternately with current, no setting required.

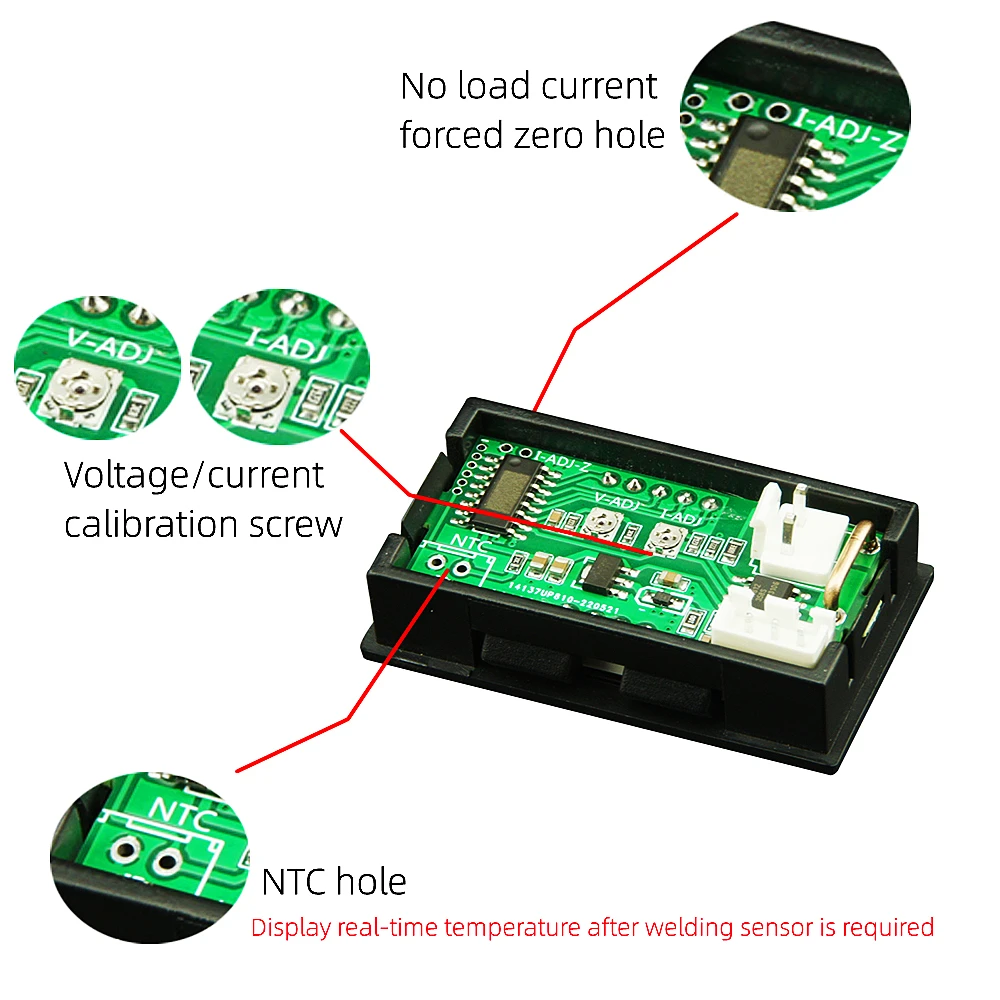

To measure temperature, connect NTC sensor,
Connect the sensor to the NTC interface to measure,
The temperature and voltage are displayed alternately; the temperature measurement function is the basic function
However, the NTC sensor is an optional accessory.

Voltage measurement range: DC0.20V~9.99~10.0~100V (±1V)
0~100V, the display mode below 10V is 0.00V, the voltage starts from 0.2V, the error range is ±1V,

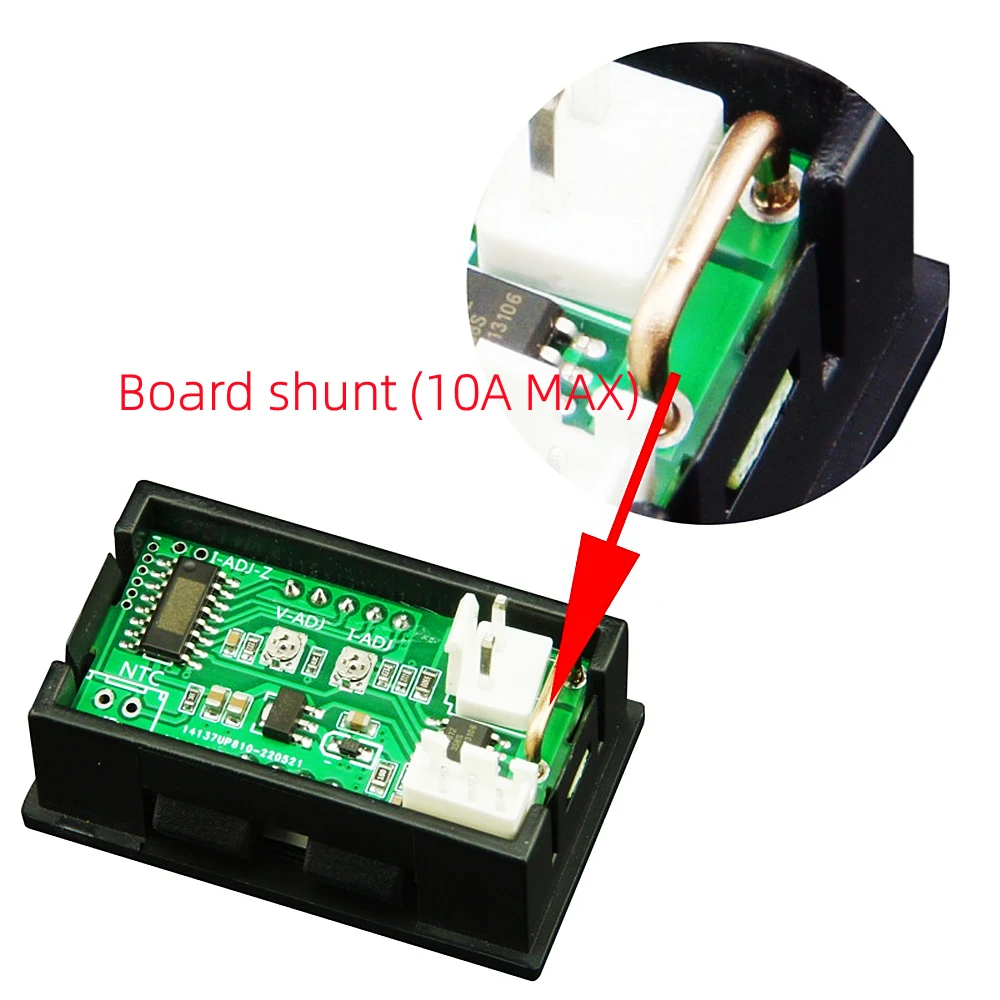

Current measurement range: 0~10A, the current starts at 0.03A, and the error is ±0.1A
DC0.03A~9.99A (±0.1A)
