• Adjustable Voltage :The module offers adjustable DC 6-40V to 1.2-36V voltage regulation, providing flexibility in various power supply needs.
• Constant Current Supply :Designed to maintain a constant current supply, it ensures stable and reliable power delivery for your devices.
• Versatile Application :Ideal for DC motors, it can be used in a variety of applications, offering versatility and flexibility in usage.
• Compact Design :Its compact design makes it easy to install and integrate into your existing systems, saving space while delivering top-notch performance.
• Durable Construction :Originating from Mainland China, this module boasts of durable construction, promising long-lasting reliability and service.

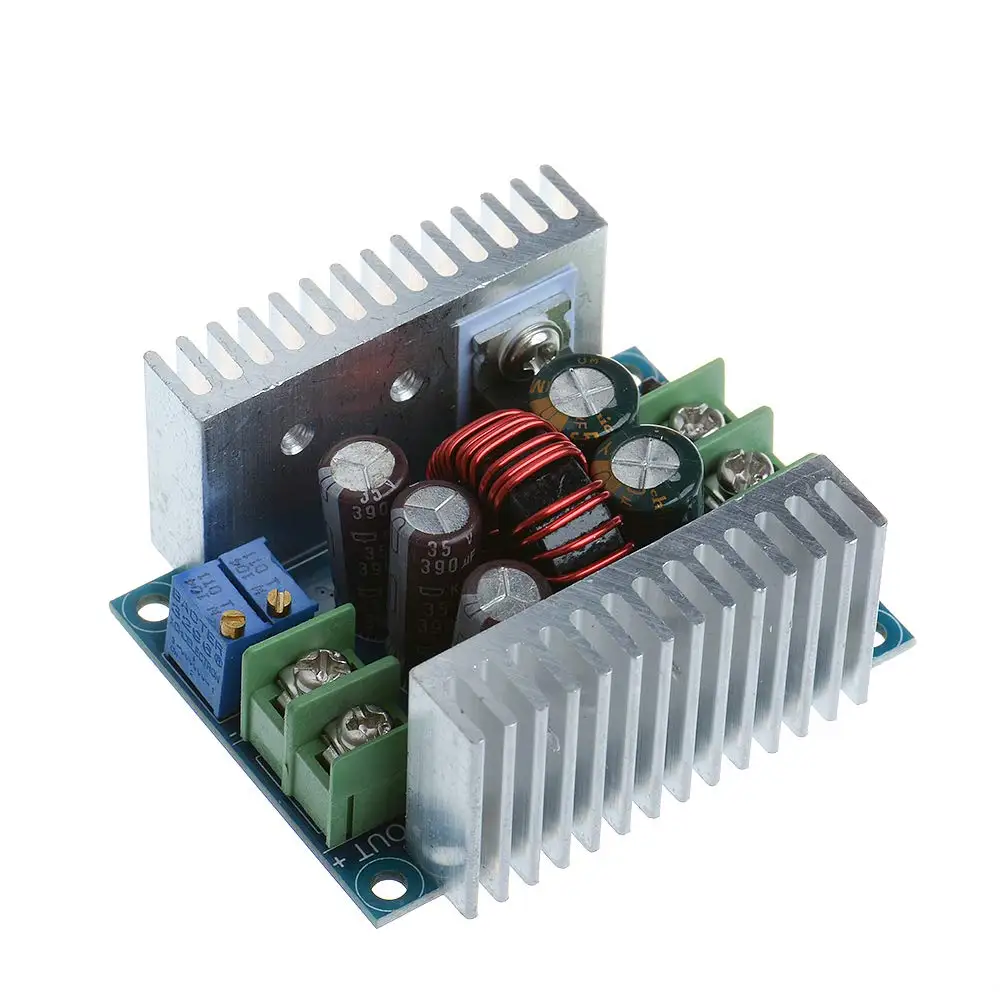

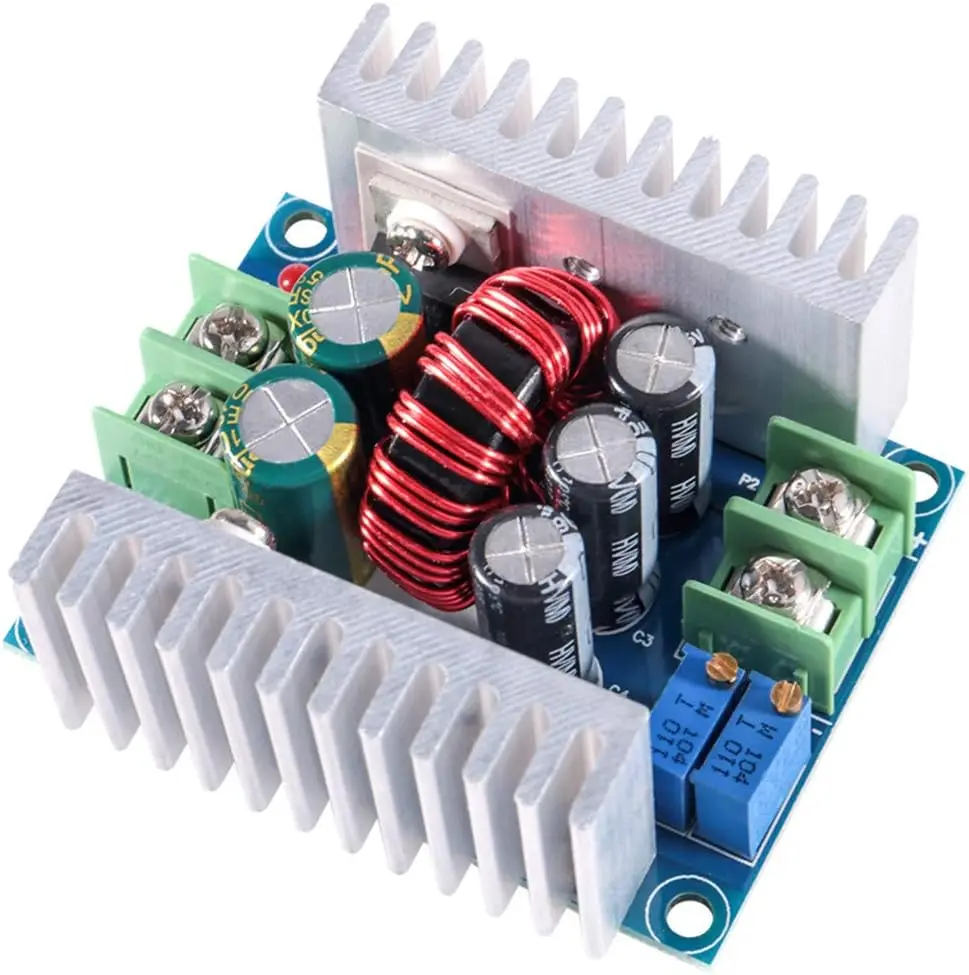

1pcs 20A 300W CC CV Step Down Module Adjustable DC 6-40V to 1.2-36V Voltage Regulator Buck Converter Constant Current Power Supply Module
Features:

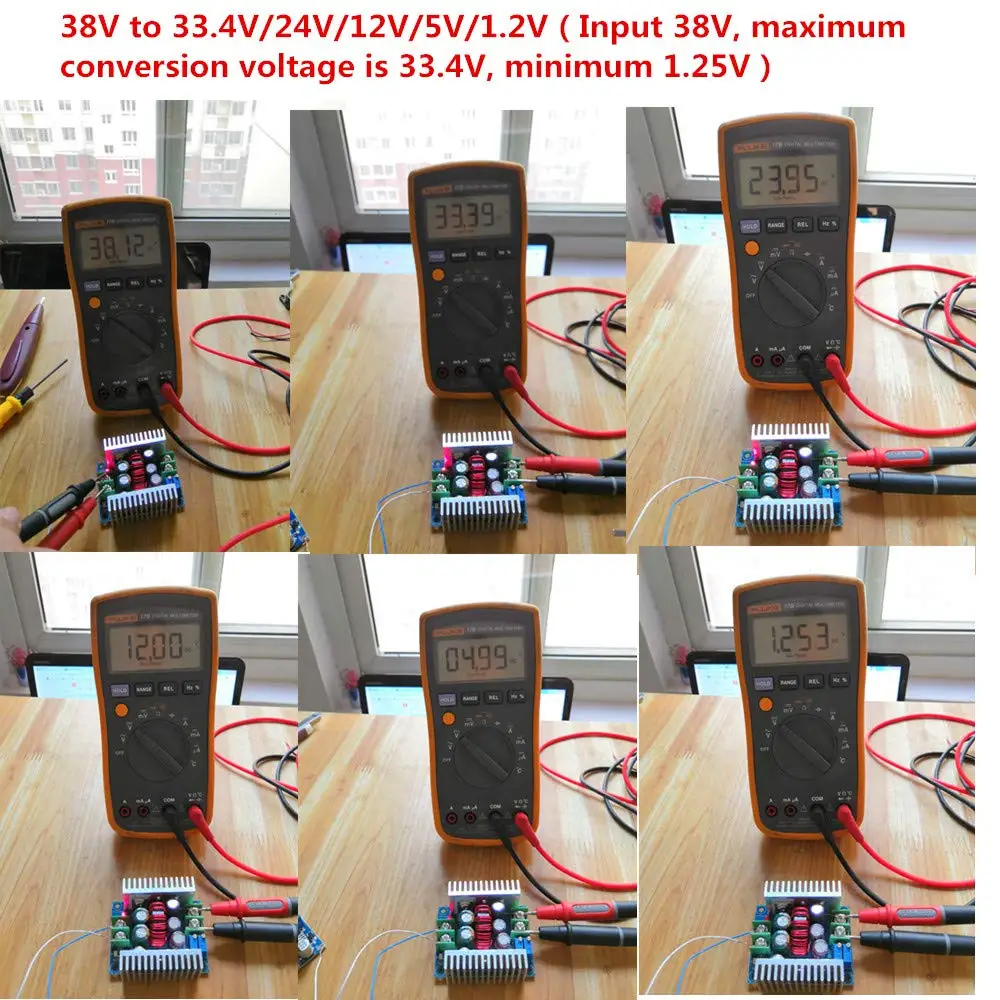

• The buck converter input voltage range is DC 6-40V, adjustable output voltage range is DC 1.2-36V, can be used to convert 24v to 12v 5v, adjustable output current range is 0-20A, max output power is 300W. The step down regulator can apply to constant output current.
• With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 95%,(measured at 20A, converting 24V to 12V).
• Short Circuit Protection: Self-recovery(cannot short circuit for long time). Plus, when input and output is common grounded, no-load CV output constant voltage,CC output constant current

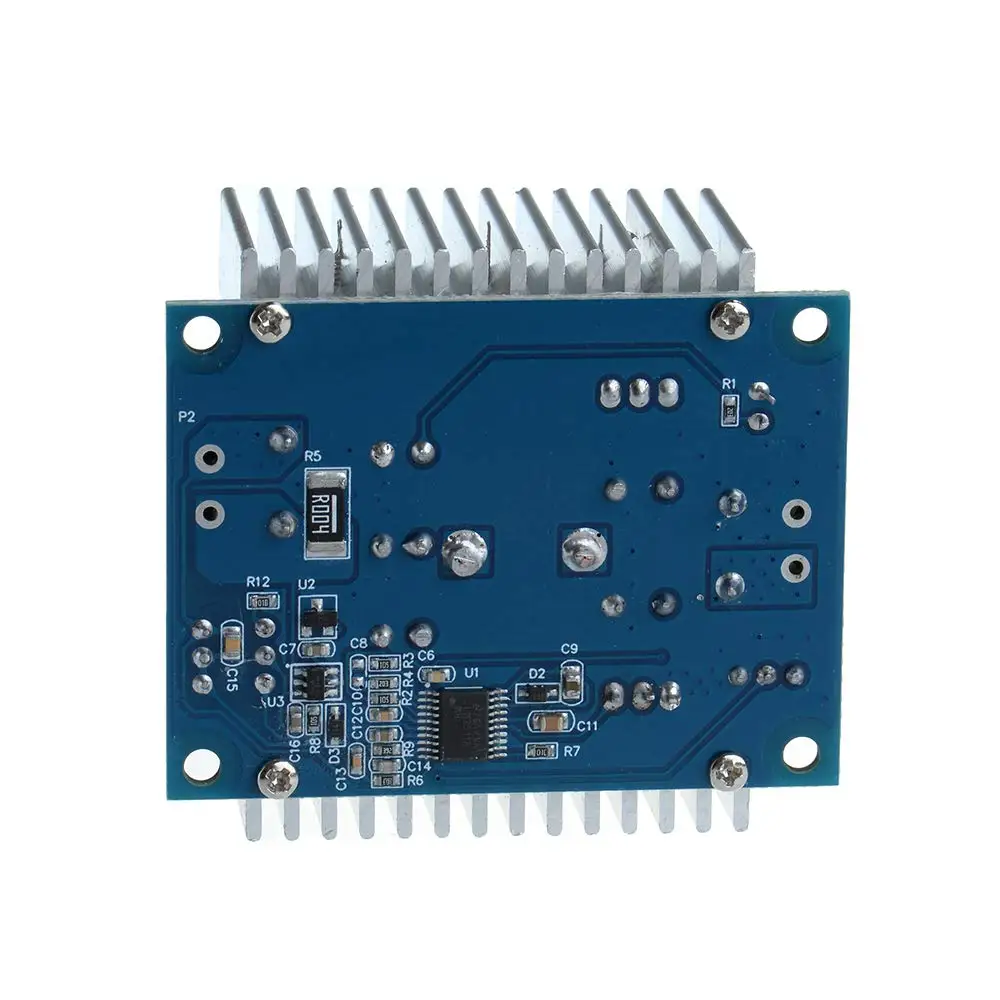

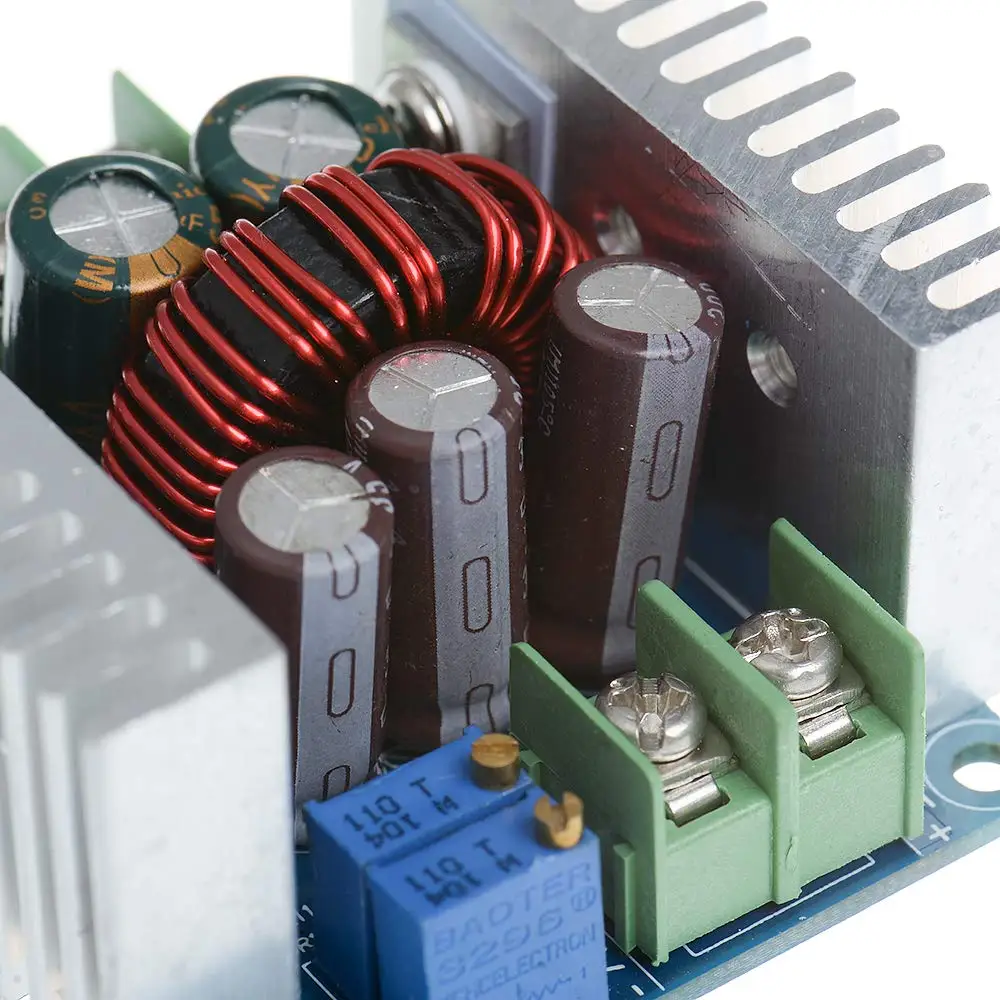

• Adopting 75V / 80A large current dual MOS tube designed step-down board, Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Large current 30A connection screw terminals, more convenient to install
• Application: DIY stabilised voltage supply, LED car display, mobile power, industrial equipment appliances, LED driver, monitor, solar energy, fans, photovoltaic energy, motor, etc
Specifications
• Input Voltage: 6V to 40V DC(10V to 40V is suggested)
• Output Voltage: 1.2V to 36V DC
• Output Current: 20A(max.), 15A(suggested)
• Efficiency: 95%(24V to 12V, 20A)
• Ripple output: ≤ 50mV
• Wiring Method: Terminal
• Short Circuit Protection: Self-recovery(cannot short circuit for long time)
• Size: 60x53x27mm/2.36×2.08×1.06

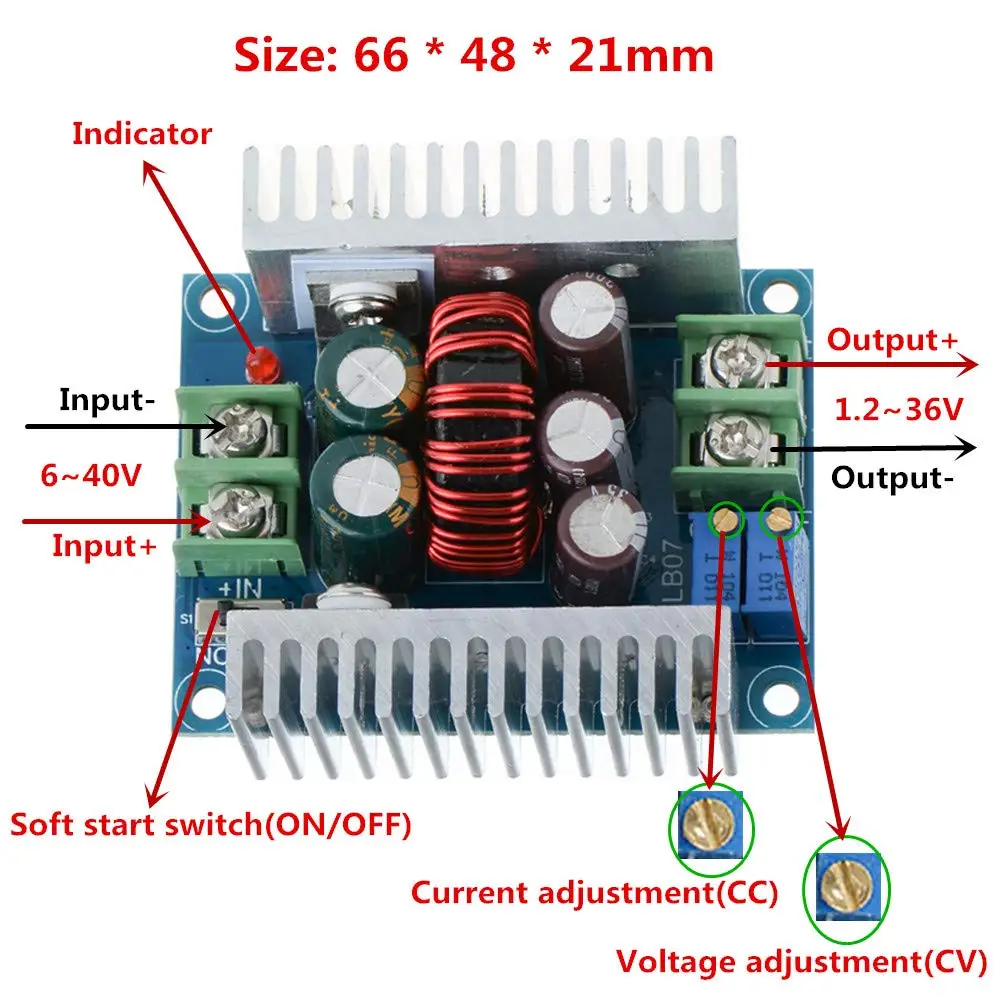

• VO+: Output positive
• VO-: Output negative
• +IN: Input positive
• -IN: Input negative

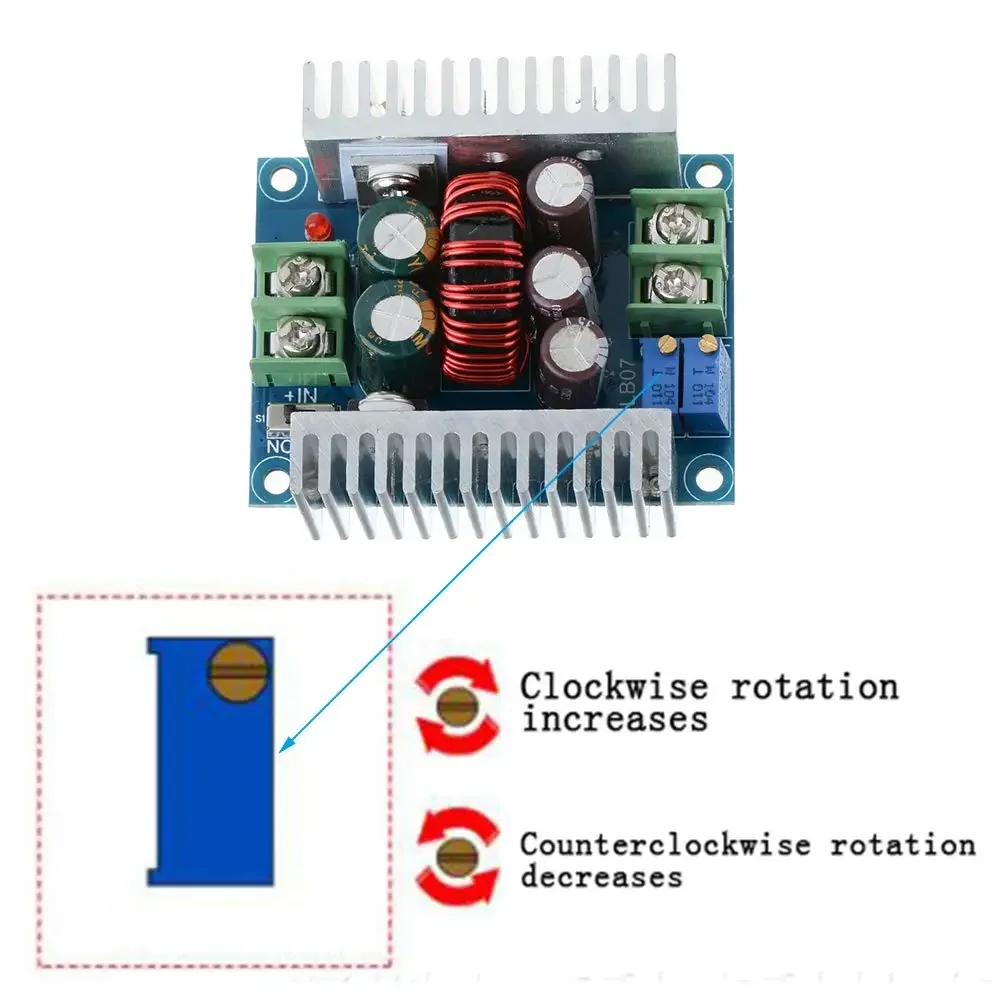

• CV: Output voltage adjustment
• CC: Output current adjustment
• EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
Package includes:
1 * 20A 300W DC DC Buck Converter
1. Key away from Fire
2. Due to includeing small parts, please keep away from Children under Three.
3. Please leave 5 star feedback if you're satisfied with our products and service, we will appreciate it
4. If the products you received was damaged or any more question, please feel free to contact us.
