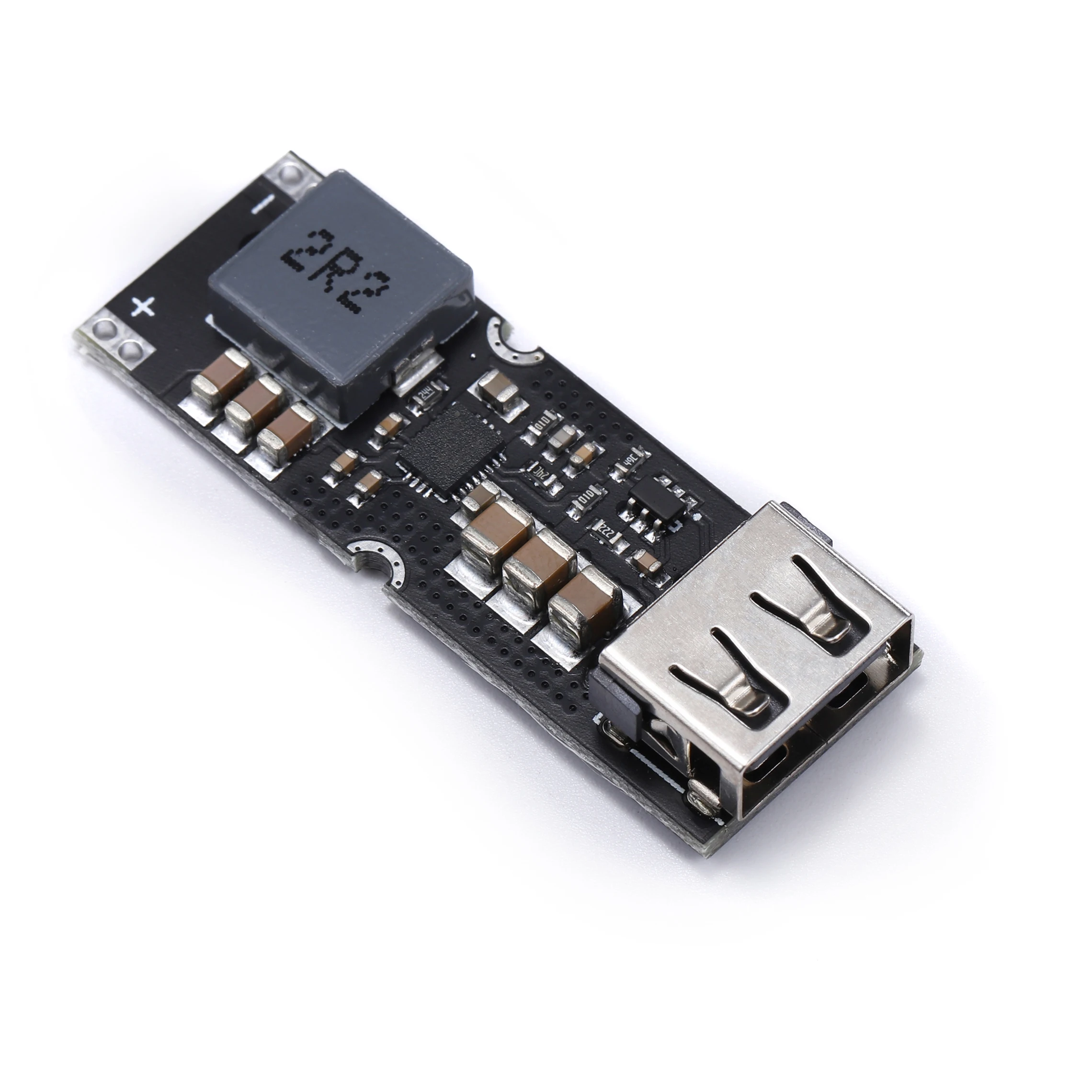

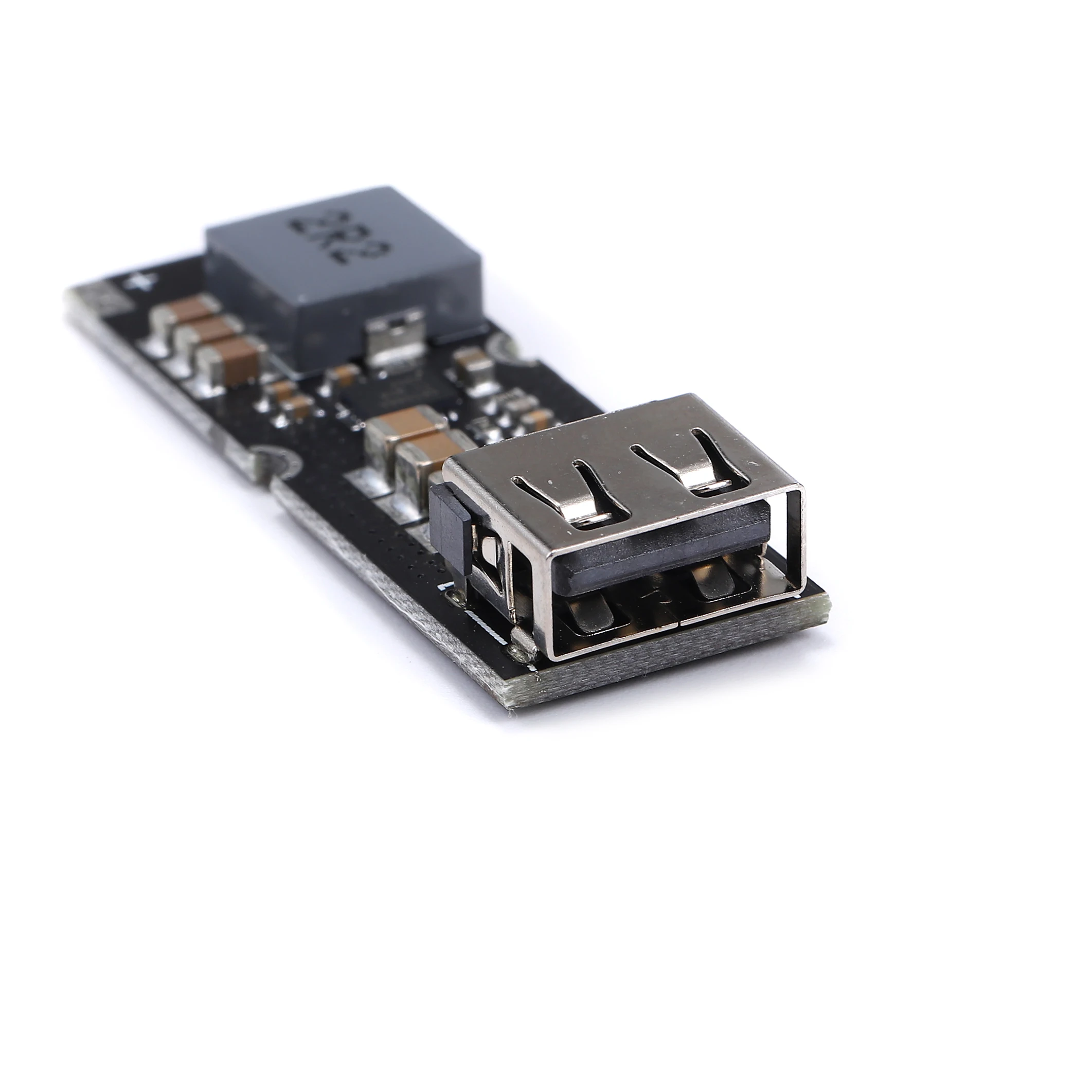

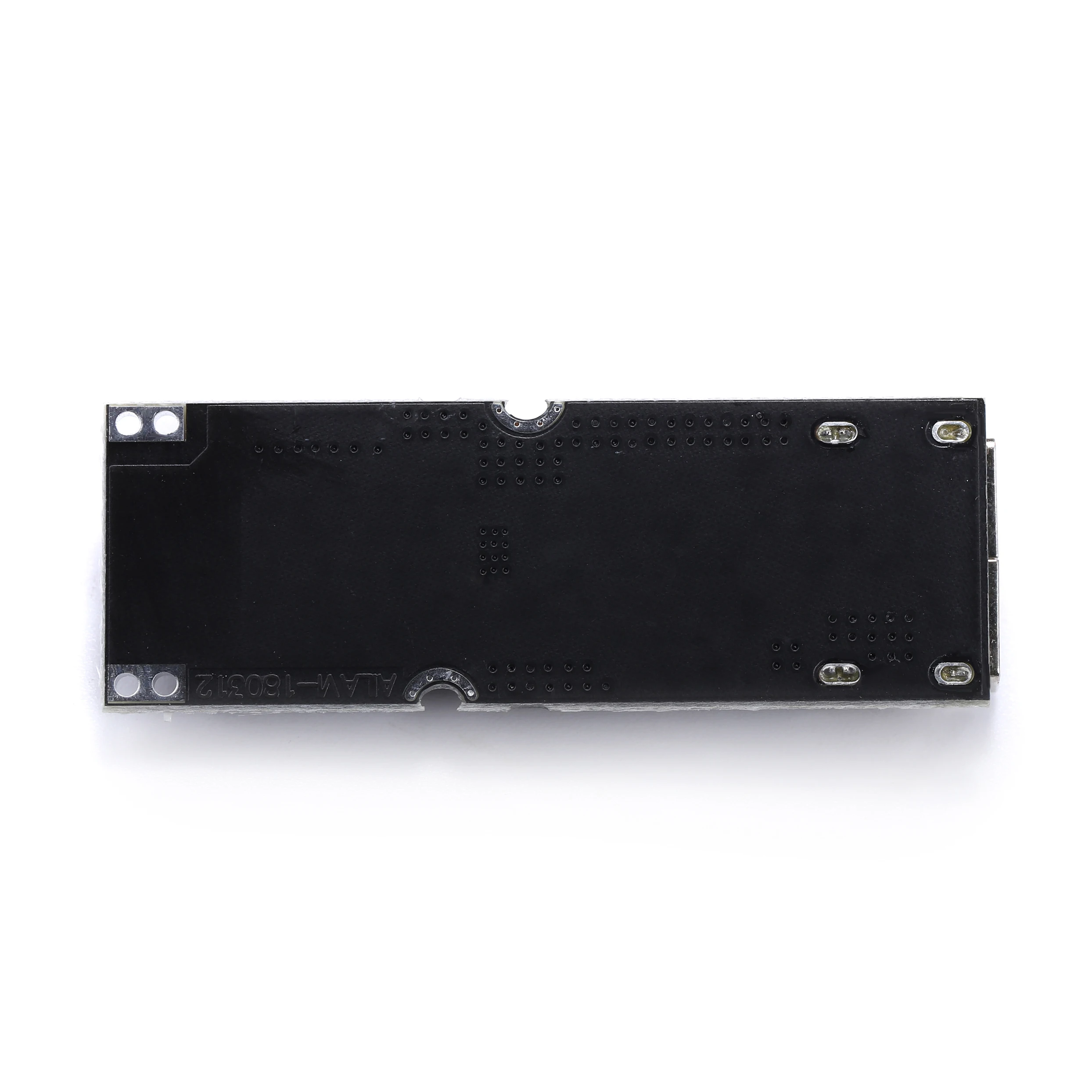

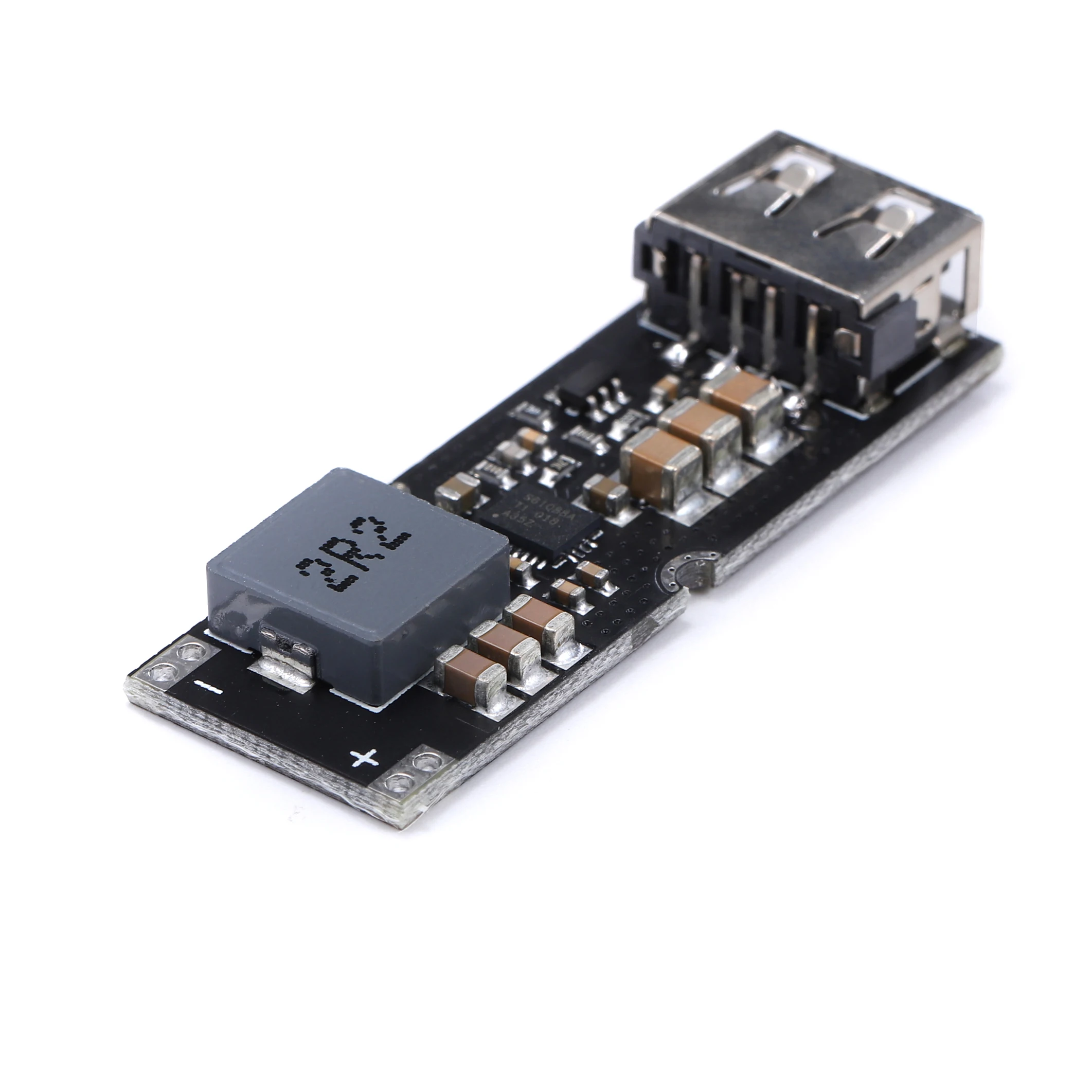

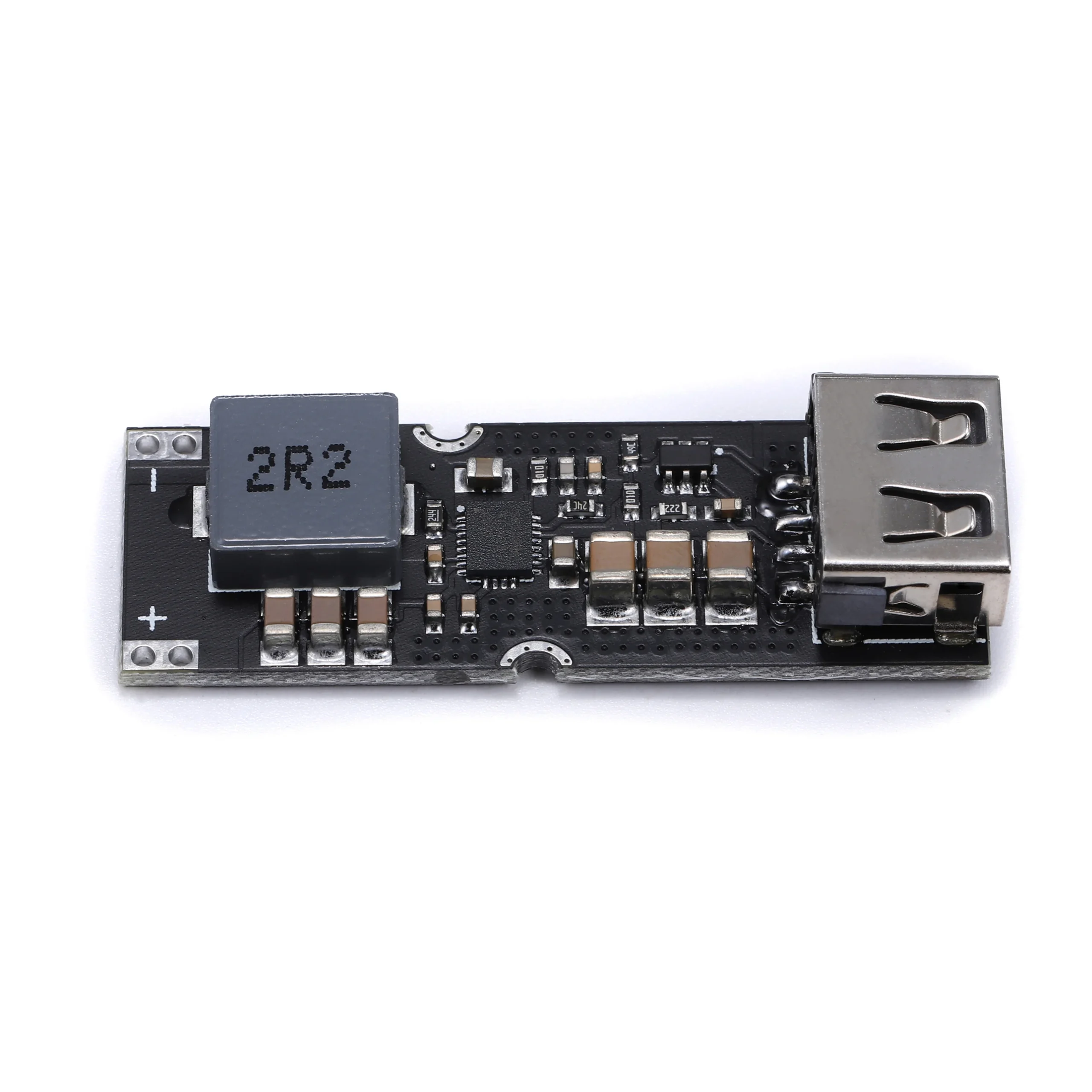

TPS61088 Single Cell Lithium Battery Boost Power Module Board 3.7V 4.2V Liter 5V 9V 12V USB Mobile Phone Fast Charge QC2.0 QC3.0

Caution.

The module does not come with reverse connection protection, remember not to connect the wrong input positive and negative terminals.

Input voltage range 2.8 ~ 4.5V, not 5V input.

Lithium battery must be added to the protection board, the protection board continuous current of at least 5A or more.

This module can be powered by a single lithium battery, multiple parallel power supply is also possible.

Product description.

Name: single-cell lithium battery boost fast charging power module

Main control chip: TPS61088A

Identification chip: FP6601Q

Input voltage: 2.8 ~ 4.5V, ideal for 3.7V polymer lithium battery

Output voltage: 5V by default, between 4.5V to 12V according to the protocol after triggering fast charging

Input rated current: 8A

Output current: 5V3A, 9V2A, 12V2A. Output current adaptive.

Output power: 24W max.

Support protocol: QC2.0, QC3.0, Huawei FCP, DCP protocol

Efficiency up to 93%, typical value 90%.

Input wiring: Solder wire, try to use thick wire

Module size: 47.5 (L)*16.5 (W)*8 (H)mm (including USB)

Module net weight: about 7g

Supplementary chip-related information.

The Tianyu FP6601Q chip integrates the Hysis fast charging protocol and Qualcomm QC2.0/3.0 USB interface fast charging protocol, enabling fast charging for devices supporting FCP, QC2.0/3.0 protocol. In addition to supporting the USB BC1.2 standard, it also supports Apple and Samsung devices. The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device as a way to automatically adjust the voltage.

Product features: 1, support FCP voltage and current output protocol. 2, support Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output. 3, automatic identification of FCP and QC2.0/3.0 fast charging protocols. 4、Support China Telecom Enterprise YD/T 1591 protocol devices.

The TPS61088 is a high power density fully integrated boost converter with an 11mΩ power switch and a 13mΩ rectifier switch, providing an efficient small form factor solution for portable systems. With a wide input voltage range of 2.7V to 12V, the TPS61088 supports applications with single or two-cell lithium batteries. The device has a 10A switching current capability and is capable of delivering output voltages up to 12.6V.

The TPS61088 uses an adaptive constant-off-time peak current control topology to regulate the output voltage. Under moderate to heavy load conditions, the TPS61088 operates in PWM mode. Under light load conditions, the device can be operated in one of the following two modes selected via the MODE pin. One is the PFM mode, which increases efficiency, and the other is the forced PWM mode, which avoids application problems due to the low switching frequency. The switching frequency in PWM mode can be adjusted from 200kHz to 2.2MHz via an external resistor. The TPS61088 also implements a programmable soft-start function and an adjustable peak switching current limit function. In addition, the device provides 13.2V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.

The TPS61088 is available in a 20-pin 4.50 mm × 3.50 mm VQFN package.

Product Application Description.

This module can be applied to single-cell lithium battery 5V-12V output for general digital products charging, such as cell phones, Ipad, MP3, PSP, etc.. It can become a high current output mobile power by simply connecting to the battery. It can also be used to supply power for 5-12V products by setting the output voltage.
