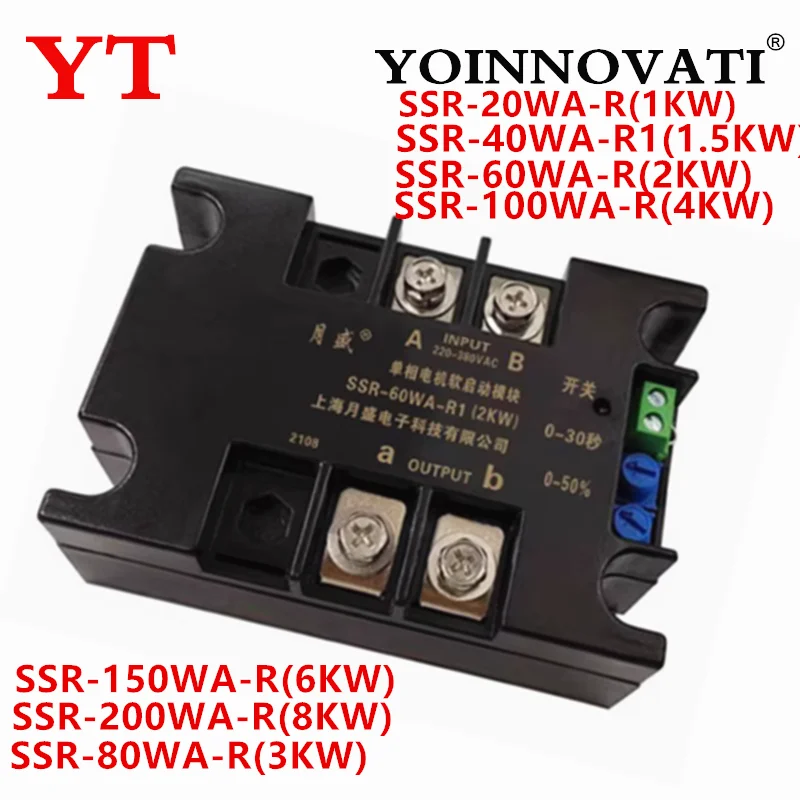

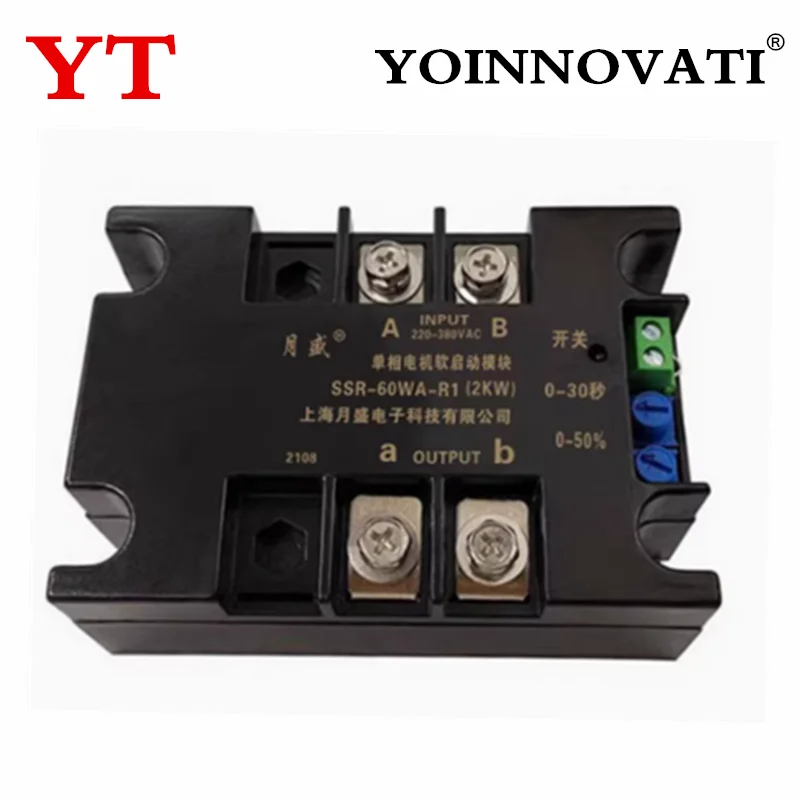

Single-phase motor Soft starter Soft start module Two-phase motor soft SSR-20WA-R1 1KW 2KW 4KW 6KW 8KW SSR-150WA-R2

YT Electronics components co.,ltd

Description

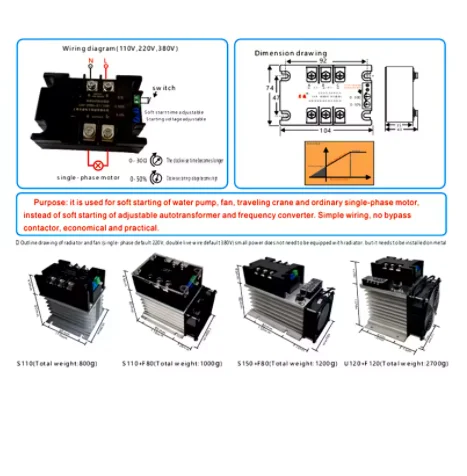

Purpose: Water pump, fan, navigation vehicle, ordinary single-phase motor soft, replace adjustable autotransformer start, soft start of frequency converter, etc. Simple wiring, no need to connect bypass contactor

Single motor start module, soft starter, simple wiring, manual or automatic, compatible with 220-380V, 50-60Hz

Voltage compatibility: single-phase 220VAC, two-phase 380VAC, frequency: 50-60Hz

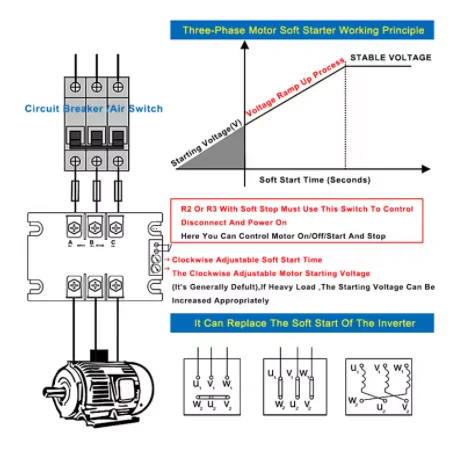

The soft start time is adjustable from 0-30s (soft start time refers to the whole process 0-220V, 0-380V)

The initial voltage is adjustable from 0-50% to the rated voltage (220V-380V)

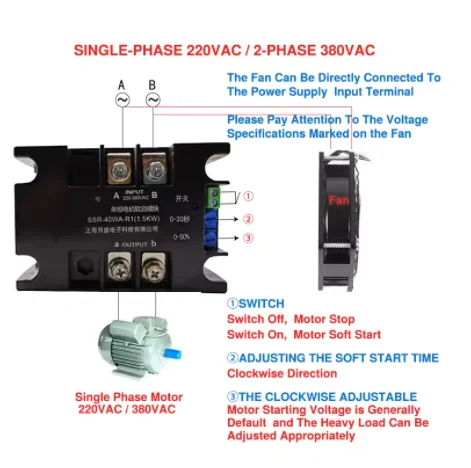

There are two ways to use:

1. When the switch is closed, the main power supply is energized and the soft start starts

2. Use the switch to control, close the soft start and start to open the stop

Note: No voltage can be applied to the switch. The default is R1. Please use this module with a heat sink.

R1 has soft start without soft stop！！！

R2 has soft start and soft stop (start from as much as V stop)！！！

It is recommended that the fan and radiator also be equipped with

1KW-2KW choose Radiator S1 and fan

2KW-4KW choose Radiator DS1 and fan

Specification

Rated current: 10A

Setting current: 10-200A

Rated voltage: 220-380

Scope of application: soft start

Motor power: 1KW-8KW

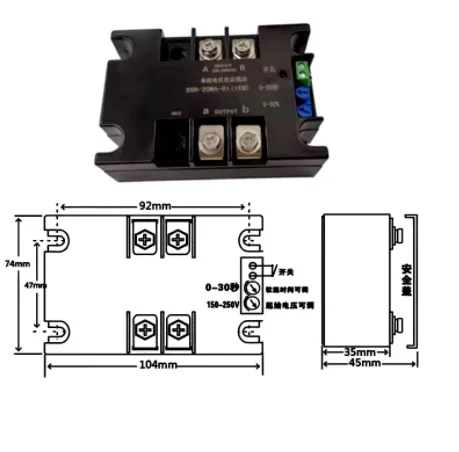

Dimensions: 110*75*100

Starting boost time: 30S

Contact switching current: 10A

Application: Start

Package Included

1 × Single-phase soft starte module
