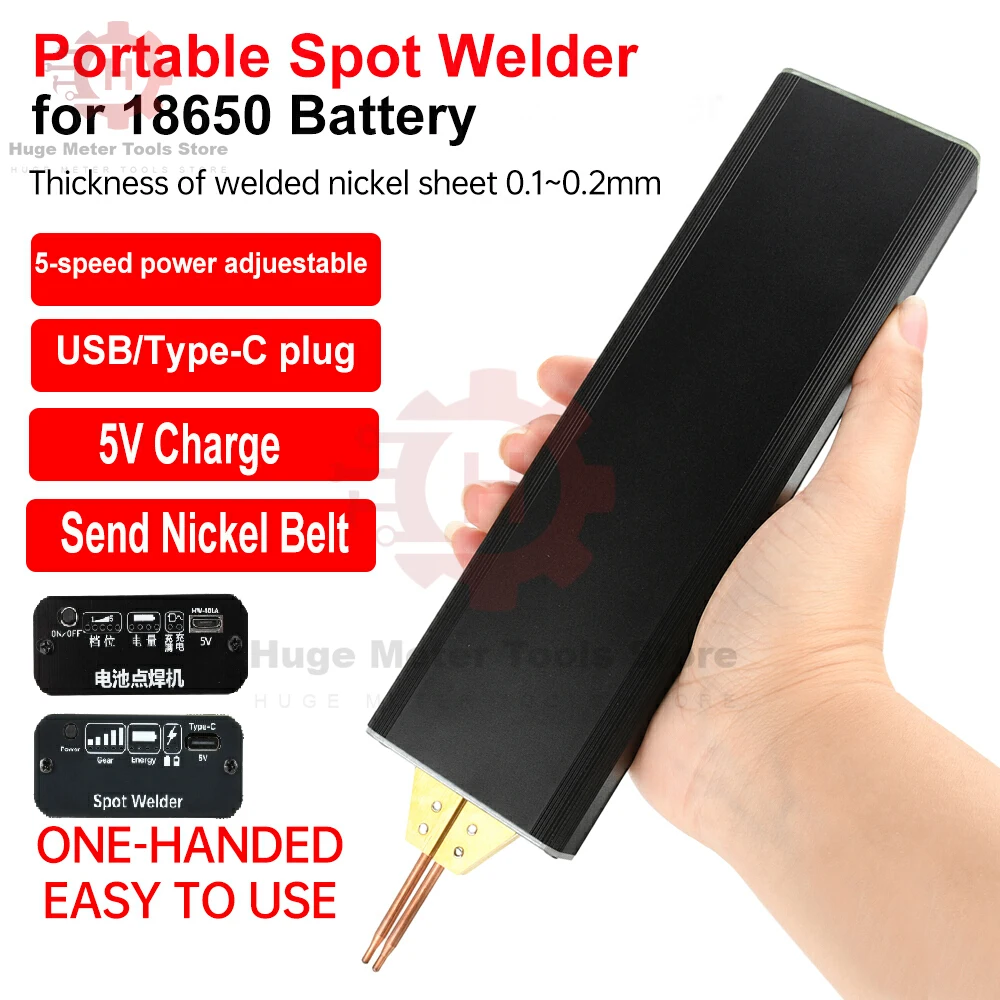

Portable Spot Welder 5 Gears Adjustable USB/Type-C Digital Display Min Spot Welding Machine Automatic Trigger for 18650 Battery

Featuers:
1.5-speed adjustable power, more accurate welding, better effect, full charge can weld continuously for more than 1,000 times
2. Spot welding machine delivers nickel strip, can be held with one hand, convenient to use, can weld mobile phone batteries, support welding of various common nickel-converted mobile phone batteries, plus the portable feature, it is more convenient to repair mobile phones when going out
3. Supports welding of nickel sheets with a thickness of 0.1-0.15mm, supports welding of 0.15mm nickel sheets when fully charged, intelligent identification, fully automatic welding operation, simple and convenient, supports welding of stainless steel sheets and stainless iron sheets, strong welding, excellent welding points

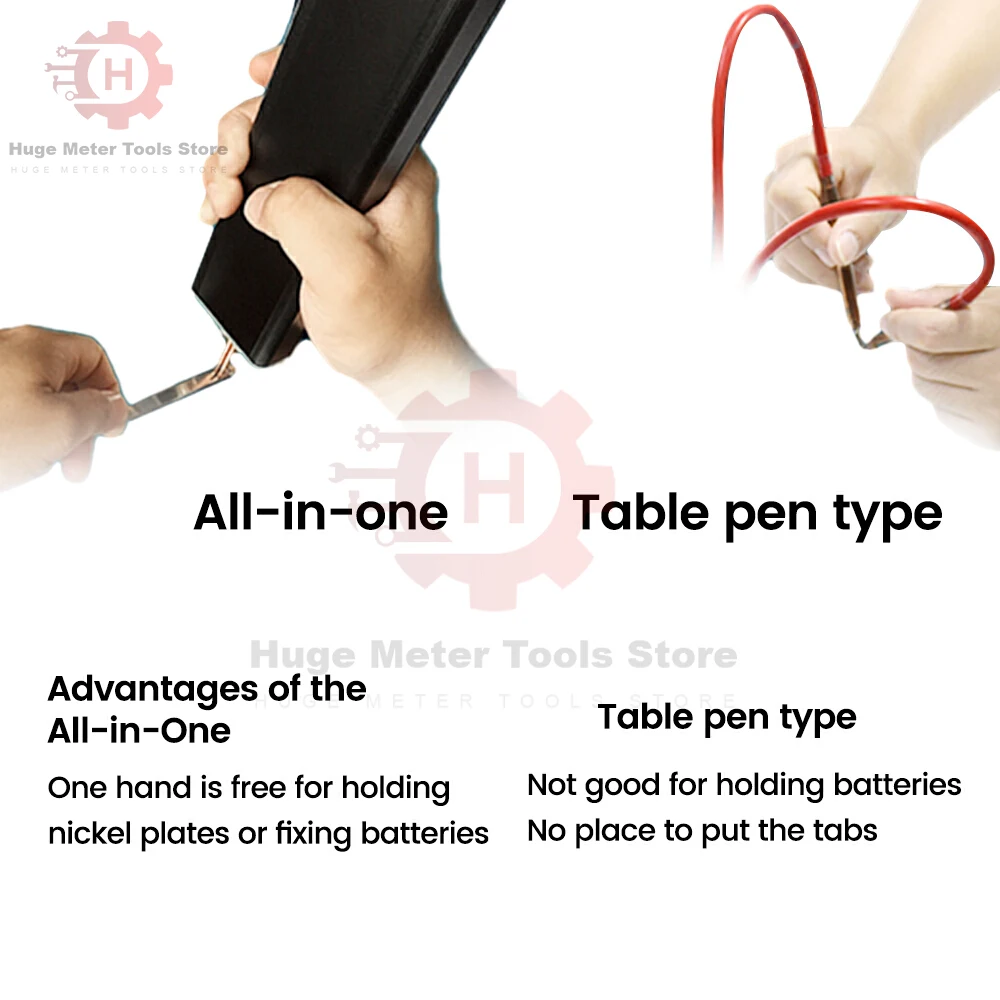

4. More accurate welding, one-handed operation, one-handed holding, convenient operation and use, integrated advantage, can free one hand to hold nickel sheets or fix batteries
5. Intelligent identification, fully automatic welding, simple and convenient operation, this product supports use while charging, remaining power indication: green (high), green flashing (medium-high), red flashing (medium-low), red (low), red light is on and must be charged before it can work

Product parameters
Style 1: Micro USB interface
Battery voltage: 3.7V
Maximum output current up to 1200A
Fully charged can weld continuously for more than 1000 times

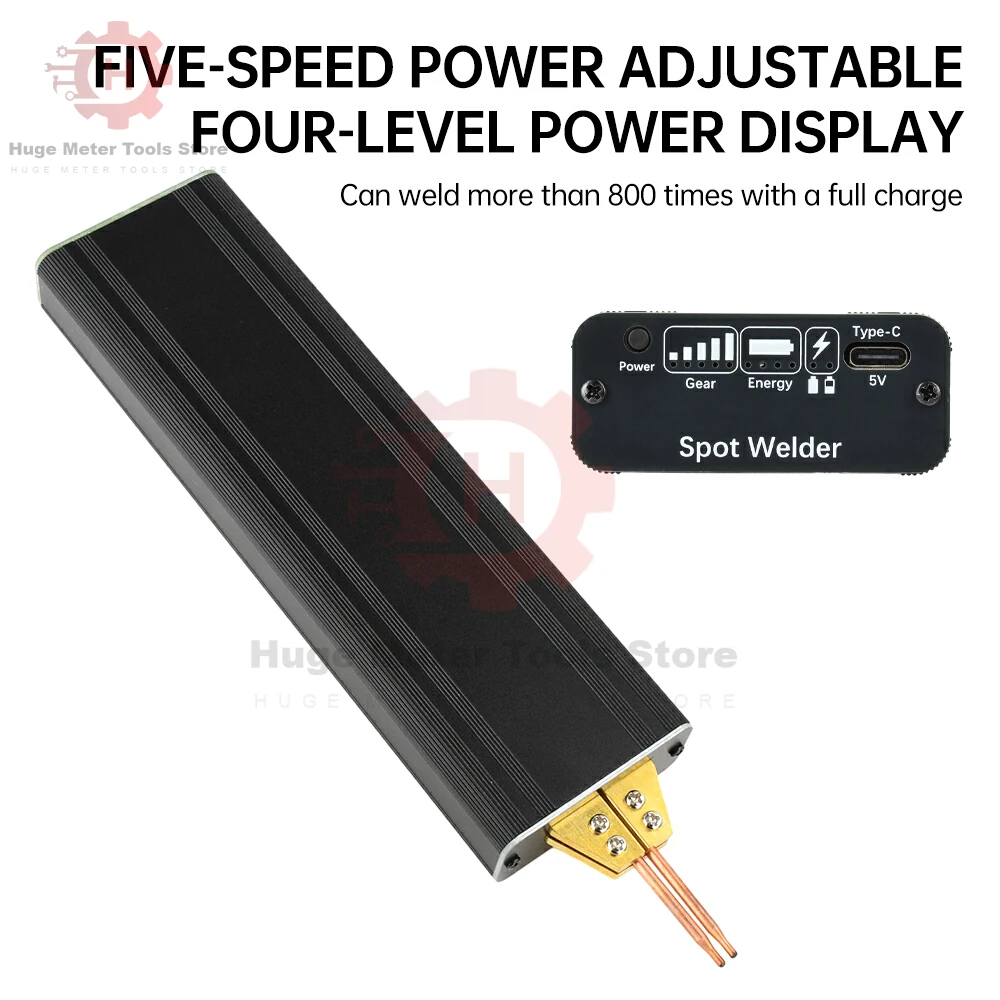

Five power levels are adjustable, short press button control, blue light indication
Charging port: USB plug charging
Charging voltage: 5V input (higher voltage input is strictly prohibited)
Charging current: 1A (5V/2A charger is recommended)
This product supports charging while using, remaining power indication: green (high), green flashing (medium high), red flashing (medium low), red (low), red light is on and must be charged before it can work. Low power will affect the welding effect

Style 2: Type C interface
Product name: Portable handheld spot welding machine
Input interface: Type-c charging port
Gear adjustment: 5 gears
Battery type: lithium polymer battery
Design current: 800A (MAX)
Nickel strip thickness: 0.1-0.15mm

Note:
Copper and aluminum surfaces cannot be welded, rusty surfaces cannot be welded, and smooth stainless steel surfaces can be welded normally.
Some batteries have one electrode of stainless steel and one electrode of aluminum. Our spot welder can weld stainless steel electrodes, but aluminum electrodes require ultrasonic welding. Please pay attention.
Again, aluminum electrodes and copper electrodes cannot be welded.

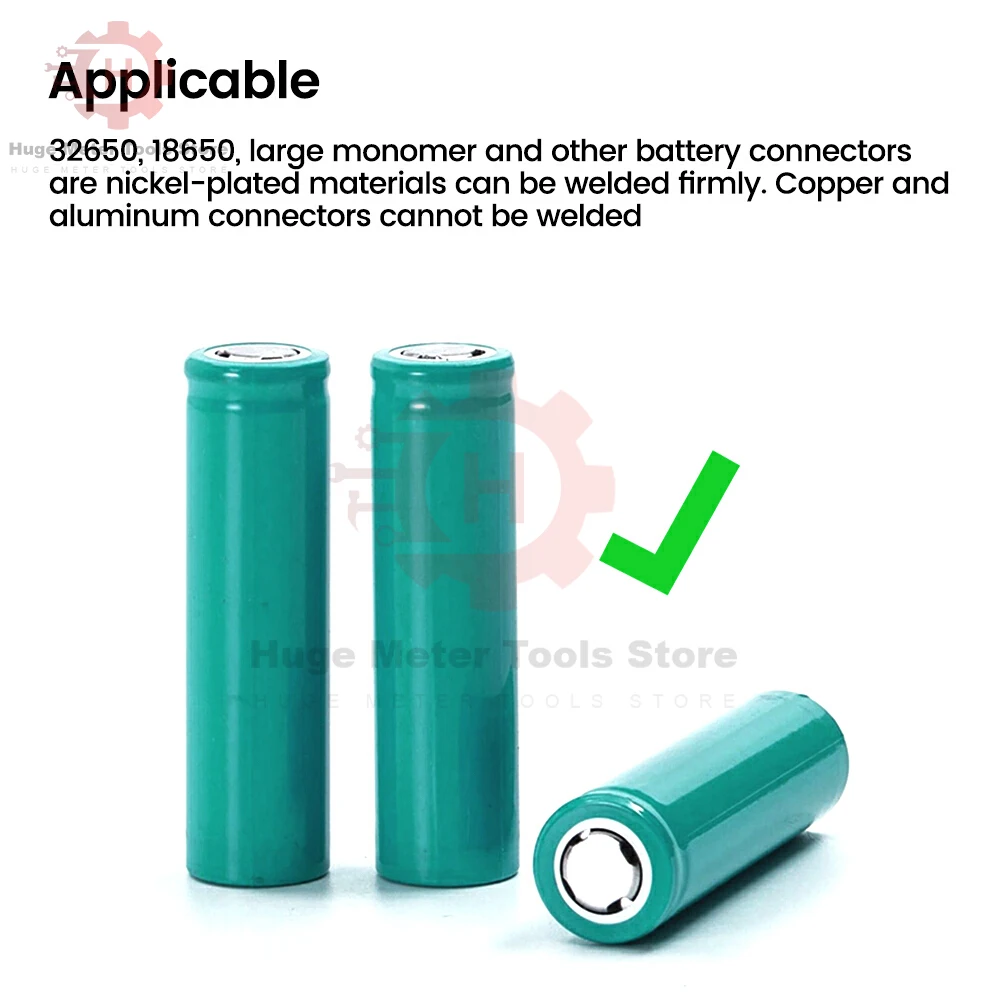

Common round batteries such as 18650, 32650 can be welded. The welding will be output only when the two needles are pressed stably on the nickel sheet. Lift it up and weld it again.

Instructions for use:
Spot welding nickel sheet:
1. The battery must be fully charged. The thickness of the spot welded nickel sheet cannot be thicker than 0.15MM.
2. Pay attention to the pressure during spot welding. The harder you press, the less heat you get; the lighter you press, the greater the heat you get; but if it is too light, it will be perforated, and if it is too heavy, it will not be firmly tapped. So you need to use appropriate force and don't press too hard.
3. The battery should be polished and the oxide layer and unevenness on the surface should be removed. If the soldering pen is oxidized and blackened, please polish it with fine sandpaper.
4. Use the tip of the pen to tap, so that it can be tapped more firmly.
Welding method: visually observe the welding head, hold it at 60° to the horizontal plane, press the two needles on the surface of the nickel sheet at the same time, make good contact, and the current flows from one needle to the other needle. The large current melts the nickel sheet, thus successfully welding the battery and the nickel sheet.

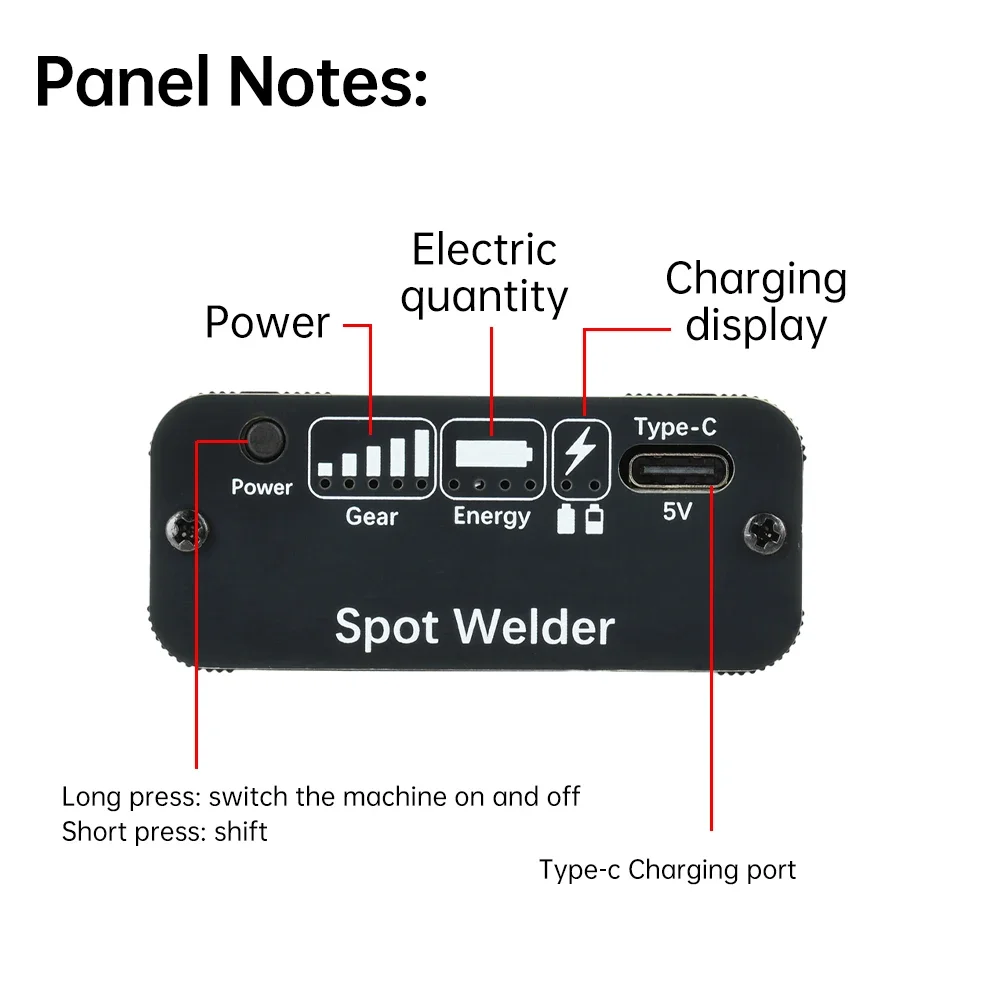

Power on and off instructions:
Short press to turn on
Long press to turn off
It will automatically shut down if there is no operation for 6 minutes

Delivery list:
Spot welding machine X1
Nickel belt X1
USB charging cable X1
