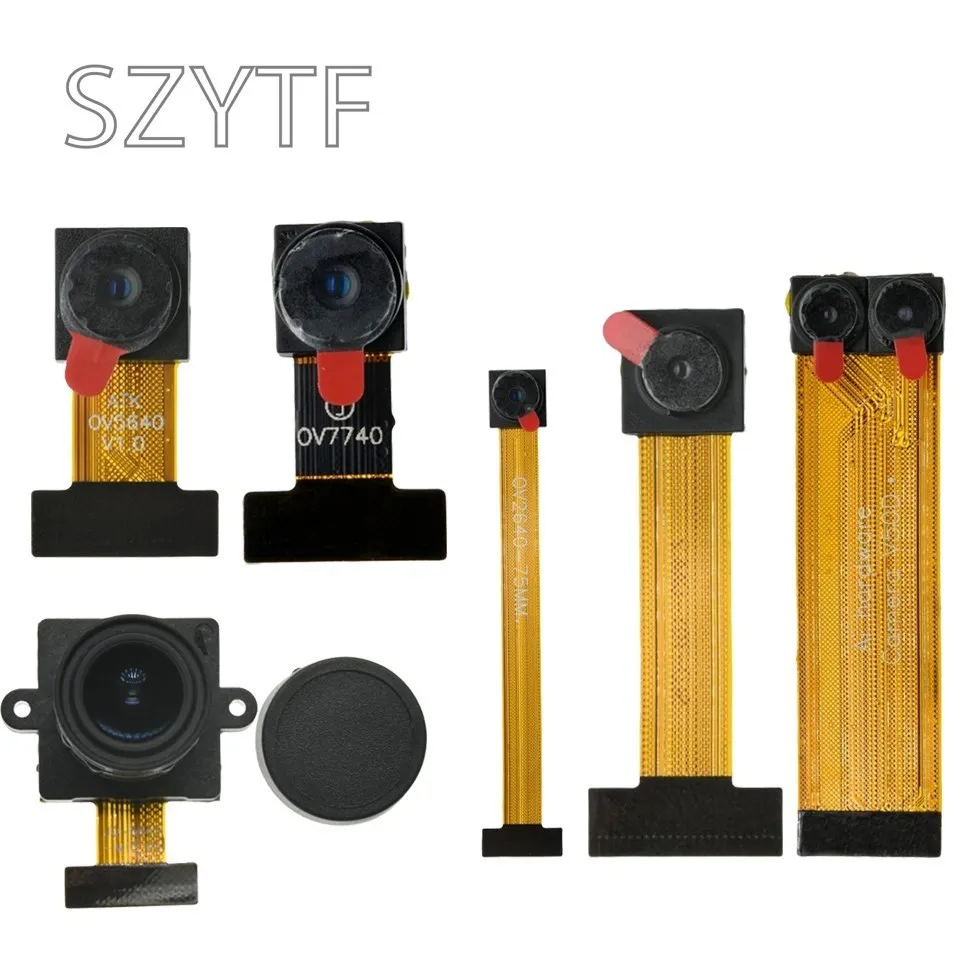

OV2640 OV5642 GC0328 OV5640 OV7740 Camera Module 30W 200W 500W Pixel 60 68 Degree For ESP32 K210 SMT32 MCU

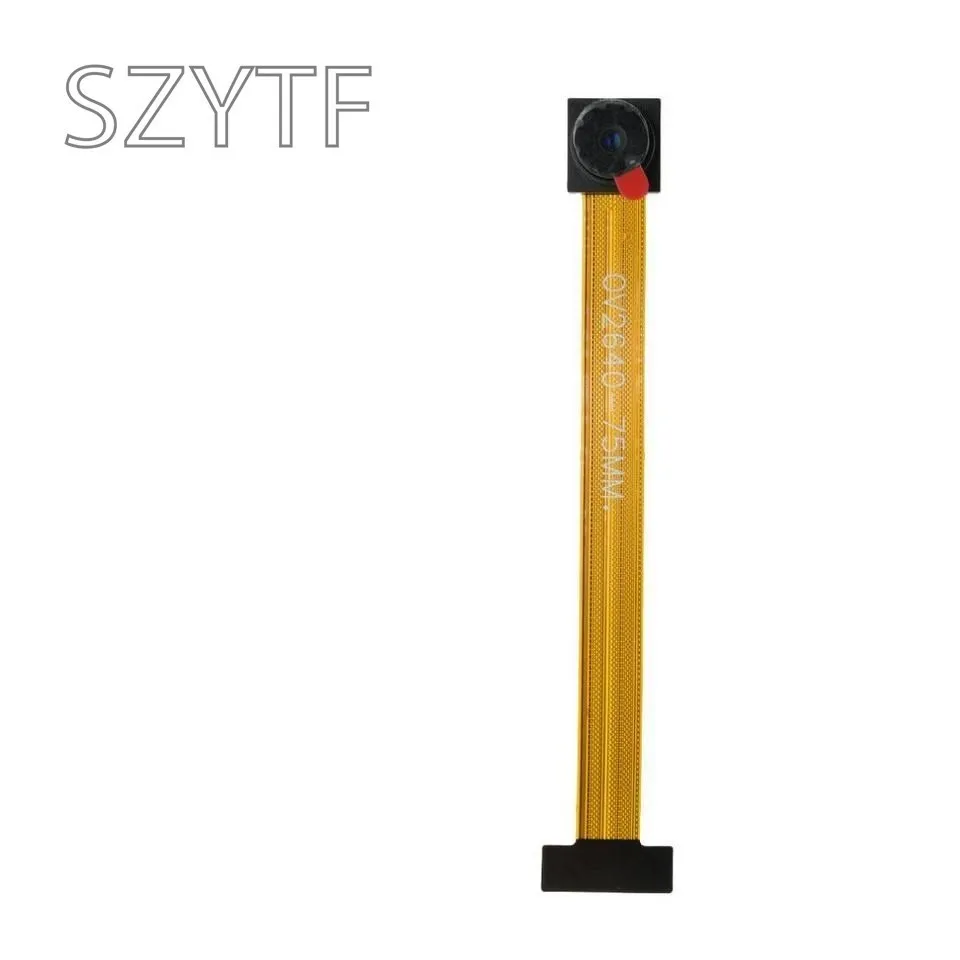

OV2640 is a 1/2.7-inch CMOS image sensor. It has a effective pixel of 2 million and supports capturing photos with resolutions such as 160×128, 320×240, 352×288, 640×480, as well as videos with resolutions such as QVGA, VGA, SVGA. Additionally, it supports JPEG and RGB565 formats and can display images in YCbCr format.

GC0328 is a low-power CMOS image sensor mainly used in fields such as mobile phone cameras, IP cameras, and car mounted cameras. It adopts a 1/4 inch optical format with a pixel count of 300000 and supports a maximum resolution of 1600 x 1200 pixels. GC0328 is equipped with an ISP front-end processor, which supports automatic exposure, automatic white balance, and autofocus functions, and has high image quality. It adopts MIPI interface, which can achieve high-speed data transmission and improve the performance of the sensor.

OV5642 is a CMOS camera sensor with VGA resolution. It adopts a 1/4 inch optical format with an effective pixel size of 300000, and supports capturing photos and videos in resolutions such as 640×480, 320×240, and 160×120. In addition, it also supports formats such as RGB565 and YUV422, and can display images in YCbCr format.

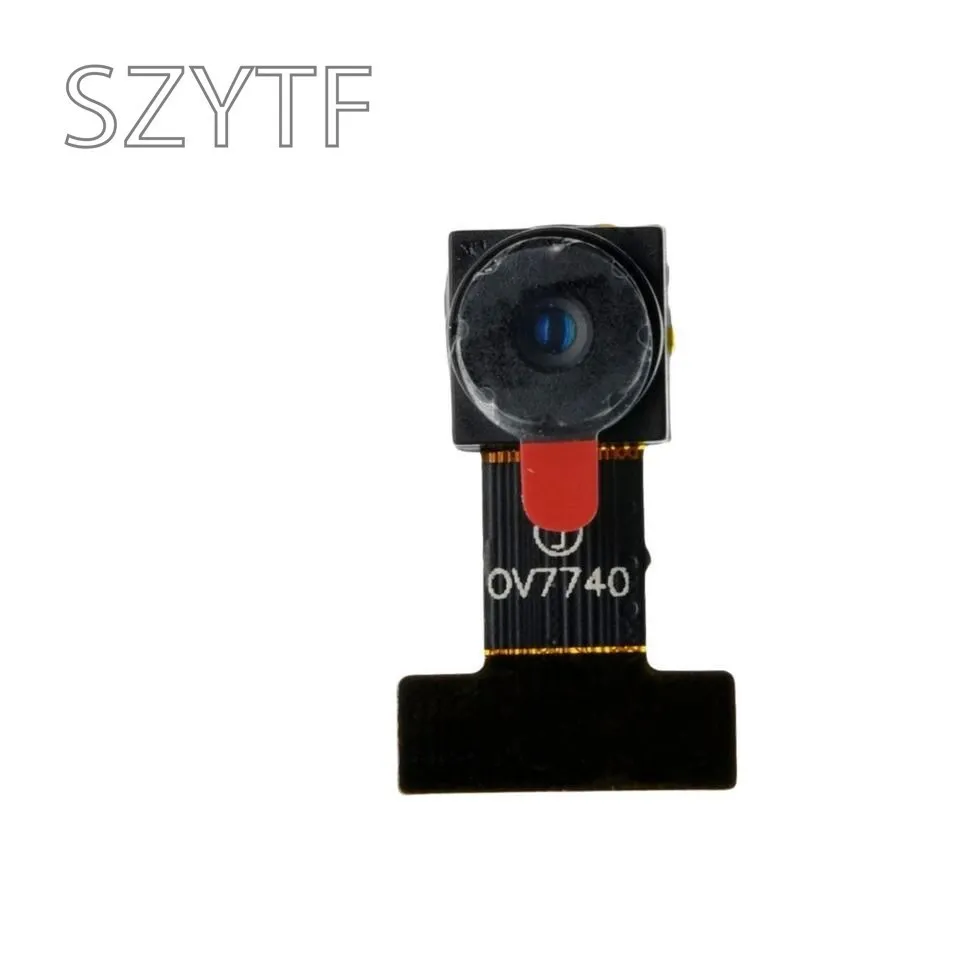

OV7740 is a color CMOS camera sensor with VGA resolution. It adopts a 1/4 inch optical format with an effective pixel size of 300000, and supports capturing photos and videos in resolutions such as 2048×1536, 1600×1200, 1280×1024, 800×600, 720×480, 640×480, 320×240, 176×144, etc. In addition, it also supports formats such as RGB565, RGB555, YUV422, and can display images in YCbCr format.

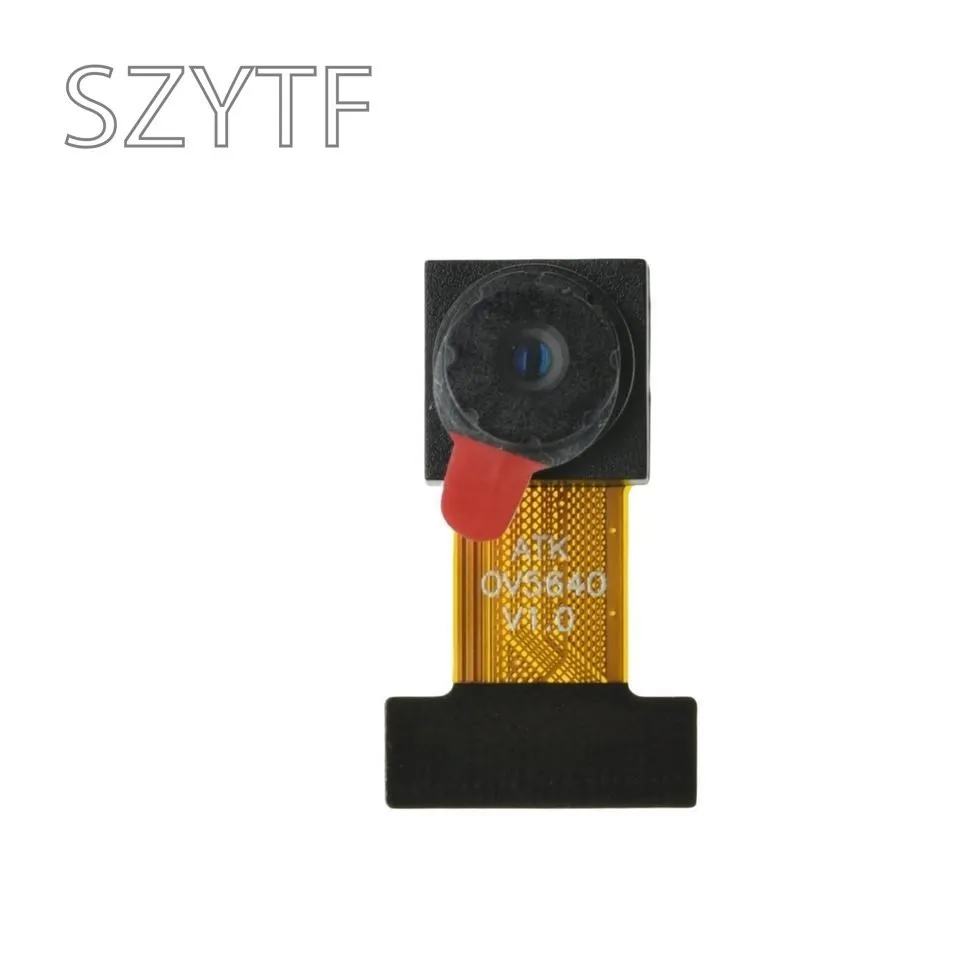

OV5640 is a 1/2.7-inch CMOS camera sensor with 5 million pixels. It supports a maximum resolution of 1936×1090 and displays images in YUV or RGB format. At the same time, it also supports many special functions, such as automatic white balance, color correction, barrel distortion correction, and mirroring, providing high-quality images.
