Mini Humidifier Modulle DC 5V Dual Spray Three Spray Ultrasonic Atomizer Humidifier Module Mist Maker and Driver Circuit Board

Features:
1. Multiple specifications to choose from: Dual spray and triple spray specifications can be selected to meet different environmental needs and have stronger adaptability.
2. Efficient atomization performance: Micro porous atomization sheet, resonant frequency 108-110KHz, fine and uniform atomization.
3. Low power design: Rated power of 1.5-2W, effectively saves power, suitable for long-term stable operation.
4. Compact and lightweight structure: Small in size, easy to integrate into various devices.
5. Convenient use method: simple installation, no switch design, spray in case of water, convenient operation.

Parameter:
Style: Double spray, triple spray
Material: 1.2mm FR-4

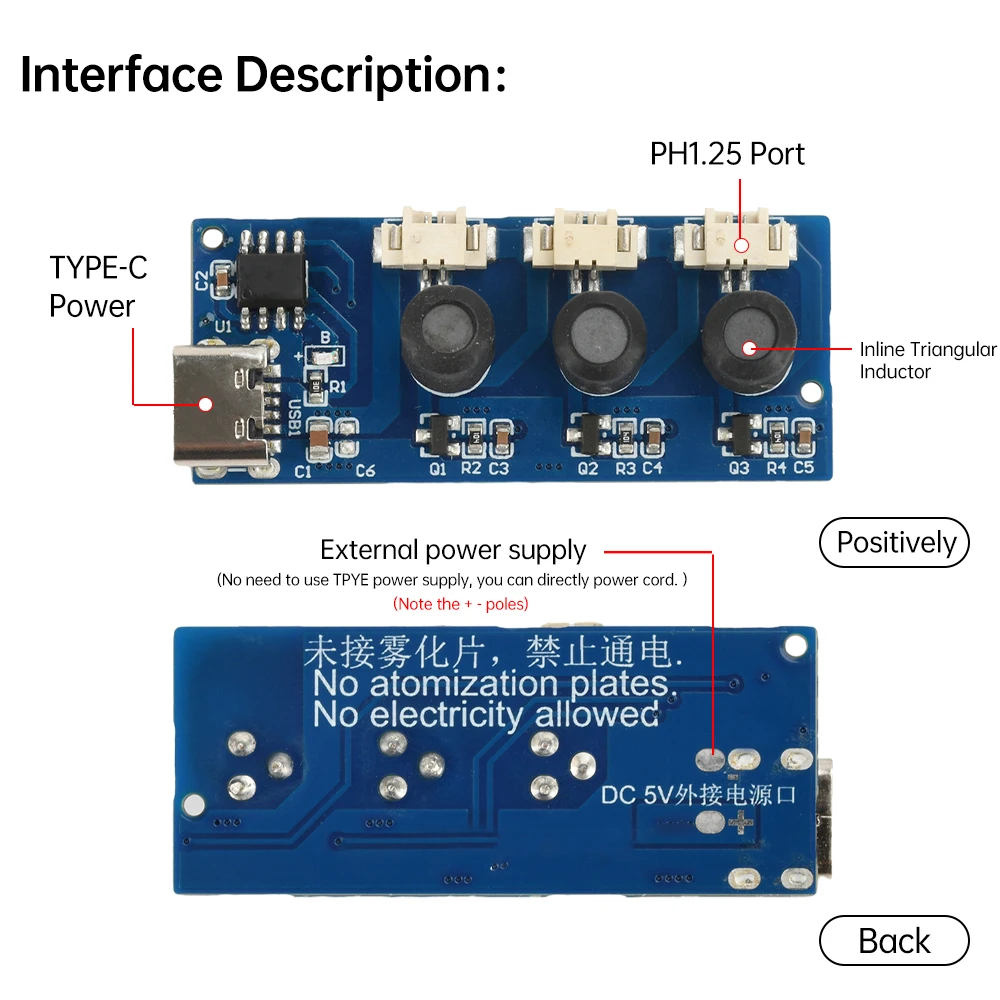

Power supply interface: TYPE-C
Terminal interface: PH1.25 interface
Supply voltage: DC 5V
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ ± 5KHZ
Double spray motherboard size: 35mm * 19mm (board thickness 1.2mm)
Three spray motherboard size: 47mm * 19mm (board thickness 1.2mm)
Atomization parameters:
Name: Microporous Atomization Sheet
Drive voltage: 5V
Resonant frequency: 108-110KHz ± 5KHZ
Rated power: 2W
Aperture: 4-5UM
Number of perforations: 800
Silicone sleeve outer diameter: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16mm
Line length: 100MM
Wire terminal: PH1.25
Plastic bracket cotton swab: 100mm * 8mm

usage method:
1. First, install the atomizer bracket and cotton swab
2. Connect the atomizing plate to the module atomizing plate port
3. Connect the power supply to the module power port again
4. Press the power switch
5. Spray when the atomizer meets water

matters needing attention:
1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled
2. It is strictly prohibited to power on without connecting the atomizing plate
3. It is strictly prohibited to use fast chargers
4. It is strictly prohibited to modify modules
5. The module must not touch water
6. Full steel sheet (raised surface) in downward contact, cotton swab absorbs water
7. Rated power input

Package Include:
Combination 1:
1X humidifier module

Combination 2: Dual Spray Ultrasonic Atomization Humidifier Module
1X humidifier module
2X atomizing sheet
2X bracket
2X cotton swab

Combination 3: Three spray ultrasonic atomization humidifier module
1X humidifier module
3X atomizing sheet
3X bracket
3X cotton swab
