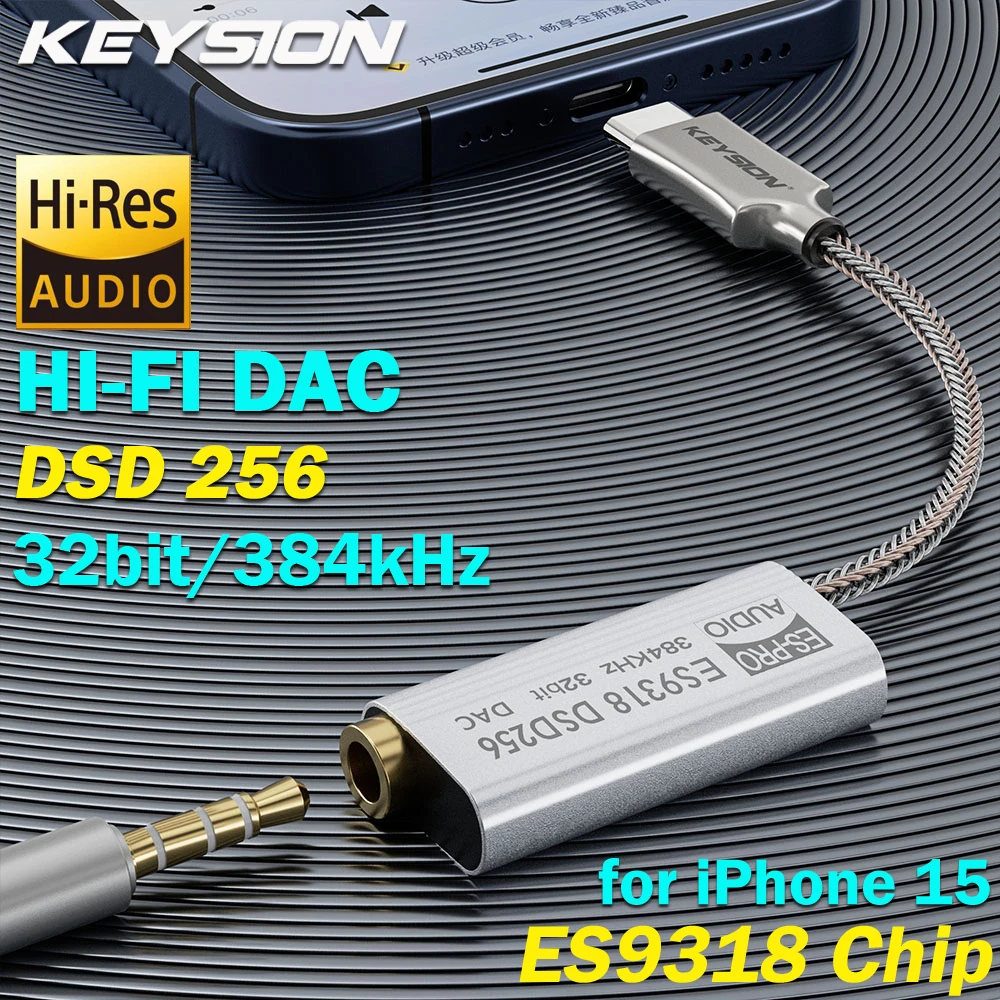

KEYSION ES9318 DSD256 HIFI DAC Headphone Amplifier USB Type C to 3.5mm Audio Adapter 32bit 384kHz Decoder for iPhone 15 Pro Max

KEYSION ES9318 DSD256 HIFI DAC Headphone Amplifier USB Type C to 3.5mm Audio Adapter 32bit 384kHz Decoder for iPhone 15 Pro Max

After practical testing, in the for iPhone 15 series phones, it supports calling and listening to music.

Input: TYPE-C,iOS

Output: 3.5mm Earphone Port

Decoding chip: ESS ES9318

Bit depth: 16/24/32bit

PCM Specification: 44.1/48/88.2/96/176.4/192/352.8/384Khz

DSD Specification: DSD64/128/256

USB Output DSD Audio Support Mode: DOP (DSD64/128/256)

NATIVE (DSD64/128/256)

Signal to noise ratio/SNR：130dB

Dynamic range/DNR: 130dB

Distortion/THD+N: -120dB

Frequency response/FR：20Hz-40KHz (+0.02d,-0.05dB)

Thrust impedance: 16-600Ω Adaptive.

MQA rendering support:MQA Core

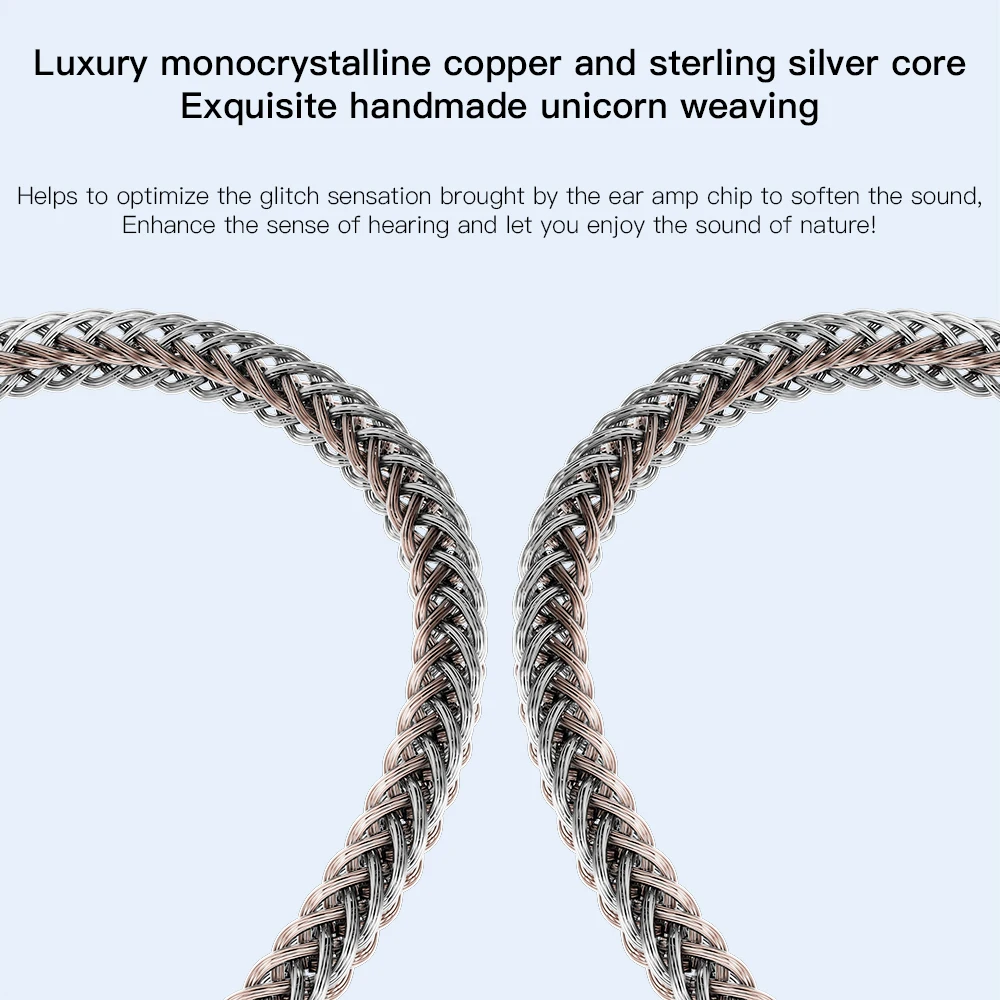

Core material: Single Crystal Copper

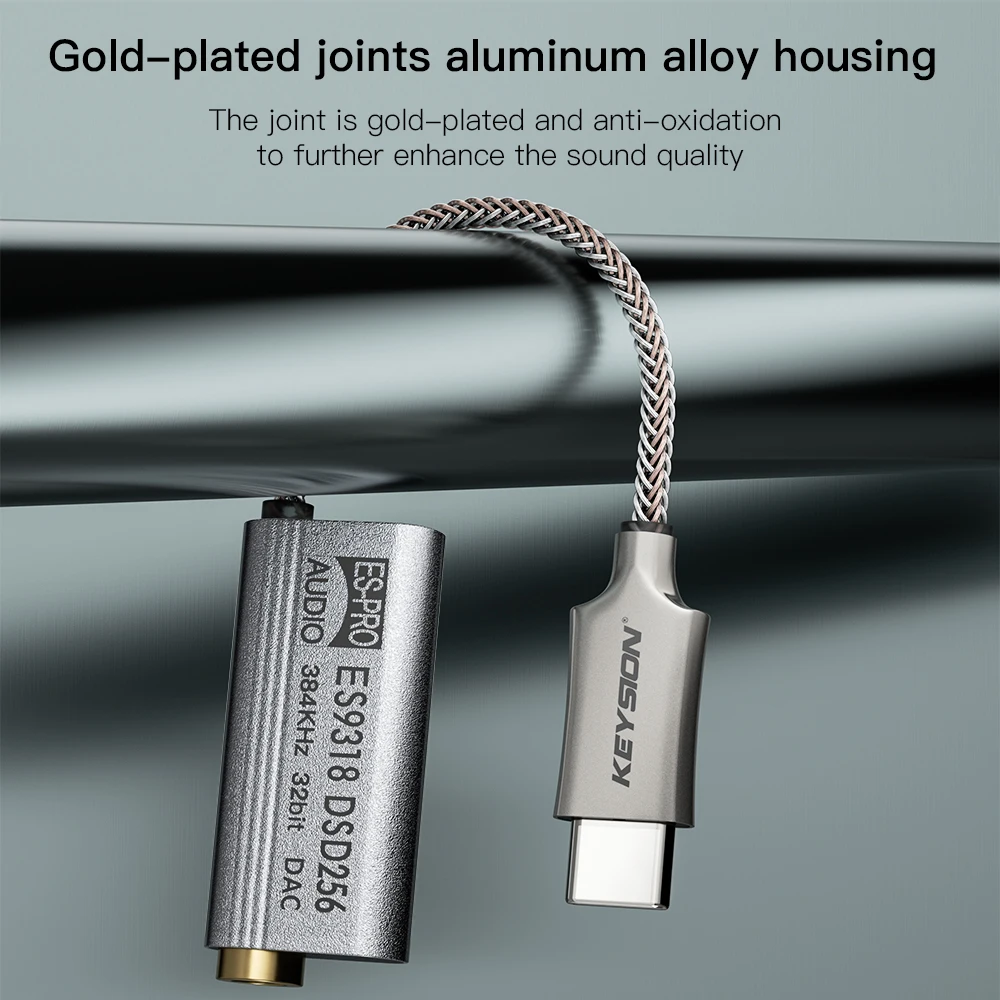

Shell material: Aluminum alloy

Product length: 12CM +-0.5mm

Product weight: 11.5g

Packaging includes:

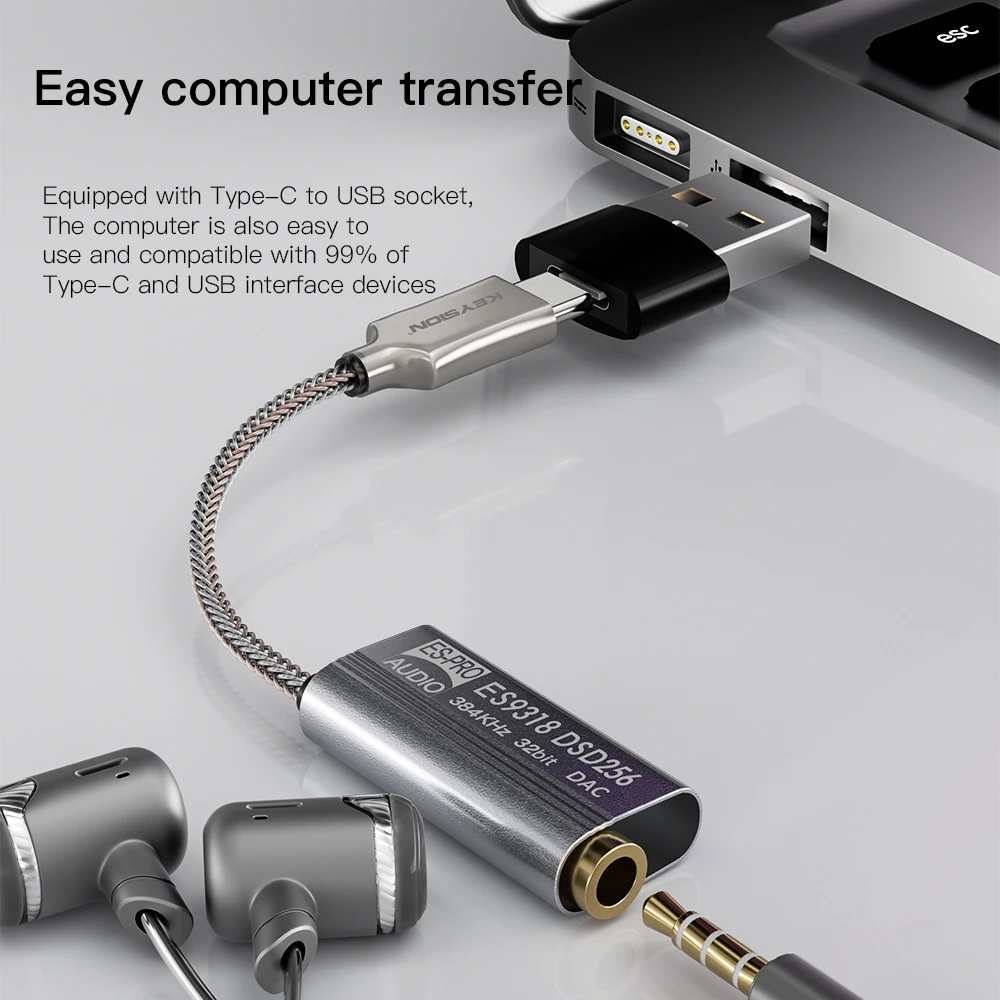

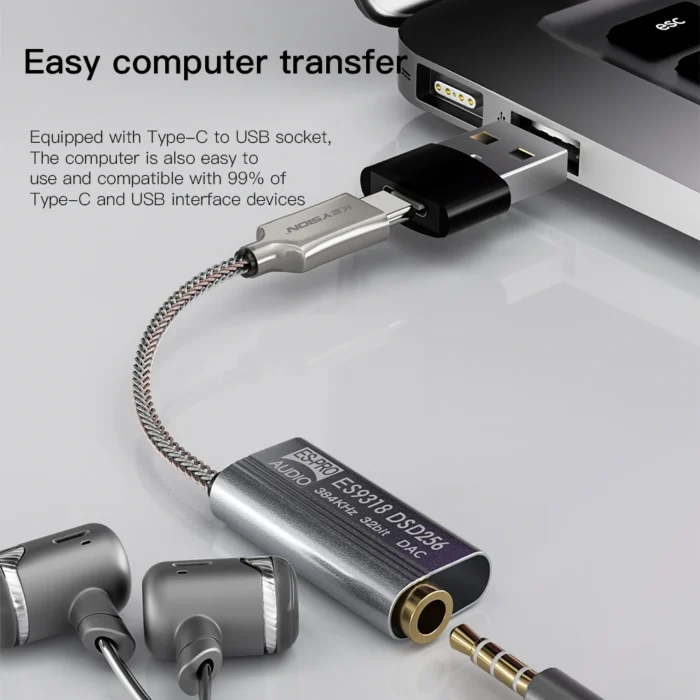

Type-C to 3.5 mm DAC Adapter x1, USB To Type-C Adapter x1

Note:The ios Version does not come with a USB To Type-C adapter

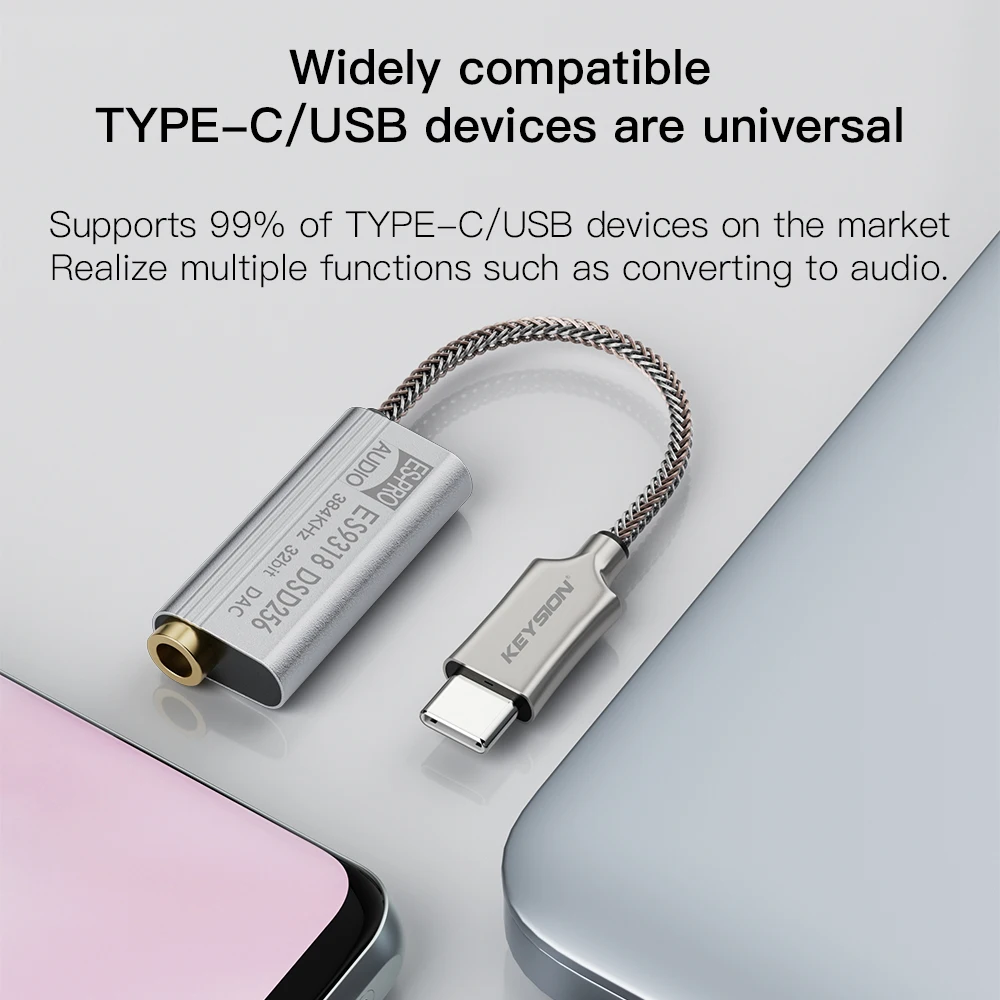

Support : 99% USB TYPE-C ports for smart devices, smartphones / tabletsFor Huawei /For Xiaomi/ For Redmi / For Samsung / For Sony / For Honor /For OPPO……more

Instructions

1. Can be compatible with most of the Android phones which has TYPE C interface on the market. Please make sure that you have turned the “OTG function” and “USB debugging mode” on of your android phone. Please find these two switches under “developer options” on your phone first.

2. This is a plug-and-play device on the for Apple computer system (Type-c port), please select it as the default audio output device in the "MIDI device" after connecting the product. (In this case, does not support DSD music, supports PCM music)

3.Can work directly on windows system which is latter than WINDOWS 10 (version 1703) without installing any USB audio driver, Support plug and play.( Incompatible with Windows 7)
