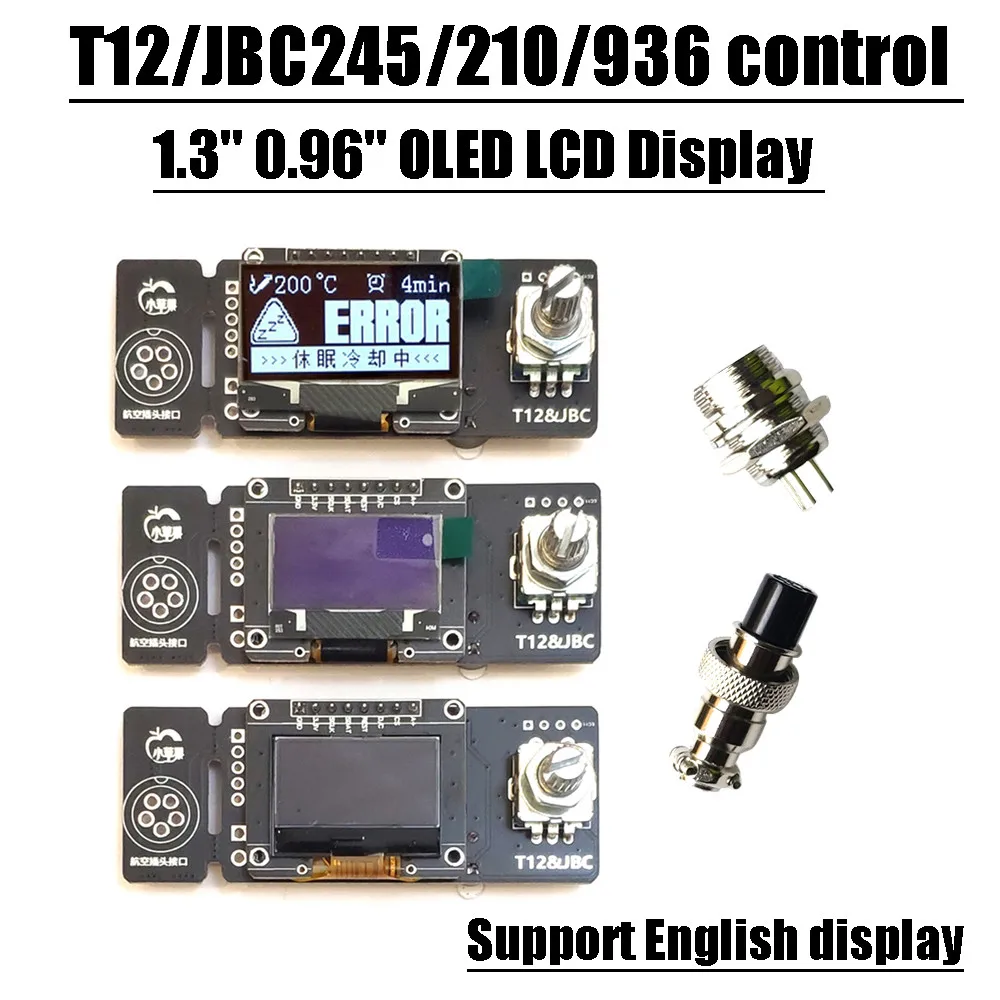

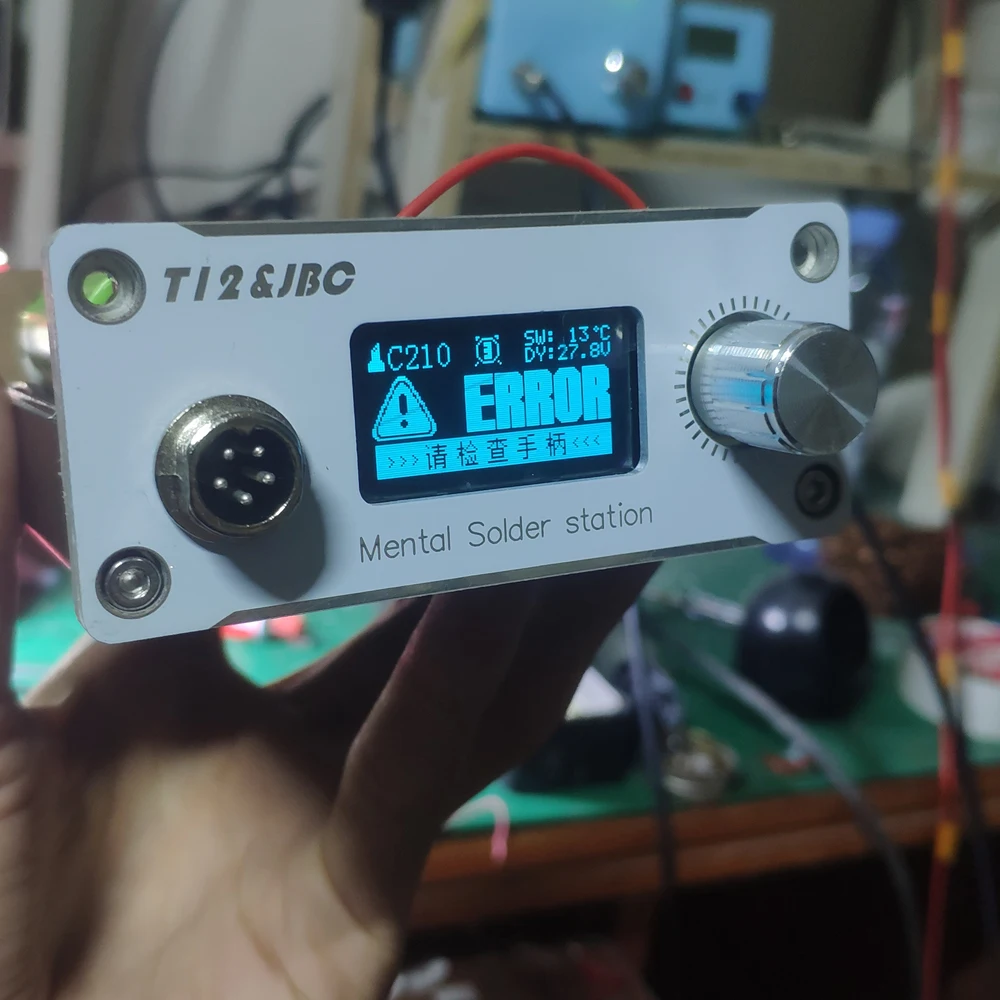

JBC245 210 936 T12 Controller Control Board 0.96 OLED Display Digital Electric Soldering Iron Soldering Station 12V 24V HAKKO

Features:

Note: DIY is risky. Please pay attention to your wiring. Miswiring can burn out MOS

Please note:

1. The higher the power supply, the better

2. The wiring must be connected correctly, otherwise it cannot work properly!

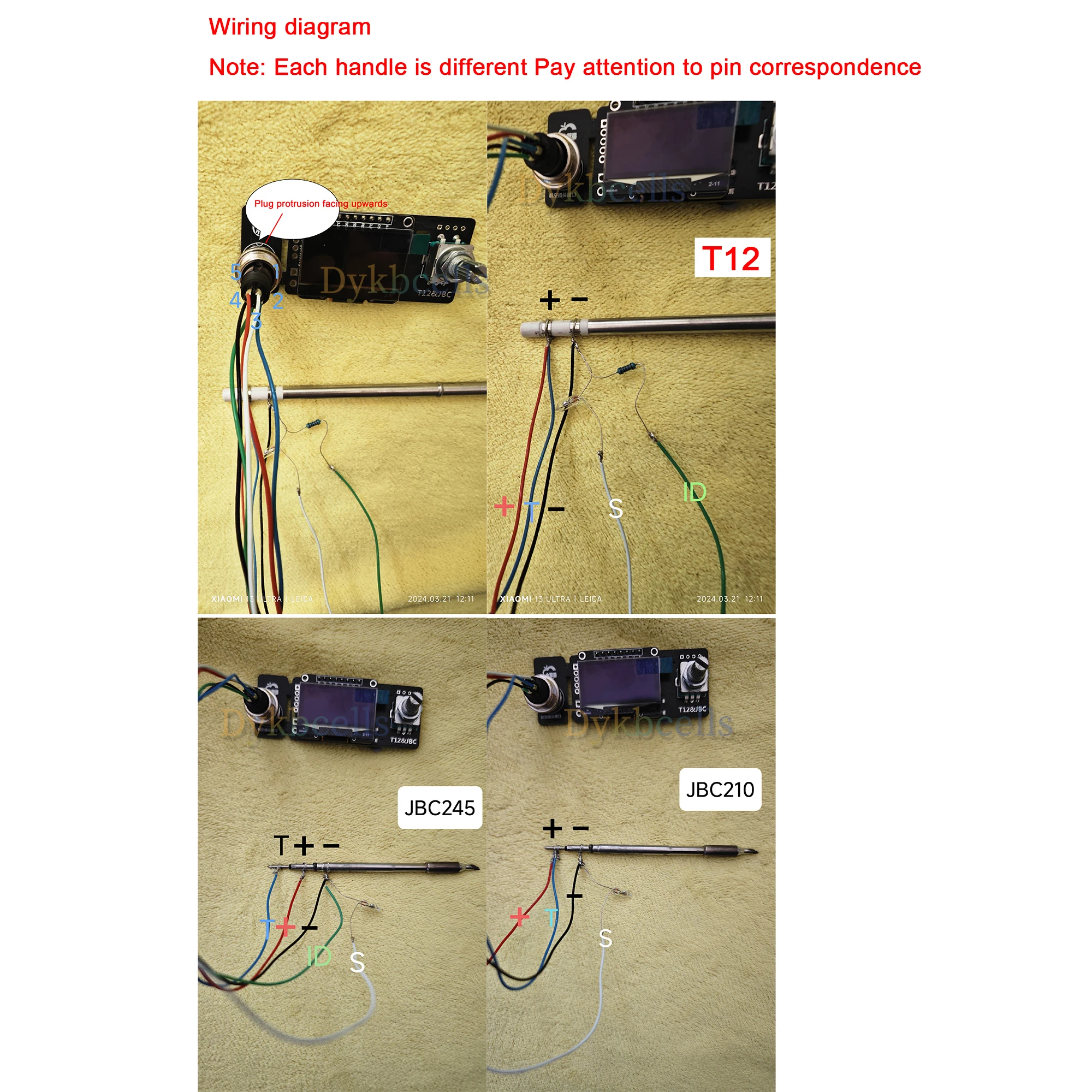

3. Please refer to our video wiring or picture wiring

Power requirements

support English Chinese display

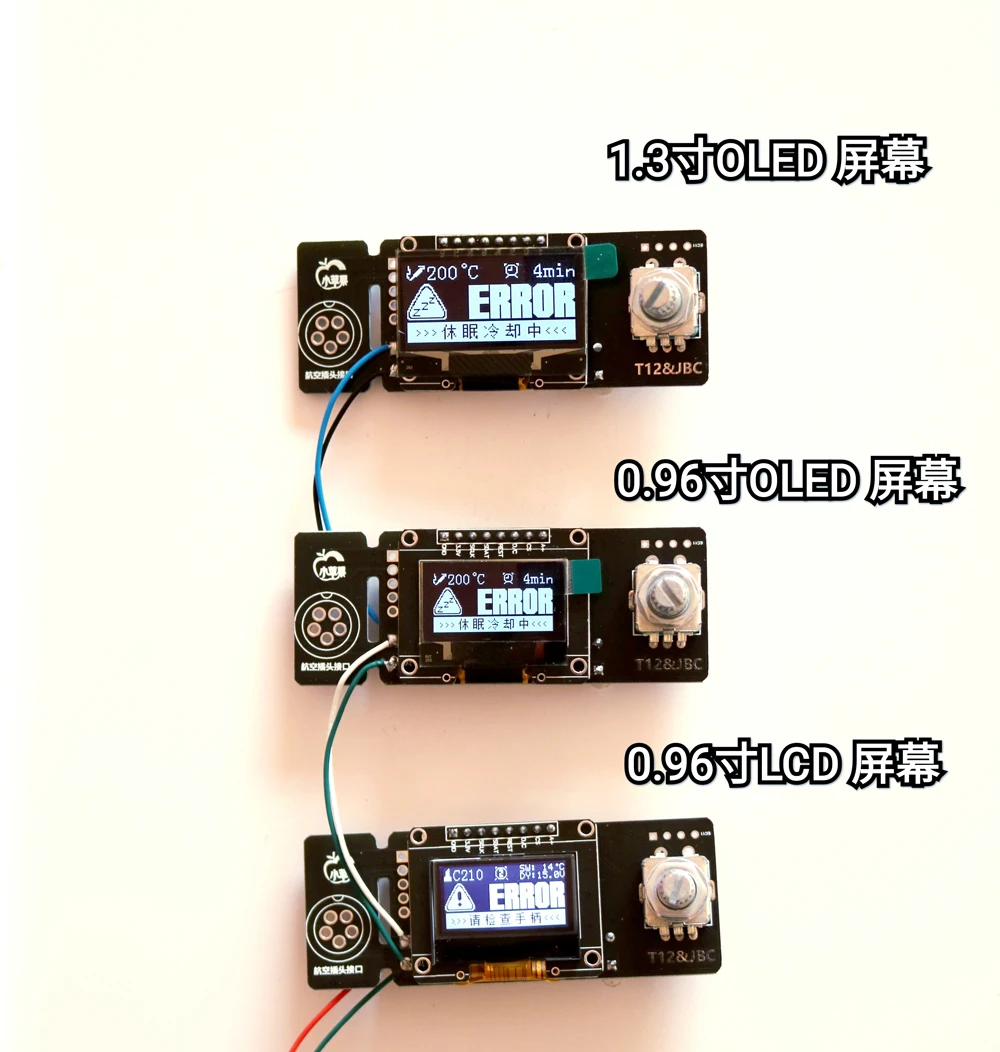

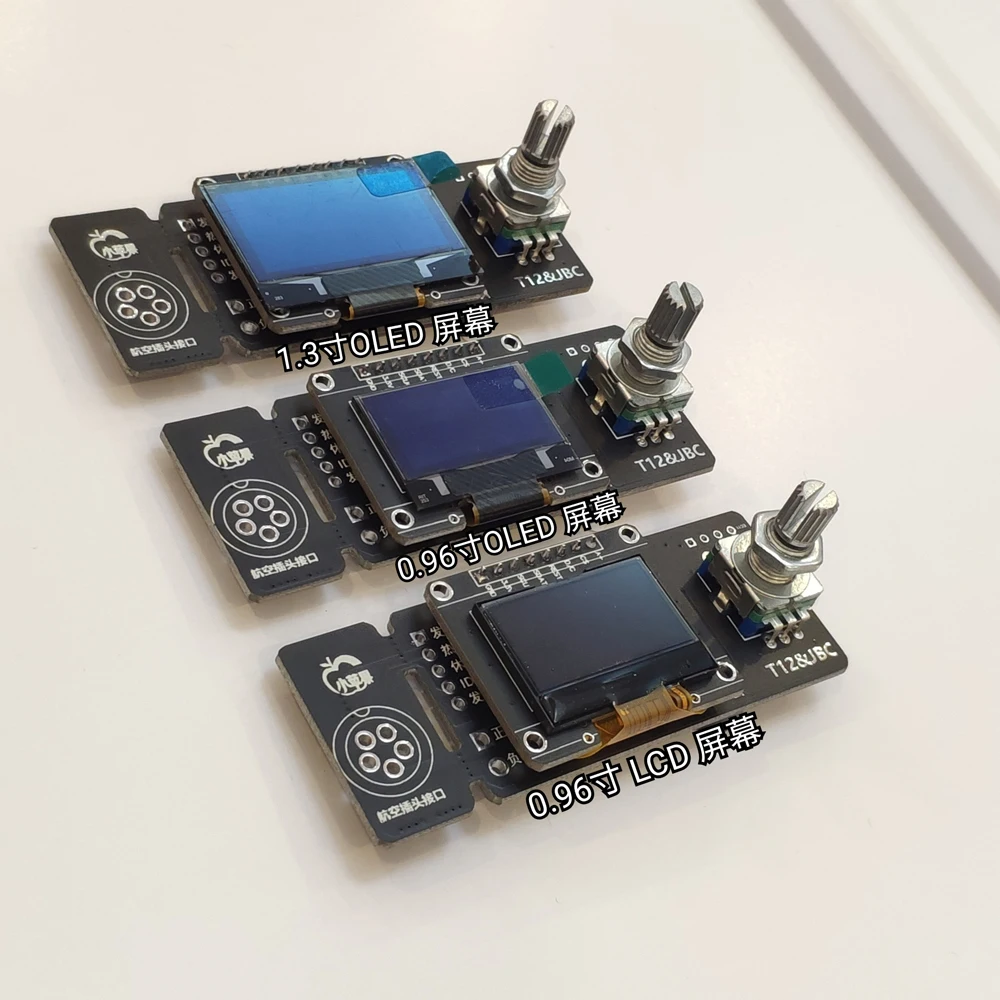

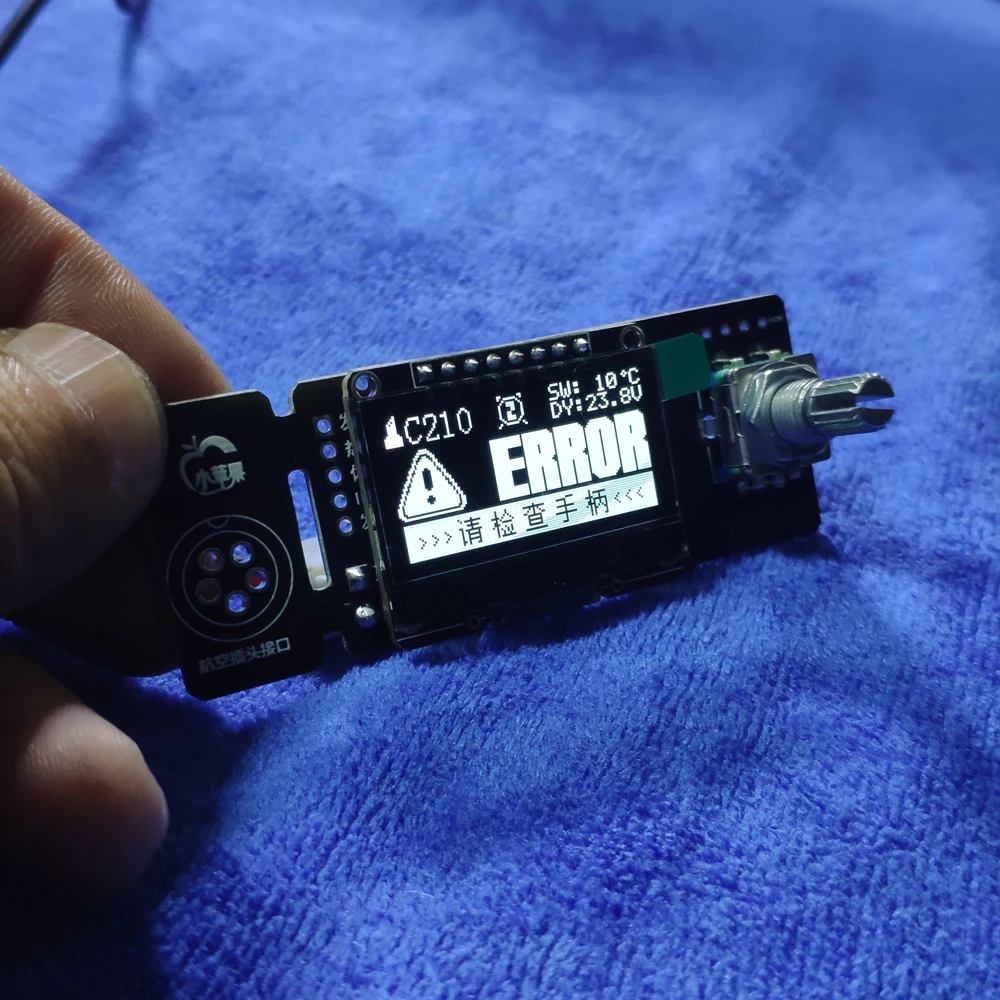

oled screen t12/jbc245/210/936 control panel LCD This control panel has three screens:

0.96 inch OLED screen

1.3 inch OLED screen

Except the screen is different, other hardware and software functions are the same!

The display effect of OLED screen is better than LCD, and LCD has longer life span than OLED, please choose reasonably!

Control input voltage range: 9V–30V, maximum output 30V60A (MOS)

▲The lower the voltage, the slower the temperature rise, and the head will be damaged by excessively high pressure▲

★Support automatic handle recognition and manual selection
★The default is automatic recognition mode, automatic recognition t12/245/210/936
★Manual mode (settings→system setting→control mode→manual) At this time, you need to manually select the heating core, and automatically identify the failure

★Support two modes: vibration sleep and sleep seat
★The default vibration mode, by default the handle will not move within 3 minutes, it will automatically go to sleep! Pick up the handle to resume work after sleep. Sleep time related settings are in (Settings→Sleep standby→Sleep time→0-99 minutes)
★Hibernation mode (Settings→Hibernation Standby→Hibernation Mode→Seat) When the s sleep port is grounded (negative), it sleeps immediately, otherwise it works.

★Free switching between two sets of UI

★The default is the power bar interface, you can choose the power ball interface (Settings→System Settings→Display UI→Default/Concise)

★Support custom voltage value protection, when the battery is powered, a protection voltage can be set, and the power output will be stopped when this voltage value is reached to prevent the battery from over-discharging! (Settings→System Settings→Voltage Protection)

★Support jbc245 core replacement protection to prevent short circuit and burn out the control board when 245 core replacement! Note that this function is not required for t12 and 210!

◥Basic operation◤

1: In normal mode, short press the encoder to enter the preset temperature mode (pre-set 4 groups of common stability according to your needs, and the rotary encoder can switch between these 4 groups of preset temperatures), short press again to enter the set temperature Mode, the temperature of the rotary encoder increases by 10 degrees each time, and the step temperature is adjustable!

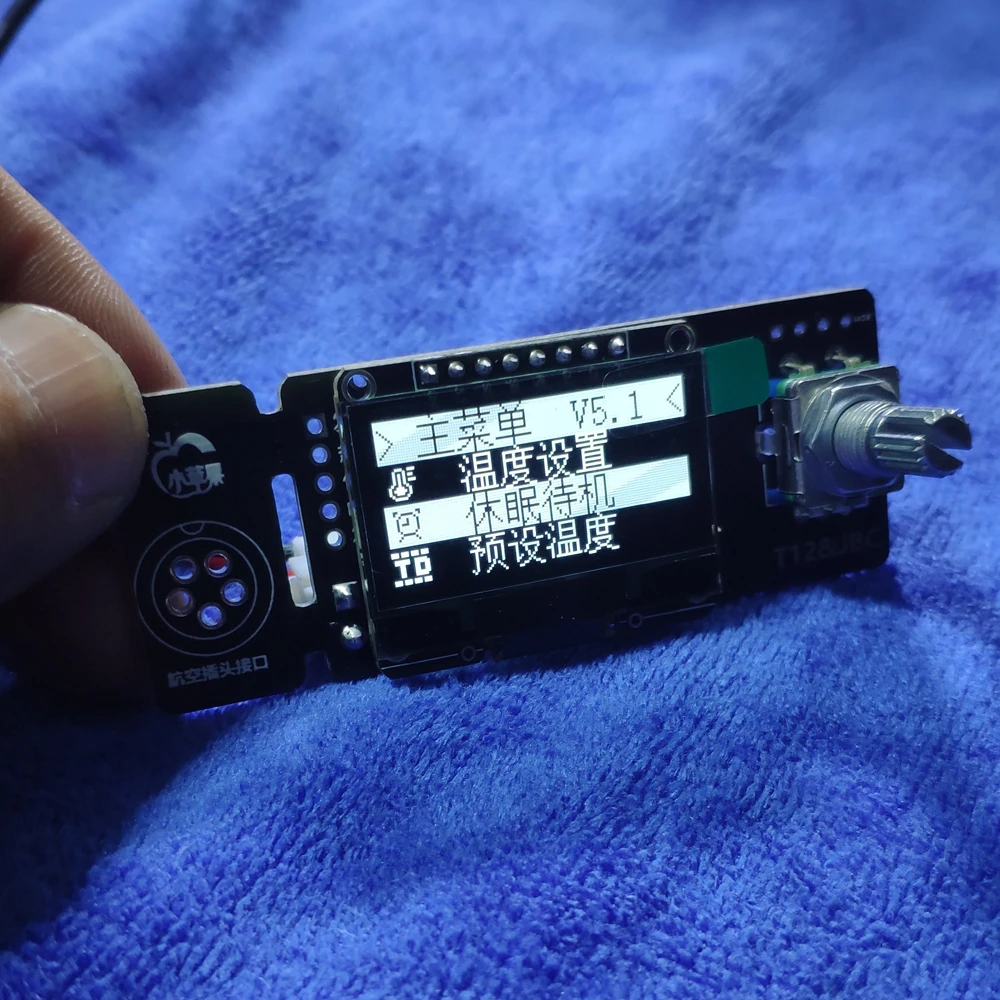

2: In normal mode, long press the encoder to enter the setting menu, short press to select, short press again to cancel the selection, long press the encoder in the menu interface to exit and return to the previous level!

Note: diy is risky
