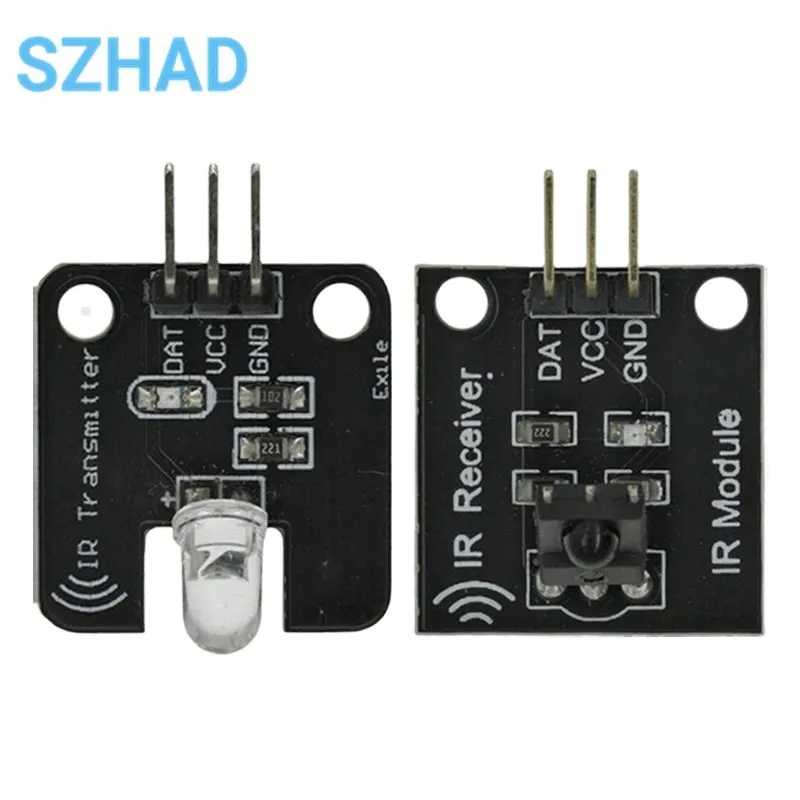

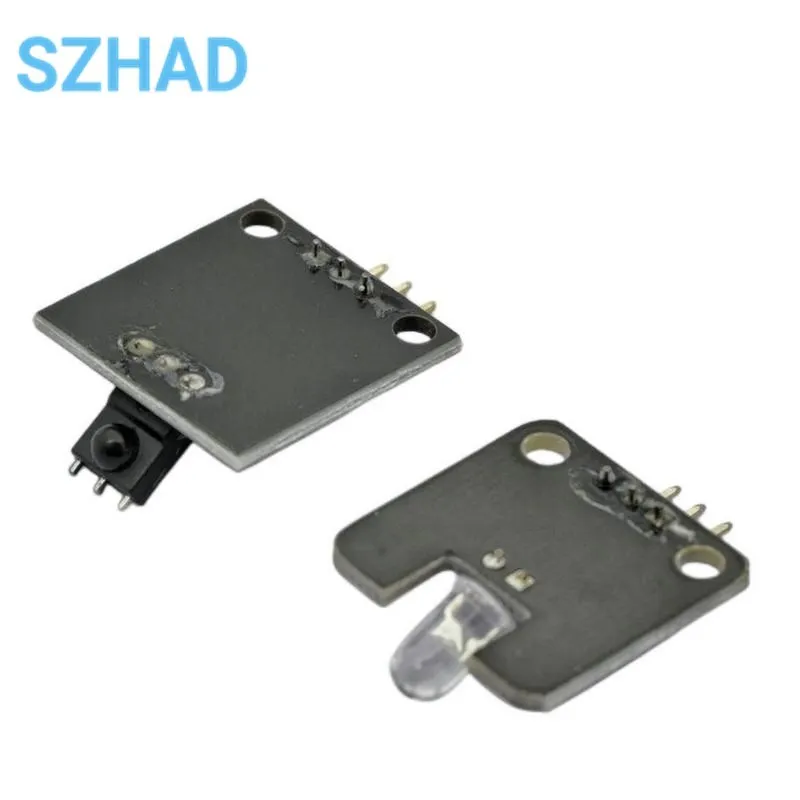

IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
21.00৳
Ships From |
CHINA |
---|---|
Color |
Receiving module ,Transmitting module |
♦ Disclaimer: AliMarket একটি ক্রস বর্ডার শপিং সার্ভিস প্রোভাইডার। আমাদের মূল লক্ষ্য বর্ডার বাধা পেরিয়ে আপনাকে কাঙ্ক্ষিত পণ্য এনে দেওয়া। AliMarket এ প্রদর্শিত প্রোডাক্ট বিভিন্ন থার্ড পার্টি শপিং ওয়েবসাইট থেকে সংগৃহীত। অর্থাৎ AliMarket সরাসরি কোন পণ্যের সেলার বা ম্যানুফ্যাকচারার নয়। তাই AliMarket কোনো প্রাসঙ্গিক, জামানত বা যৌথ দায় নিতে বাধ্য নয়। তবে গ্রাহক স্বার্থ রক্ষার্থে শপিং ওয়েবসাইটের রিফান্ড পলিসি অনুসারে AliMarket বিফর এবং আফটার সেলস সার্ভিস দেয়।
- is_customized: Yes
- Model Number: Infrared Transmitter Receiver Se
- Dissipation Power: N/A
- Supply Voltage: N/A
- Application: Computer
- Type: Module
- Brand Name: SZYTF
- Operating Temperature: N/A
- Origin: Mainland China
- Condition: New
1. Infrared emission module:
-
Supply voltage: 5V
-
Working environment: -25~+85C
-
Storage temperature: – 30! 10OC
-
Wavelength: 940mm
-
Signal type: Digital signal
-
Infrared central wavelength: About 850nm-940nm
-
Infrared emission distance: About 1.3 m (5V 38khz)
-
Infrared emission Angle: About 20 degrees
-
Module weight: 1.5 g
-
Modules only store: 23.5 * 20.8 mm
-
Positioning hole size: 3mm
Wiring instructions:
-
DAT: indicates the digital output interface
-
VCC: positive terminal of the 5VDC power supply
-
GND: The negative pole of the 5VDC power supply
2. Infrared receiving module:
-
Supply voltage: 5V
-
Working environment: -25~+85C
-
Storage temperature: – 30! 100C
-
Carrier frequency: 940mm
-
Signal type: Digital signal
-
Infrared emission distance: About 10 meters
-
Infrared emission Angle: About 35 degrees
-
Module weight: 1.5 g
-
Modules only store: 23.5 * 20.8 mm
-
Positioning hole size: 3mm
Wiring instructions:
-
DAT: digital output interface
-
VCC: positive terminal of the 5VDC power supply
-
GND: The negative pole of the 5VDC power supply
