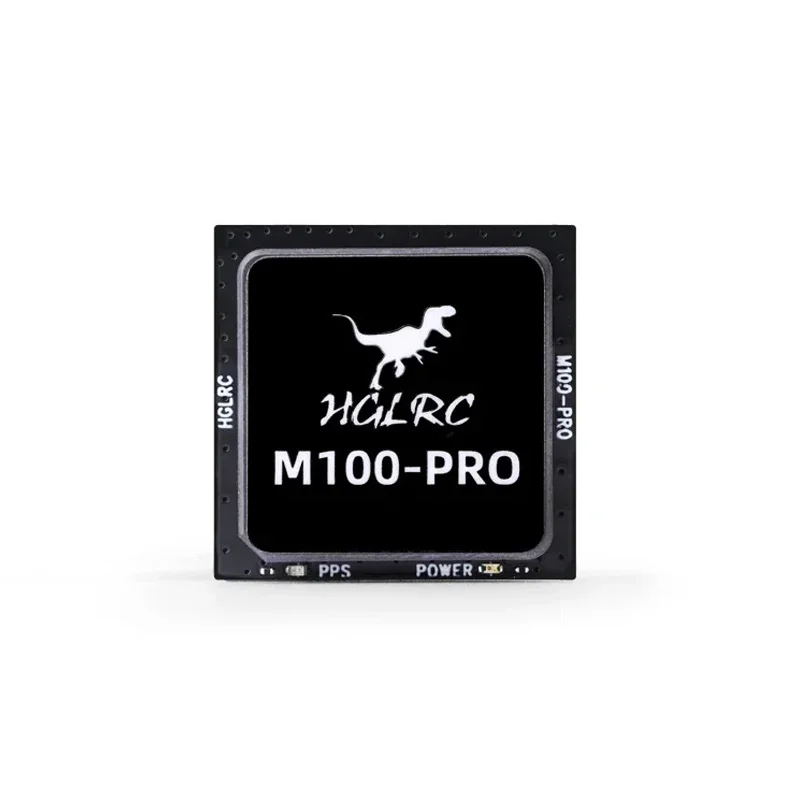

HGLRC M100-PRO GPS

Adopting the new 10th generation chip, the number of satellite searches is 50+

QMC5883L compass, more accurate pointing

The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.

Five-mode positioning, strong and stable signal to protect you.

Product parameters:

Chip: B101 (10th generation chip)

Receiving channel: 120

Baud rate: 115200 Protocol: UBX

Antenna: ceramic antenna Output frequency: 10Hz

Frequency: GPS L1, GLONASS G1, BDS B1,

GALILEO E1, QZSS L1, SBAS L1, IRNSS

Power input: 3.6-5.5V

Weight: 7.9g Acceleration 4G

Speed: 500m/s

Size: 21.2×21.2×8.2mm

Operating temperature: -40℃~+85℃

Storage temperature: -40℃~+105℃

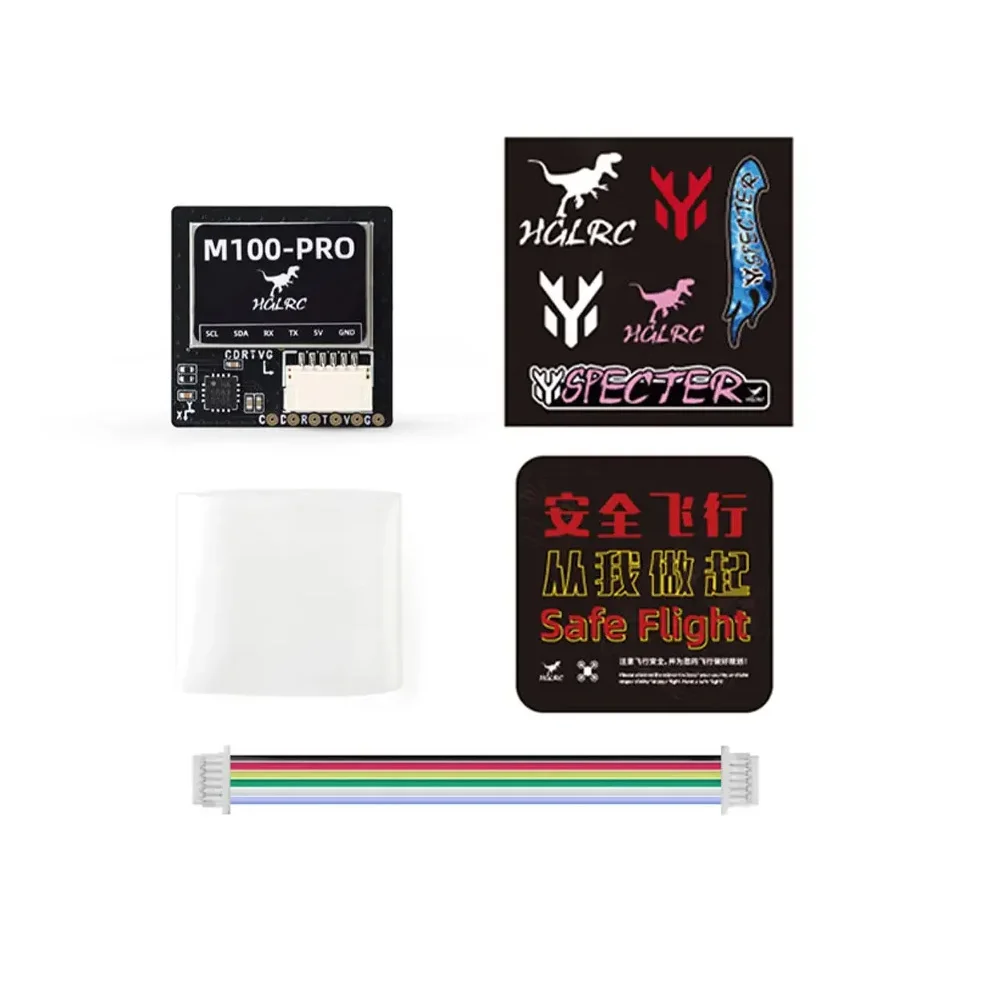

Product List

HGLRC M100 PRO GPS x 1

Heat shrink tube (φ18mm x 25mm) x 1

HGLRC sticker x 1

HGLRC manual x 1

SH1.0-6pin cable x 1

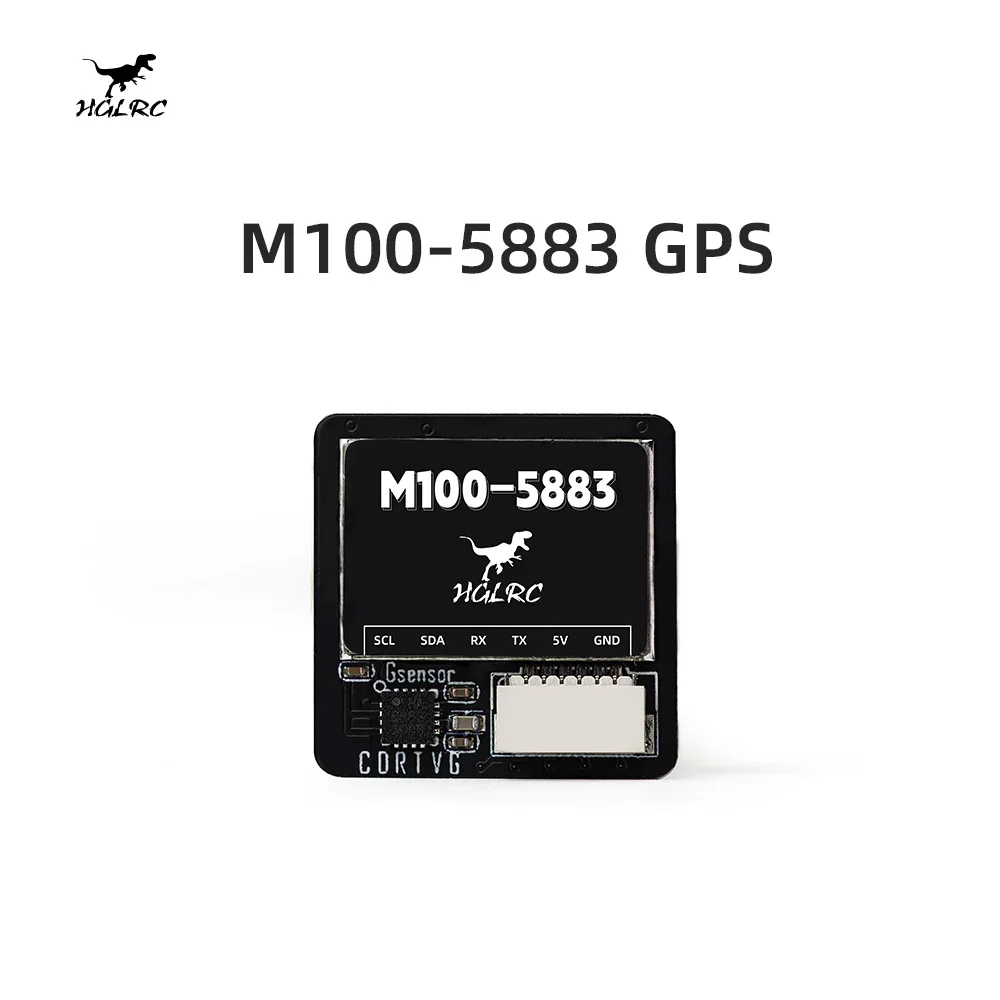

HGLRC M100-5883 GPS

New upgraded 10th generation chip with compass

Suitable for FPV fixed-wing UAV

Technical Parameters:

1. Chip: M10 (tenth generation chip)

2. Antenna: ceramic antenna

3. Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS

GLONASS L1OF, BDS B1I, Galileo E1B/C

4. Receive channel: 72ch

5. Baud rate: 115200bps.

7. Output frequency: 10Hz

8. Power input: 3.3-5V

9. Size: 21x21x8.02mm

10. Weight: 7.73g

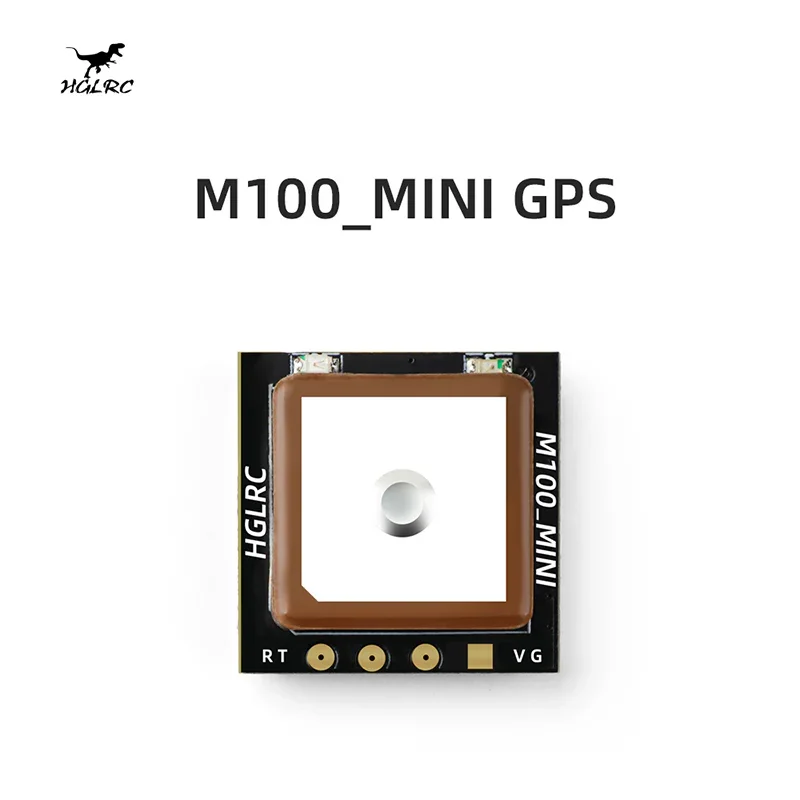

HGLRC M100 MINI GPS

Chip: M10(10th Generation Chip)

Antenna: Ceramic Antenna

Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1

Receive Channel: 72ch

Baud Rate: 115200bps

Output Frequency: 10Hz

Input: 3.3V-5V

Size: 15x15x5.2mm

Weight: 2.6g

Speed Accuracy: 0.05m/s

Horizontal positioning accuracy: 2D
ACC2.0m(Outdoor)

Receiver Sensitivity: Trace -166dBm

Capture -160dBm

Characteristics: High:50000m,

            Speed: 500m/s,

            acceleration 4G

Operating temperature: -40°C – +85°C

Storage temperature: -40°C – +105°C

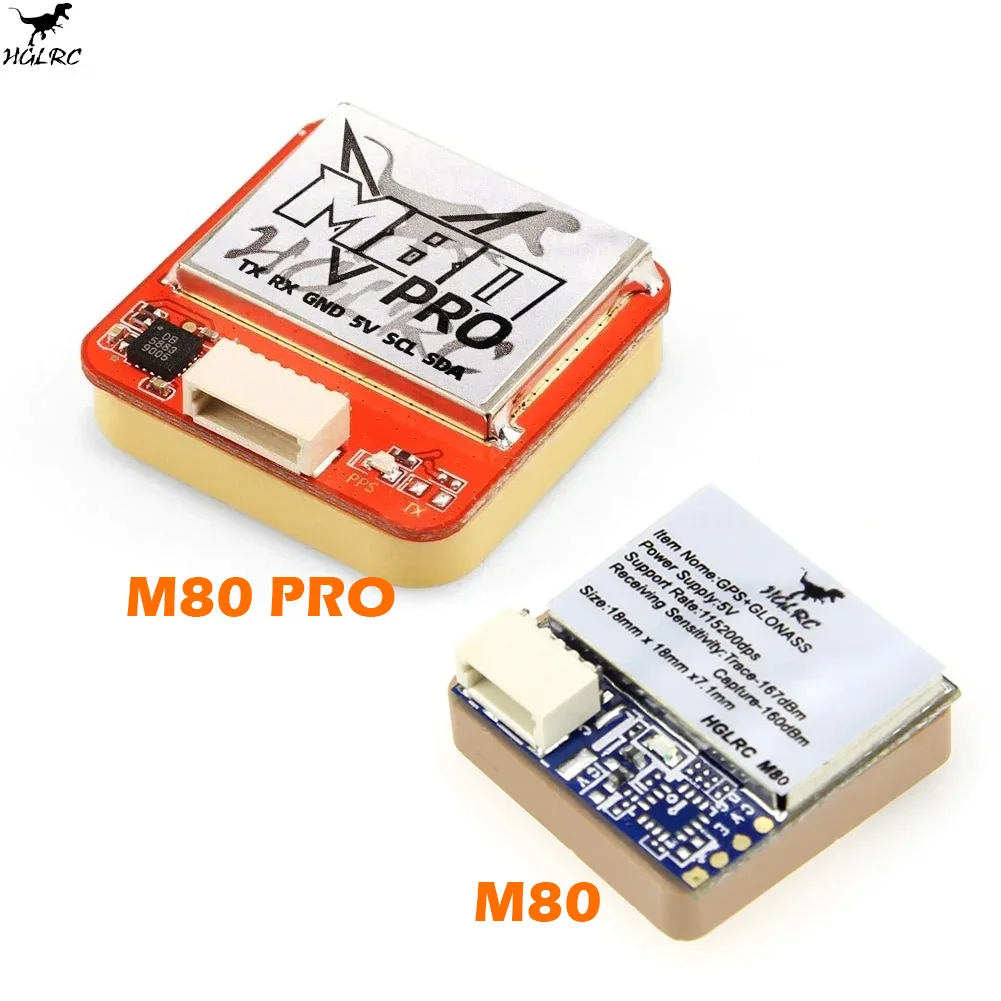

HGLRC M80 PRO GLONASS GALILEO QZSS SBAS BDS GPS Module QMC5883 Compass Gain Antenna for RC Airplane FPV Long Range Drones

Item Name:HGLRC M80PRO GPS
Chip:M8030
Power Supply:5V
Antenna: Ceramic Antenna
Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel:72 Searching Channel
Compass:QMC5883
Support Rate:115200dps
Output Frequency:1Hz-10Hz,Default 10Hz
Speed Precison:0.05 m/s
Level Positioning Precison:2D ACC1.5m(ln Open Sky)
Receiving Sensitivity:Trace -162dBm
Capture-160dBm
Dynamic Characteristics:Max Height:50000m
Max Speed:500m/s
Max Acceleration:4G
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+105℃
Size:25mm x 25mm x 8.3mm
Weight:12.5g
