FNB48 Trigger Voltmeter Ammeter Current And Voltmeter USB Tester QC4 + PD3.0 2.0 PPS Fast Charging Protocol Capacity Test

FNIRSI-FNB48 Product Manual:

https://www.mediafire.com/file/w4r0ixpw2mxcc7l/FNIRSI-FNB48__Product_Manual.pdf/file

FNIRSI-FNB48 Firmware-v2.5:

https://www.mediafire.com/file/rgftsjx3l49ck7k/FNIRSI-FNB48_Firmware-v2.50.zip/file

FNIRSI-C1 Product Manual:

https://www.mediafire.com/file/ju57qo52v3tx3nf/FNIRSI-C1_Product_Manual_v1.0.docx/file

FNIRSI-C1 Firmware-v0.70:

https://www.mediafire.com/file/6t34k5gbf7kbhkc/FNIRSI-C1_Firmware_V0.70.rar/file

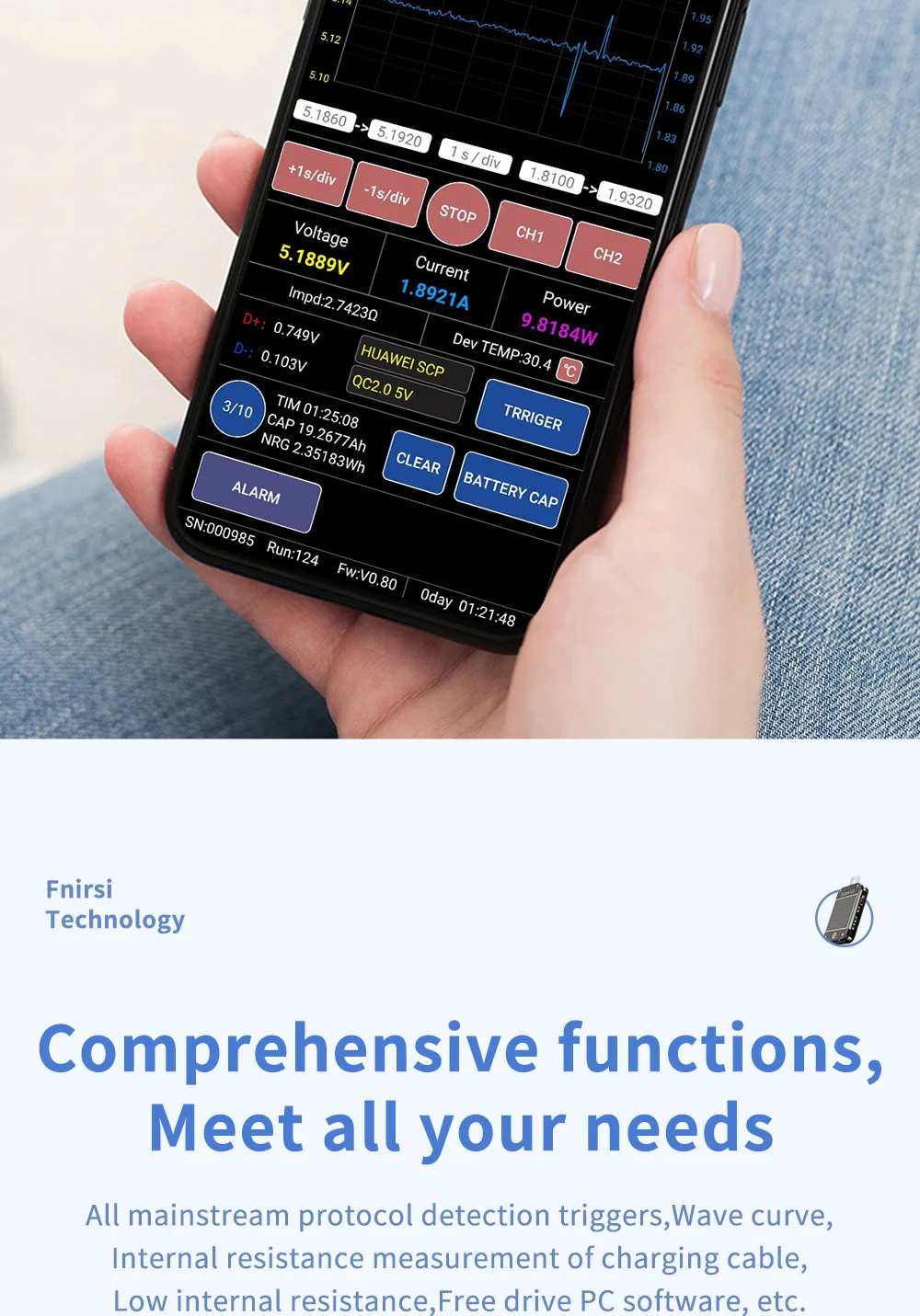

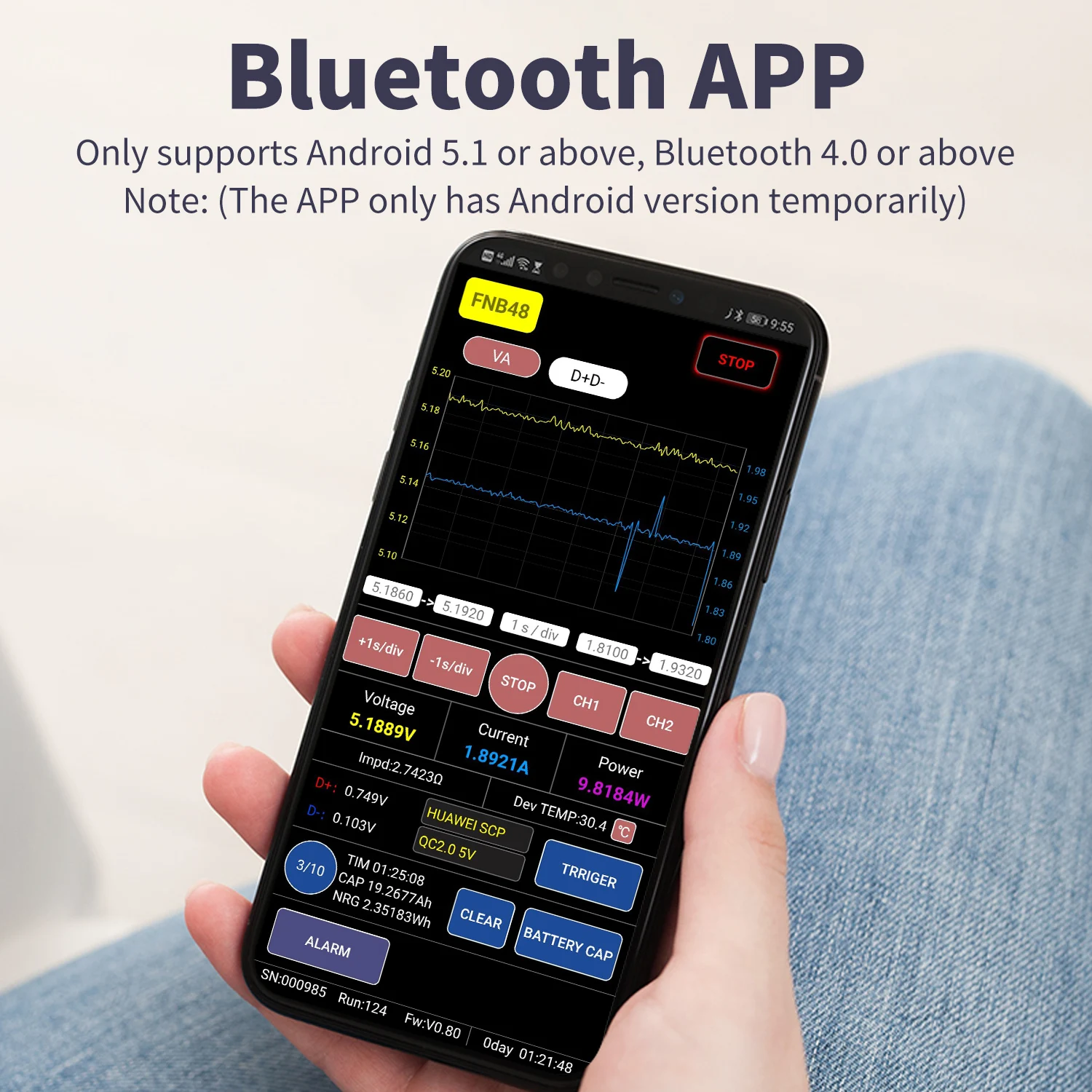

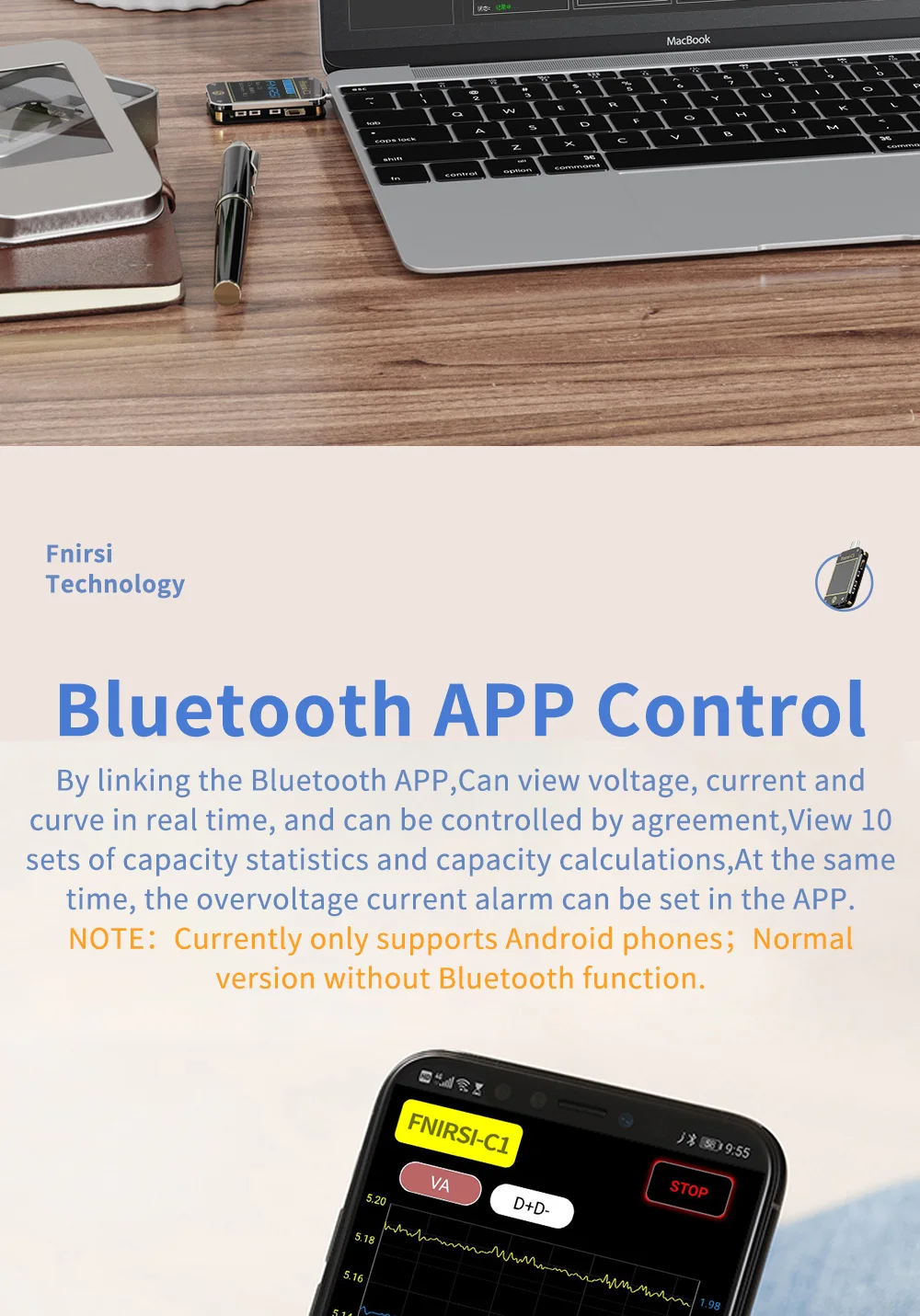

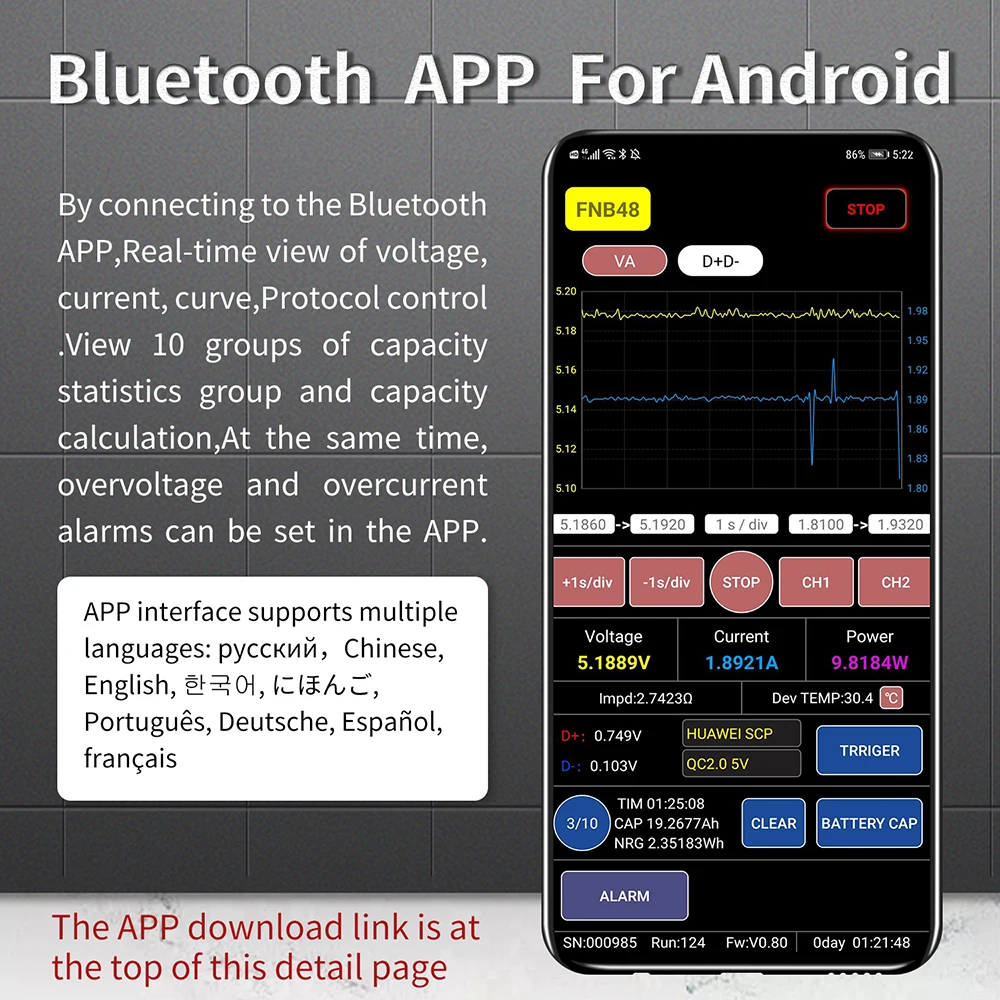

FNIRSI Usb Tester Bluetooth APP ：

https://www.mediafire.com/file/ldh6rtngfxa1fq9/FNIRSI_FNB48_Bluetooth_APP_%25C3%25AF%25C2%25BC%25C2%2588Android%25C3%25AF%25C2%25BC%25C2%2589_v1.0.apk/file

Bluetooth APP Manual：

https://www.mediafire.com/file/smyrax4h6q64jei/FNIRSI-FNB48_Bluetooth_APP_Manual_V1.0.pdf/file

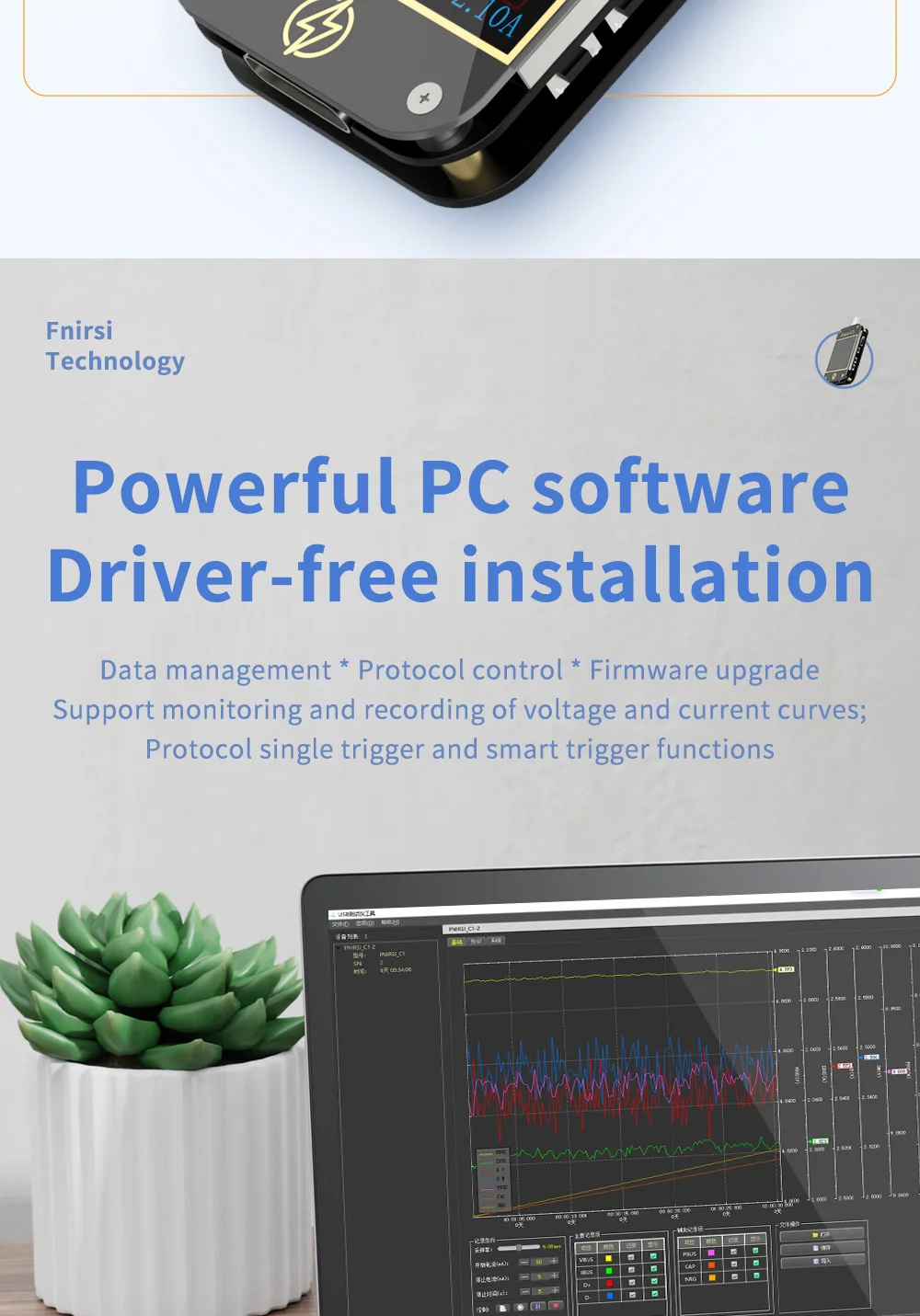

FNIRSI Usb Tester PC Software:

https://www.mediafire.com/file/cnx1i9umpt4tqbg/FNIRSI_UsbMeter_PC_Software.rar/file

PC Software Manual：

https://www.mediafire.com/file/i9cw11iu5zaucea/FNIRSI_UsbMeter_PC_Software_V0_0_4.rar/file

FNRISI USB Tester Update Tool：

https://www.mediafire.com/file/qklhiw8sfkg7q8s/FNRISI_USB_tester_Update_Tool.rar/file

Compatibility Issues

①There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.
②There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
③If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
④Please do install and test the APP if you use Samsung mobile phone.

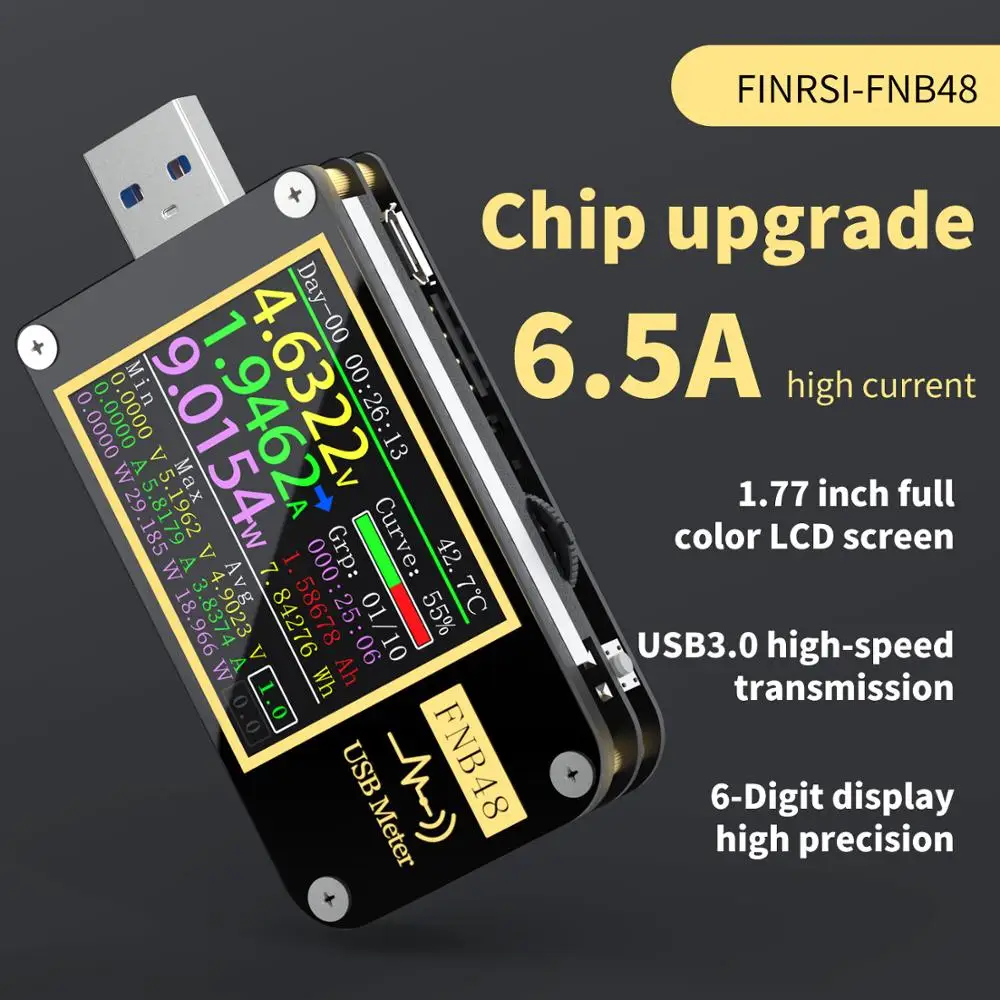

FNIRSI FNB48 Voltmeter Ammeter Current Quick Recharging Tester Protocol Tool PD Trigger Ammeter USB Tester QC4 PD3.0 2.0 PPS Capacity Test

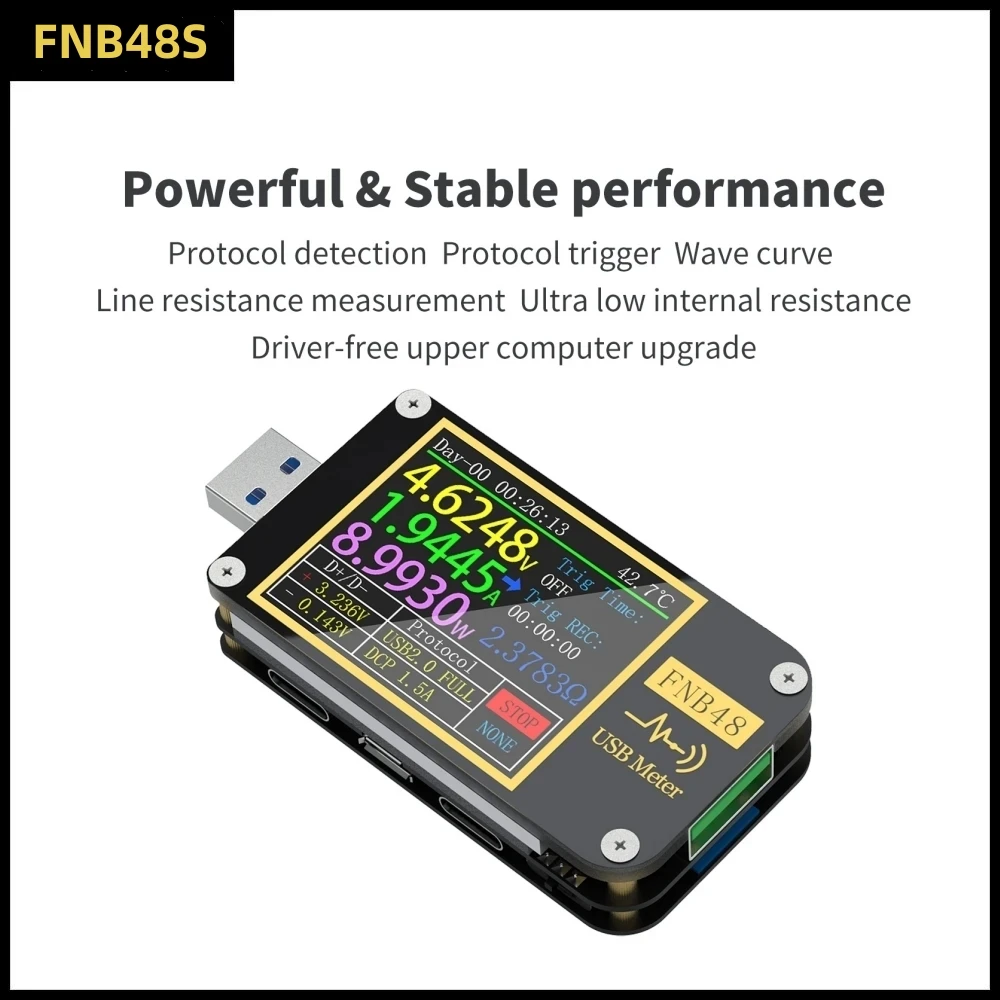

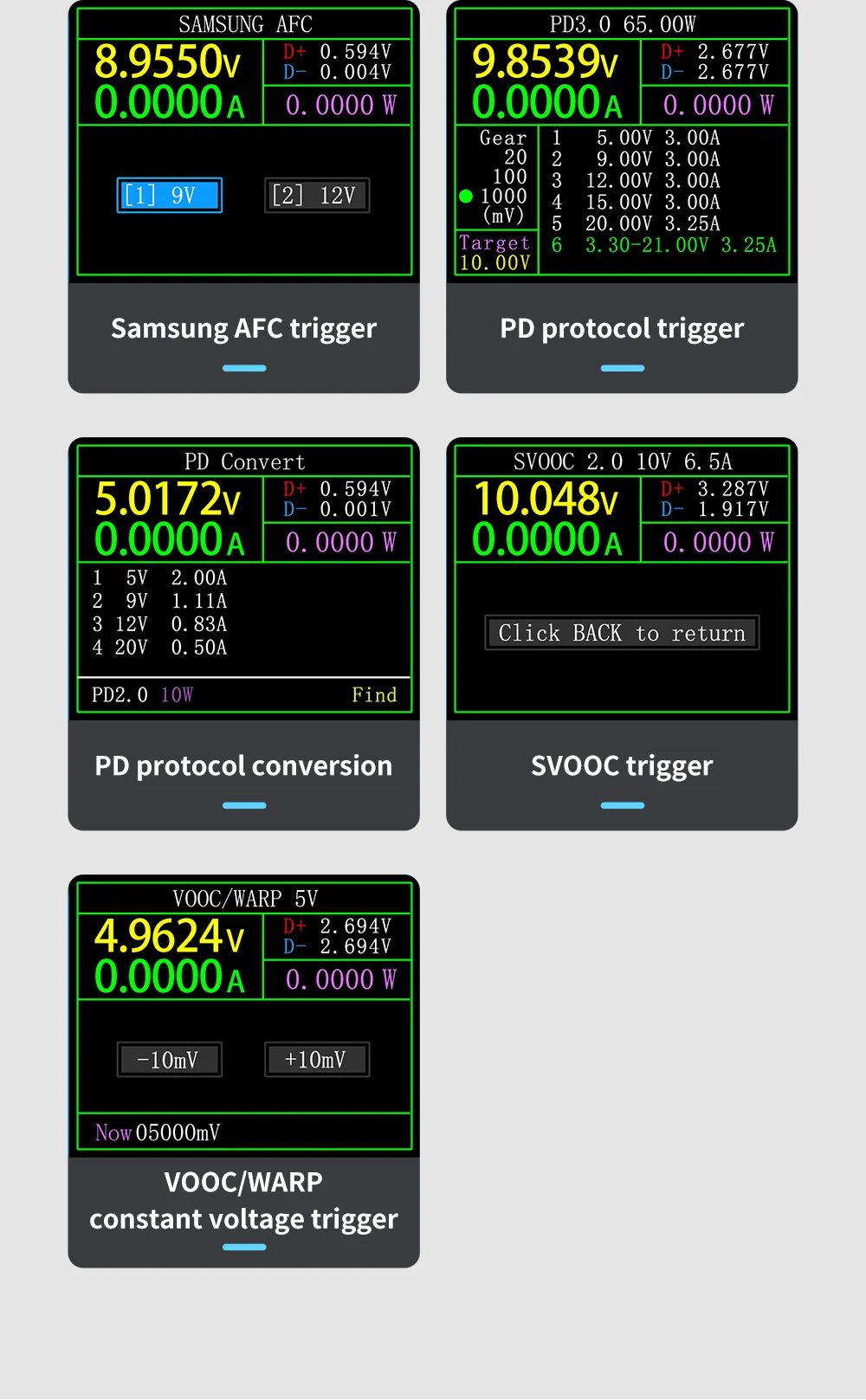

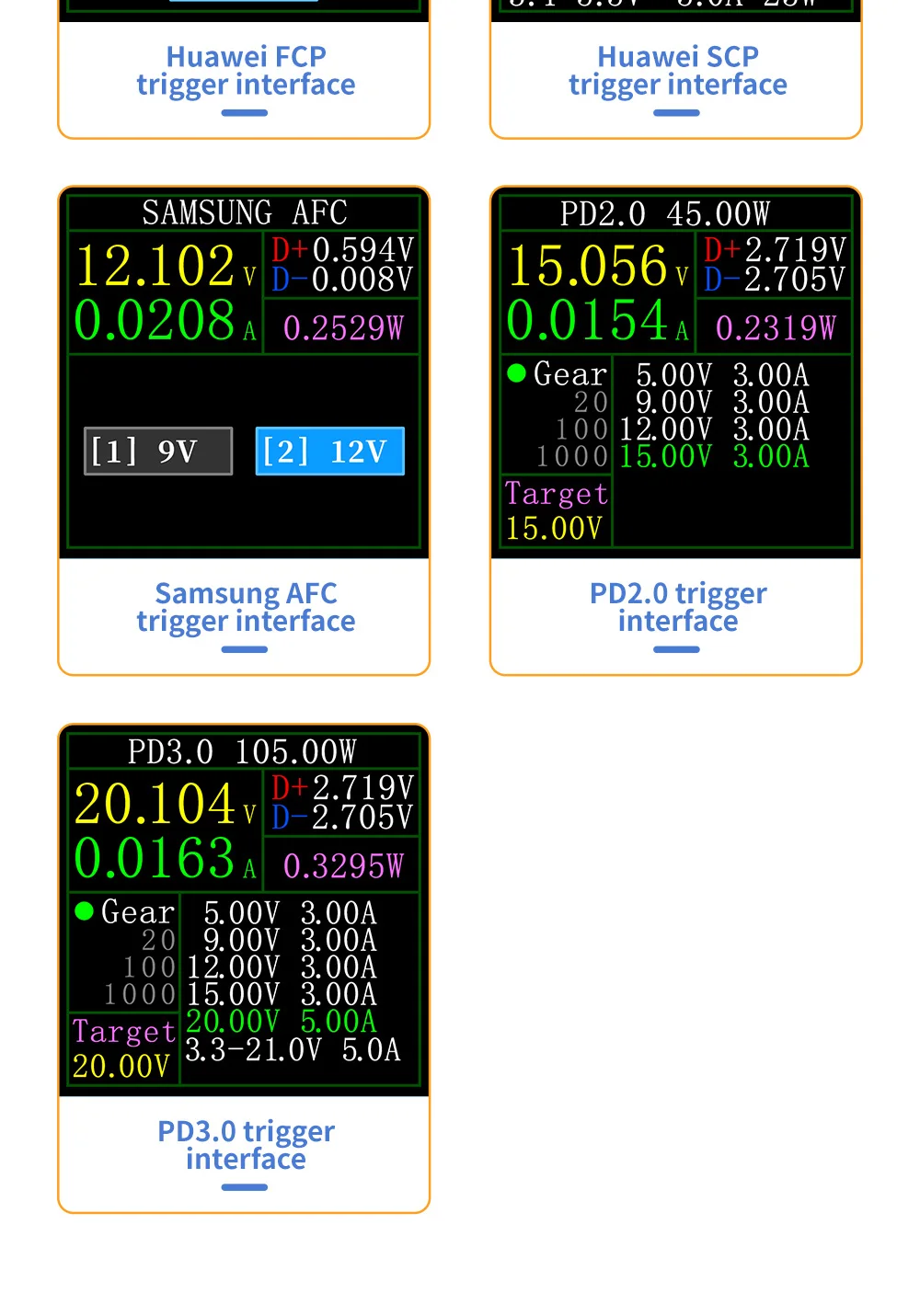

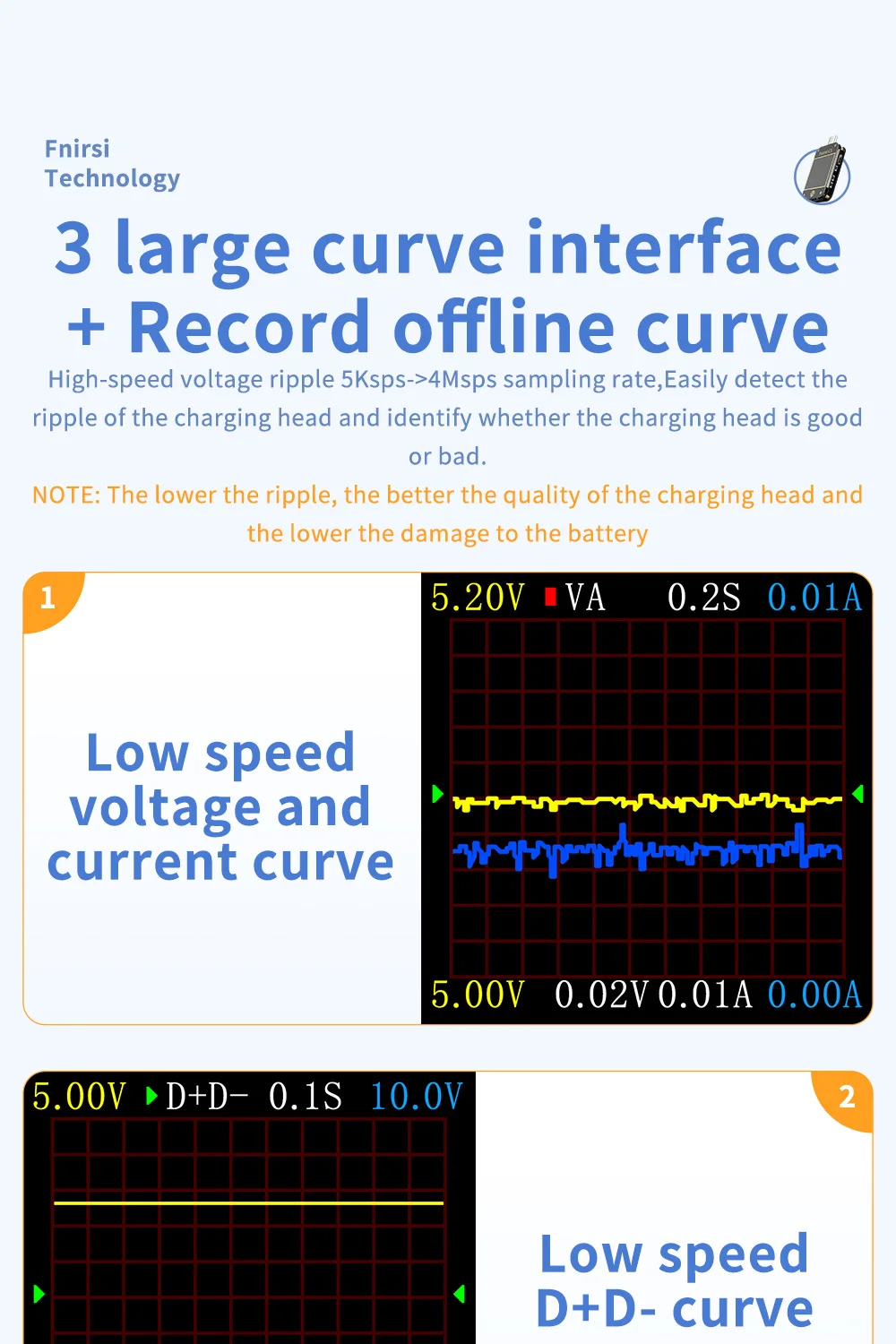

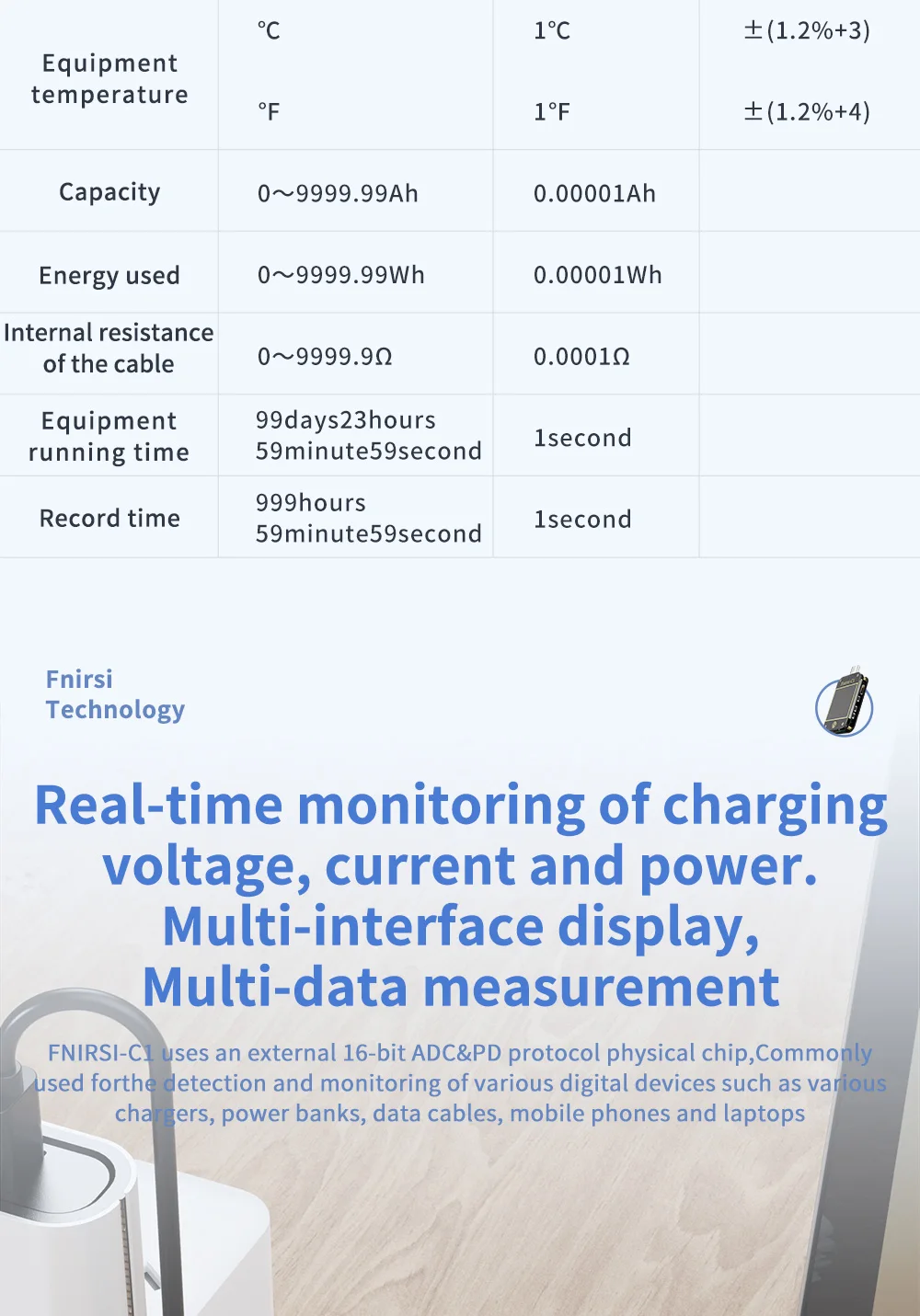

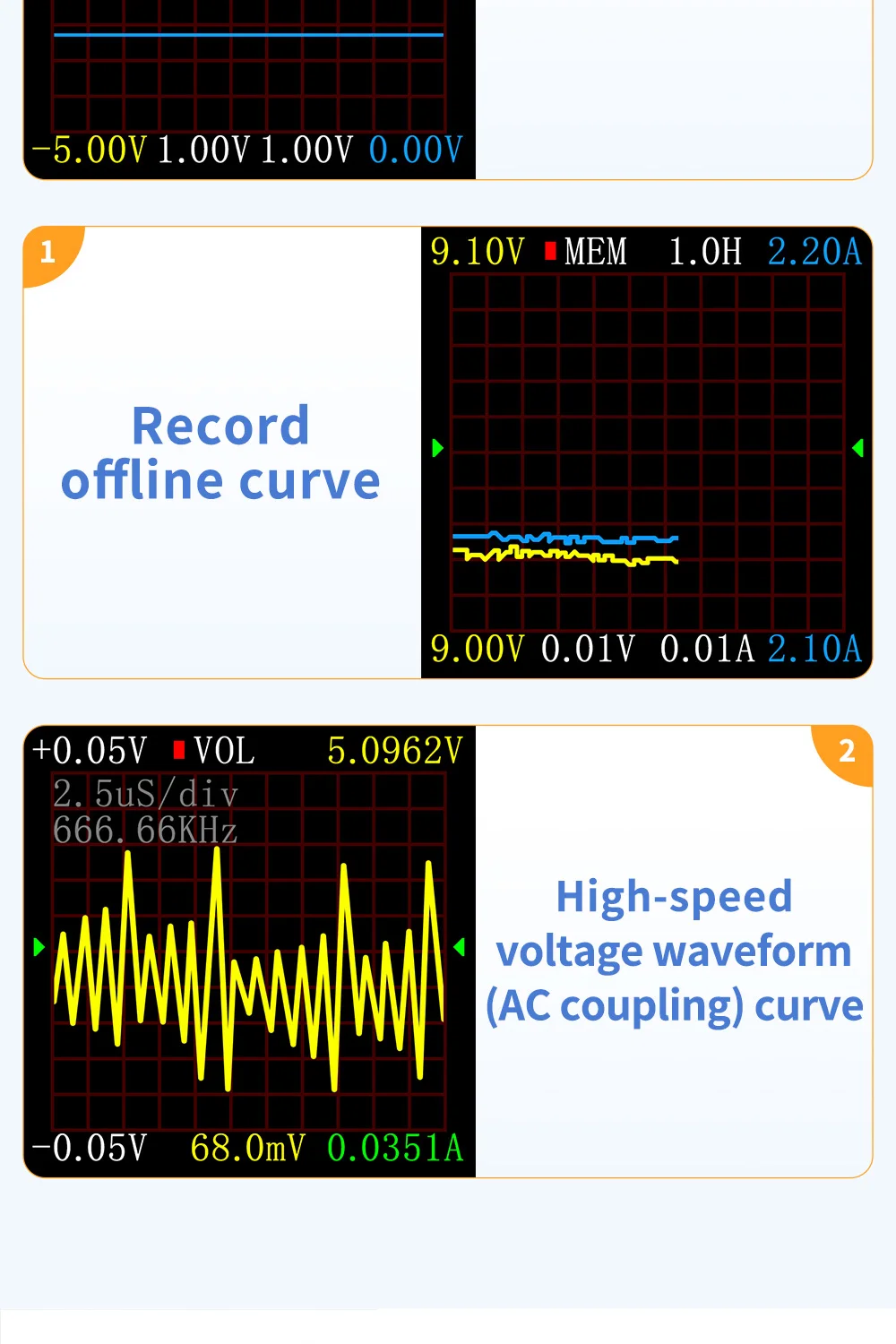

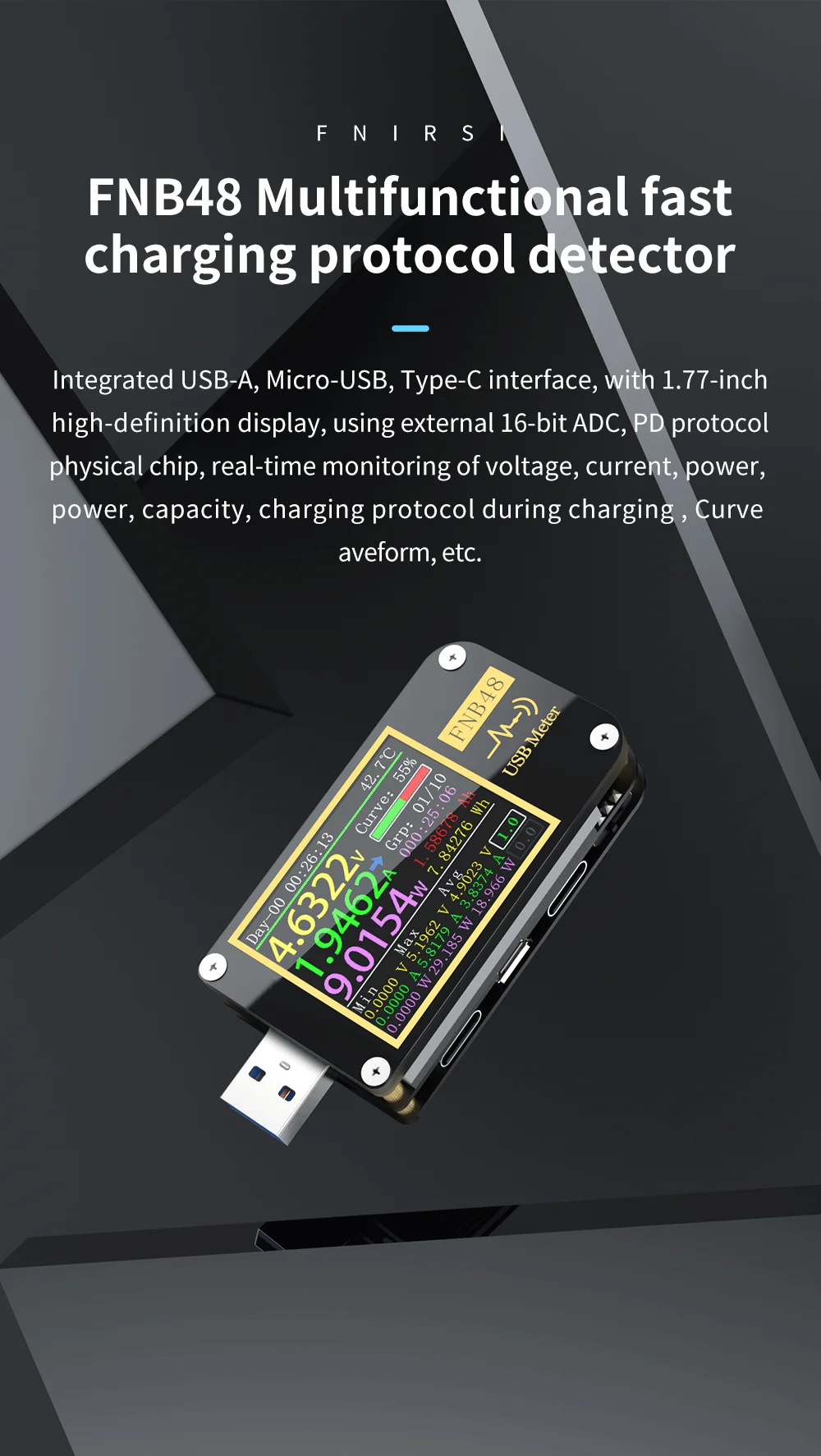

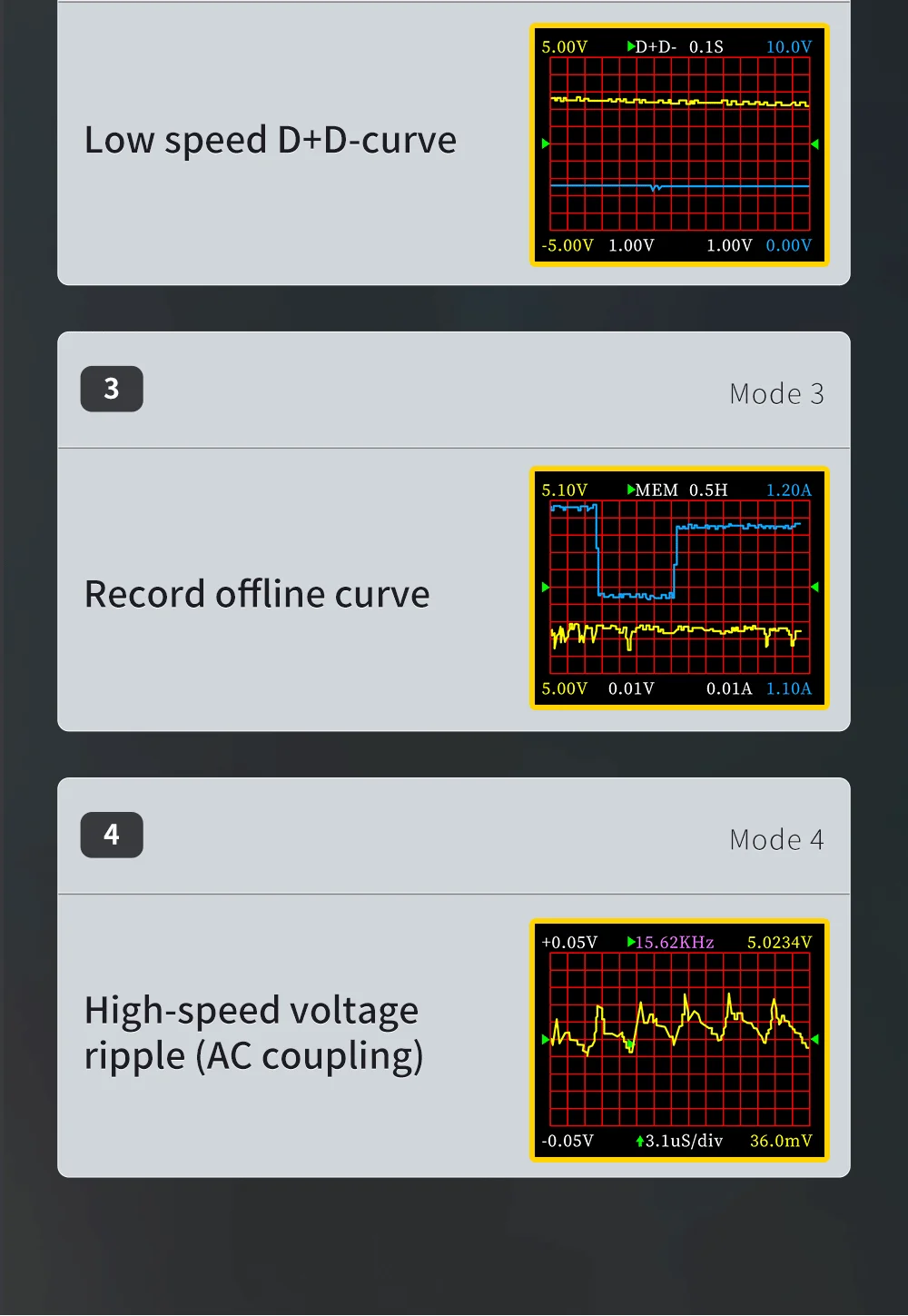

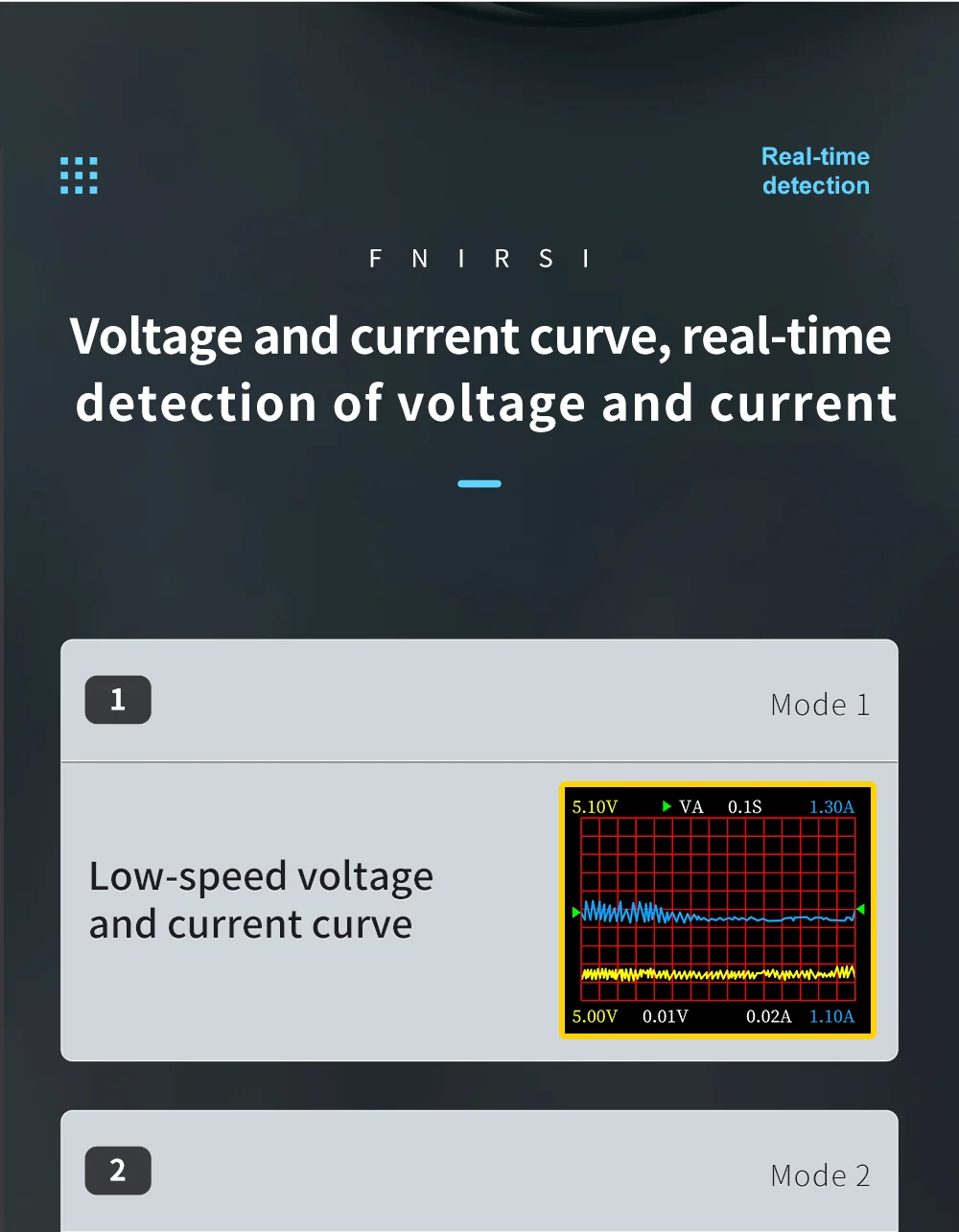

This tool is an multifunction protocol capacity test tool, it integrated USB-A, Micro-USB, type-C interface, with 1.77 inch high definition display screen, using external 16-bit ADC, PD protocol physical chip, which can real-time monitoring of the voltage, current, power, capacity, recharging protocol, curve waveform and so on, come on and try it, it will not let you down.

Features:

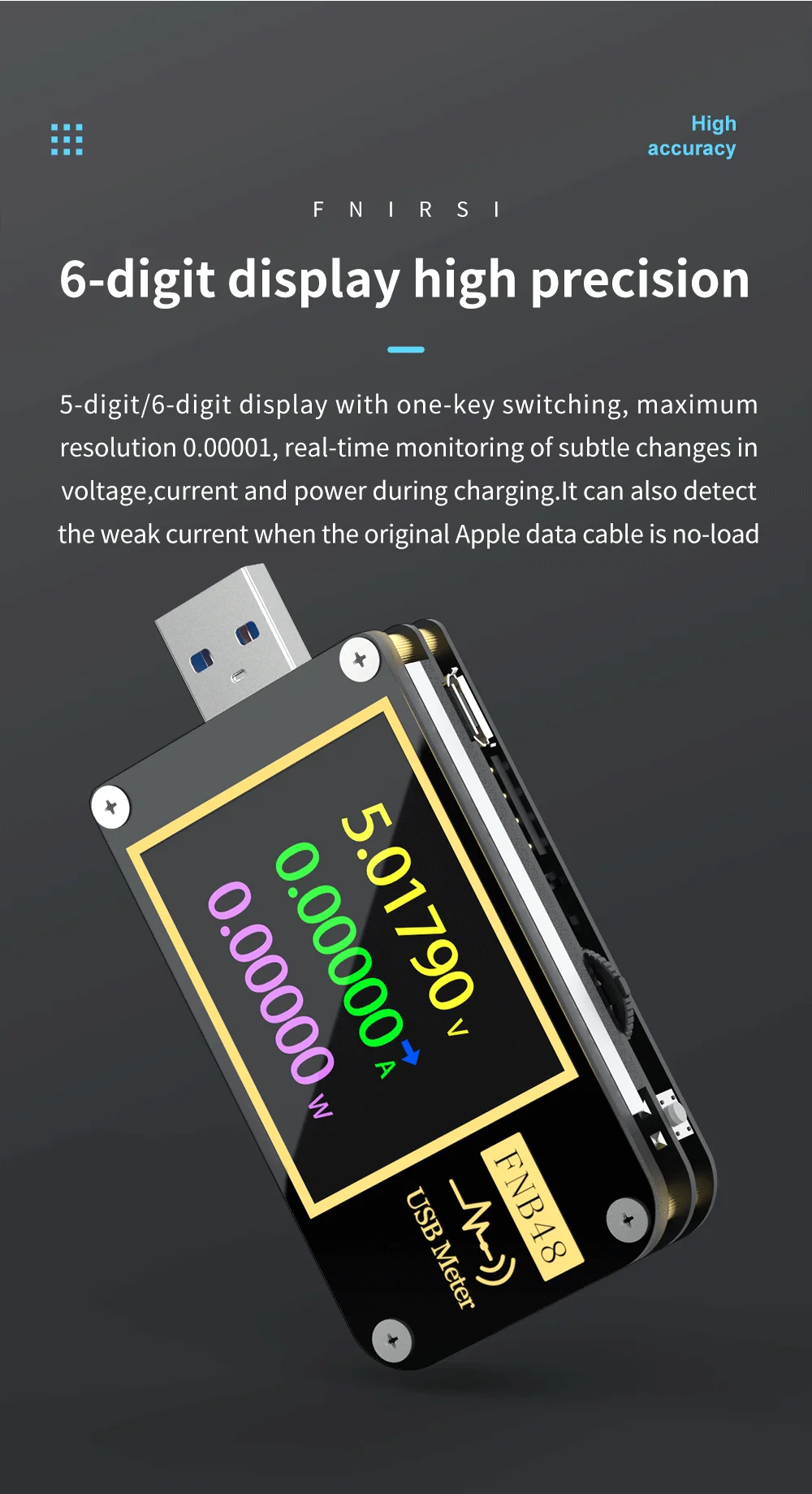

Five-bit or six-bit display can be switched by one button , with the maximum resolution of 0.00001, which can real time monitoring of the subtle changes in voltage, current and power during recharging.

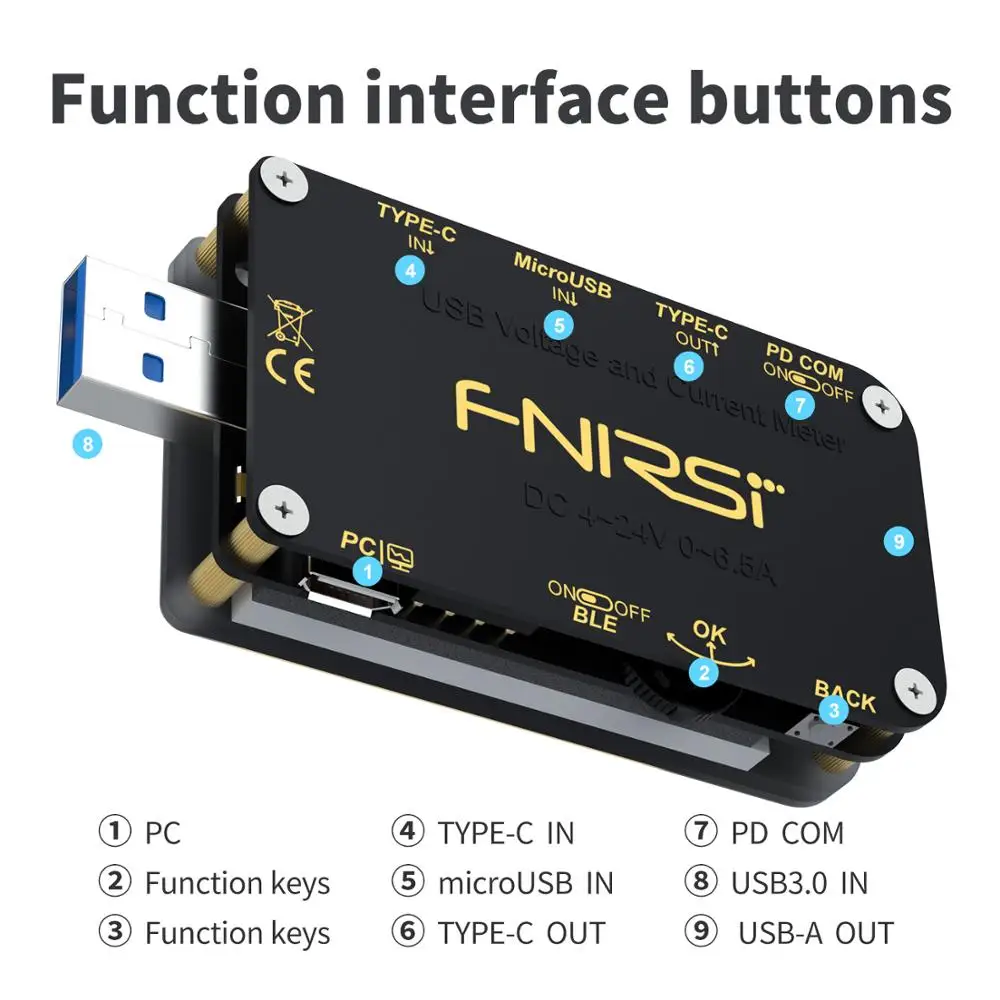

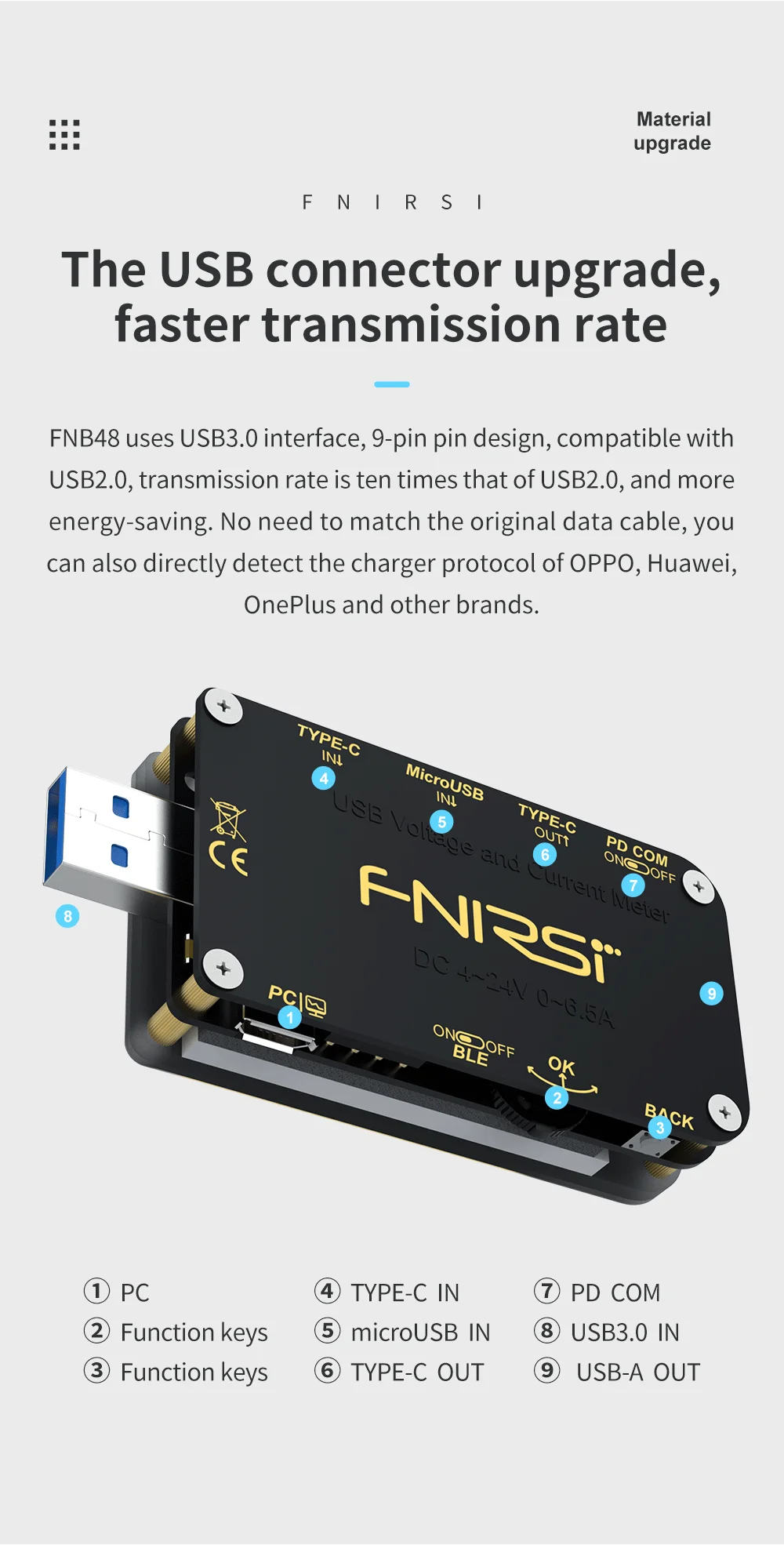

This product uses USB3.0 interface, 9 pin design, downward compatible with USB2.0,+ times the transmission rate of USB2.0.There is no need to use the primary data cable, it can also directly test the recharger agreement of some mobile phones.

It is in small size, so you can take it with you to anywhere you want to use it, or you can take it and share it with your friends.

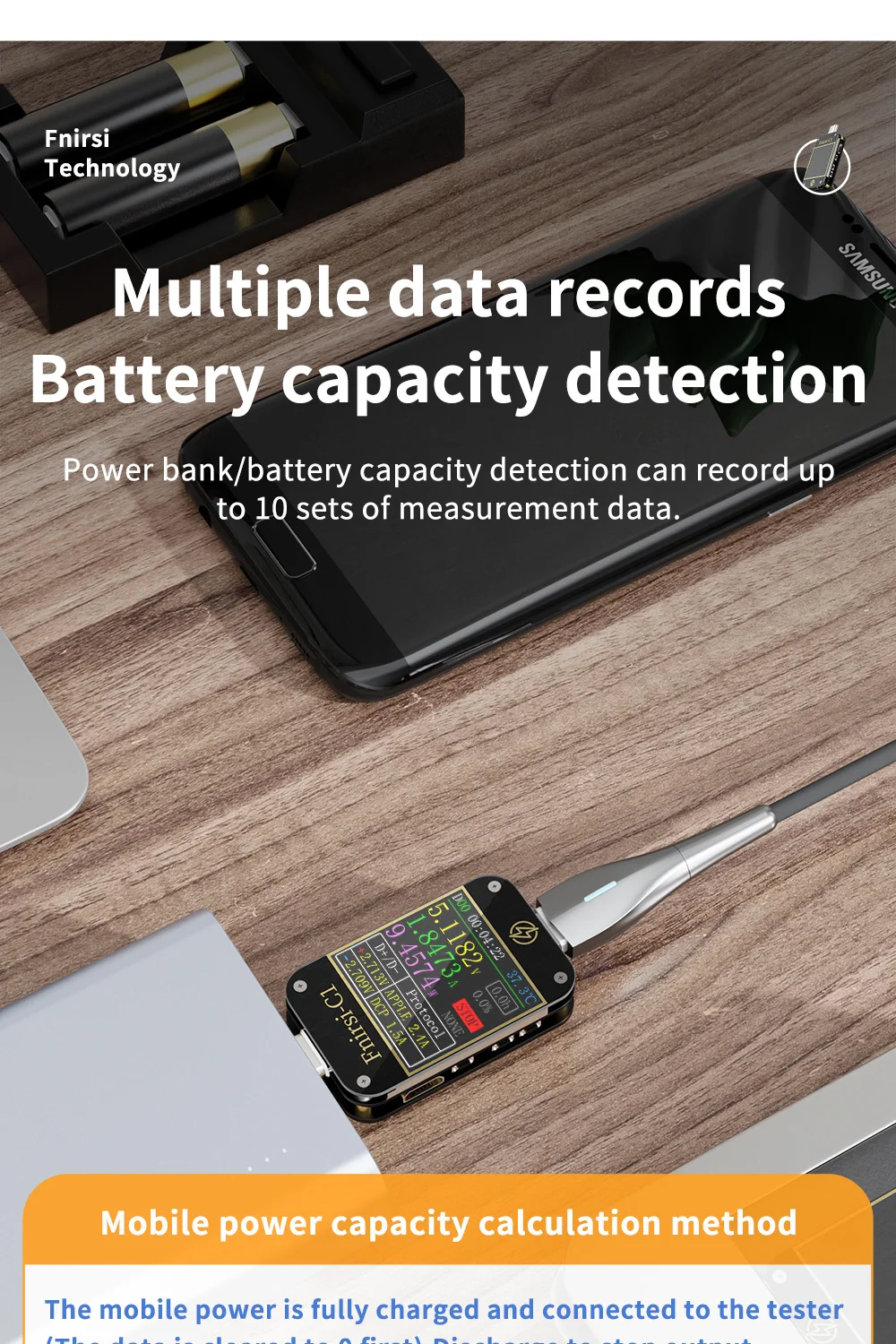

This product can record 10 sets of measurement data, you can use the data you get to calculate the capacity of battery.

This product directly add the calculate formula on this product, the result multiply 1000 to get the capacity of battery.

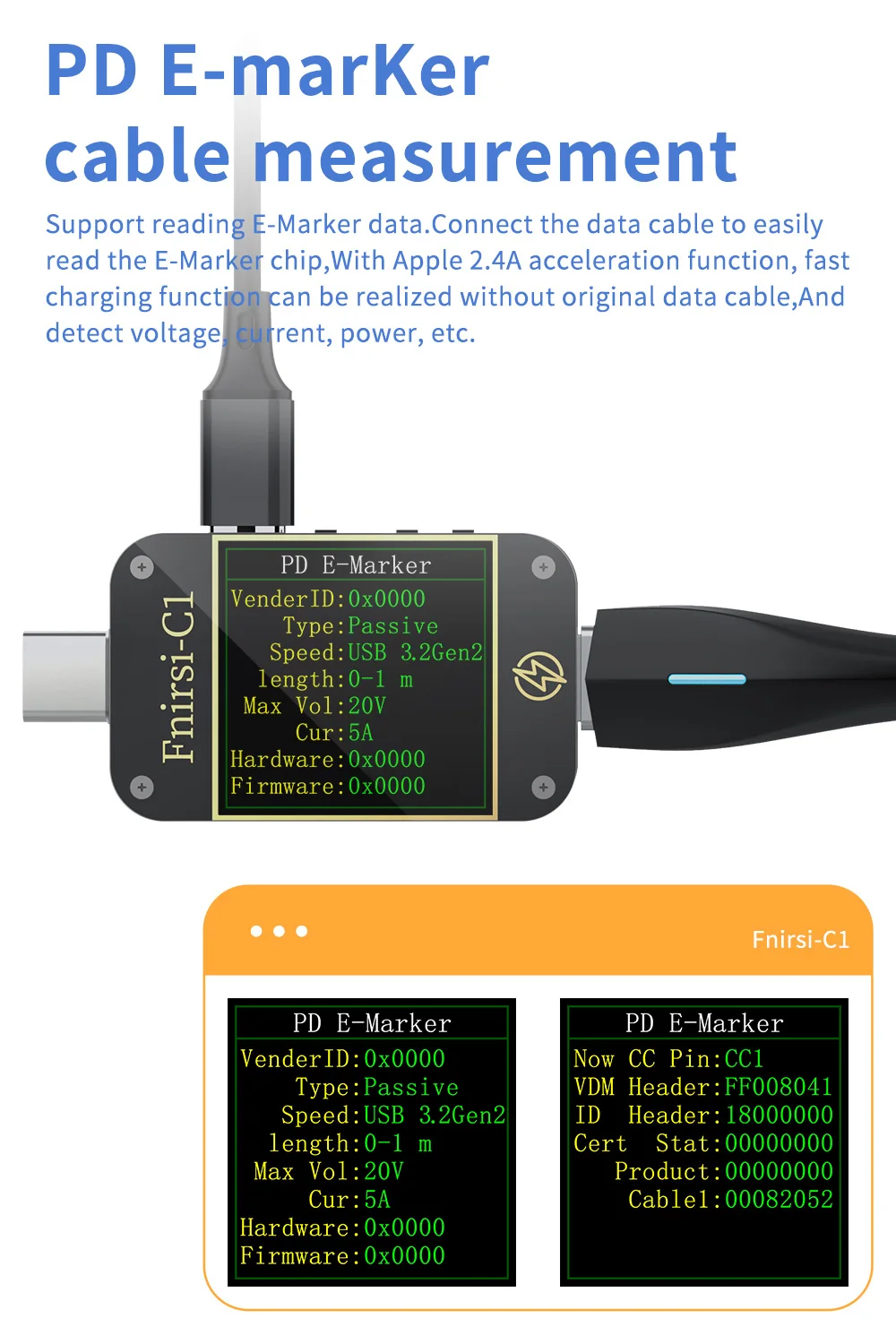

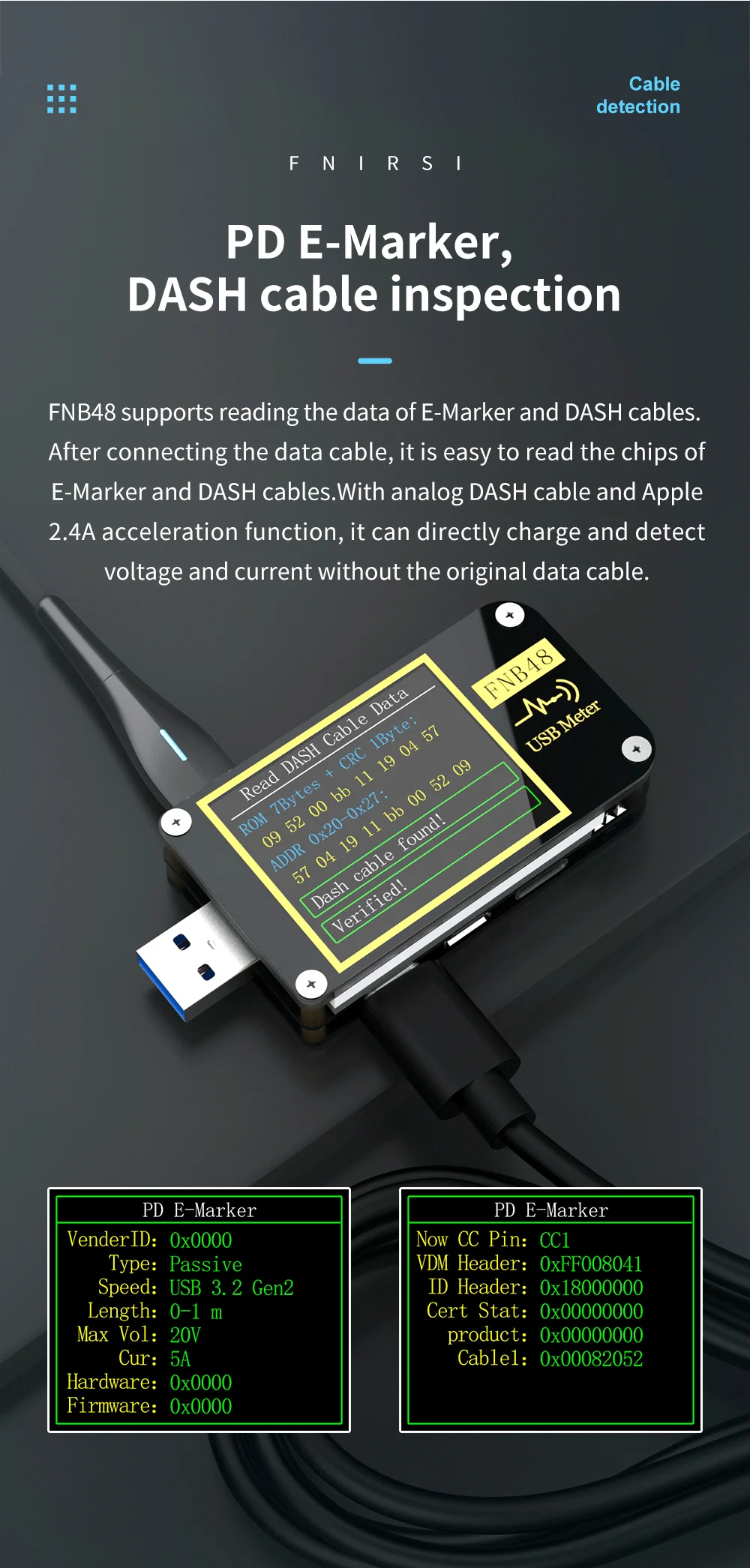

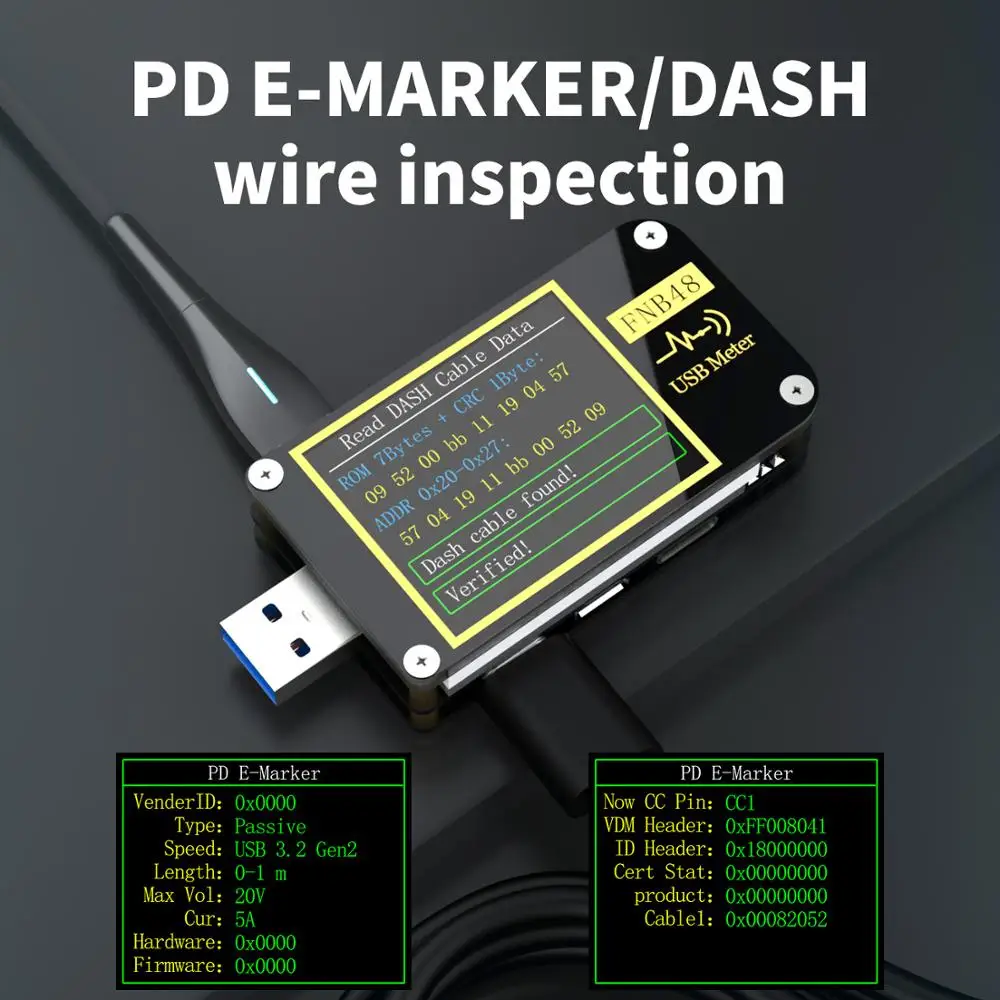

This product support read the data of E-Marker and DASH cable, and the chips of e-marker and DASH cables can be easily read after connecting the data lines.

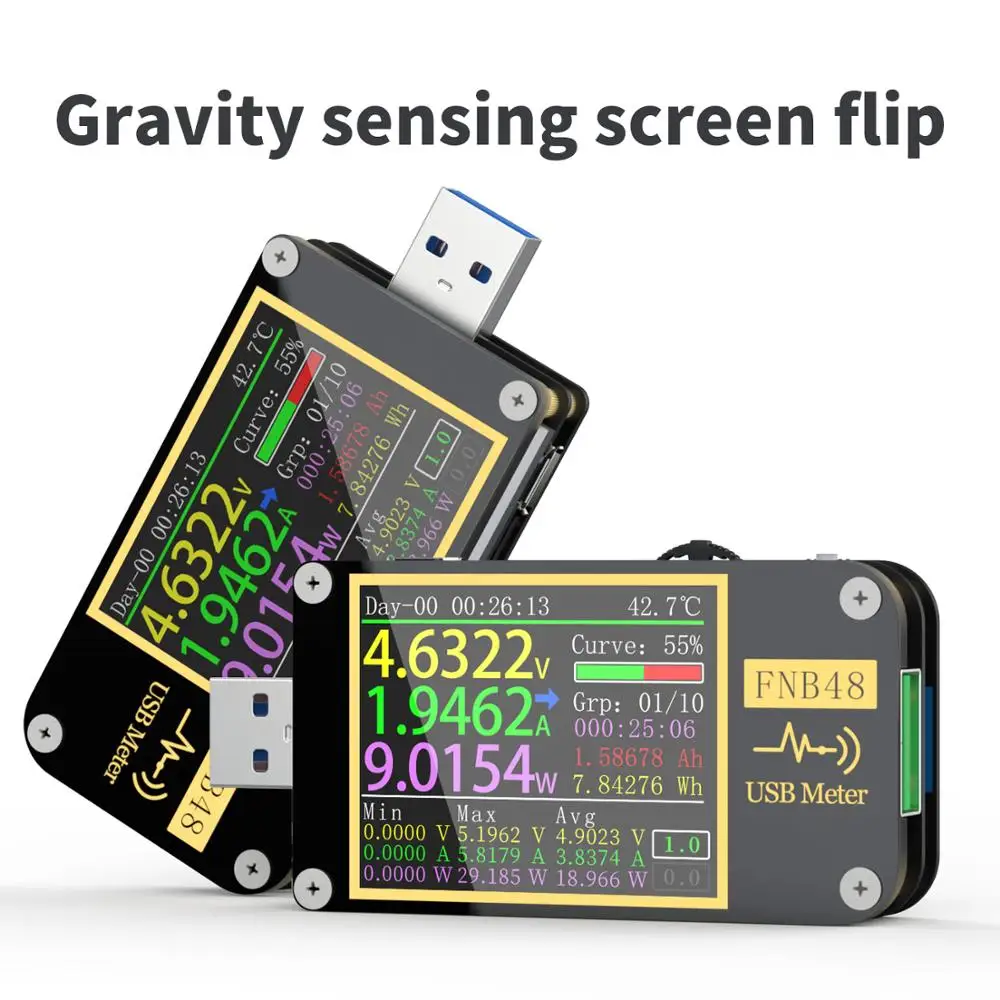

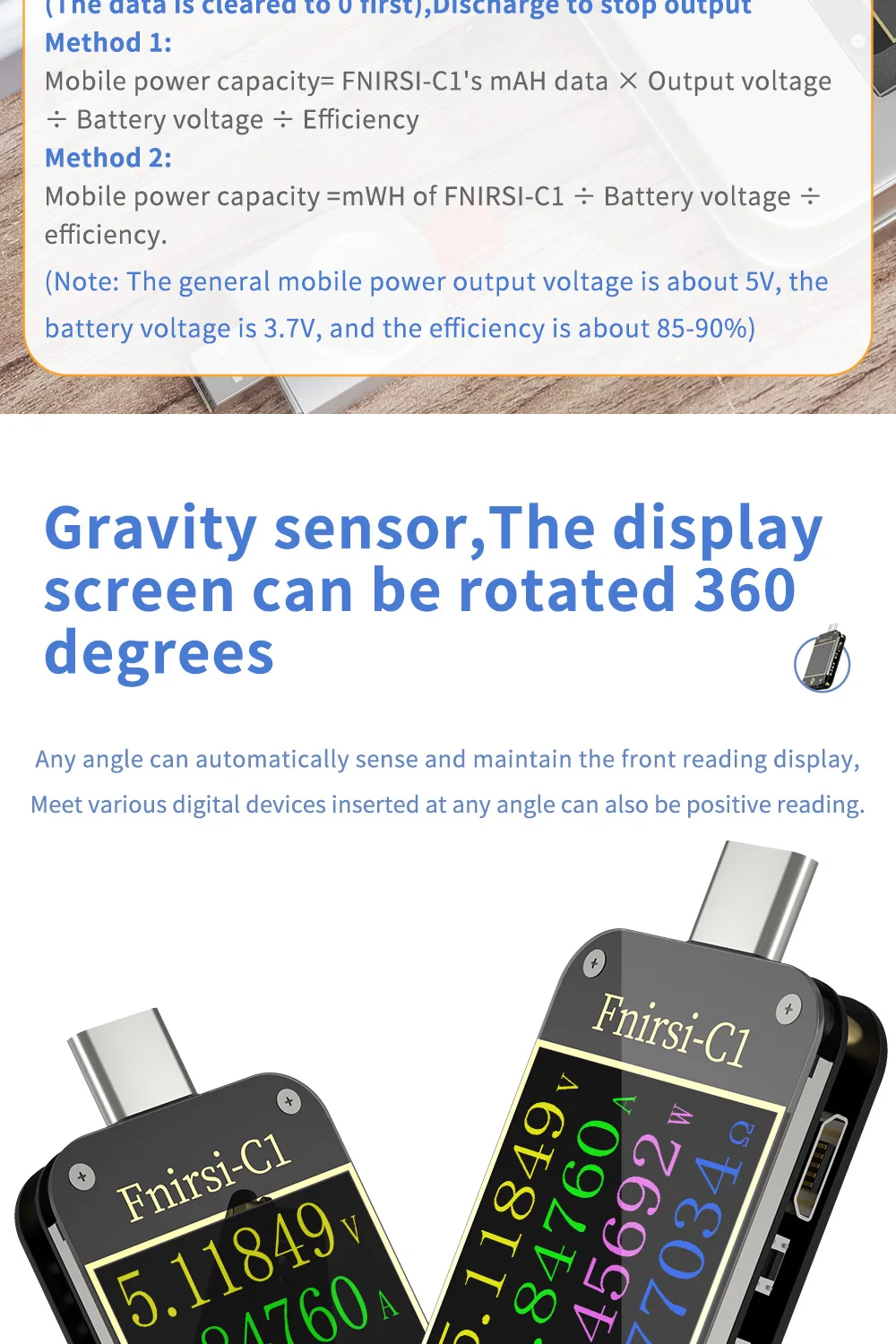

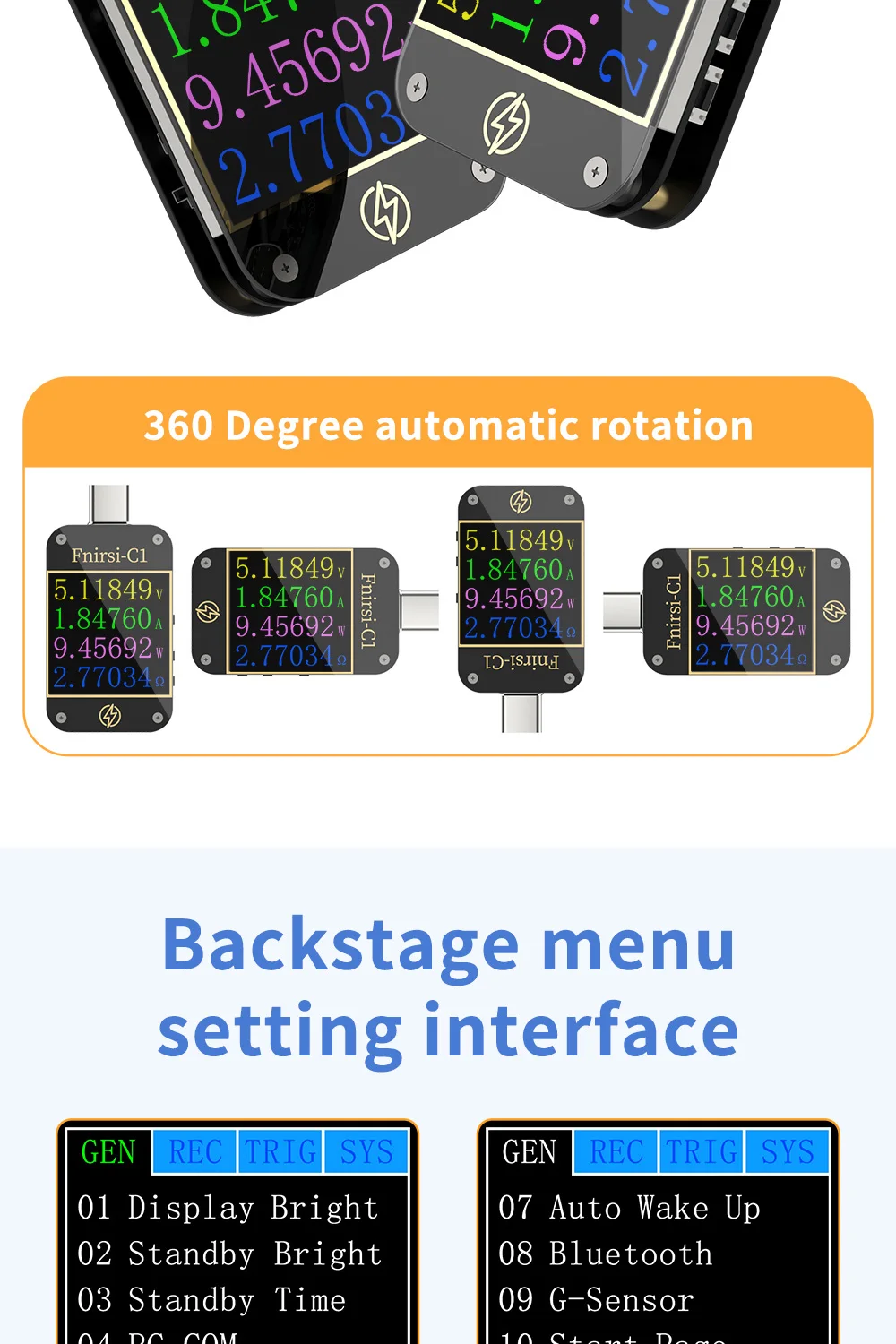

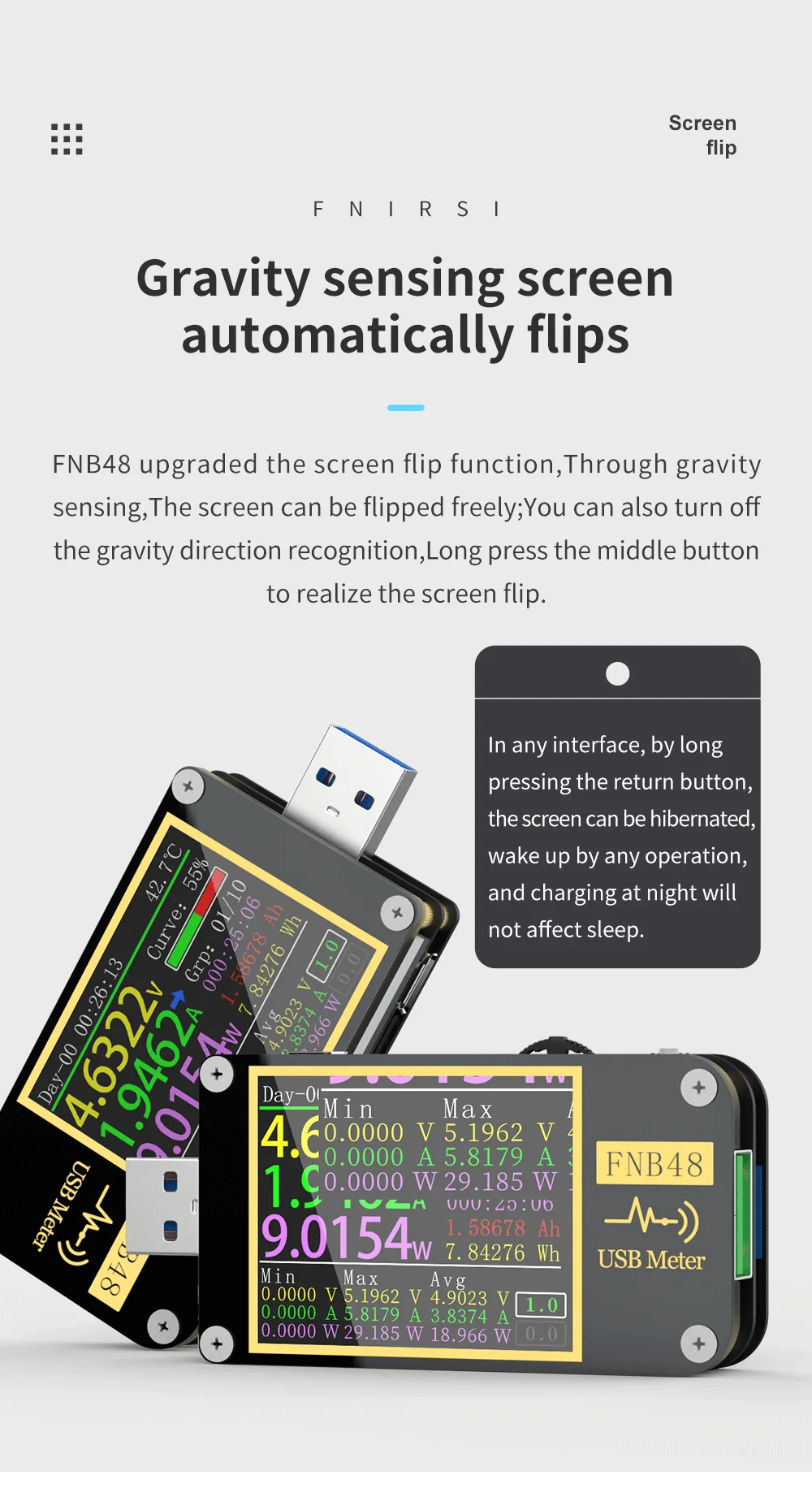

This product support screen flip function, through the gravity-induction, the screen can be free to flip, you can also turn off gravity-direction recognition and flip the screen by long pressing the middle key.

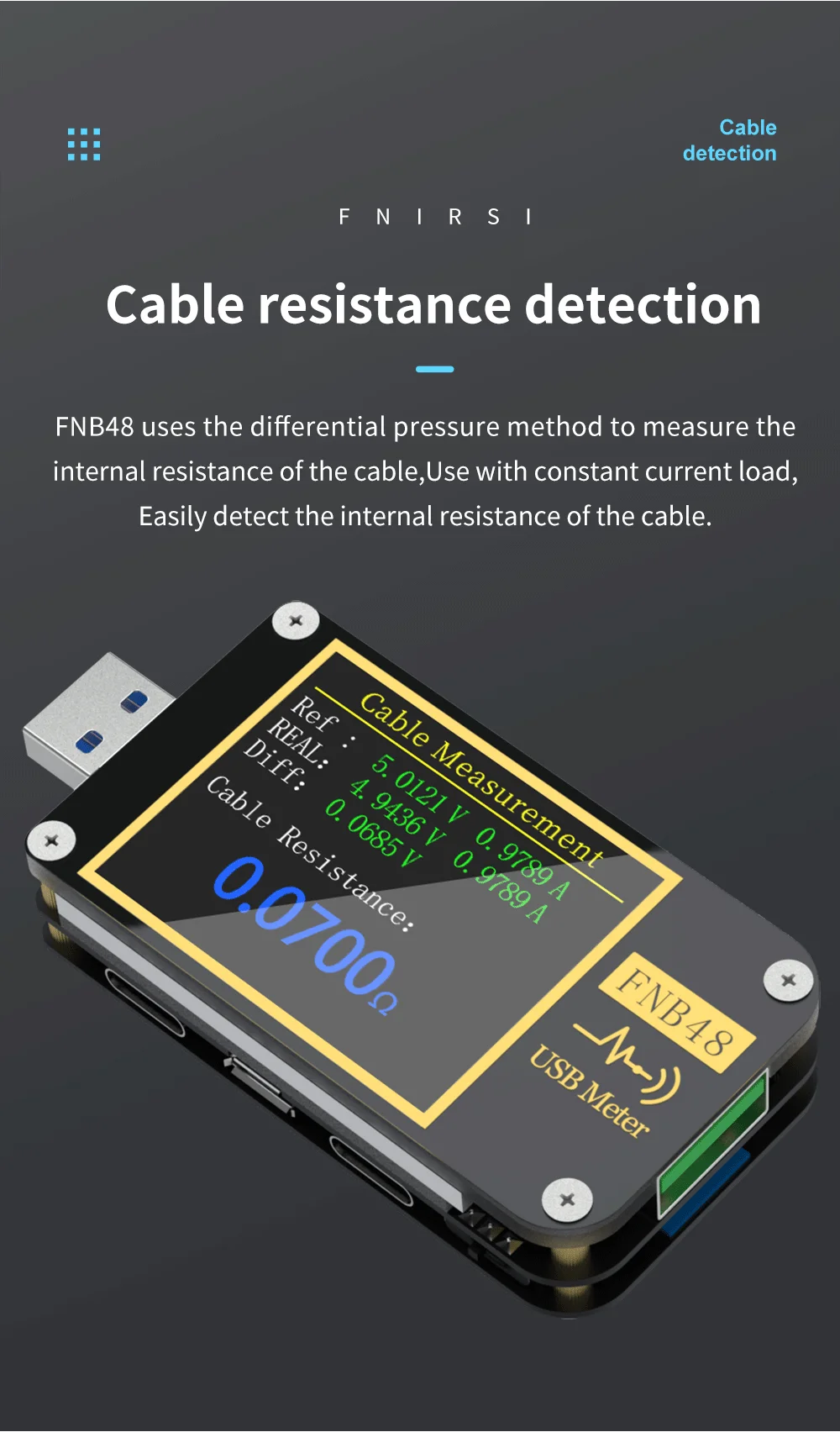

This product uses differential pressure method to measure cable resistance. It is used with constant current load to easily detect cable resistance.

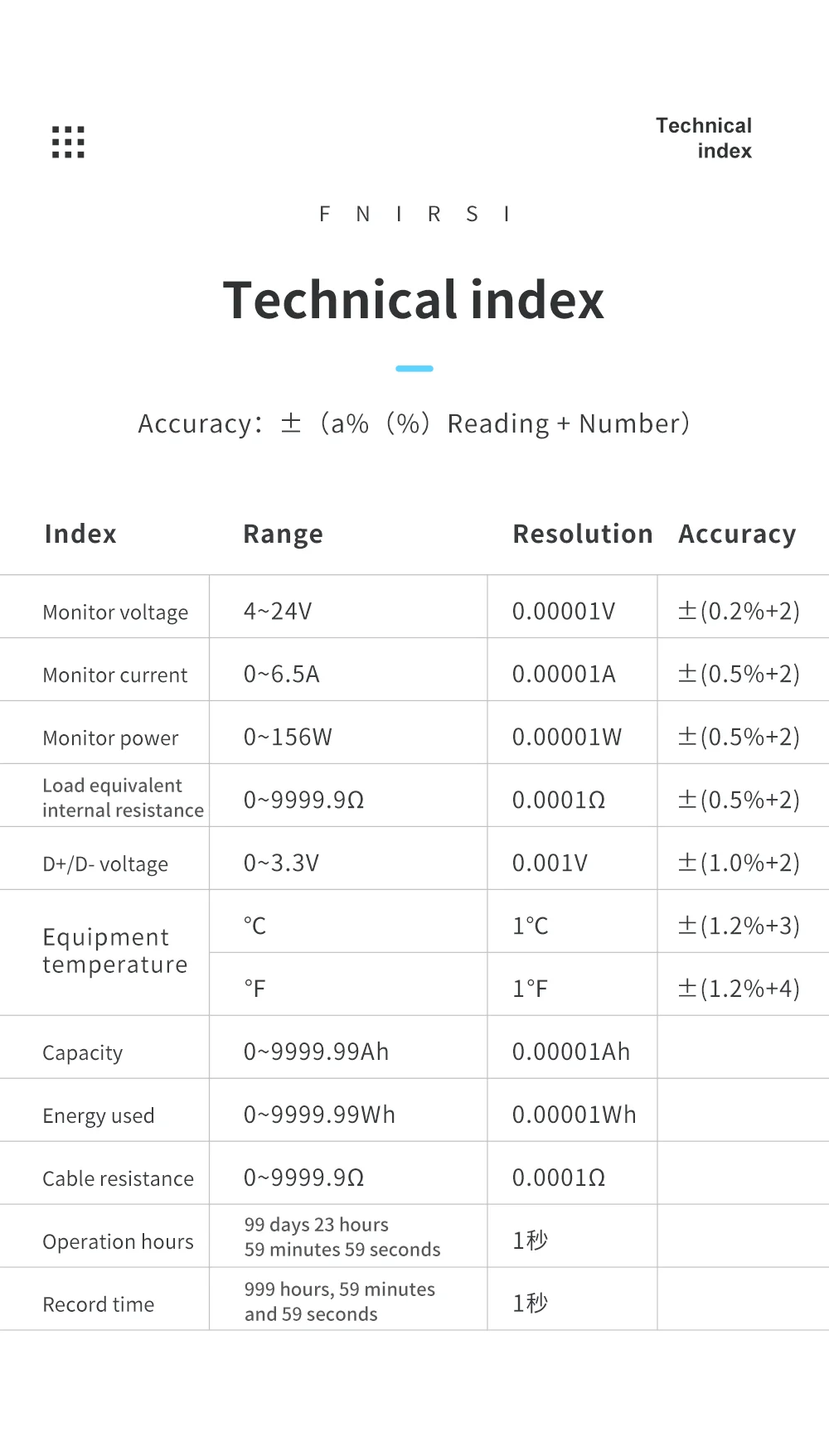

Specifications:

Material: ABS

Monitor voltage: 4~24V

Monitor voltage resolution: 0.00001V

Monitor voltage accuracy: ±（0.2%+2）

Monitor current: 0~6.5A

Monitor current resolution: 0.00001A

Monitor current accuracy: ±（0.5%+2）

Monitor power: 0~156W

Monitor current resolution: 0.00001W

Monitor current accuracy: ±（0.5%+2）

Load equivalent international resistance: 0~9999.9Ω

Load equivalent international resistance resolution: 0.0001Ω

Load equivalent international resistance accuracy: ±（0.5%+2）

Capacity: 0~9999.99Ah

Energy used: 0~9999.99Wh

Cable resistance: 0~9999.99Ω

D+/D- voltage: 0~3.3V

D+/D- voltage resolution: 0.001V

D+/D- voltage accuracy: ±（1.0%+2）

Equipment temperature: ℃/℉

Package size: 91 * 63 * 19mm / 3.6 * 2.5 * 0.7in

Package weight: 55g / 1.9ounce

Packing list:

1 pcs * FNIRSI FNB48

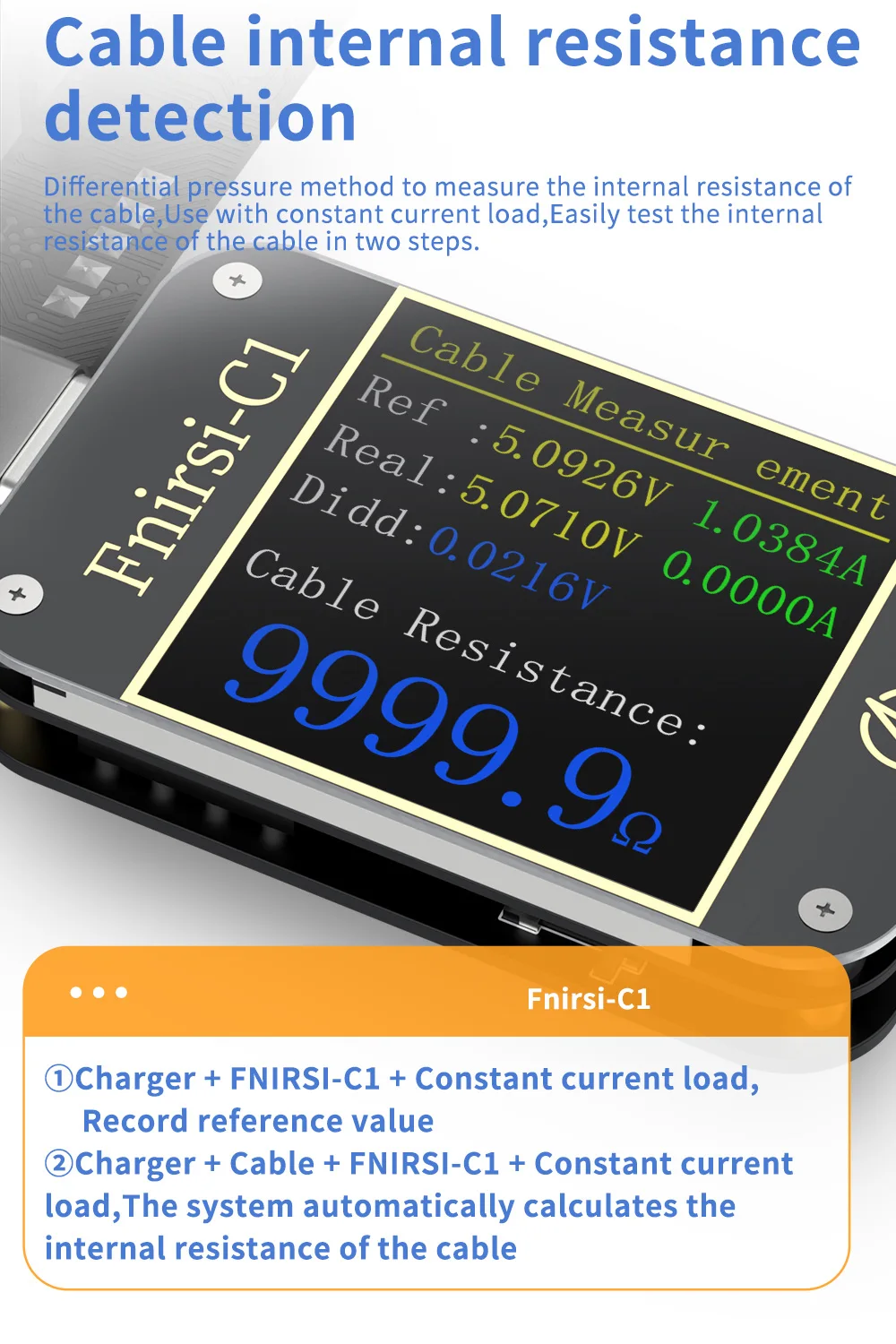

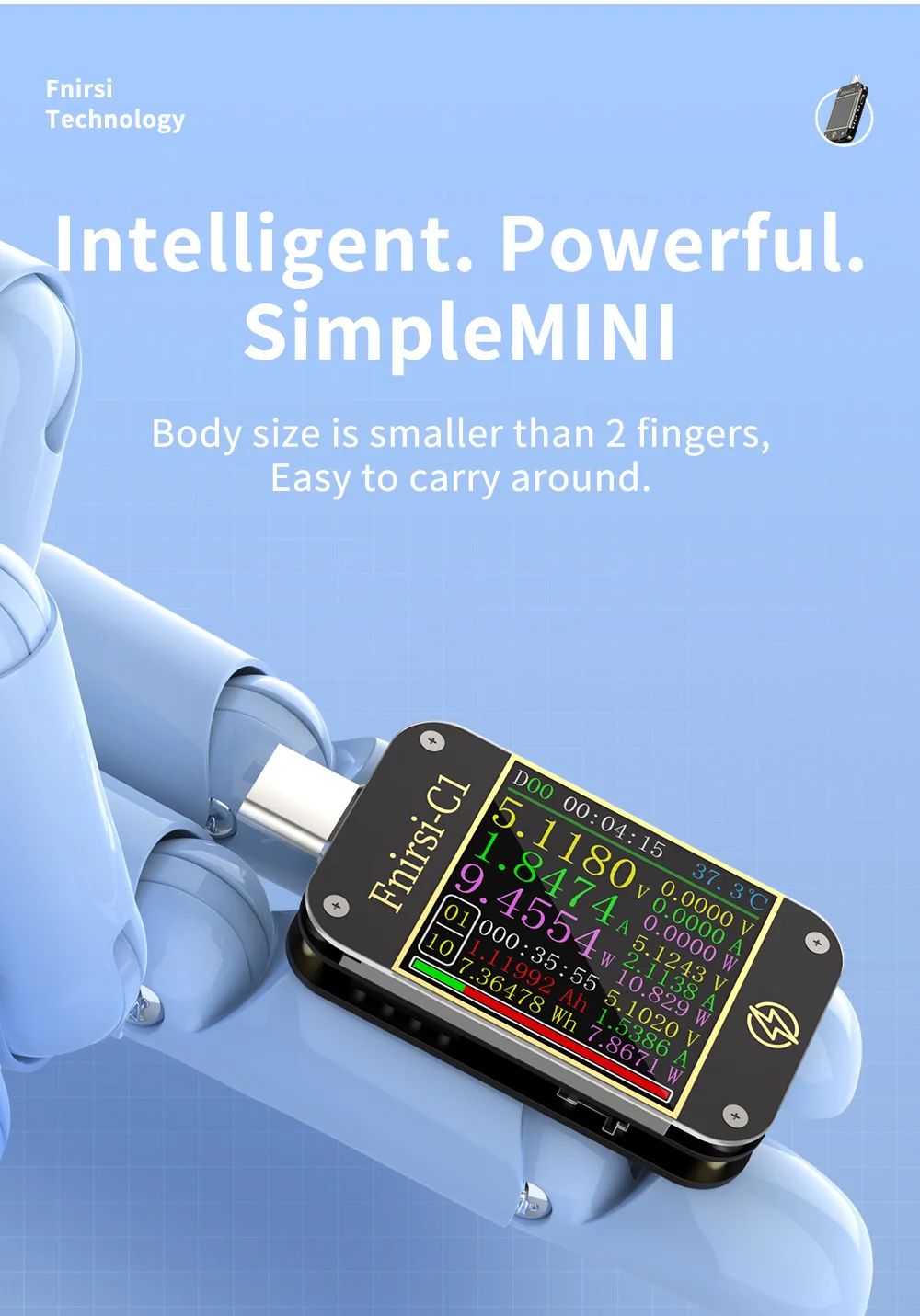

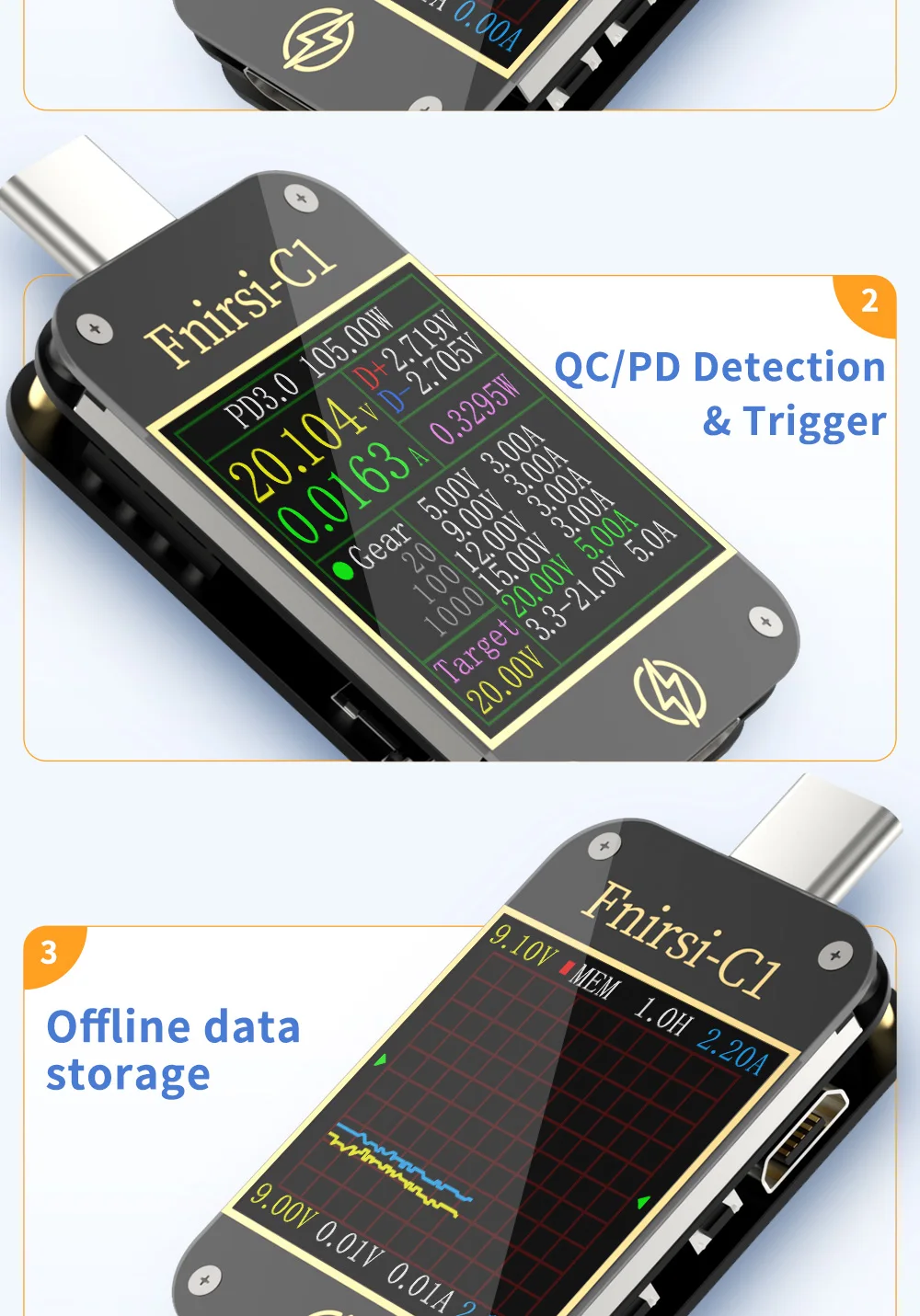

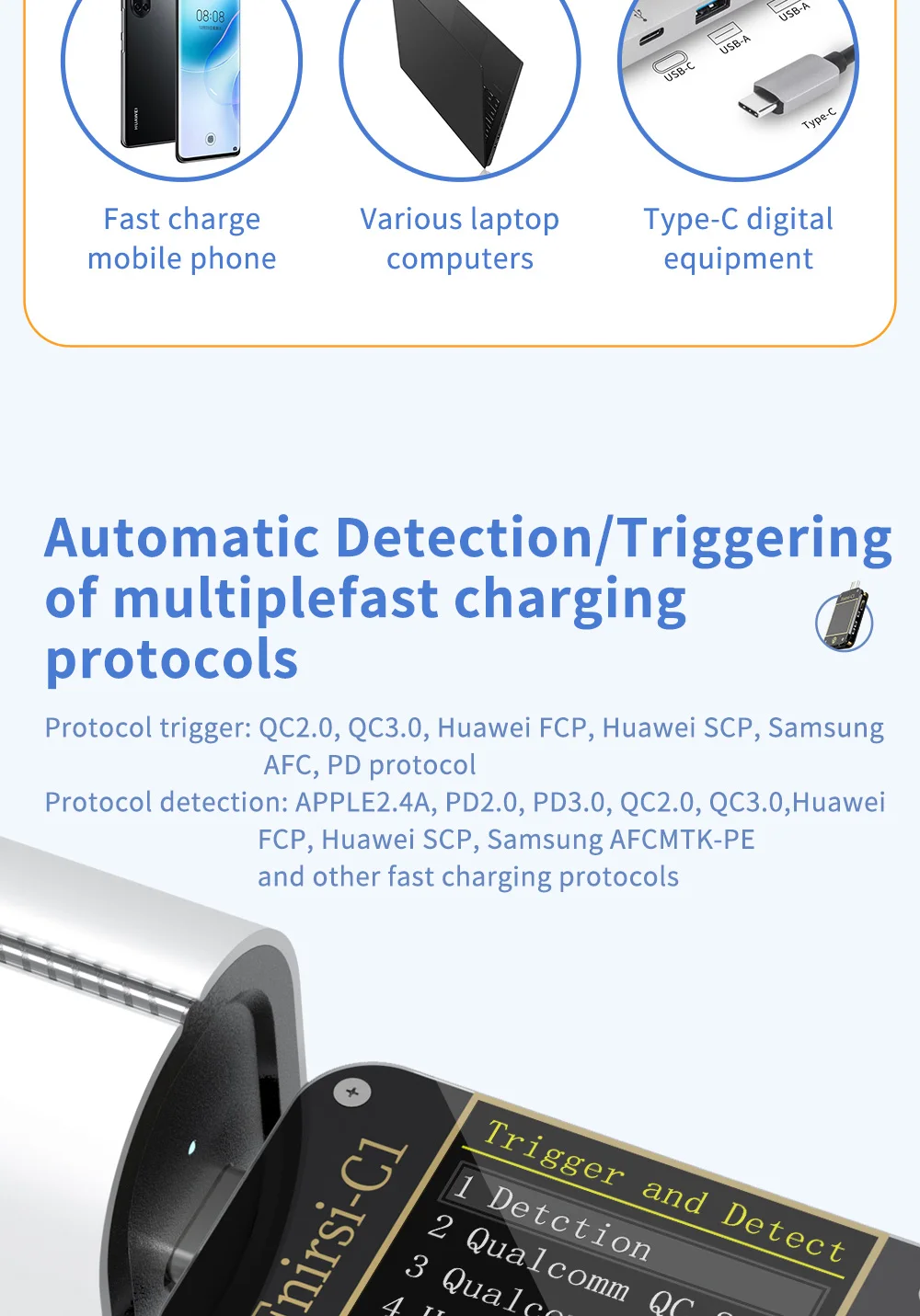

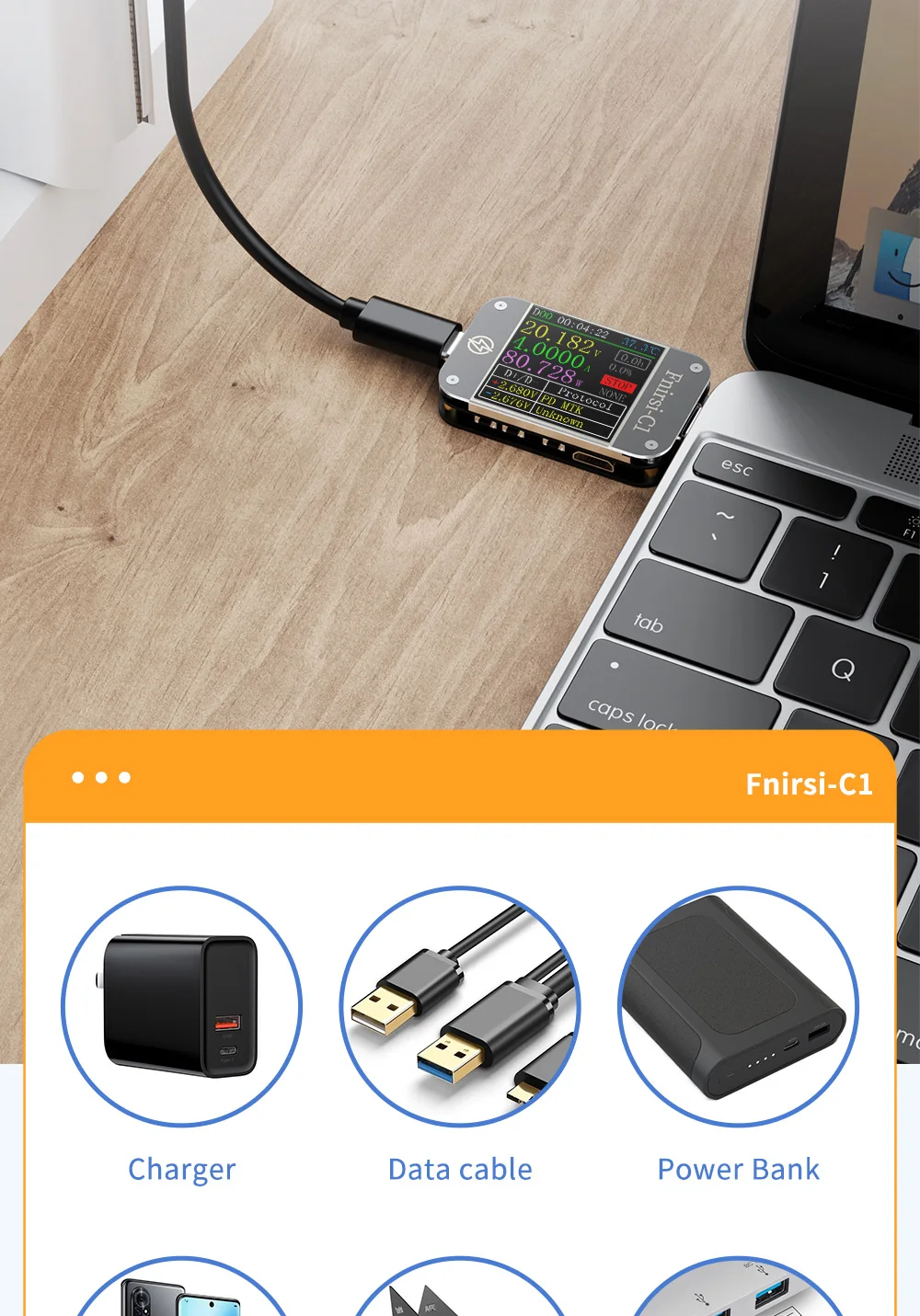

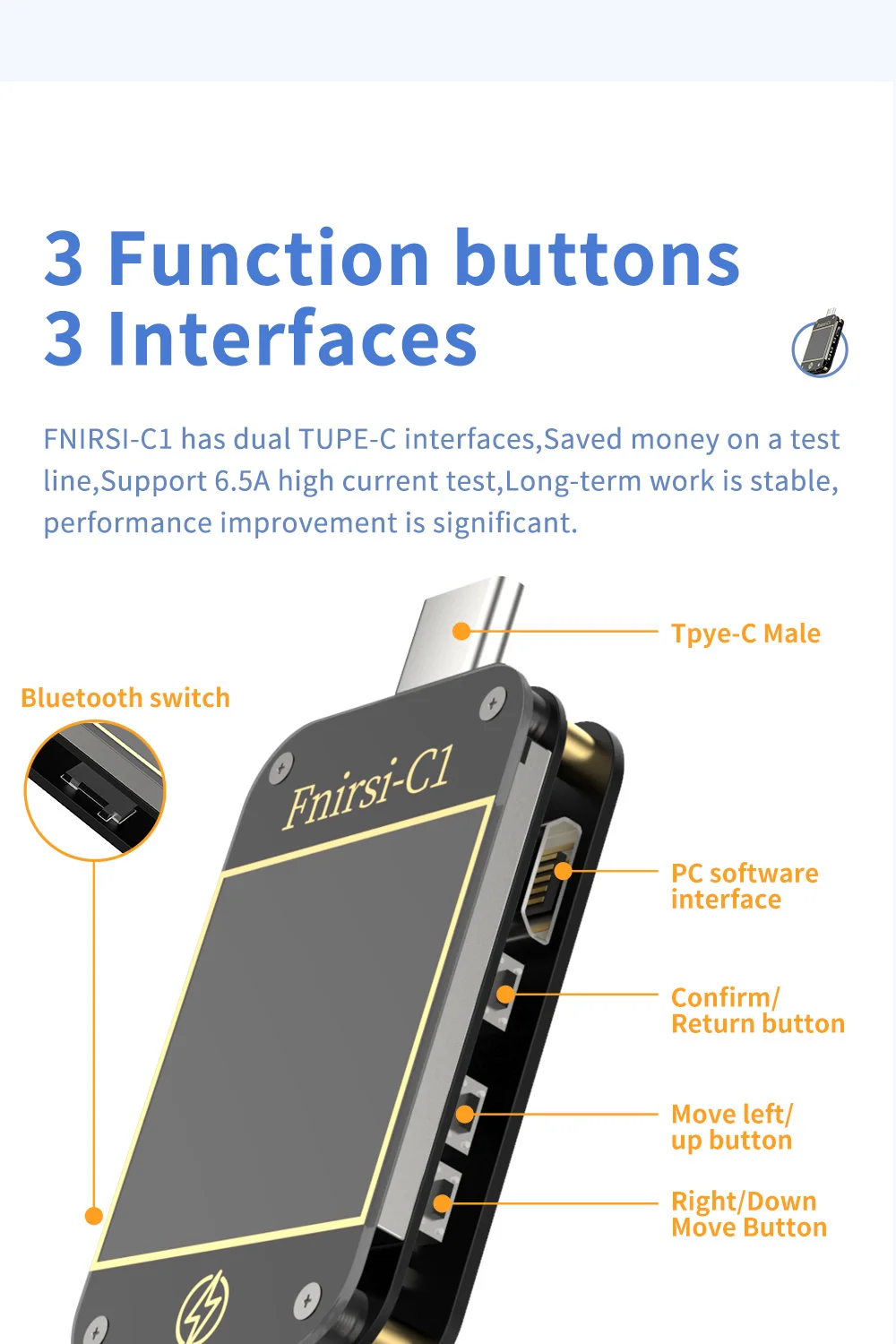

FNIRSI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank tester

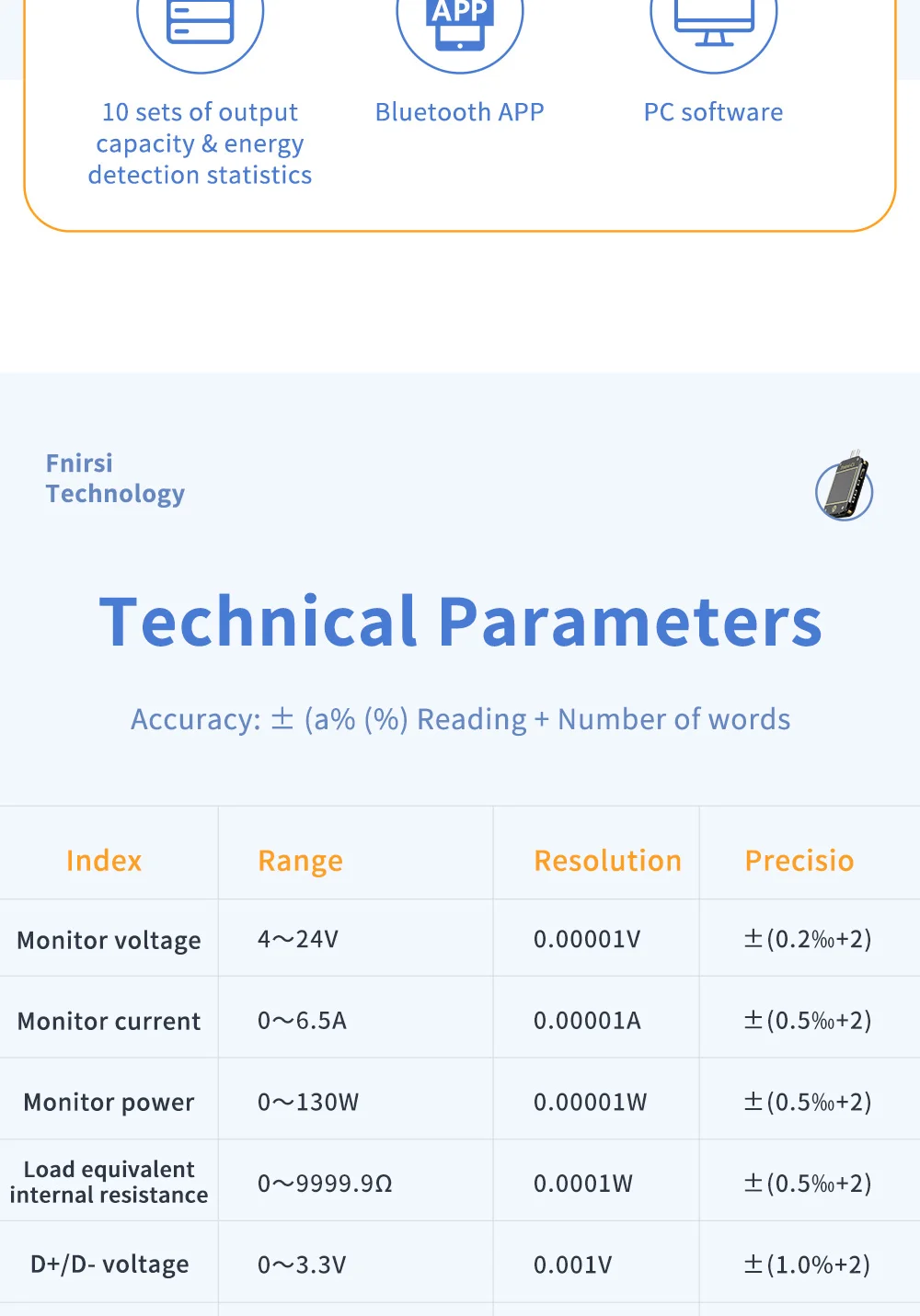

Specifications:

Monitoring voltage: 4~24V

Monitor voltage resolution: 0.00001V

Monitoring voltage accuracy: ±(0.2‰+2)

Monitoring current: 0~6.5A

Display current resolution: 0.00001A

Monitoring current accuracy: ±(0.5‰+2)

Display power: 0~130W

Display current resolution: 0.00001W

Monitoring current accuracy: ±(0.5‰+2)

Load equivalent resistance: 0~9999.9Ω

Load equivalent resistance resolution: 0.0001Ω

Load equivalent resistance accuracy: ±(0.5‰+2)

Capacity: 0~9999.99Ah

Use energy: 0~9999.99Wh

Cable resistance: 0~9999.9Ω

D+/D- voltage: 0~3.3V

D+/D- voltage resolution: 0.001V

D+/D- voltage accuracy: ±(1.0%+2)

Equipment temperature: ℃/℉

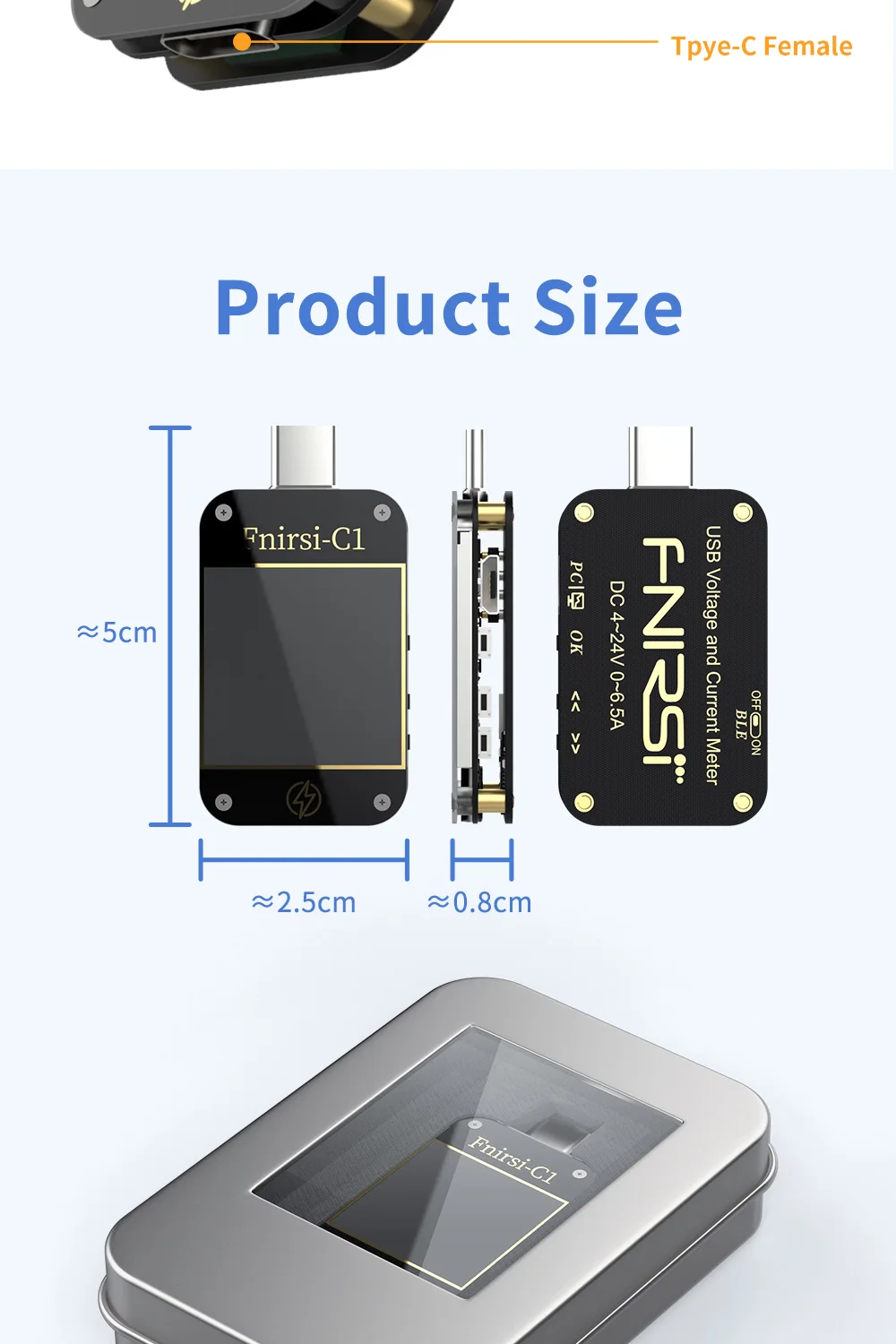

Package size: 50*25*8mm / 1.97* 0.98 * 0.31in

Package weight: 47g / 1.66oz
