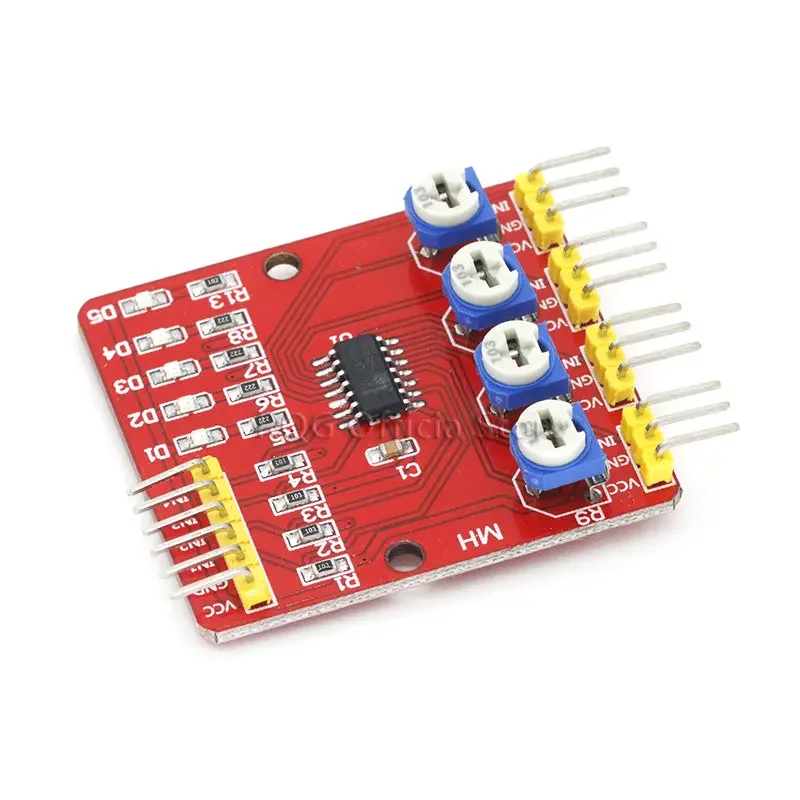

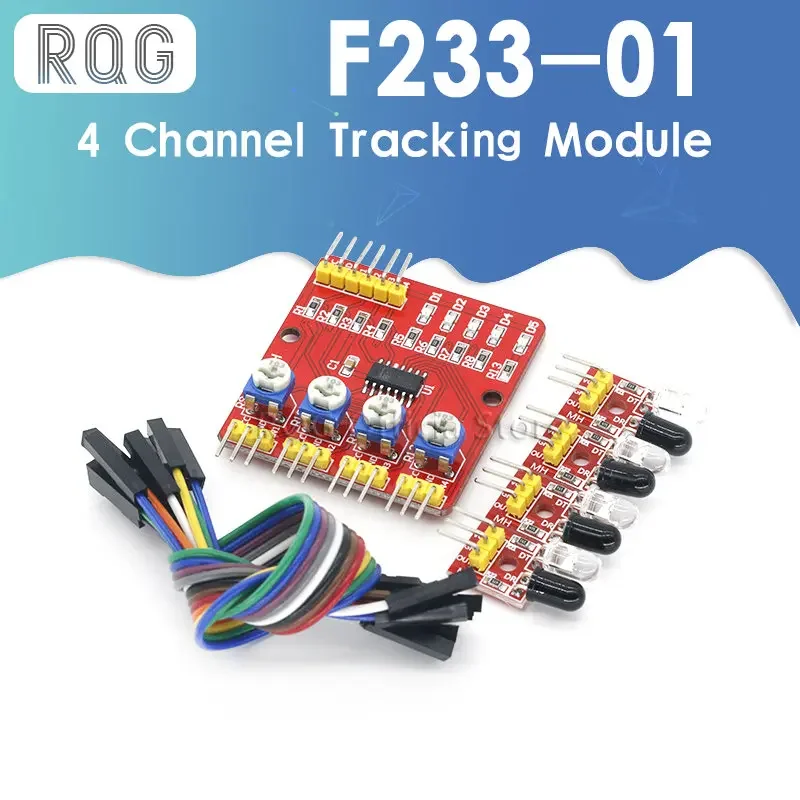

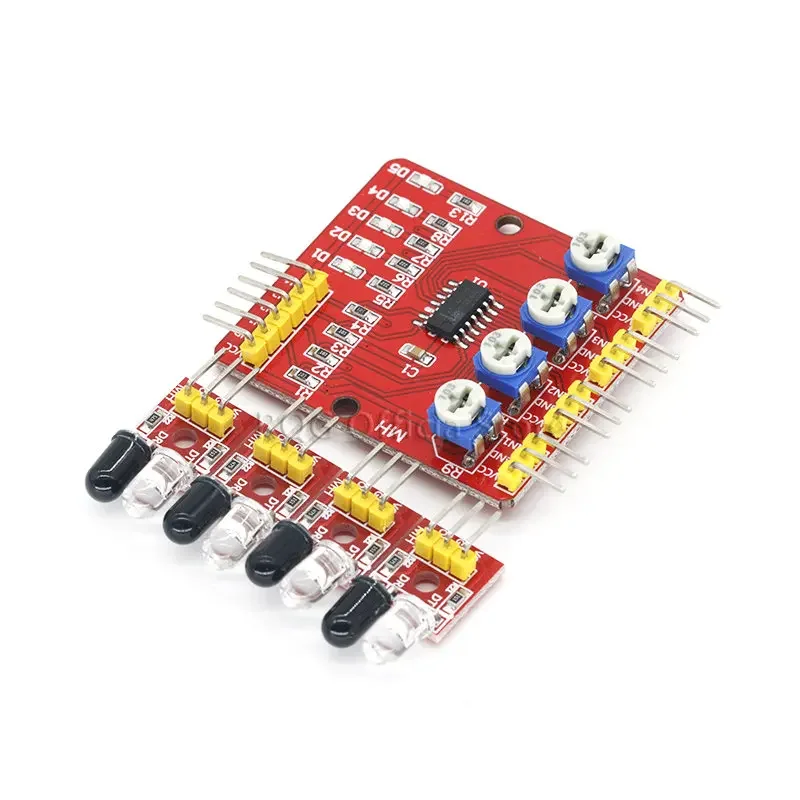

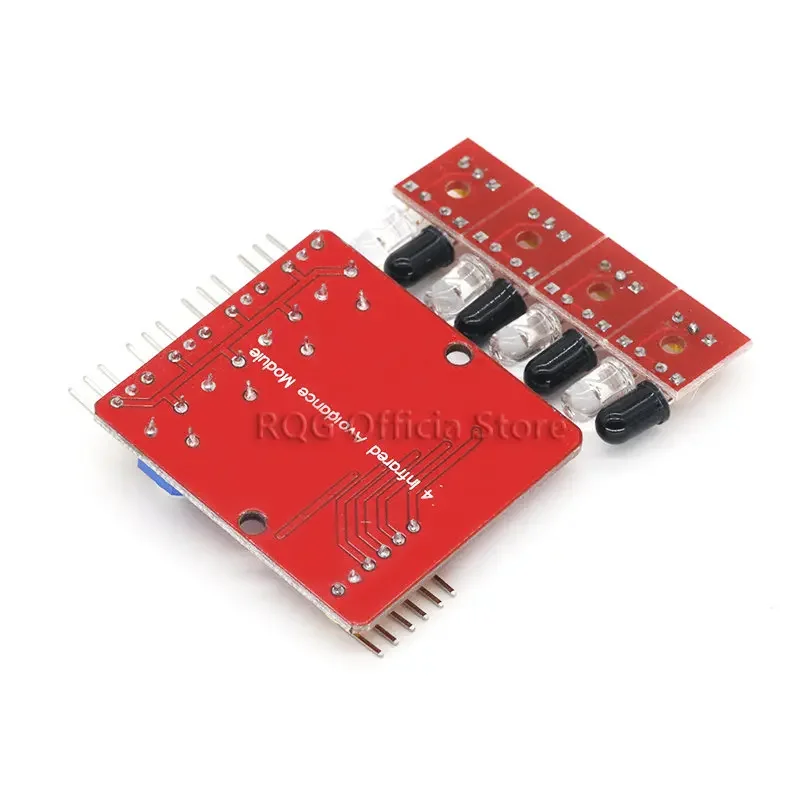

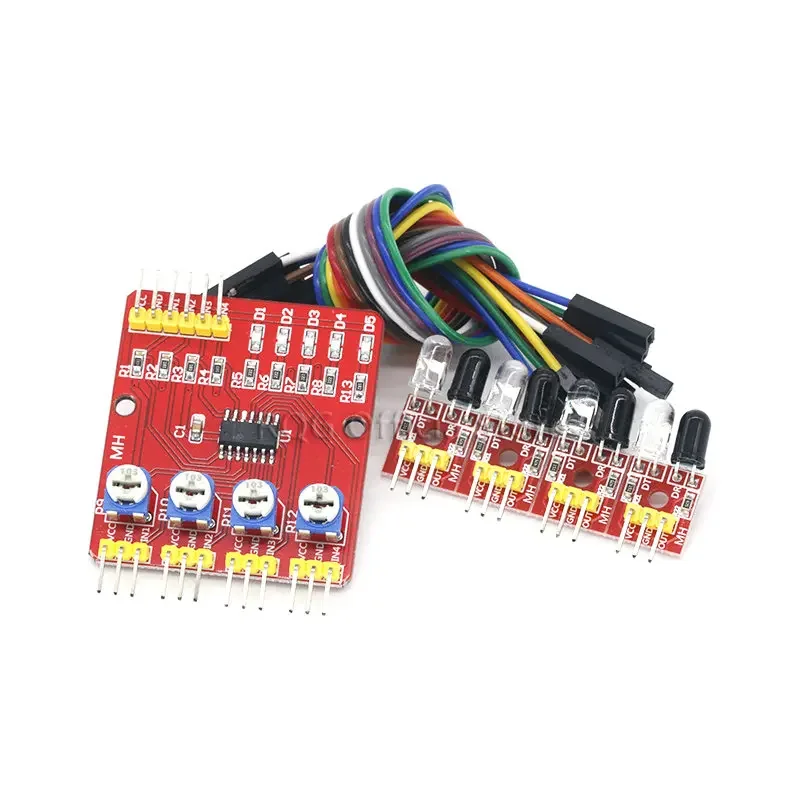

F233-01 Four-way infrared tracing / 4 channel tracking module / transmission line / obstacle avoidance / car / robot sensors

107.80৳

99936 in stock

Estimated shipping to Bangladesh:
[Free]Cainiao Super Economy Global (31-55 days)
Please select a shipping method
Estimated Delivery
Cost
Carrier
31-55 days
Free
Cainiao Super Economy Global
13-23 days
375.20৳
AliExpress standard shipping
7-15 days
3,875.20৳
DPEX
20-40 days
4,085.20৳
Aramex
17-59 days
6,428.80৳
AliExpress Premium Shipping
7-15 days
8,317.40৳
Fedex IE
7-15 days
9,244.20৳
UPS Express Saver
7-15 days
9,945.60৳
UPS Expedited
7-15 days
10,402.00৳
Fedex IP
7-15 days
17,515.40৳
DHL
অর্ডার দিতে সমস্যা হলে, ভিডিওটি দেখুন।

♦ Disclaimer: AliMarket একটি ক্রস বর্ডার শপিং সার্ভিস প্রোভাইডার। আমাদের মূল লক্ষ্য বর্ডার বাধা পেরিয়ে আপনাকে কাঙ্ক্ষিত পণ্য এনে দেওয়া। AliMarket এ প্রদর্শিত প্রোডাক্ট বিভিন্ন থার্ড পার্টি শপিং ওয়েবসাইট থেকে সংগৃহীত। অর্থাৎ AliMarket সরাসরি কোন পণ্যের সেলার বা ম্যানুফ্যাকচারার নয়। তাই AliMarket কোনো প্রাসঙ্গিক, জামানত বা যৌথ দায় নিতে বাধ্য নয়। তবে গ্রাহক স্বার্থ রক্ষার্থে শপিং ওয়েবসাইটের রিফান্ড পলিসি অনুসারে AliMarket বিফর এবং আফটার সেলস সার্ভিস দেয়।

Description
  • Hign-concerned Chemical: None
  • is_customized: Yes
  • Type: Voltage Regulator
  • Brand Name: RQG
  • Origin: Mainland China
  • Condition: New
  • Working temperature: – 10oC – +50oC
  • Working voltage: DC 3.3V-5V
  • size: 42mm*38mm*12mm

Four-way infrared tracing / 4 channel tracking module / transmission line modules / obstacle avoidance / car / robot sensors

Specifications:
Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: – 10oC – +50oC
Mounting aperture: M3 screws
Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.

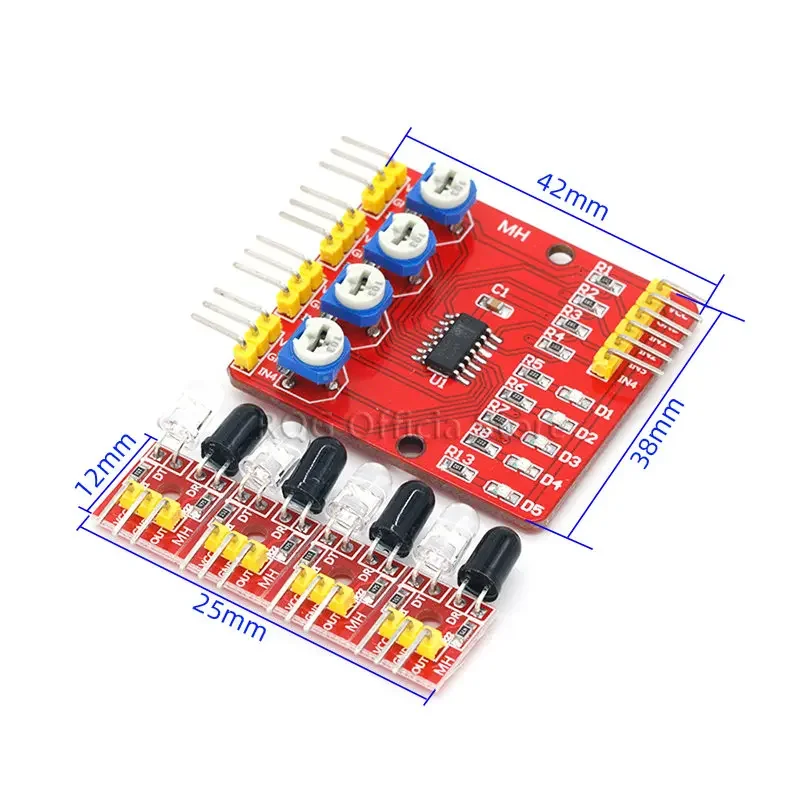

Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)
Small forward 25mm * 12mm * 12mm (length * width * height)
Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)
The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
Applications:
A Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing .
(2) smart car to avoid the cliff , anti- fall.
3 smart car to avoid obstacles
