ESP ESP32-S3 CAM WiFi Bluetooth development board module onboard ESP32-S3 N16R8 dual TYPE-C OV2640 /OV5640/OV3660 Camera

Product Features:
1.ESP32-S3 is designed based on the ESP32 S3-1 module with PCB onboard antenna.

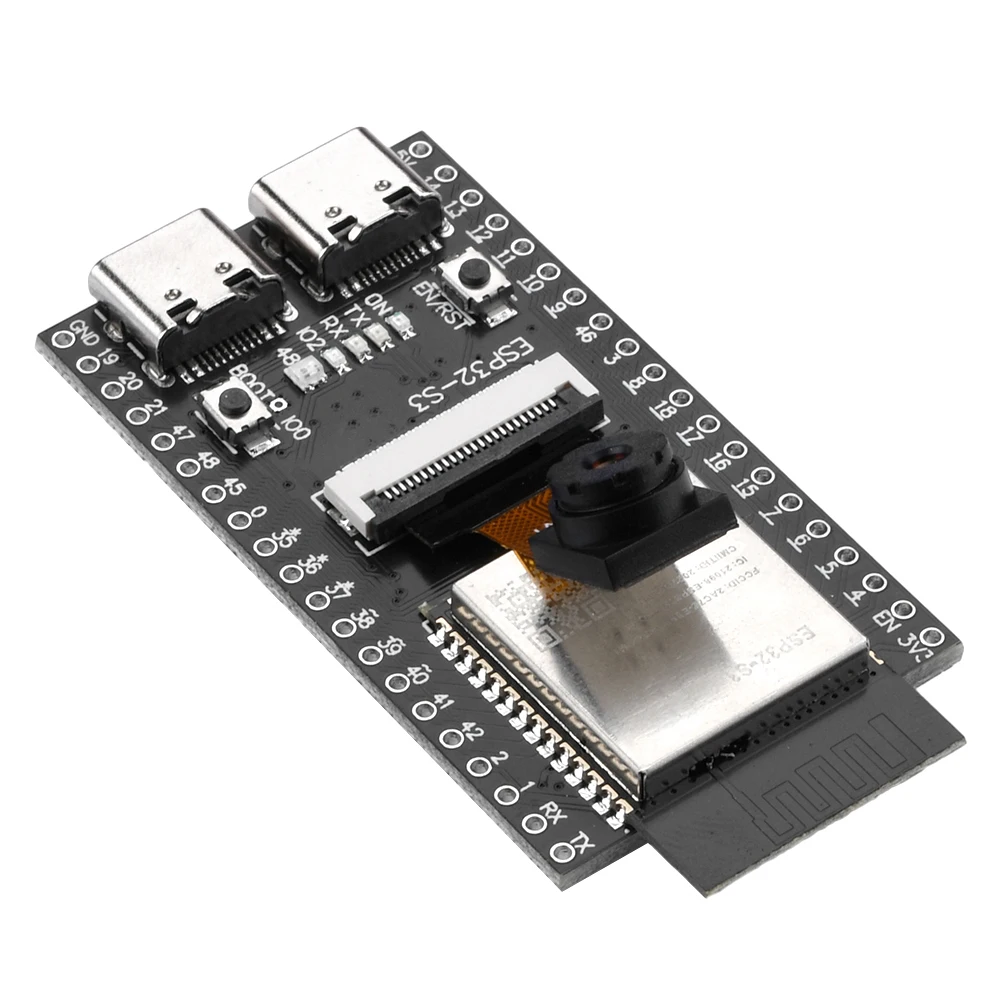

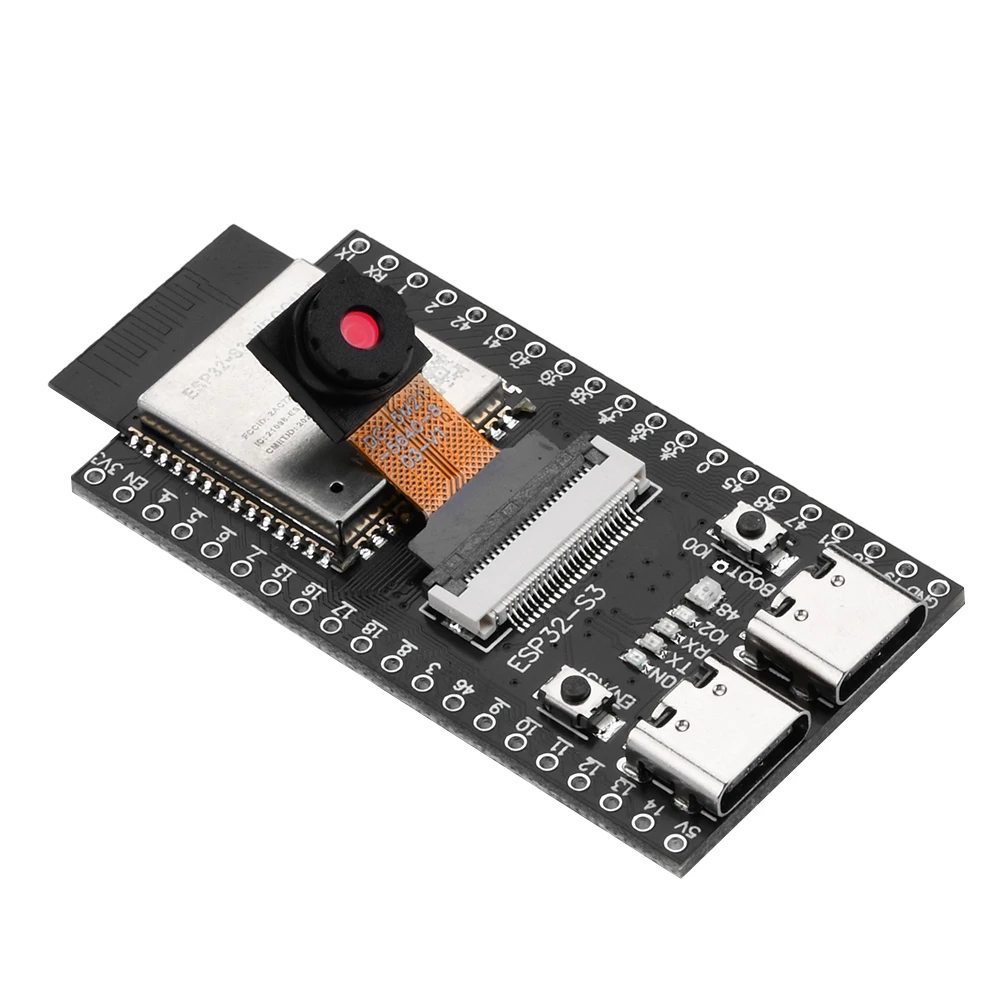

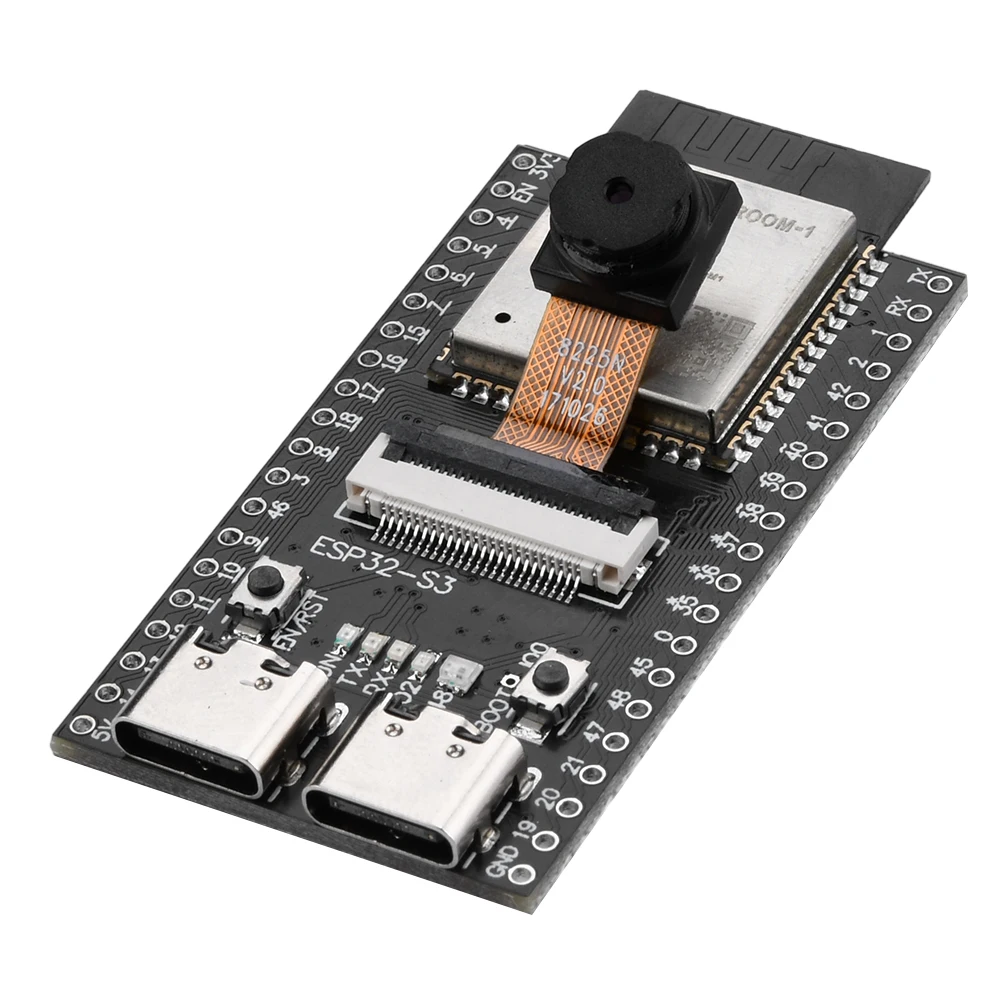

2.ESP32-S3 development board can be equipped with two optional cameras: OV2640/OV5640.
3.ESP32-S3 is a low-power MCU system-on-chip (SoC) with integrated 2.4 GHz Wi-Fi and low-power Bluetooth dual-mode wireless communication.
4.ESP32-S3 has a complete Wi-Fi subsystem and low-power Bluetooth subsystem, with industry-leading low-power performance and RF performance, supports multiple low-power working states, and can meet the power consumption requirements of various application scenarios.
5.ESP32-S3 chip provides rich peripheral interfaces and has a variety of unique hardware security mechanisms. The perfect security mechanism enables the chip to meet strict security requirements.

Performance parameters:
Controller: XtensaR dual-core 32-bit LX7 CPU, frequency up to 240MHz

Storage:
384 KB of ROM
512 KB of SRAM
16 KB of RTCSRAM
8 MB of PSRAM
Operating voltage: 3V to 3.6V.

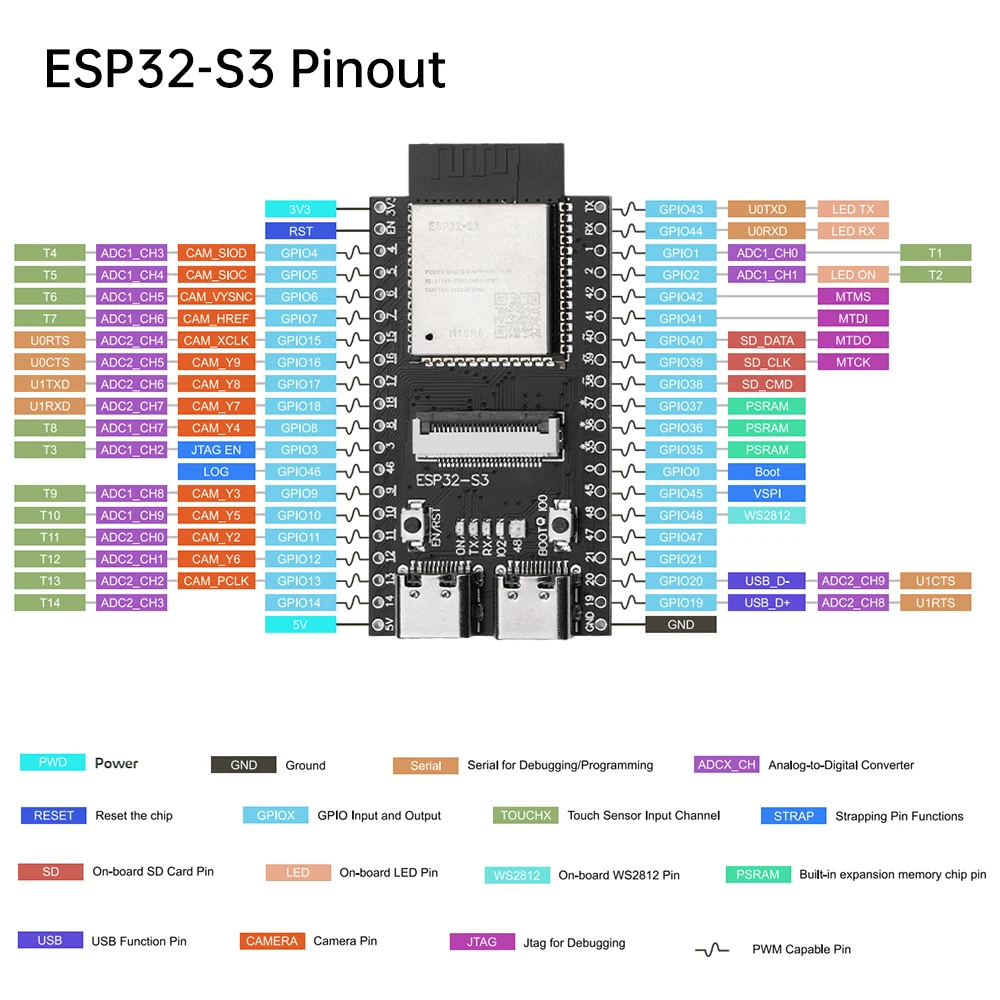

Up to 45 GPIOs
2*12-bit ADC (up to 20 channels)
Communication interface:
2 12c interfaces
2 12s interfaces
4 SPI interfaces
3 UART interfaces
1 USB oTG interface.
Temperature range: -40 to 65 degrees Celsius

WiFi
Supports IEEE 802.11 b/g/n protocols
Supports 20 MHz and 40 MHz bandwidth in the 2.4 GHz band
Supports 1T1R mode with data rates up to 150 Mbps
Wireless Multimedia (WMM)
Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)
Immediate Block Acknowledgement (ImmediateBlock ACK)
Fragmentation and defragmentation (Fragmentation/defragmentation)-Beacon automatic monitoring (hardware TSF) -4× virtual Wi-Fi interface
Supports infrastructure network (lnfrastructure BSS) Station mode, SoftAP mode and Station+ SoftAP promiscuous mode. Please note that when ESP32-S3 scans in Station mode, the SoftAP channel will change at the same time
Antenna diversity
802.11 mc FTM
Supports external power amplifier

Bluetooth:
Bluetooth LE: Bluetooth 5, Bluetoothmesh
High power mode (20 dBm, sharing PA with Wi-Fi)
Supports 125Kbps, 500Kbps, 1 Mbps, 2 Mbps.
Advertising Extensions
Multiple Advertisement Sets
Channel Selection Algorithm #2
Coexistence of Wi-Fi and Bluetooth, sharing the same antenna
Advanced peripheral interfaces and sensors
45 xGPIO ports
Digital interfaces:
– 4xSPl
– 1xLCD interface (8-bit
– 16-bit parallel RGB, l8080, MOTO6800), supports conversion between RGB565, YUV422, YUV420, YUV411
– 1xDVP8-bit~16-bit camera interface
-3xUART
-2xl2C
– 2x 12S
– 1xRMT (TX/RX)
-1x pulse counter
-LED PWM controller, up to 8 channels
– 1x full-speed USB OTG
– 1 x USB Serial/JTAG controller
– 2x MCPWM
– 1 x SDIO host interface with 2 card slots
– General DMA controller (GDMA for short), 5 receive channels and 5 transmit channels
– 1xTWAI controller, compatible with IS011898-1 (CAN specification 2.0)

Analog interface:
– 2×12-bit SAR ADC, up to 20 channels
– 1x temperature sensor
-14x capacitive sensing GPIO
Timer:
– 4×54-bit general timer
– 1×52-bit system timer
– 3×watchdog timer

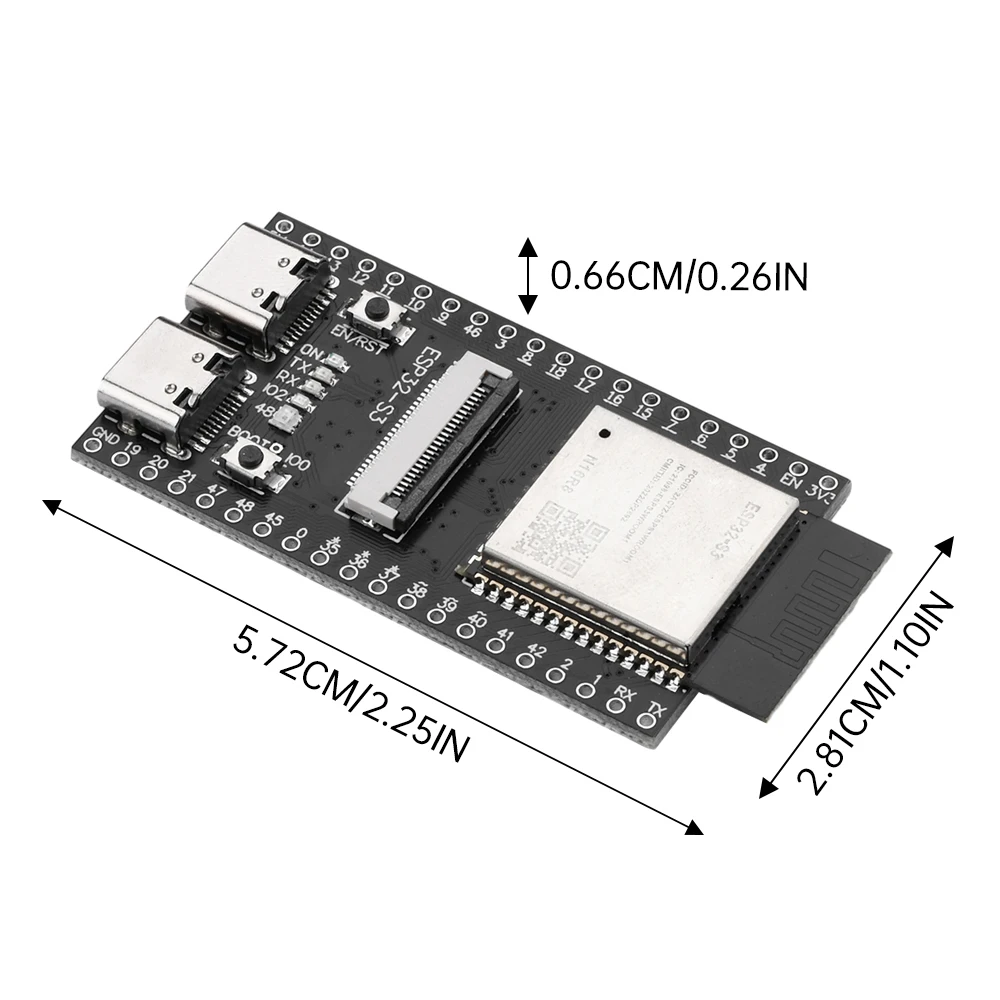

Product size: 57mm*28mm
