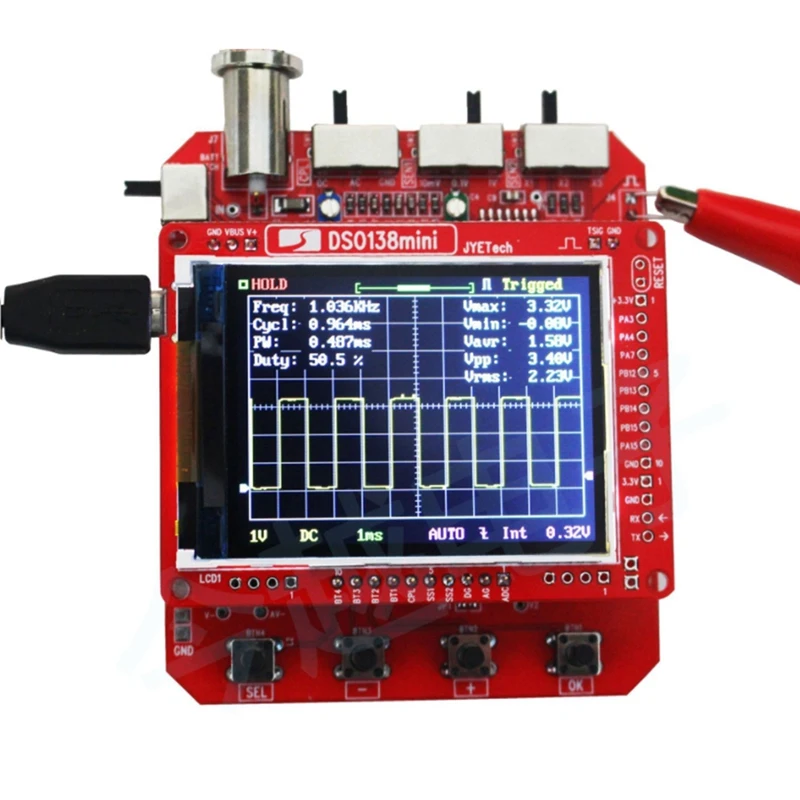

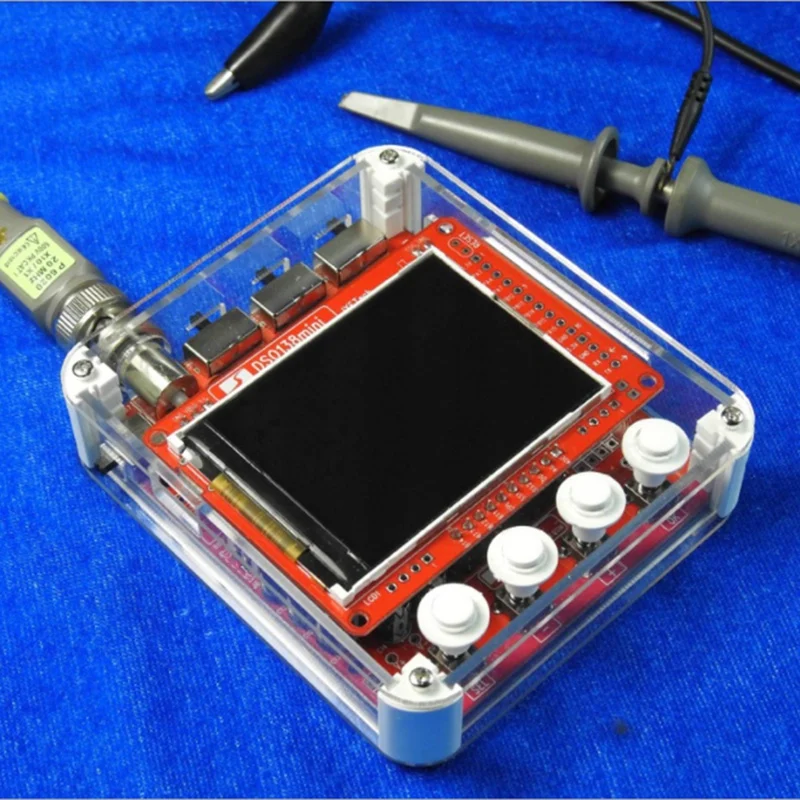

Dso138mini Digital Oscilloscope Kit DIY Learning Pocket-Size DSO138 Upgrade

DSO138mini brings in the following improvements: 1. Better structure and smaller size

2. USB or battery powered. 3. External trigger input.

4. Serial output of waveform data. 5. universal controller.

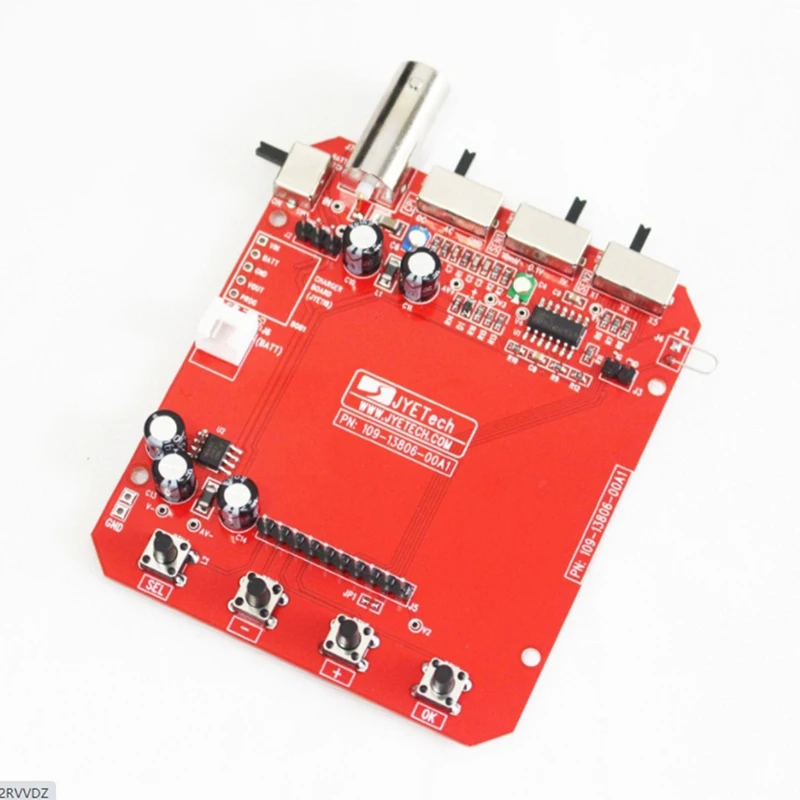

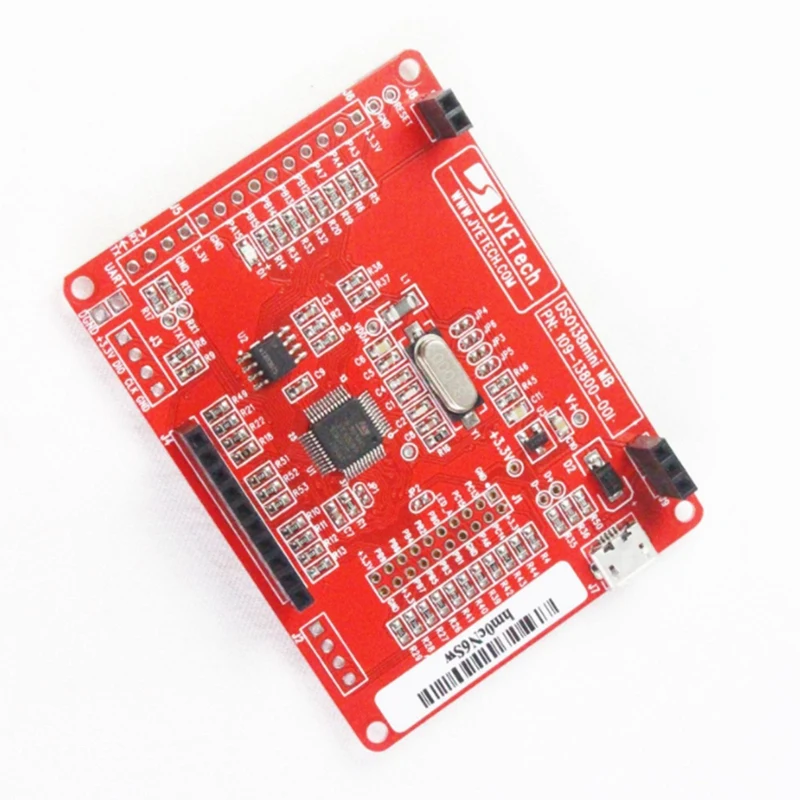

DSO138mini make MCU and LCD stay in one PCB to avoid problematic pin-header connections that was used in DSO138. This not only increase product reliability but also allow the main board to become a flexible universal purpose controller.

DSO138mini’s trigger can work reliably under 10us and 20us timebase settings.Waveform data can be outputted through serial port and the data can be easily displayed on PC with help of other software like Gnuplot. This photo shows the same waveform displayed on PC using Gnuplot.

Specification:

Major features of DSO138

Sampling rate: 1Msps max

Built-in 1KHz/3.3V test signal

Waveform freeze (HOLD) function available

Save/recall waveform

Serial waveform data output

Vertical:

Number of Channel: 1

Analog Bandwidth: 0 – 200KHz

Sensitivity: 10mV/Div – 5V/Div

Sensitivity error: less than 5%

Resolution: 12-bit

Input Impedance: 1M ohm

Maximum Input voltage: 50Vpk

Coupling: DC, AC, GND

Horizontal:

Max Real-time Sampling Rate: 1Msps

Timebase: 10us/Div – 500s/Div

Record Length: 1024 points

Trigger:

Trigger Modes: Auto, Normal, Single

Trigger Types: Rising/falling edge

Trigger Position: 1/2 of buffer size fixed

Display: 2.4-inch color TFT LCD with 320 x 240 resolution

Power Supply: 3.5V – 6V DC

Supply Current: 120mA@5V

Physical Dimensions: 7 x 8cm/2.76 x 3.15inch

Type: Finished Product / Spare Parts

Colour: Red

Material: plastic

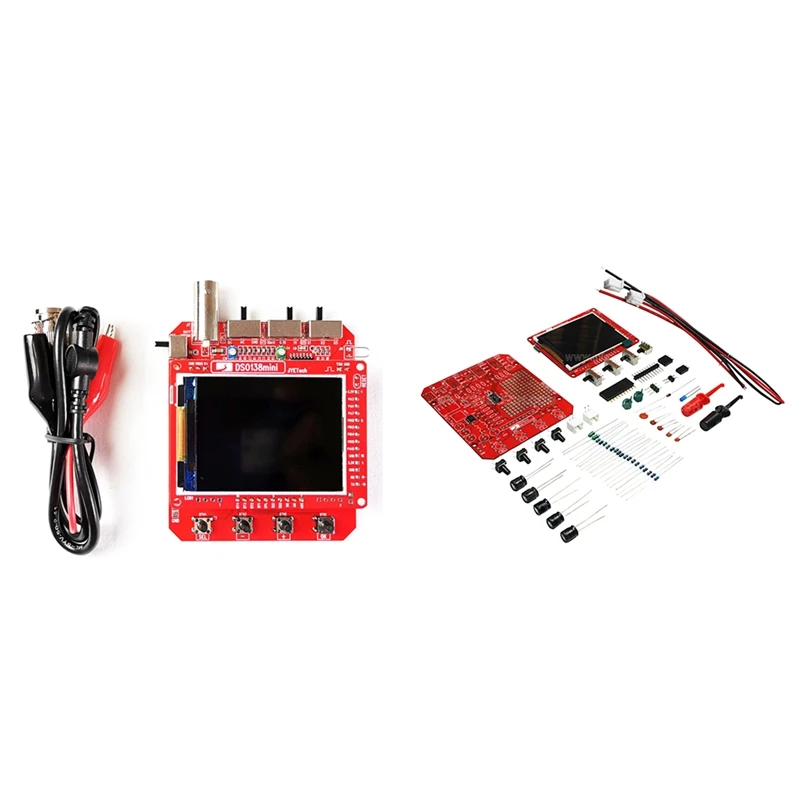

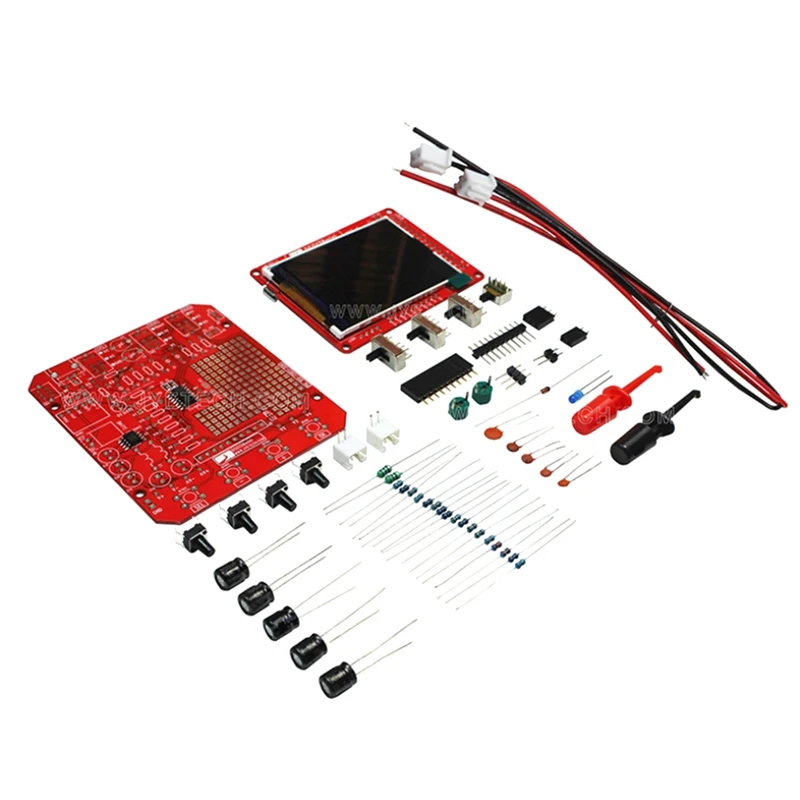

Package Contents:

1 set x DSO138mini oscilloscope kit

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
