Digital DIY Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Parts

DC 5V DIY Mini Digital Oscilloscope Electronic Kit STC 0.96 Inch DIY Soldering Project Practice Solder Assembly

Product selling points:
1. Indicator light: Usually, when the indicator light is on, it indicates that the sampling is running
There are three triggering modes: automatic mode, normal mode, and single mode

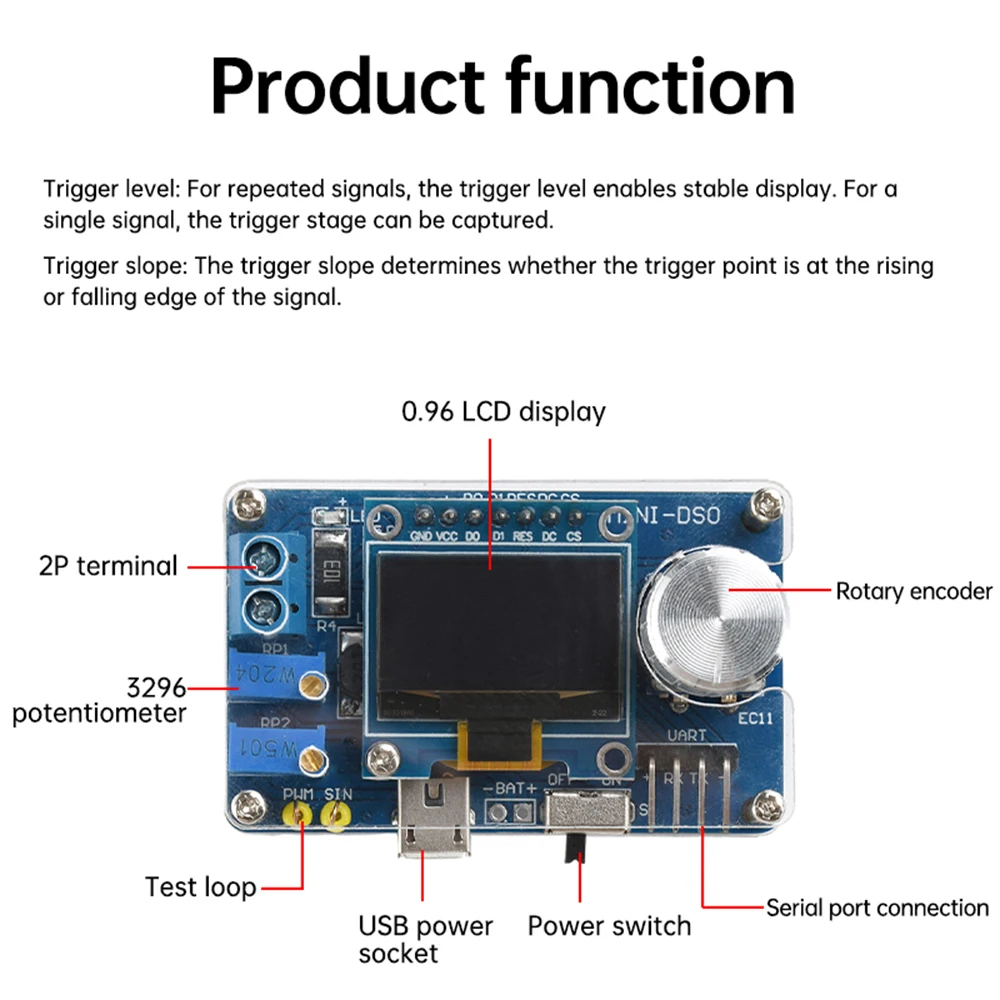

3. Trigger slope: The trigger slope determines whether the trigger point is on the rising edge or falling edge of the signal
4. Trigger level: For repeated signals, the trigger level can stabilize their display. For a single signal, the trigger stage can capture it
5. Save Settings: When exiting the settings interface, all parameters of the settings interface and the main interface will be saved in EEPROM
6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively

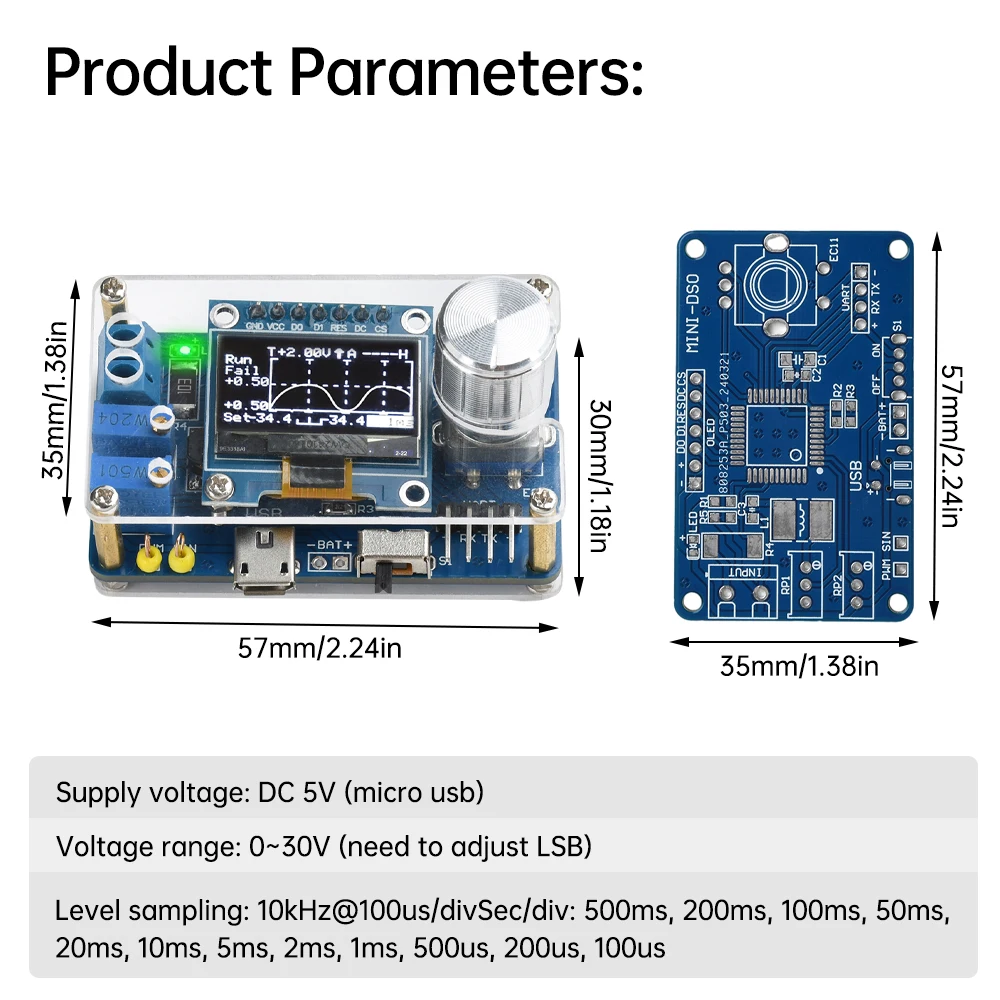

Product parameters:
Supply voltage: DC 5V（micro usb）
Voltage range: 0~30V (LSB needs to be adjusted)
Level sampling: 10kHz@100us /div
Sec/div：500ms、200ms、100ms、50ms、20ms、
10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us
Circuit board size: 57 * 35mm
Finished product size: 57 * 35 * 30mm

Packing list:

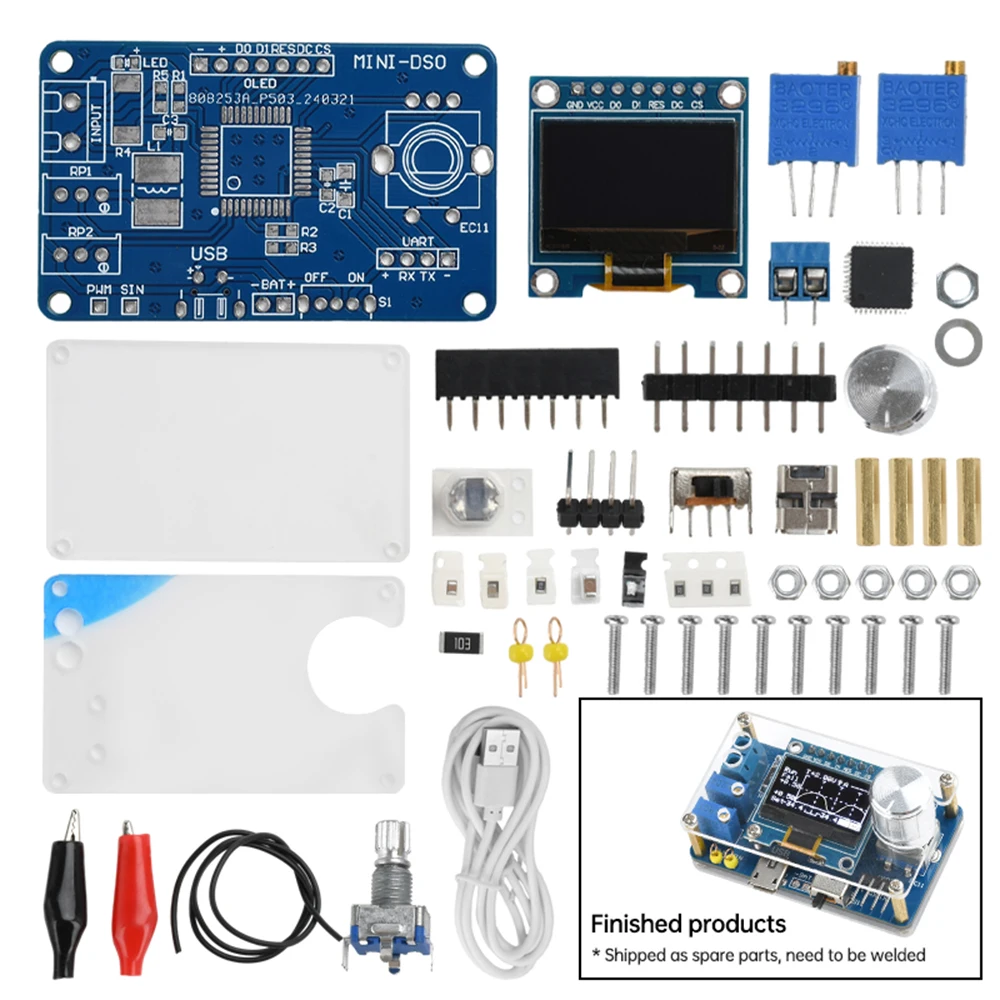

DIY loose parts * 1
