DC8-240V/0~1000A DT24PW Digital Display DC Power Supply Voltmeter Ammeter Battery Capacity Tester Battery Fuel Gauge Meter
Price range: 2,684.64৳ through 6,212.46৳
| Color |
240V 1000A ,240V 100A ,240V 200A ,240V 300A ,240V 400A ,240V 500A ,240V 600A |
|---|
♦ নোটিশ: আলীএক্সপ্রেসে বর্তমানে Welcome Deal অফার চলছে। Welcome Deal অফার একজন ক্রেতা সরাসরি আলীএক্সপ্রেসে থেকে একবার একটি মোবাইল বা কম্পিউটারের মাধ্যমে নিতে পারবে। তবে আমরা একটি ড্রপশিপিং প্রতিষ্ঠান, তাই আলীএক্সপ্রেসে দাম কম দেখালেও আমাদের ড্রপশিপিং প্রাইস আসল মূল্য অনুযায়ী।
♦ Disclaimer: AliMarket একটি ক্রস বর্ডার শপিং সার্ভিস প্রোভাইডার। আমাদের মূল লক্ষ্য বর্ডার বাধা পেরিয়ে আপনাকে কাঙ্ক্ষিত পণ্য এনে দেওয়া। AliMarket এ প্রদর্শিত প্রোডাক্ট বিভিন্ন থার্ড পার্টি শপিং ওয়েবসাইট থেকে সংগৃহীত। অর্থাৎ AliMarket সরাসরি কোন পণ্যের সেলার বা ম্যানুফ্যাকচারার নয়। তাই AliMarket কোনো প্রাসঙ্গিক, জামানত বা যৌথ দায় নিতে বাধ্য নয়। তবে গ্রাহক স্বার্থ রক্ষার্থে শপিং ওয়েবসাইটের রিফান্ড পলিসি অনুসারে AliMarket বিফর এবং আফটার সেলস সার্ভিস দেয়। AliExpress এর কিছু প্রোডাক্টে কাস্টমস চার্জ যুক্ত হয়। তবে কাস্টমস চার্জ হলে সরকারী স্লিপ এ ট্যাক্স দিয়ে পণ্য গ্রহণ করতে হবে।
- Battery Included: No
- Hign-concerned Chemical: None
- Voltage range: Other
- Certification: CE
- Origin: Mainland China
- Model Number: DT24PW
- Brand Name: ATORCH
- DIY Supplies: Electrical
- Power Supply: DC
- Display Type: Analog and Digital
- Measurement voltage range: 8-240V
- Measurement Current range: 100A/200A/300A/400A/500A/600A/1000A
- Measurement Power range: 24KW/48KW/72KW/96KW/120KW/144KW/240KW
- Support Bluetooth: yes
Battery capacity / DC power multi-function tester 2.4-inch high-definition wide color screen Bluetooth digital transmission curve version
User manual and APP download
1, User manual, PC software installation instruction and PC software and Android APP download link:
https://www.mediafire.com/folder/f6hnbcwavyu5r/DT24PW
2, IOS APP: search E_test on iphone APP store to download
3. Android APP: https://www.mediafire.com/file/0jiio43c0vuu1wx/U_Meter-Phone_mobile.apk/file

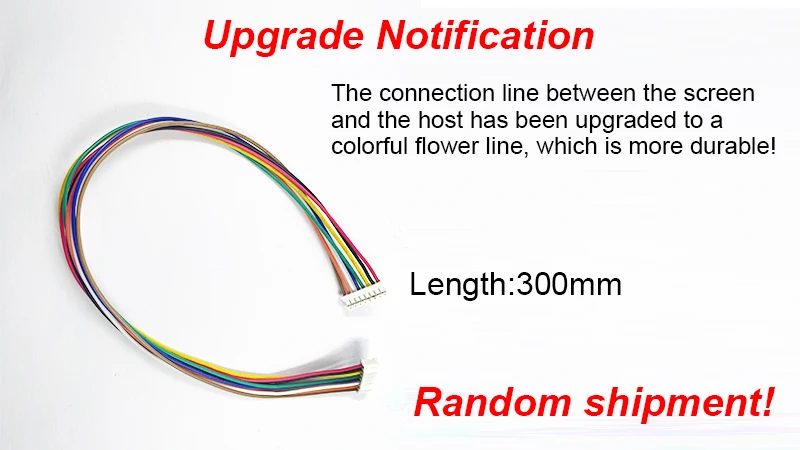

Dear customer friend, we will update this thread. If you receive white thread or flower thread, it can be used normally. Please do not mind, this is a normal replacement!
Product specifications
This product is used to test the capacity of various batteries, discharge and age various power adapters, and detect the voltage, current, and other parameters of various DC power supplies.
Product Size:
Installation size: length 76mm X width 53mm
Panel size: length 85.7mm X width 63mm
Electrical parameters:
Voltage measurement range under test voltage power supply mode:DC8 ~ 240V
Voltage measurement range in independent voltage supply mode: DC0 ~ 240V
Measuring power range: 0 ~ 240000W (0 ~ 240 KW)
Measuring current range: 0.1~100A/0.1~200A/0.2~300A/0.3~400A/0.4~500A/0.5~600A/1~1000A
Reminder: If you enable the external power-off relay, please be sure to supply the system with independent power supply 9V~24V /> 1A power supply to avoid the failure of the relay control current and system instability

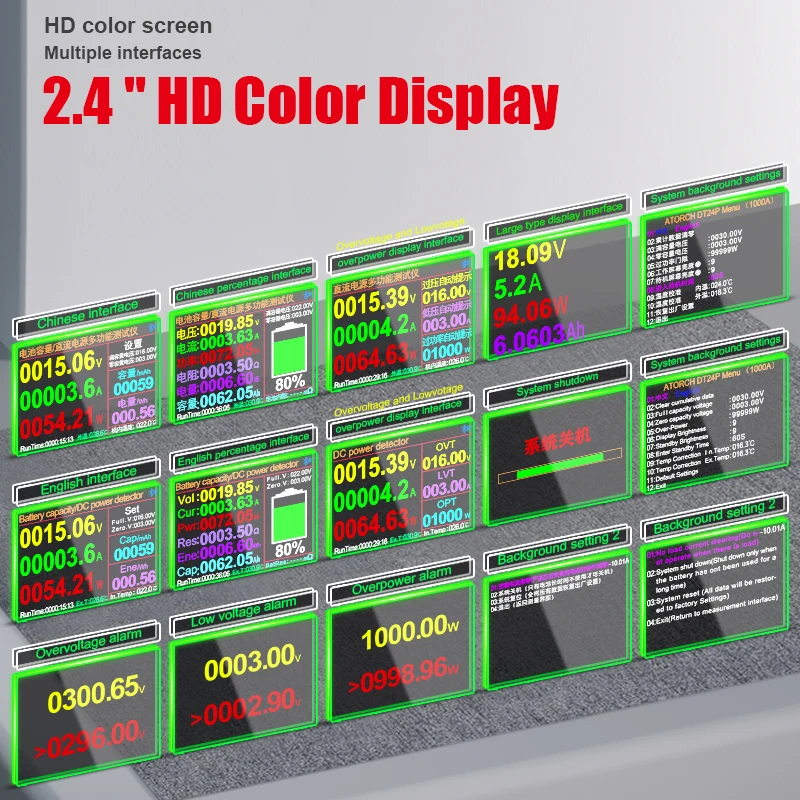

7 in 1 Large Screen 2.4 Inch HD Wide Color Screen Interface Design

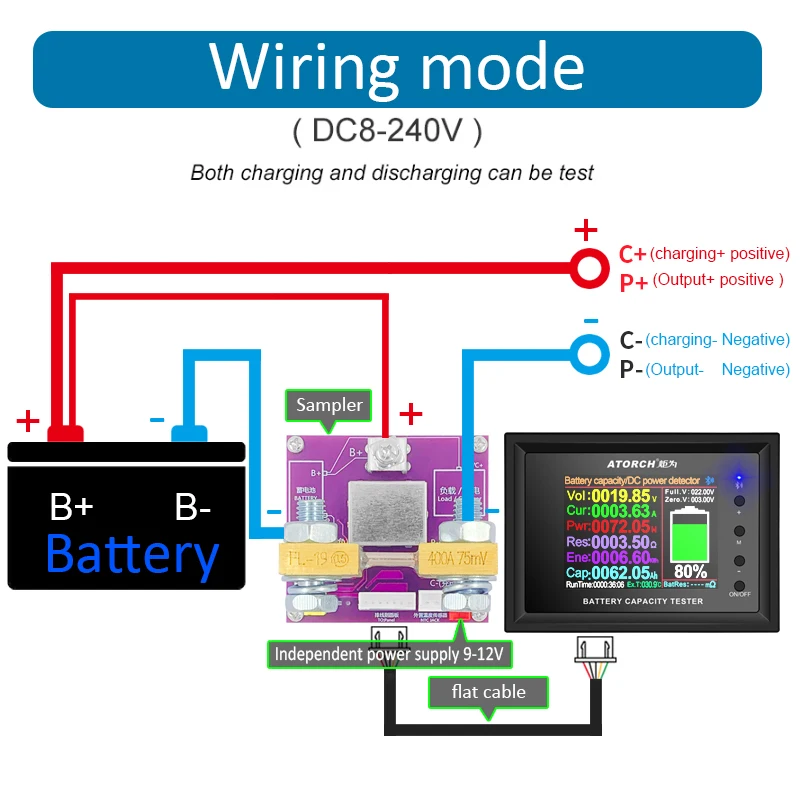

100A/200A/300A/400/500A/600A Wiring diagram
Relay connection diagram
1. Connect the relay to cut off charging or discharging
2. It is necessary to set the full capacity voltage or low capacity voltage value
Voltage accuracy evaluation
Current accuracy evaluation
Relay purchase Link
https://www.aliexpress.com/item/1005004834781691.html?spm=5261.promotion_single_products.table.1.491c4edfFmvdpI
1.DC8-240V 0.1-100A 0-24000W（24KW）
1. Need independent power supply 9-12V

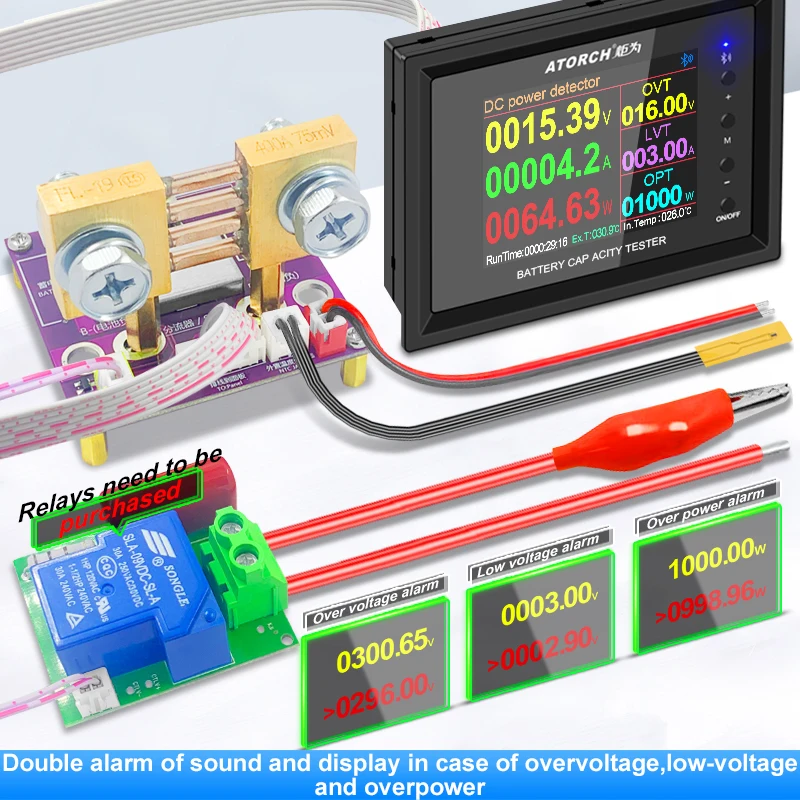

2. With low voltage, over voltage, over power alarm

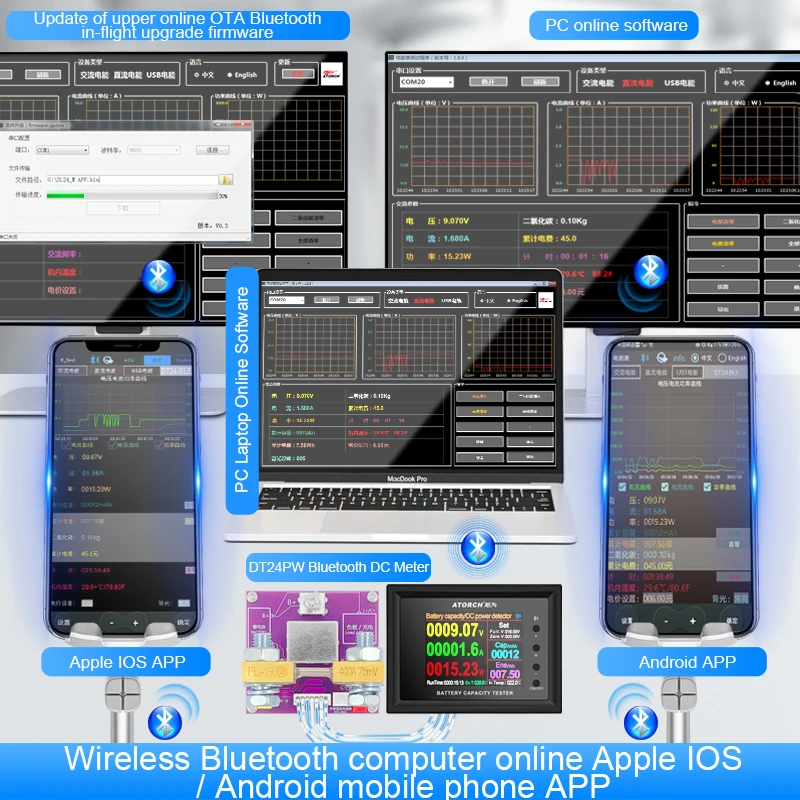

3. Support Bluetooth mobile phone, PC software online
4. Support up to 240V test
5. Support up to 100A test
6. Support maximum 24KW power test
7. Reserve the relay interface (this needs to be modified by professional and technical personnel, please do not operate)
2.DC8-240V 0.1-200A 0-48000W（48KW）
1. Need independent power supply 9-12V
2. With low voltage, over voltage, over power alarm
3. Support Bluetooth mobile phone, PC software online
4. Support up to 240V test
5. Support up to 200A test
6. Support maximum 48KW power test
7. Reserve the relay interface (this needs to be modified by professional and technical personnel, please do not operate)
3.DC8-240V 0.2-300A 0-72000W（72KW）
1. Need independent power supply 9-12V
2. With low voltage, over voltage, over power alarm
3. Support Bluetooth mobile phone, PC software online
4. Support up to 240V test
5. Support up to 300A test
6. Support maximum 72KW power test
7. Reserve the relay interface (this needs to be modified by professional and technical personnel, please do not operate)
4.DC8-240V 0.3-400A 0-96000W（96KW）
1. Need independent power supply 9-12V
2. With low voltage, over voltage, over power alarm
3. Support Bluetooth mobile phone, PC software online
4. Support up to 240V test
5. Support up to 400A test
6. Support maximum 96KW power test
7. Reserve the relay interface (this needs to be modified by professional and technical personnel, please do not operate)
5.DC8-240V 0.4-500A 0-120000W（120KW）
1. Need independent power supply 9-12V
2. With low voltage, over voltage, over power alarm
3. Support Bluetooth mobile phone, PC software online
4. Support up to 240V test
5. Support up to 500A test
6. Support maximum 120KW power test
7. Reserve the relay interface (this needs to be modified by professional and technical personnel, please do not operate)
6.DC8-240V 0.5-600A 0-144000W（144KW）
1. Need independent power supply 9-12V
2. With low voltage, over voltage, over power alarm
3. Support Bluetooth mobile phone, PC software online
4. Support up to 240V test
5. Support up to 600A test
6. Support maximum 144KW power test
7. Reserve the relay interface (this needs to be modified by professional and technical personnel, please do not operate)
7.DC8-240V 1-1000A 0-240000W（240KW）
1. Need independent power supply 9-12V
2. With low voltage, over voltage, over power alarm
3. Support Bluetooth mobile phone, PC software online
4. Support up to 240V test
5. Support up to 1000A test
6. Support maximum 240KW power test
7. Reserve the relay interface (this needs to be modified by professional and technical personnel, please do not operate)
