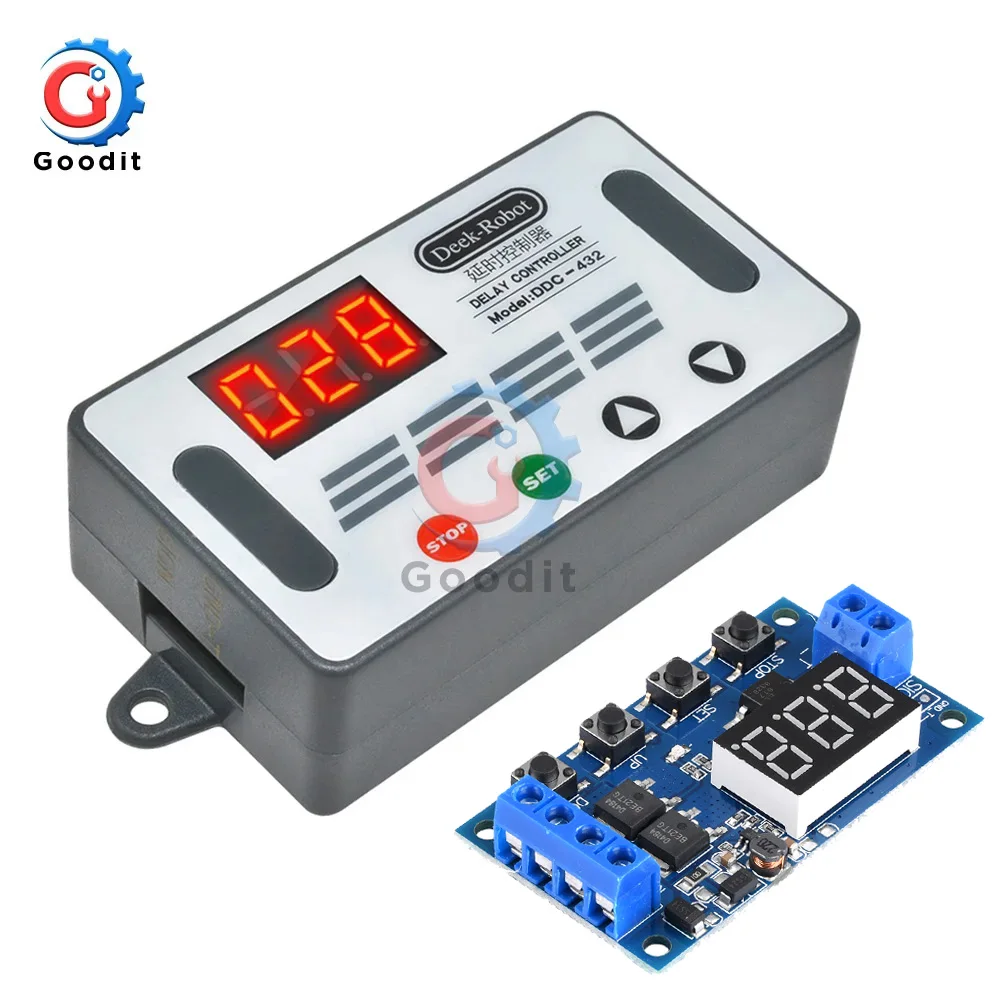

DC 12V 24V LED Digital Time Delay Relay High level trigger Cycle Timer Delay Switch Circuit Timing Dual MOS Controller DC 6V-30V

Module features and uses:

1. Achieve high-frequency, fast and frequent switching on and off of the circuit, with unlimited switching times;

2. There will be no noise, no sparks, and no electromagnetic interference during the switching process;

3. The service life is longer than that of commonly used electromagnetic relays;

4. Using dual MOS parallel active output, the internal resistance is lower, the current is larger, and the power is strong, 10A, 400W at room temperature, which meets the use of most equipment;

5. Often used to control motors, light bulbs, LED light strips, DC motors, micro water pumps, solenoid valves, etc. Through this module, these devices can be easily controlled, which is very convenient.

Module Highlights:

1. Wide voltage operation (6~30V), can be used on most devices, very convenient;

2. The interface is clear and simple, with powerful functions and easy to understand, meeting almost all your needs;

3. It has a one-button emergency stop function (STOP button), with reverse connection protection, and will not burn when reverse connection is made;

4. Added sleep mode. After enabling it, if there is no operation within 5 minutes, the monitor will automatically turn off;

Press any button to wake up;

5. Different OP, CL, and LOP parameters can be set. These parameters are independent of each other and saved separately;

6. All setting parameters are automatically saved when power is turned off.

Operating mode:

P1 mode: After the signal is triggered, the relay conducts for OP time and then turns off; during the OP time, operate as follows

P1.1: The signal is invalid when triggered again

P1.2: The signal is triggered again and the timing is restarted.

P1.3: The signal triggers reset again, the relay is disconnected, and the timing stops;

P-2: Give a trigger signal. After the relay is turned off for CL time, the relay is turned on for OP time. After the timing is completed, the relay is turned off;

P3.1: Give a trigger signal, after the relay is on for the OP time, the relay is off for the CL time, and then cycle the above action, give the signal again within the cycle, the relay is off, and stop timing; the number of cycles (LOP) can be set;

P3.2: No trigger signal is required after power-on, the relay is on for OP time, and the relay is off for CL time to cycle the above actions; the number of cycles (LOP) can be set;

P-4: Signal holding function If there is a trigger signal, the timing will be cleared and the relay will remain on; when the signal disappears, the relay will be disconnected after the timing OP; during the timing period, if there is another signal, the timing will be cleared;

Product parameters:

1: Working voltage: DC 6V–30V;

2: Trigger signal source: high-level trigger (DC 3.0V-24V) signal ground is different from the system ground to improve the anti-interference ability of the system (you can also short-circuit the common ground by yourself)

3: Output capability: DC 6V–30V, continuous current 15A at room temperature, power 400W! Under auxiliary cooling conditions, the maximum current can reach 30A.

4: Quiescent current: 15mA

5: Service life: unlimited switching times; Working temperature: -40-85℃; Size: 6.0*3.4*1.2cm

6: With optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, the set parameters will be remembered forever after power off.

Pay attention:

The module is an active live output, and the voltage at the output end (load end) is equal to the input end voltage (DC 6V–30V).

The 'DC+' and load '+' poles are internally short-circuited, but the 'DC-' and load '-' poles cannot be short-circuited during use, otherwise the load will not be controlled to turn on and off, which is equivalent to the load being The electricity is always on.

Timing range

0.1 second (minimum) ~ 999 minutes (maximum) continuously adjustable

How to choose the timing range:

After setting the parameter values on the mode selection interface, short press the STOP key to select the timing range;

XXX. The decimal point is in the ones place, timing range: 1 second ~ 999 seconds

XX.X The decimal point is in the tenth place, timing range: 0.1 seconds ~ 99.9 seconds

X.X.X. All decimal points are on, timing range: 1 minute to 999 minutes

For example, if you want to set the OP to 3.2 seconds, then move the decimal point to the tens place, and the digital tube will display 03.2

Parameter Description:

OP on time, CL off time, LOP cycle times (1-999 times, "—" represents unlimited cycles)

These parameters are independent of each other, but all modes share these parameters. For example, the conduction time OP is set to 5 seconds in P1.1, and the user wants to switch to P1.2 mode, then when entering P1.2 to set the corresponding parameters, OP It will also be 5 seconds;

Short press the SET key on the main interface (displaying 000), the OP (CL, LOP) and corresponding time XXX will be displayed;

If there is only OP time in the mode (for example, modes P1.1, P1.2, P1.3), then short pressing the SET button will only display the OP and the corresponding time;

If there are OP, CL, and LOP in the mode (such as mode P3.1, P3.2), short pressing the SET key will display OP and the corresponding time, CL and the corresponding time, LOP and the corresponding times;

After setting the mode, you can easily view the parameters set in the current mode by short pressing the SET button on the main interface, which is very convenient!

How to set parameters:

1. First determine the working mode of the relay;

2. According to the working mode of the relay, in the main interface (when the module is powered on, the current working mode (default P1.1 mode) will flash, and then enter the main interface,) "Press and hold the SET button for 2 seconds and then release "Enter the mode selection interface and select the mode to be set (P1.1~P-4) by short pressing the UP and DOWN buttons;

3. After selecting the mode to be set (for example, P3.2), short press the SET key to set the corresponding parameters. At this time, the parameters to be set will flash (OP on time, CL off time, LOP cycle number ("– -" represents infinite loop)), adjust the parameter value through UP and DOWN, and supports long press (rapid increase or decrease) and short press (increase or decrease by 1 unit); after setting the parameter value, press the STOP key briefly to select the decimal point position and the timing range (corresponding time 0.1 seconds to 999 minutes); short press the SET key to set the next parameter of the current mode, the process is the same as above;

4. After setting the parameters of the selected mode, press and hold the SET button for 2 seconds and release. The currently set mode will flash and then return to the main interface. The parameters are set successfully. It is very simple!

Main interface: When the relay is not working, it displays "000" (without a decimal point). When the relay is working, it displays a decimal point, which is very clear!

Mode selection interface: long press the SET key to enter. After the setting is completed, long press the SET key to exit and return to the main interface. It is very simple!

STOP button function expansion:

Relay enable mode:

1. ON: The relay is allowed to conduct during the OP conduction time;

2. OFF: The relay is prohibited from conducting and is always closed;

Short press the STOP button on the main interface to switch between ON and OFF. The current status will flash and then return to the main interface. (This function is an emergency stop function, which can open the closed relay with one click)

Sleep mode:

1. C-P sleep mode: If there is no operation within five minutes, the digital tube will automatically turn off the display and the program will run normally;

2. O-d normal mode: the digital tube is always on for display;

Press and hold the STOP button for 2 seconds and then release it to switch between C-P and O-d states. The current state will flash and then return to the main interface.

Product List:

1*control panel
