DC 0~100V/200V LED Digital Voltmeter Ammeter Car Motocycle Voltage Current Meter Volt Detector Tester 10A/50A/100A with Shunt

DC 0~100V/200V LED Digital Voltmeter Ammeter Car Motocycle Voltage Current Meter Volt Detector Tester 10A/50A/100A with Shunt

Features:

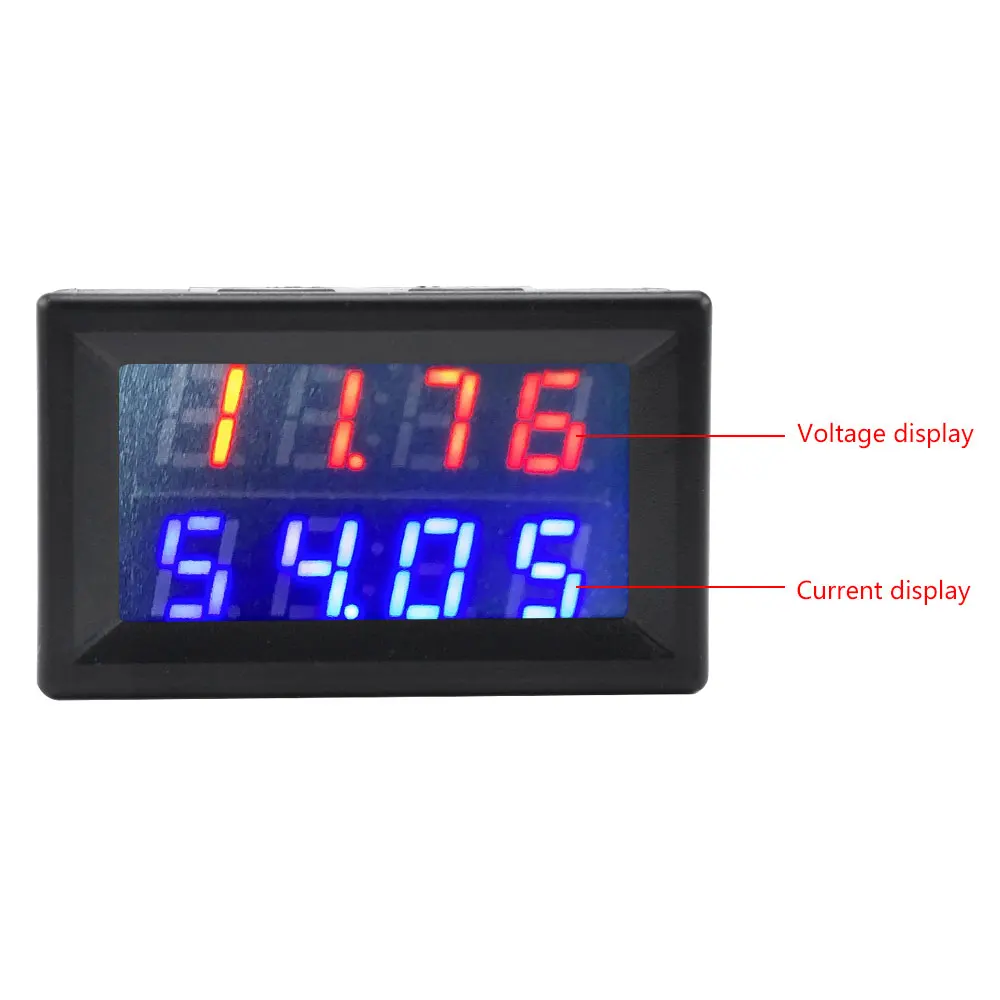

This module uses two high-quality LED digital tube manufacturing, high brightness, and can display the current and voltage at the same time
The module uses the original imported microcontroller, and a lot of data processing in the software, so that the display is accurate and stable
The module has excellent technology, and the size is super small.
The module has reverse connection protection, even if the reverse connection will not damage the module
This module can be used for car, electric car battery current and voltage monitoring

Description:

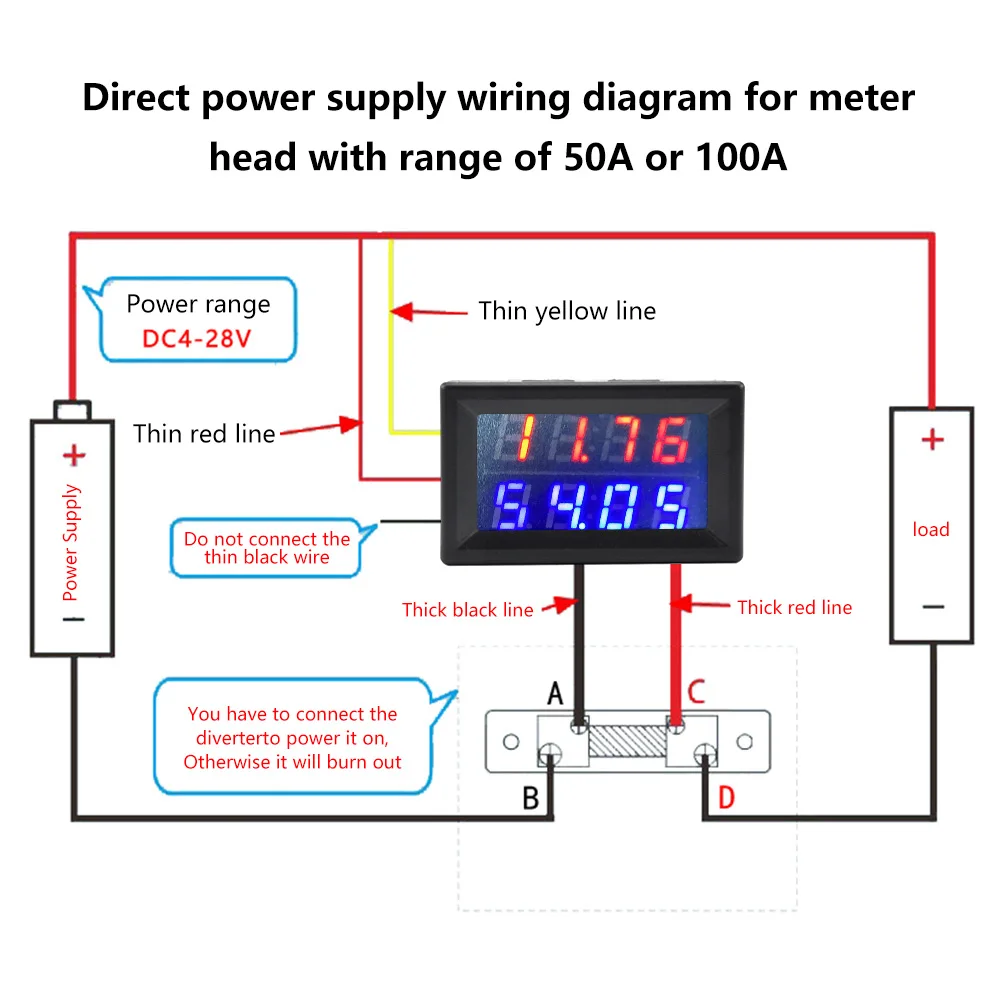

The current meter's power supply side and the measurement side of the ground using a common ground design, that is, the ground of the power supply and the ground of the test side are connected, so the current meter's test side can only be strung after the appliance (i.e., between the negative pole of the equipment under test and the negative pole of the power supply of the equipment under test)

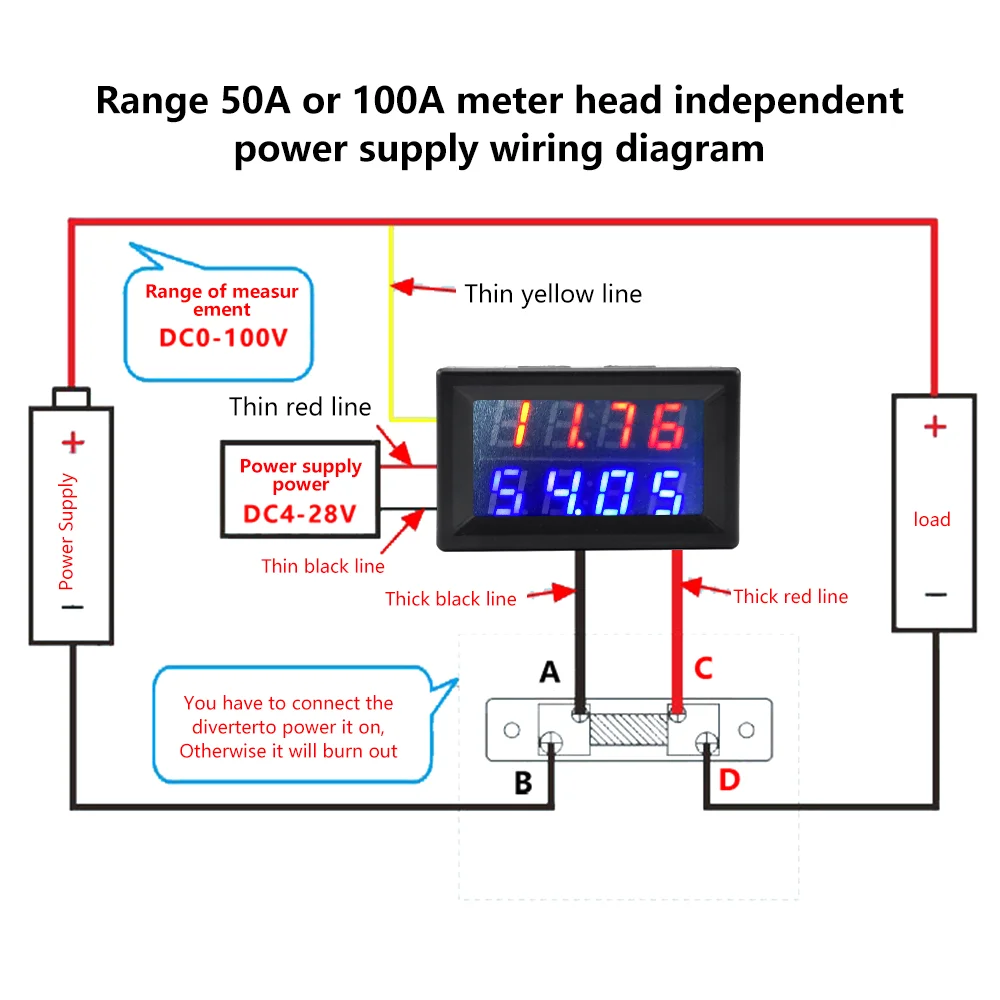

1. It is recommended that the power supply side of the meter head use a separate isolated power supply
2. Before use, the shunt must be connected to the circuit, and then connected to the digital current meter head, to prevent high voltage damage to the meter head
Note: 50A / 100A need to match the shunt to measure the current

Specifications:
Module name: current and voltage display module

Measuring range: 10A/50A/100A (current)

Working current: <10MA

Storage temperature: -10°C to +65°C

Measurement accuracy: 0.1%

Display mode: double four-digit 0.28 digital tube

Measuring range: 0V-100V (voltage) minimum display 0.1V

The ground wire of the power supply end and the measurement end of this ammeter adopts a common ground design, that is, the ground wire of the power supply and the ground wire of the test end are connected, so the test end of the ammeter can only be strung after the electrical appliance (that is, between the negative pole of the device under test and the negative pole of the power supply of the device under test)

1. It is recommended that the power supply end of the meter head adopt a separate isolated power supply

2. Before use, the shunt must be connected to the circuit, and then connected to the digital ammeter head to prevent high voltage damage to the meter

Note: 50A/100A need to be equipped with a shunt to measure the current

Package Included:

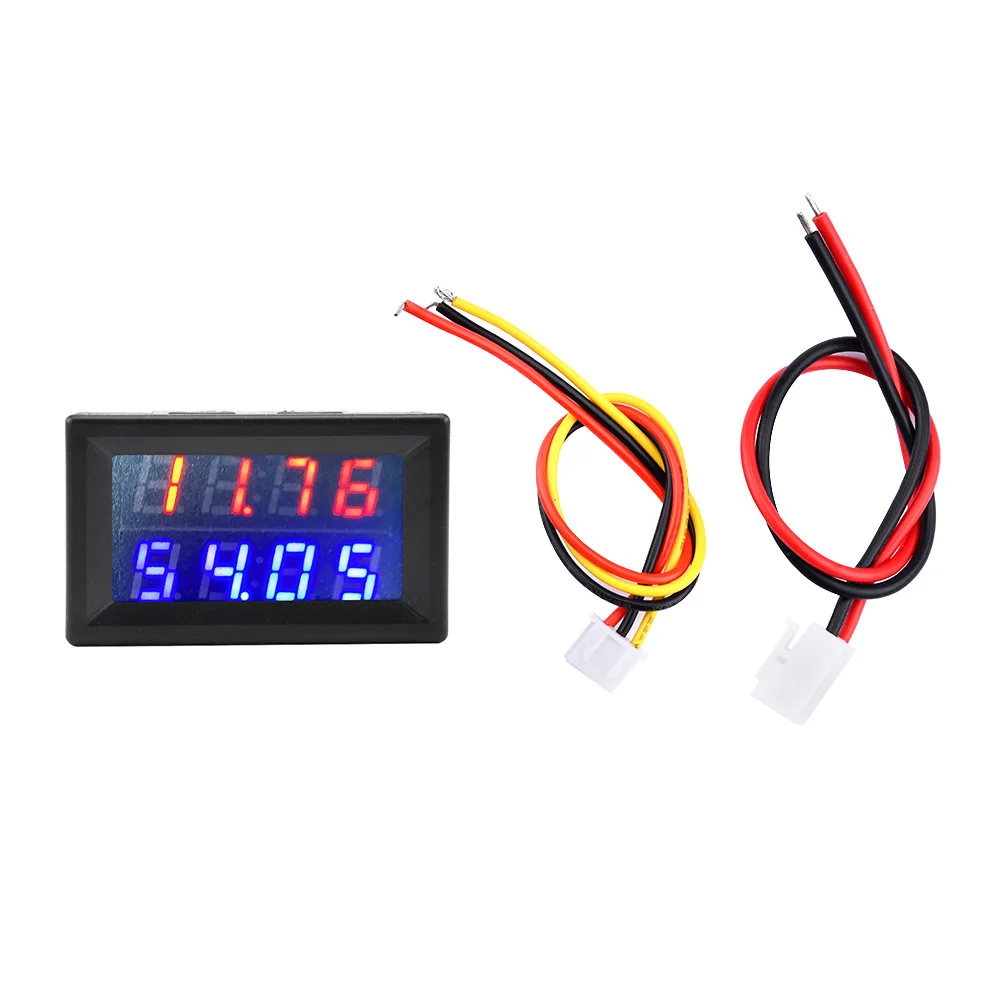

Voltage ammeter X1+Connection cable X2+Shunt X1
or
Voltage ammeter X1+Connection cable X2
