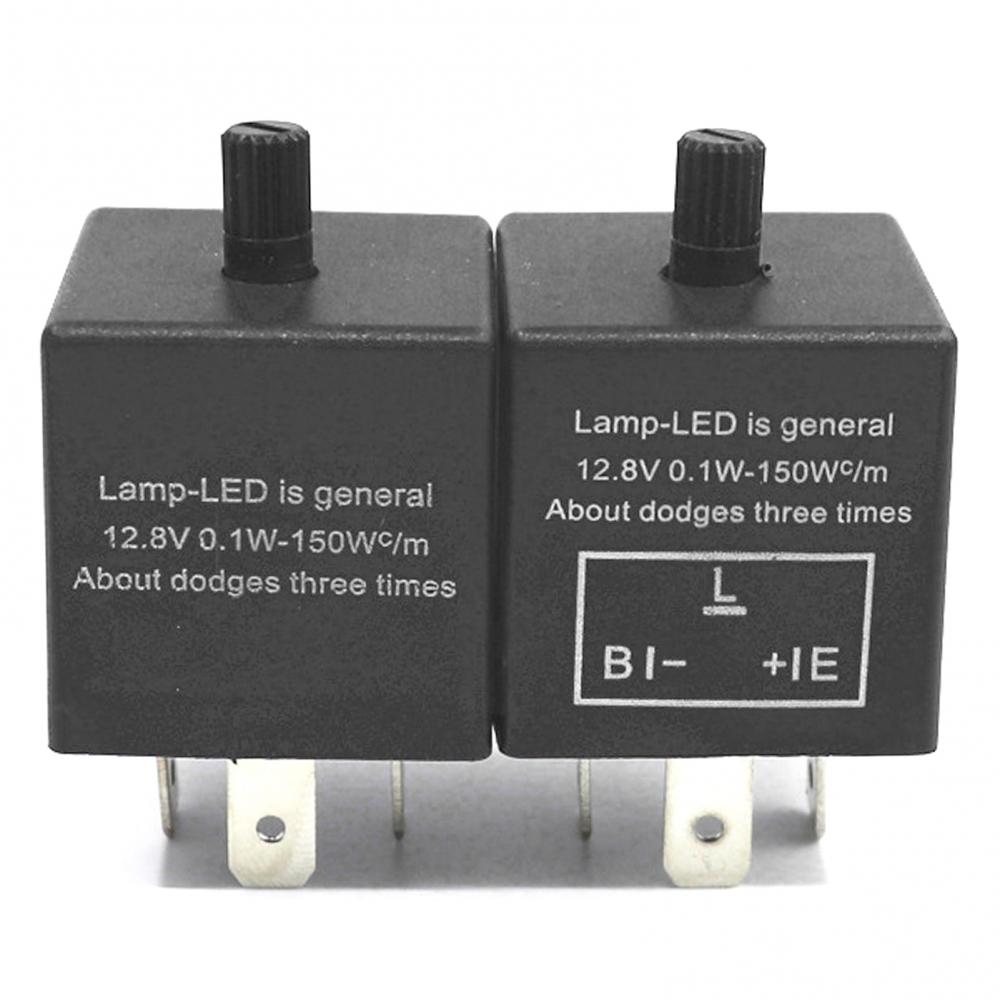

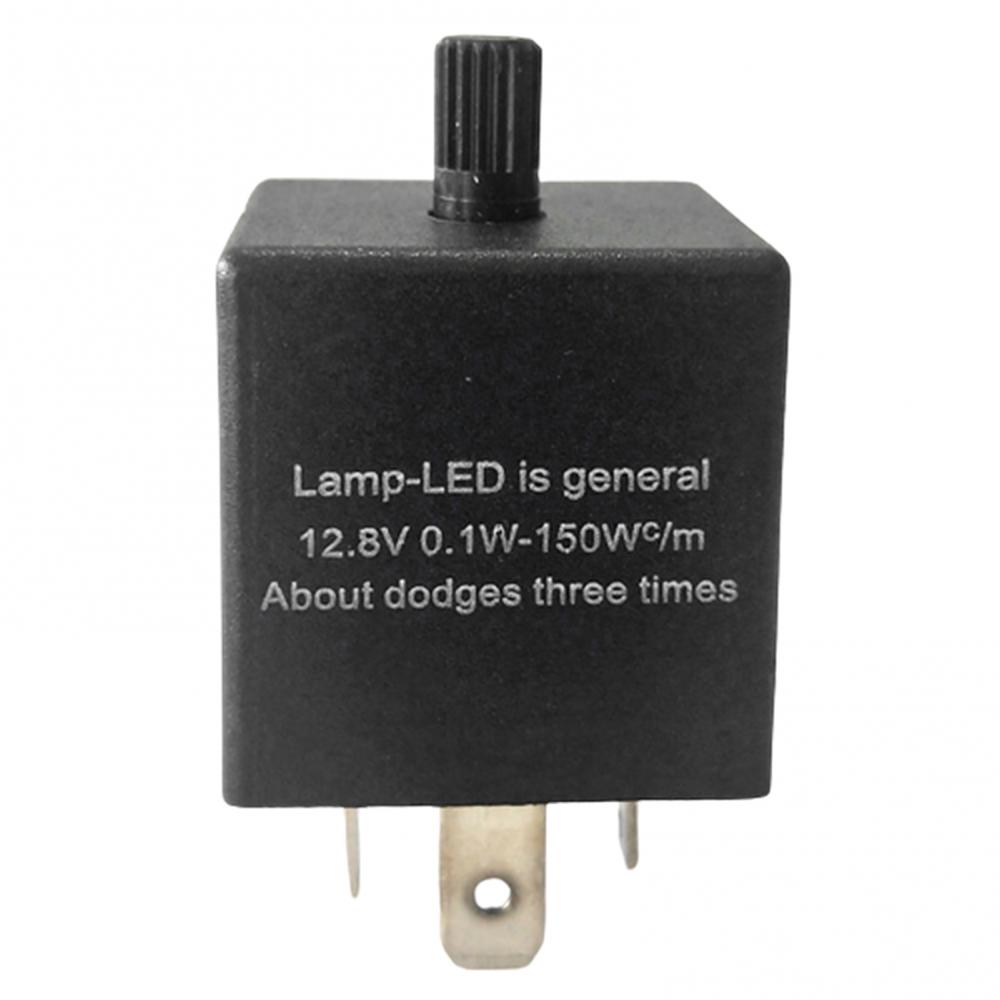

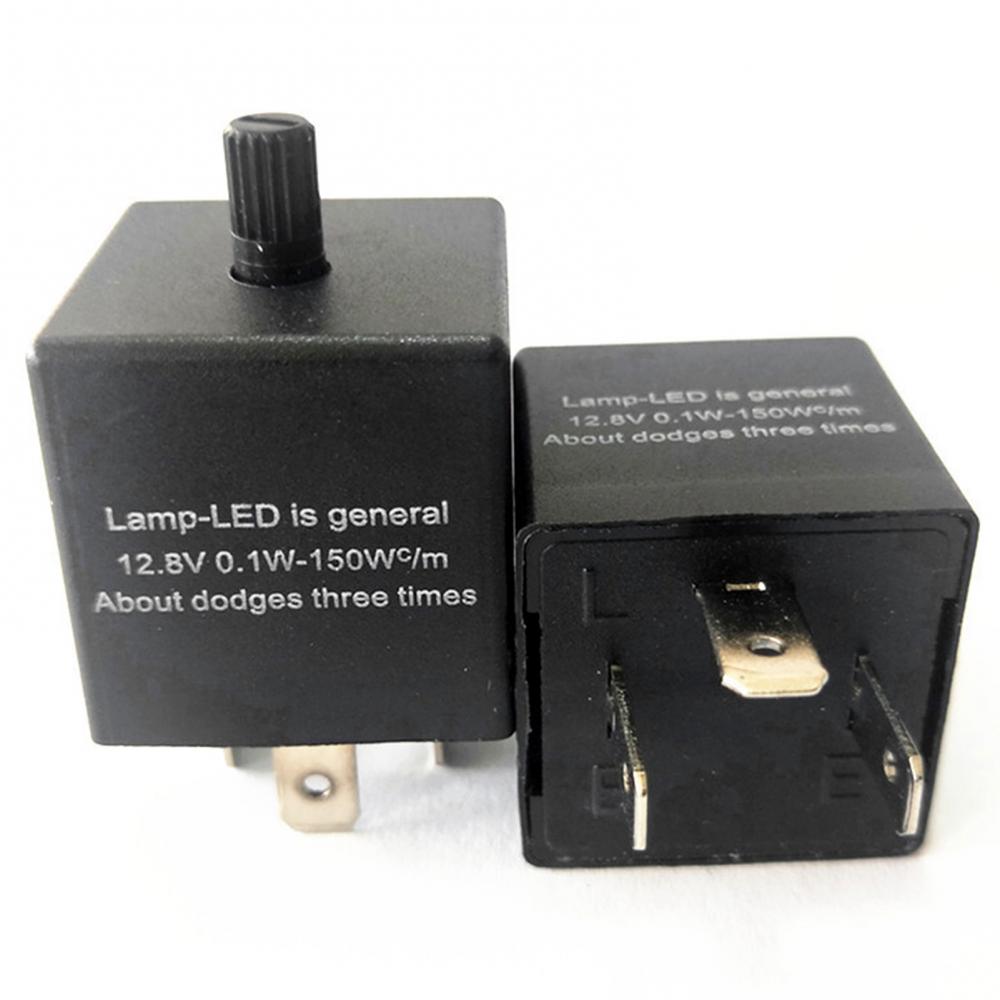

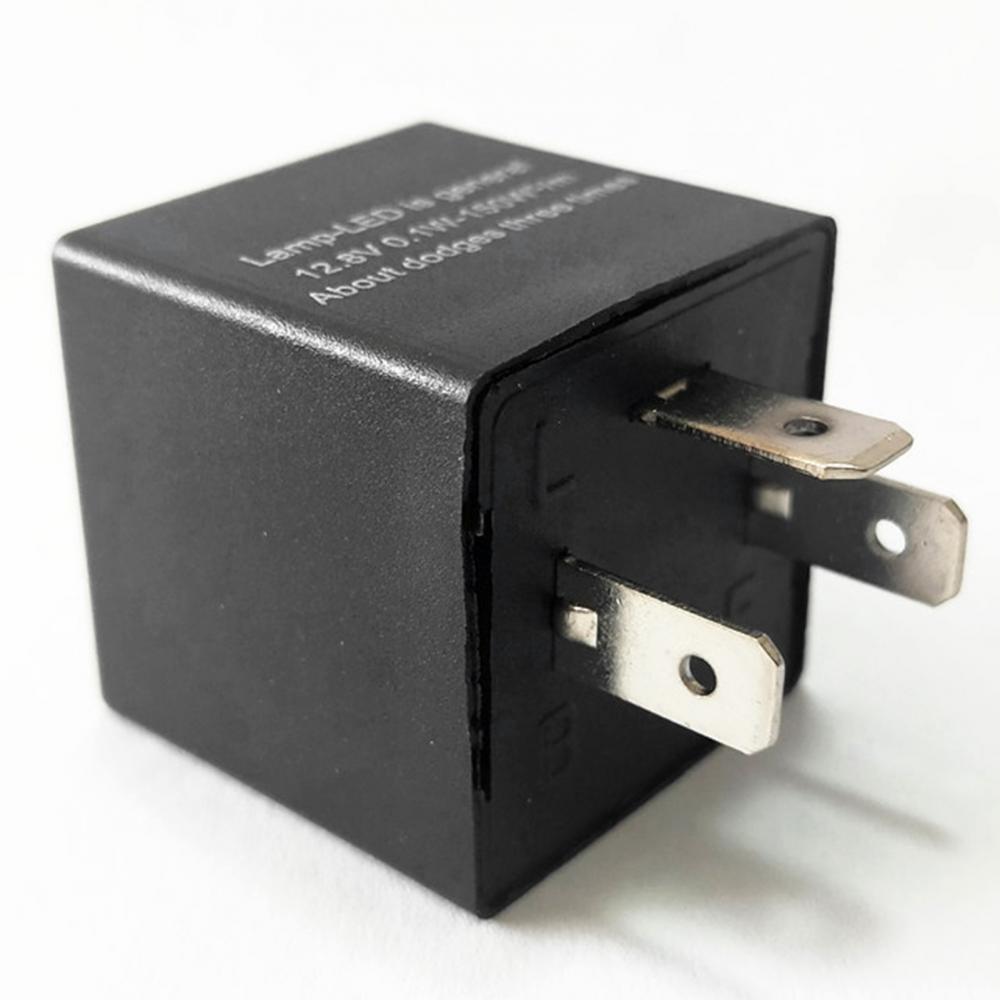

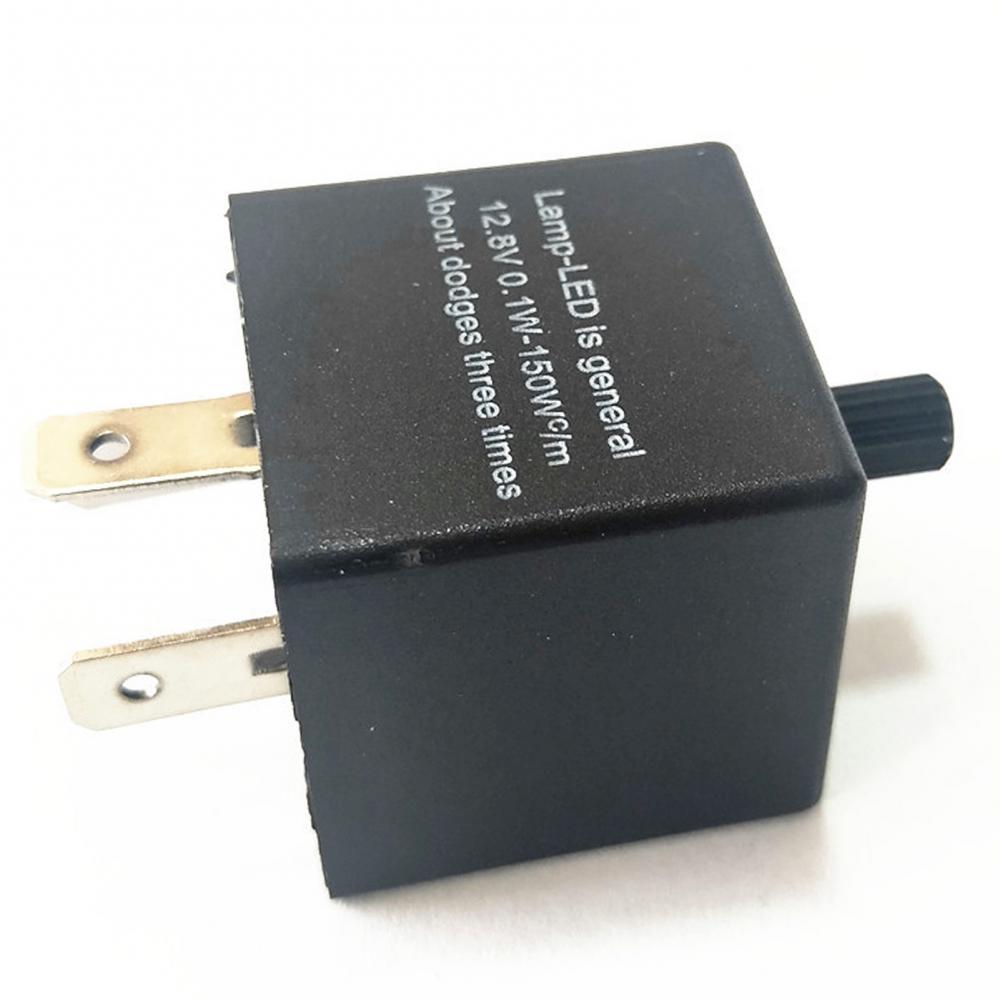

Adjustable Turn Signal Light LED Electronic Flasher Relay For Blinker CF14-KTJL 12V 24V motorcycle Flasher Relay

CF14-KTJL 12V 24V LED Flasher Relay Adjustable Frequency of Turn Signals Light Blinker Indicator Relays Motorcycle Supply

Specifications:
Made of high-quality ABS material, flash relay is durable and waterproof.
It helps to solve the problems related to the LED turn signal light bulbs, such as fast flashing, no flashing or burning out of the bulb on the dashboard.
This CF14KTJL flasher is suitable for turn signal alarms, with a ticking sound and no buzzer.
The feature of this product is that it can be equipped with LED lights.
Now many car friends change their car lights to LED lights and there will be fast flashing or no flashing.
This LED special relay can solve the fast flashing problem.

Item Name: Flash Relay
Material: ABS
Model: CF14-KTJL

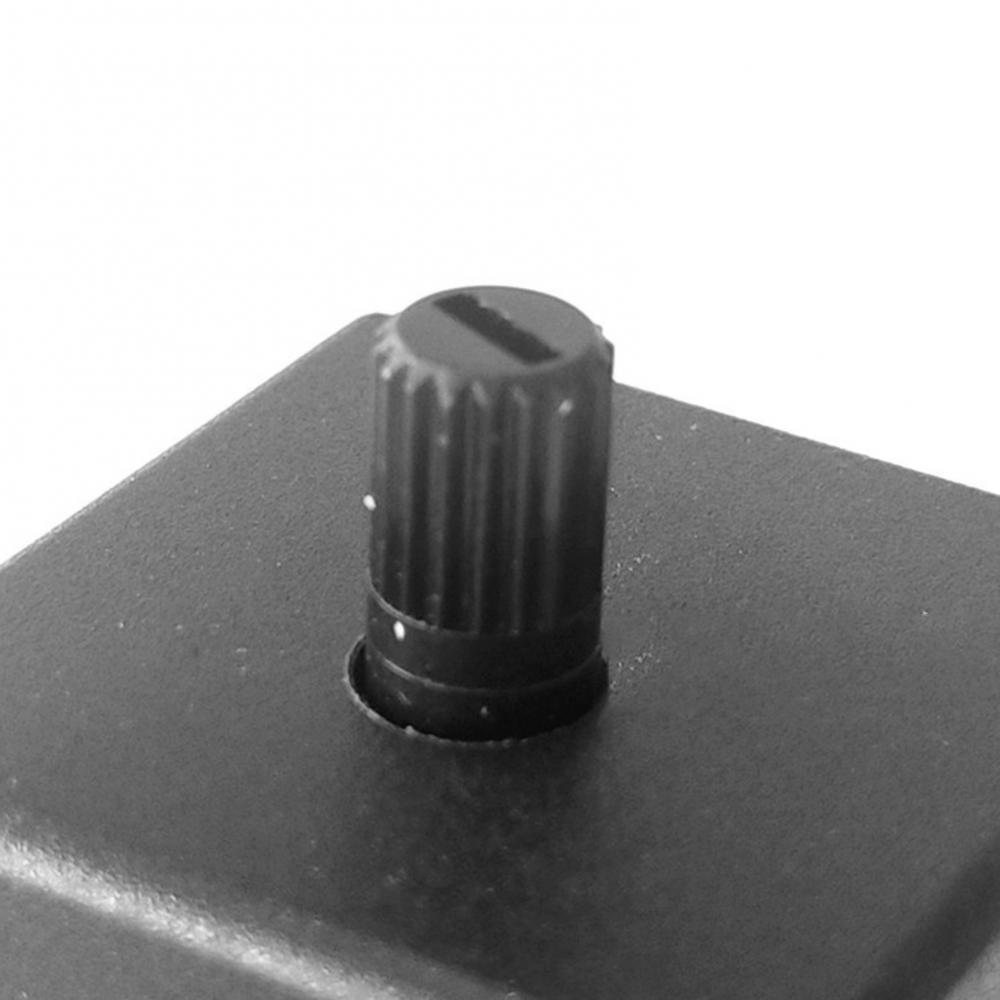

Flash Frequency: KT: Adjustable
Rated Voltage: 12VDC, 24VDC
Working Voltage: 11VDC ~ 15VDC, 22VDC ~ 30VDC
Test Voltage: 13VDC ± 0.2VDC, 26VDC ± 0.4VDC
Test Temperature: 20 Degree Celsius ± 2 Degree Celsius
Switching Load: 0.1W ~ 150W (0.02A ~ 20A)
Large Load: 150W
Flash Frequency: 60 ~ 120 Times Per Minute
Duty Cycle: 30 Percent ~ 70 Percent
Ambient Temperature: -40 Degree Celsius ~ +80 Degree Celsius
Features: Durable, Useful, Easy to Use
Size: 2.85cm x 2.85cm/1.12" x 1.12" (Approx.)

Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

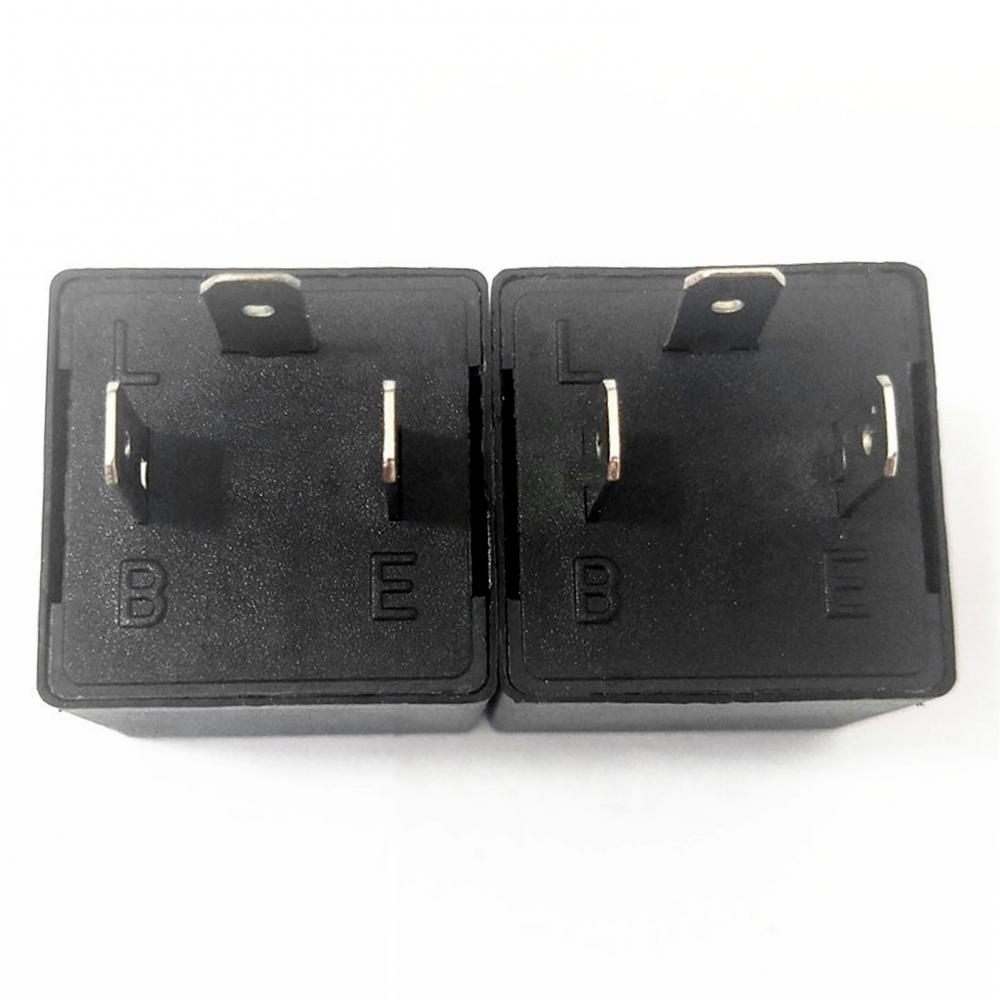

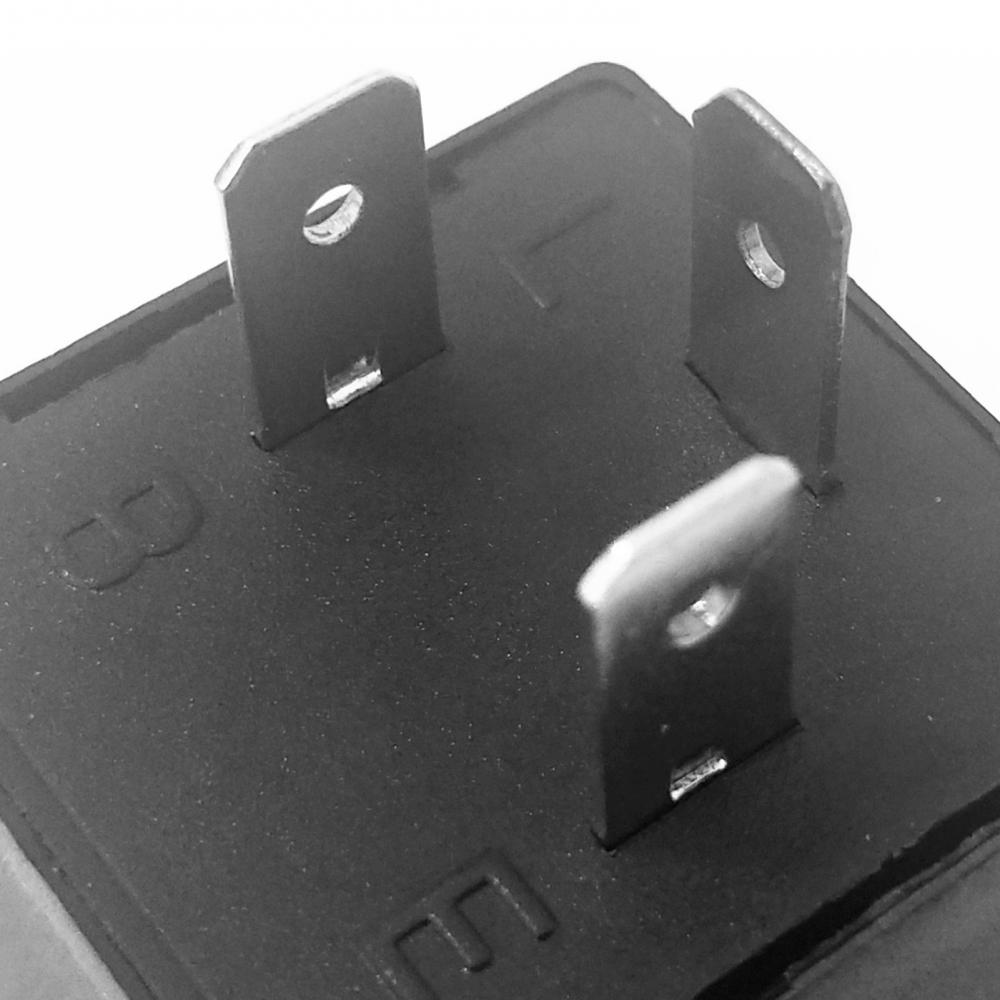

CF14 JL-02 is the negative pin, the left is the negative pin, and the right is the positive pin.

Package Includes:
1 x Flash Relay
