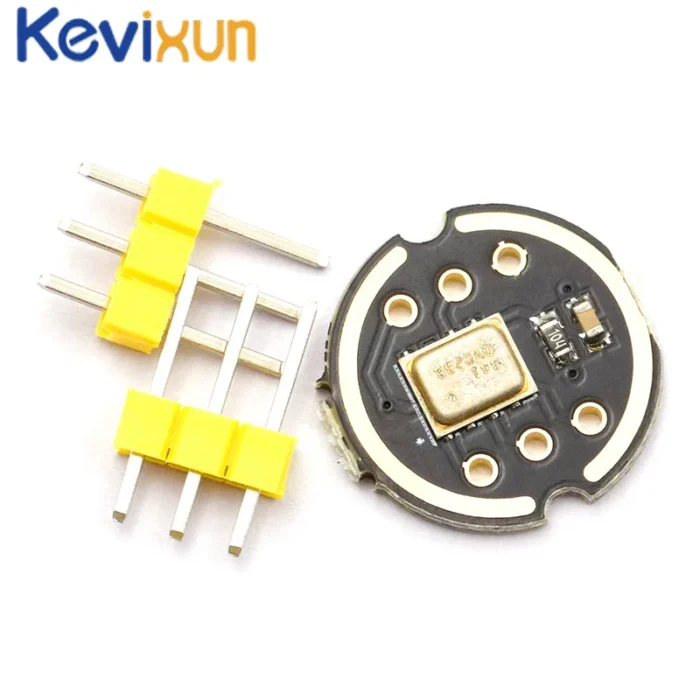

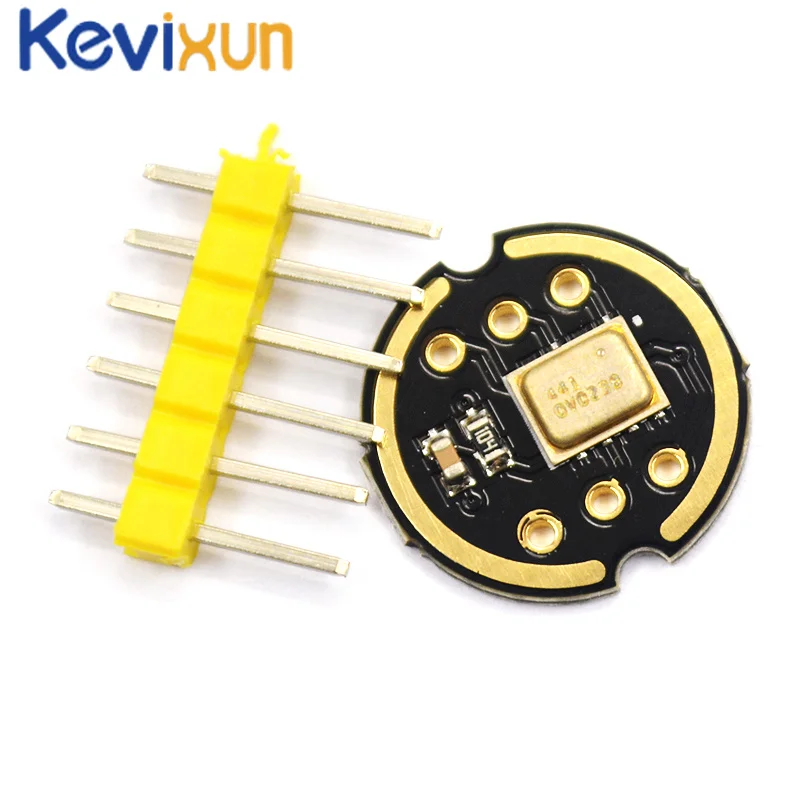

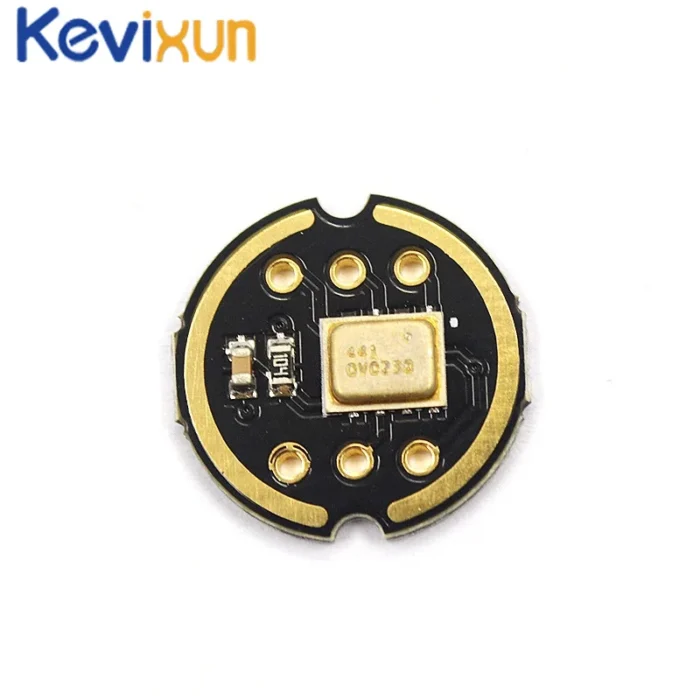

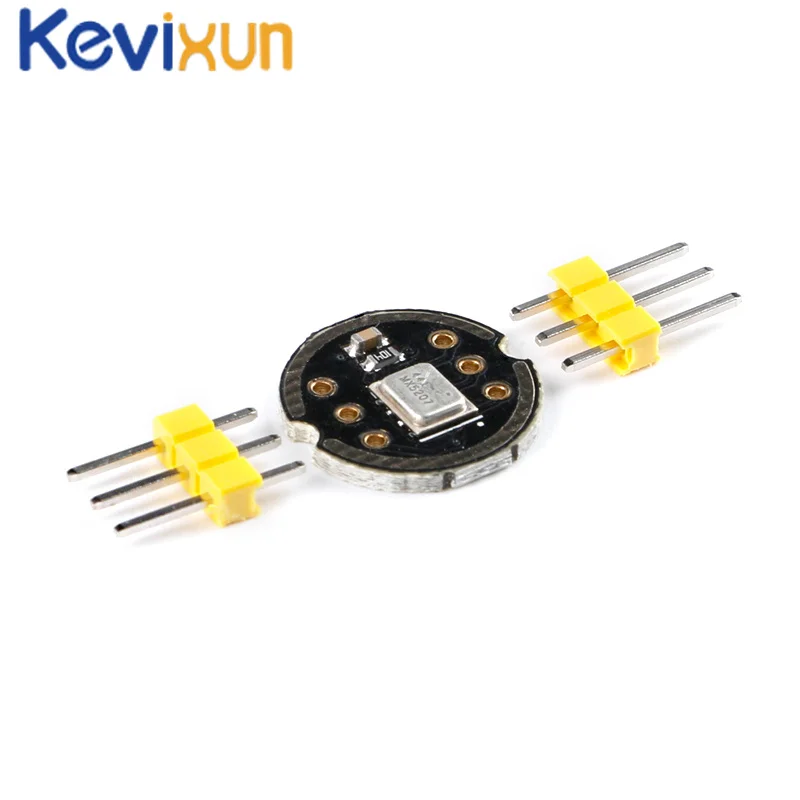

5pcs/ Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32

5pcs/ Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32 - Image 2

5pcs/ Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32 - Image 3

5pcs/ Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32 - Image 4

5pcs/ Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32 - Image 5

5pcs/ Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32 - Image 6

5pcs/ Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32

Price range: 268.80৳ through 1,239.00৳

Color	1PCS , 3pcs , 5pcs

Color

1PCS

3pcs

5pcs

Please select a variation to see estimated shipping cost.

অর্ডার দিতে সমস্যা হলে, ভিিওটি দেখুন।

♦ Disclaimer: AliMarket একটি ক্রস বর্ডার শপিং সার্ভিস প্রোভাইডার। আমাদের মূল লক্ষ্য বর্ডার বাধা পেরিয়ে আপনাকে কাঙ্ক্ষিত পণ্য এনে দেওয়া। AliMarket এ প্রদর্শিত প্রোডাক্ট বিভিন্ন থার্ড পার্টি শপিং ওয়েবসাইট থেকে সংগৃহীত। অর্থাৎ AliMarket সরাসরি কোন পণ্যের সেলার বা ম্যানুফ্যাকচারার নয়। তাই AliMarket কোনো প্রাসঙ্গিক, জামানত বা যৌথ দায় নিতে বাধ্য নয়। তবে গ্রাহক স্বার্থ রক্ষার্থে শপিং ওয়েবসাইটের রিফান্ড পলিসি অনুসারে AliMarket বিফর এবং আফটার সেলস সার্ভিস দেয়।

Add to wishlist

Description
Reviews (0)

Description

Package: SMD
is_customized: Yes
Model Number: INMP441
Dissipation Power: ESP32
Supply Voltage: High Precision Low Power
Application: Computer
Type: Voltage Regulator
Origin: Mainland China
Condition: New
Operating Temperature: Microphone Module

Product introduction:

The INMP441 is a high performance, low power, digital output, omnidirectional MEMS microphone with bottom port. The

The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management and industry standard 24-bit I2S interface. The I2S interface allows the INMP441 to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near field applications. The INMP441 has a flat wideband frequency response that results in high definition of natural sound.

Product Features:

1. Digital I2S interface with high precision 24-bit data

2. High signal to noise ratio is 61 dBA

3. High sensitivity – 26 dBFS

4. Stable frequency response from 60 Hz to 15 kHz

5. Low power consumption: low current consumption 1.4 mA

6. High PSR: -75 dBFS

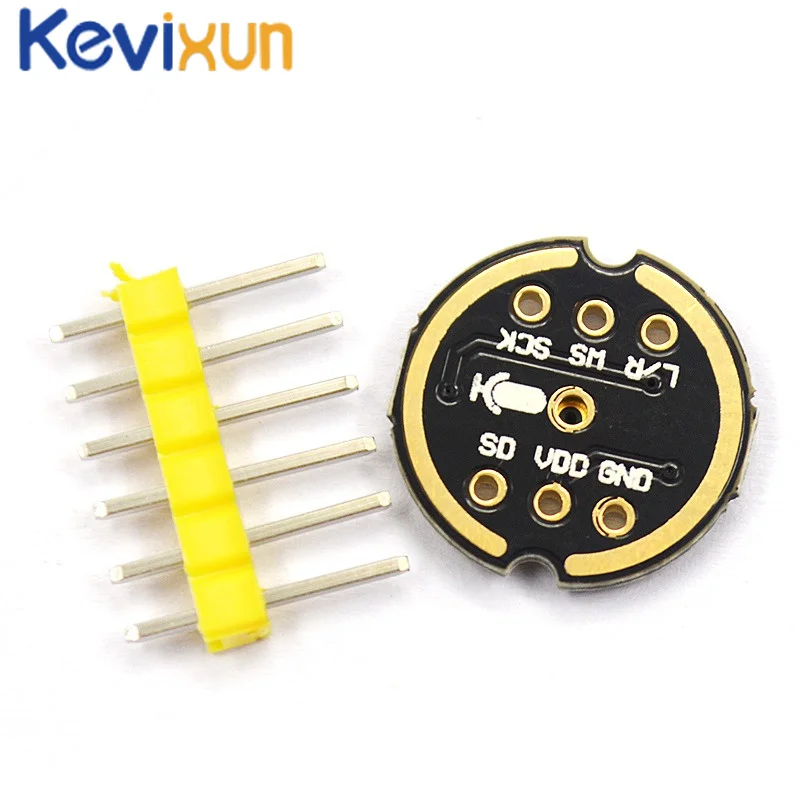

Interface definition:

SCK: Serial data clock for I2S interface

WS: Serial data word selection for I2S interface

L/R: Left/Right channel selection.

When set to low, the microphone outputs a signal on the left channel of the I2S frame.

When set to high level, the microphone outputs signals on the right channel

SD: Serial data output of the I2S interface.

VCC: Input power, 1.8V to 3.3V.

GND: power ground

This product provides tutorials for using ESP32 modules with I2S functionality.

Connect to ESP32:

What is the difference between an omnidirectional microphone and a unidirectional microphone:

First of all, I understand that the sound divergence is all-round. One person speaks and diverge in the air.

As for how far it can pass, it depends on many factors.

1.directional microphone, the general pickup radius is very small, 30 cm is a big one, single use, put it on the mouth, the sound quality is very good, because it is not picked up again.

The shape is generally goose neck wheat, a rod, a curved rod, to your mouth, directivity, just listen to your voice.

With a single-point microphone, the sensitivity is limited to a certain range. Sensitivity is too high, causing sharp whistling, etc., involving many other devices

As for why not make a big pickup radius, there is a reason. Later

2.omnidirectional microphone, the general pickup radius is very large, one meter two meters three meters five meters have, compared with ten centimeters, this level is very different, it is not just picking a person’s voice, but Multiple people, five six, seven eight or even ten.

Omnidirectional microphones are highly sensitive,

The omnidirectional microphone pickup radius is too large, and it will also pick up more ambient noise, so the sound quality is not as good as the single-point microphone, unless you do a good noise reduction. There is definitely a difference between collective use and single-person service.

But omnidirectional wheat has a benefit, the wiring is simple, not one by one. Suitable for small meetings, ad hoc meetings, some remote discussions, remote operations.

3.single-point wheat generally supports local amplification,

Omnidirectional microphones generally do not support local amplification. It should be noted that because of such high sensitivity, the local amplification whistling is very scary, and the current technology is difficult to deal with.
