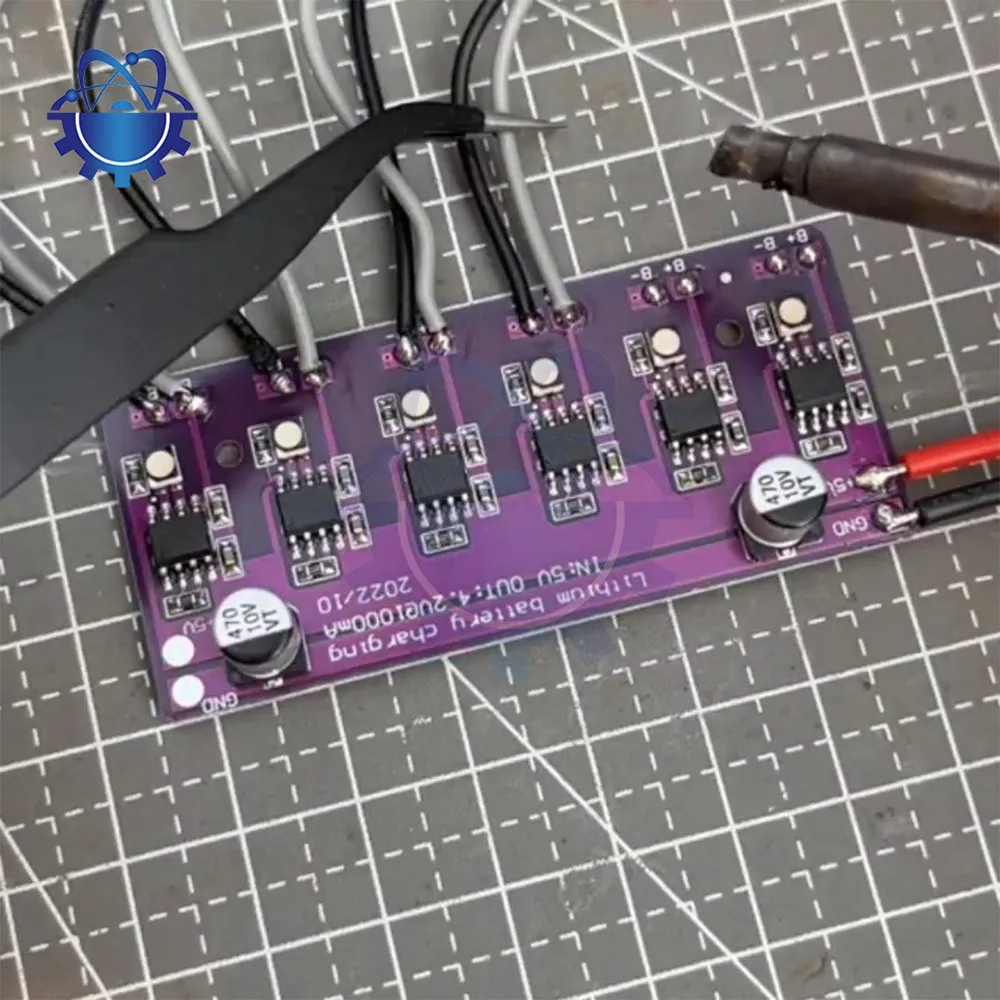

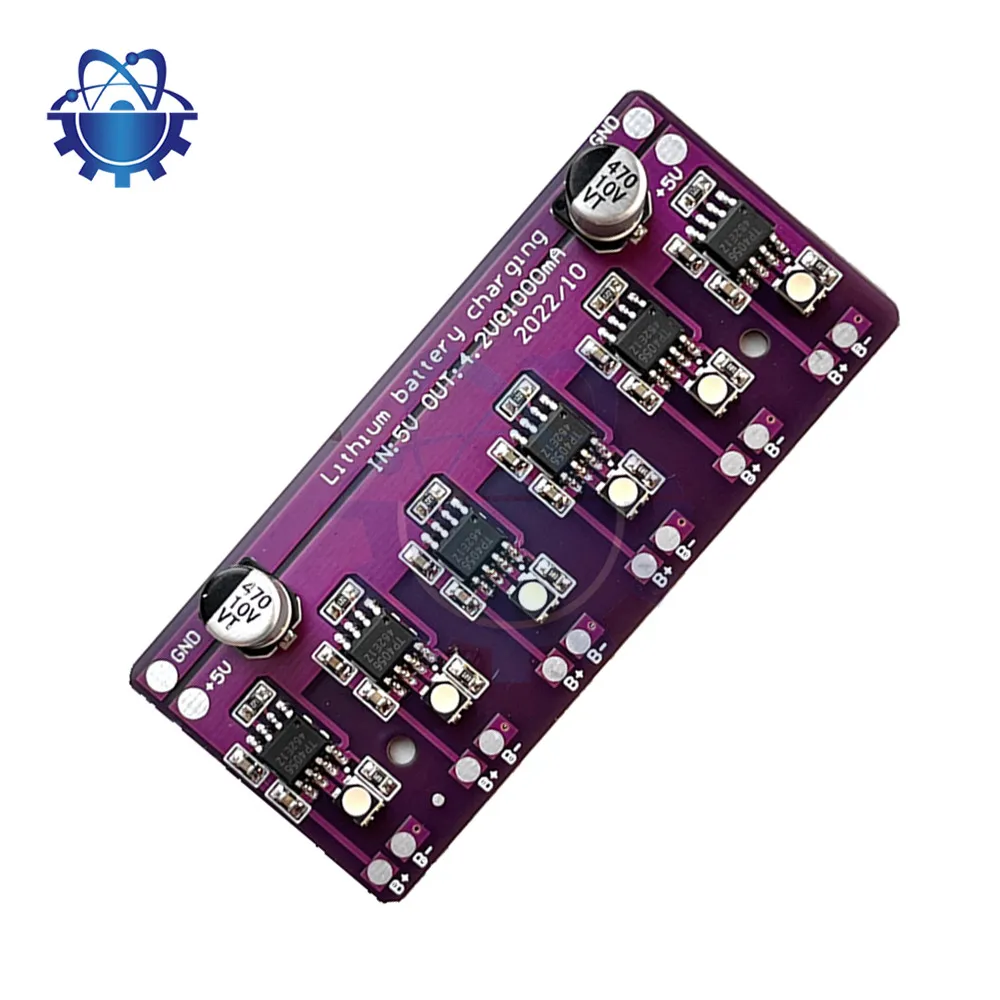

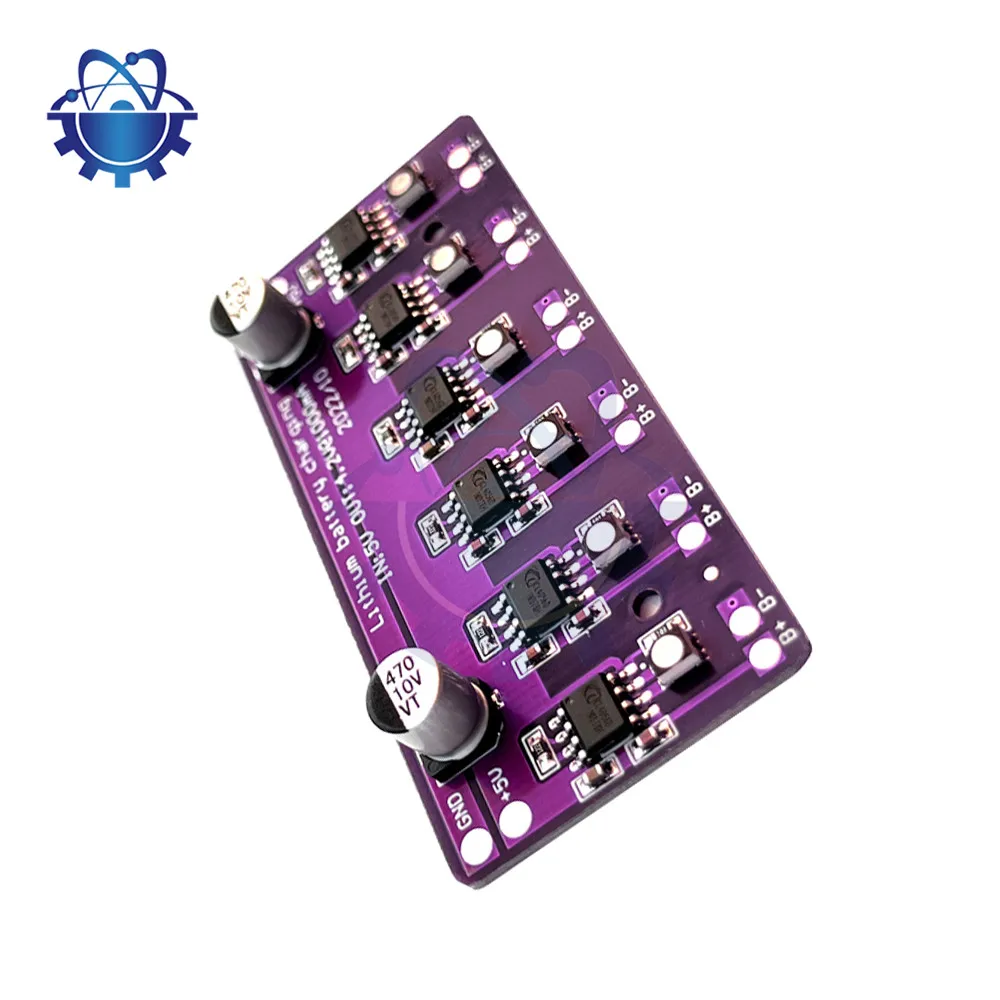

18650 Charging Module 4056 5V 1A Lithium Battery Charger Board 6 Independent Charge Discharge Integrated Module PCB Board

Product Features:

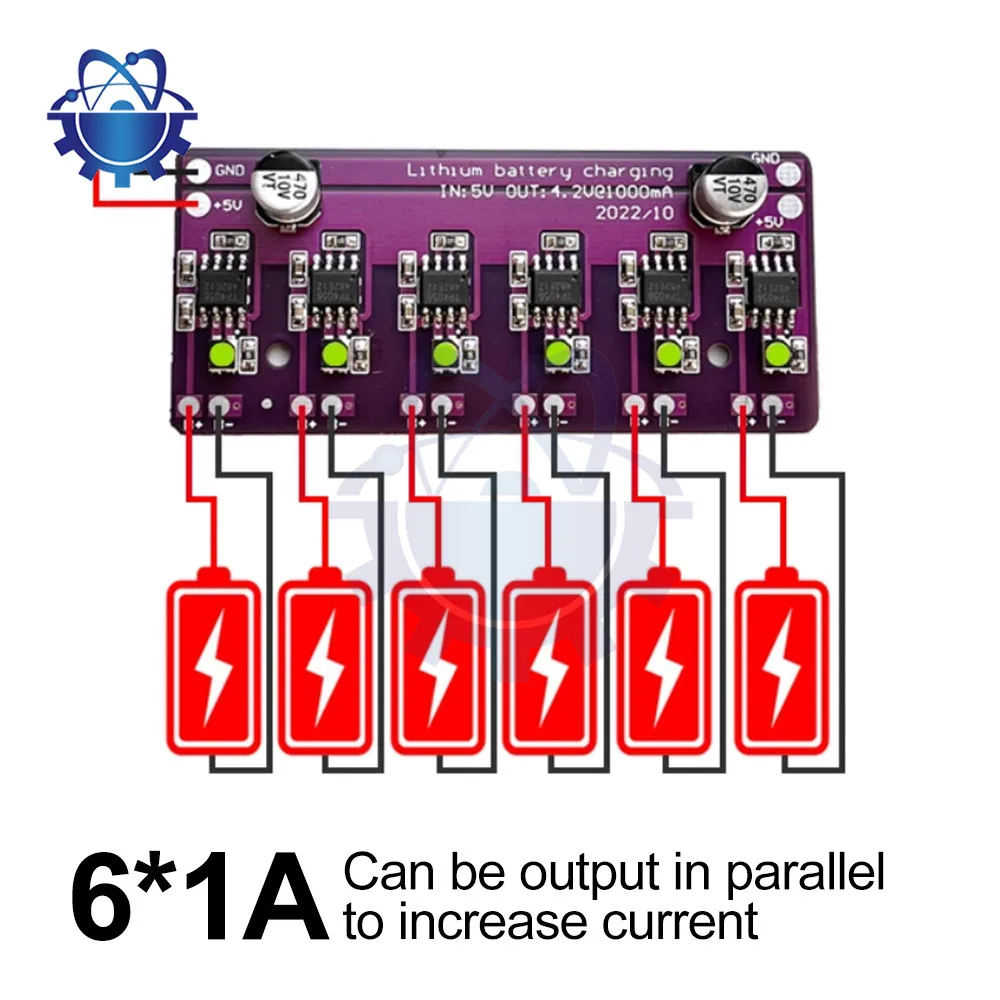

1.6*1A can be parallel output to increase the current
2.Lithium battery charging module 4056 independent 6 groups in parallel, each group output 1000ma

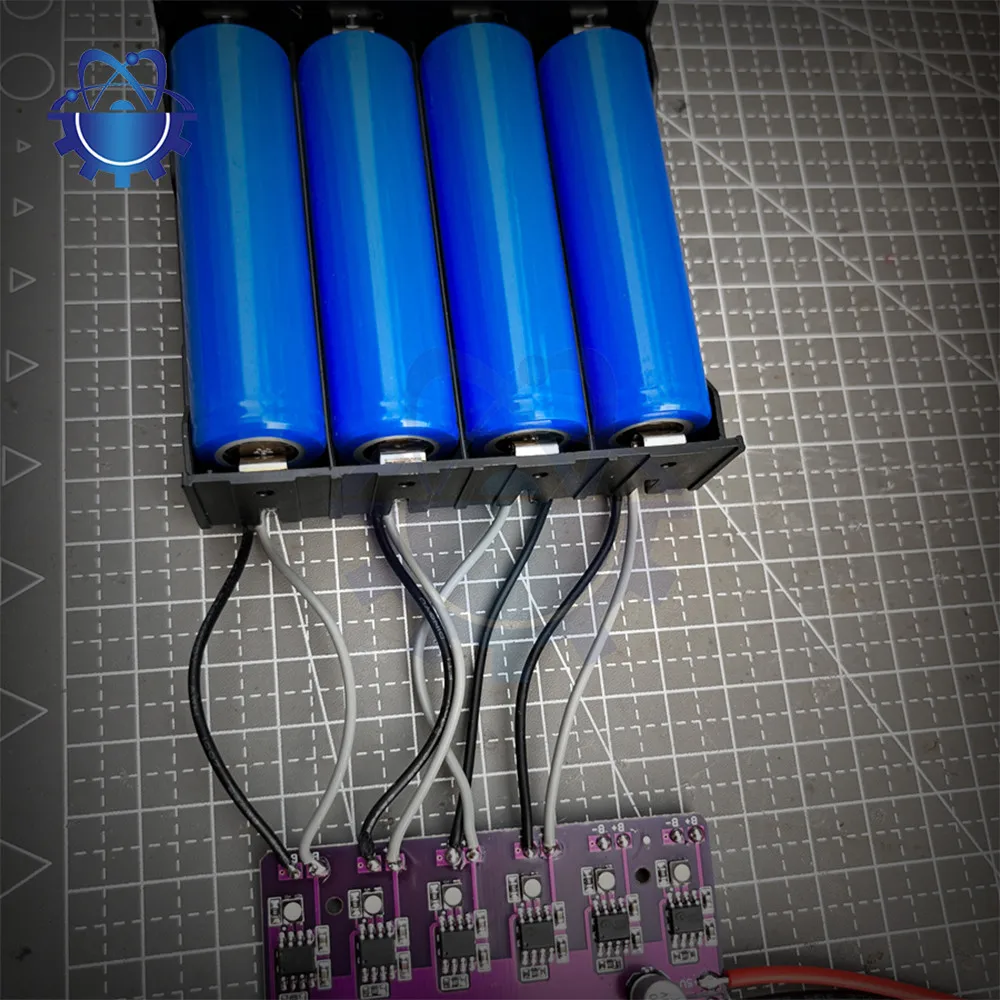

3.Support 6 batteries together with the 5V input circuit
4. Output common ground, can be more parallel to increase the output current
5. With status indicator, more convenient to use.

Product parameters:
Input voltage: 5V-6V (beyond the voltage will lead to damage)
Output voltage: 4.2V (±1%)
Output current: 1A
Status indicator: LED charging red light, full to green (hanging green light is always on or green light flashing)

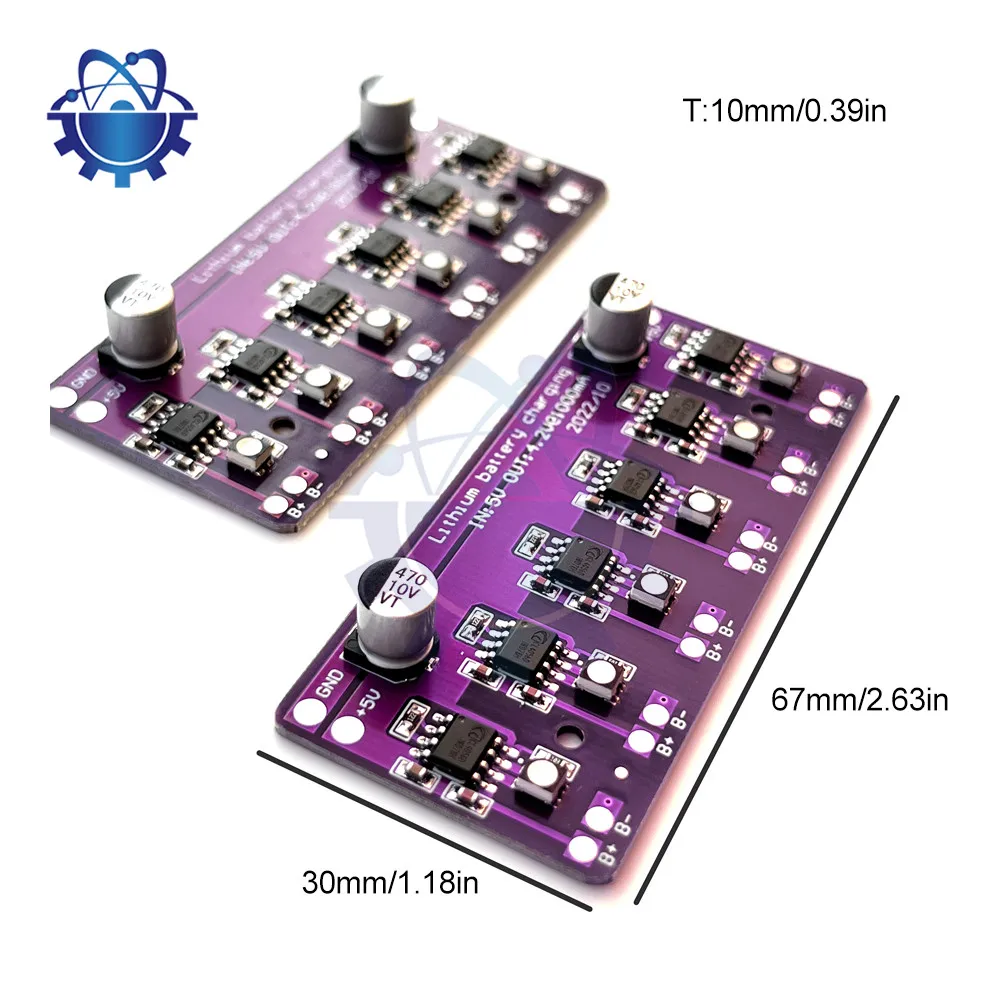

Main body size:40MM*67MM*T10MM

Use Note:
1. The input can not be reversed or overvoltage, the output can not be reversed battery or will lead to chip damage.
2. Output common ground, can be multipositioned in parallel to increase the output current, but not in series with the battery charging.
3.This product does not contain a transformer, customers provide their own 5V 6A power transformer.

Product list:
1X circuit board (without battery box and battery)
