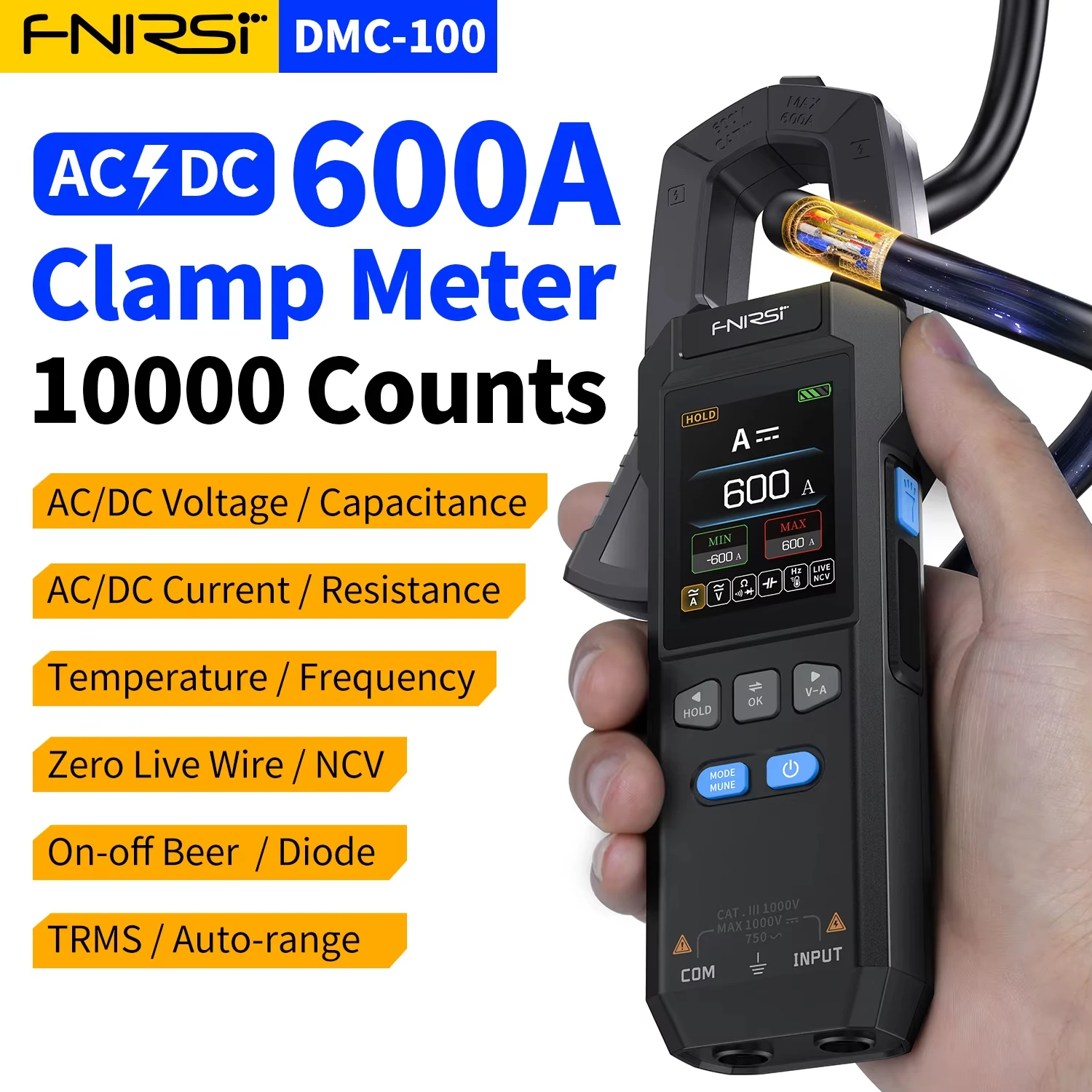

10000 Counts DMC-100 DC AC Current Voltage Clamp Meter USB Charger 600A Amperimetric Clamp Tester NCV Electrician Tools

3,817.80৳

Color

DMC-100

Please select a variation to see estimated shipping cost.
অর্ডার দিতে সমস্যা হলে, ভিডিওটি দেখুন।

♦ Disclaimer: AliMarket একটি ক্রস বর্ডার শপিং সার্ভিস প্রোভাইডার। আমাদের মূল লক্ষ্য বর্ডার বাধা পেরিয়ে আপনাকে কাঙ্ক্ষিত পণ্য এনে দেওয়া। AliMarket এ প্রদর্শিত প্রোডাক্ট বিভিন্ন থার্ড পার্টি শপিং ওয়েবসাইট থেকে সংগৃহীত। অর্থাৎ AliMarket সরাসরি কোন পণ্যের সেলার বা ম্যানুফ্যাকচারার নয়। তাই AliMarket কোনো প্রাসঙ্গিক, জামানত বা যৌথ দায় নিতে বাধ্য নয়। তবে গ্রাহক স্বার্থ রক্ষার্থে শপিং ওয়েবসাইটের রিফান্ড পলিসি অনুসারে AliMarket বিফর এবং আফটার সেলস সার্ভিস দেয়।

Description
  • Hign-concerned Chemical: None
  • Weight: 0.35
  • Measuring Capacitance Range: 9.999mF
  • Measuring Resistance Range: 99.99MΩ
  • Measuring Voltage Range: 750.0V
  • Measuring Current Range: 600.0A
  • Display Type: Analog and Digital
  • Model Number: DMC-100
  • DIY Supplies: Electrical
  • Brand Name: FNIRSI
  • Origin: Mainland China

10000 Counts DMC-100 DC AC Current Voltage Clamp Meter USB Charger 600A Amperimetric Clamp Tester NCV Electrician Tools

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle. Equipped with a 2.0-inch 240 * 320 full-color TFT screen, the new UI and data curve intuitive presentation, so that readings at a glance. Routine measurement, waveform display, power measurement of the three modes of switching at will, with 3.7V 1500mAh long-lasting battery, lasting battery life. NCV non-contact power measurement, zero fire line identification, temperature -55 ~ 1300 ℃ wide range of measurement and other powerful features, supplemented by flashlight, screen backlight, data saving and other thoughtful design, Type-C interface to achieve charging and data transmission double convenient. Intelligent automatic shutdown, temperature unit free switching, brightness adjustable, firmware upgradeable, DMC-100, your indispensable electronic maintenance all-round assistant!

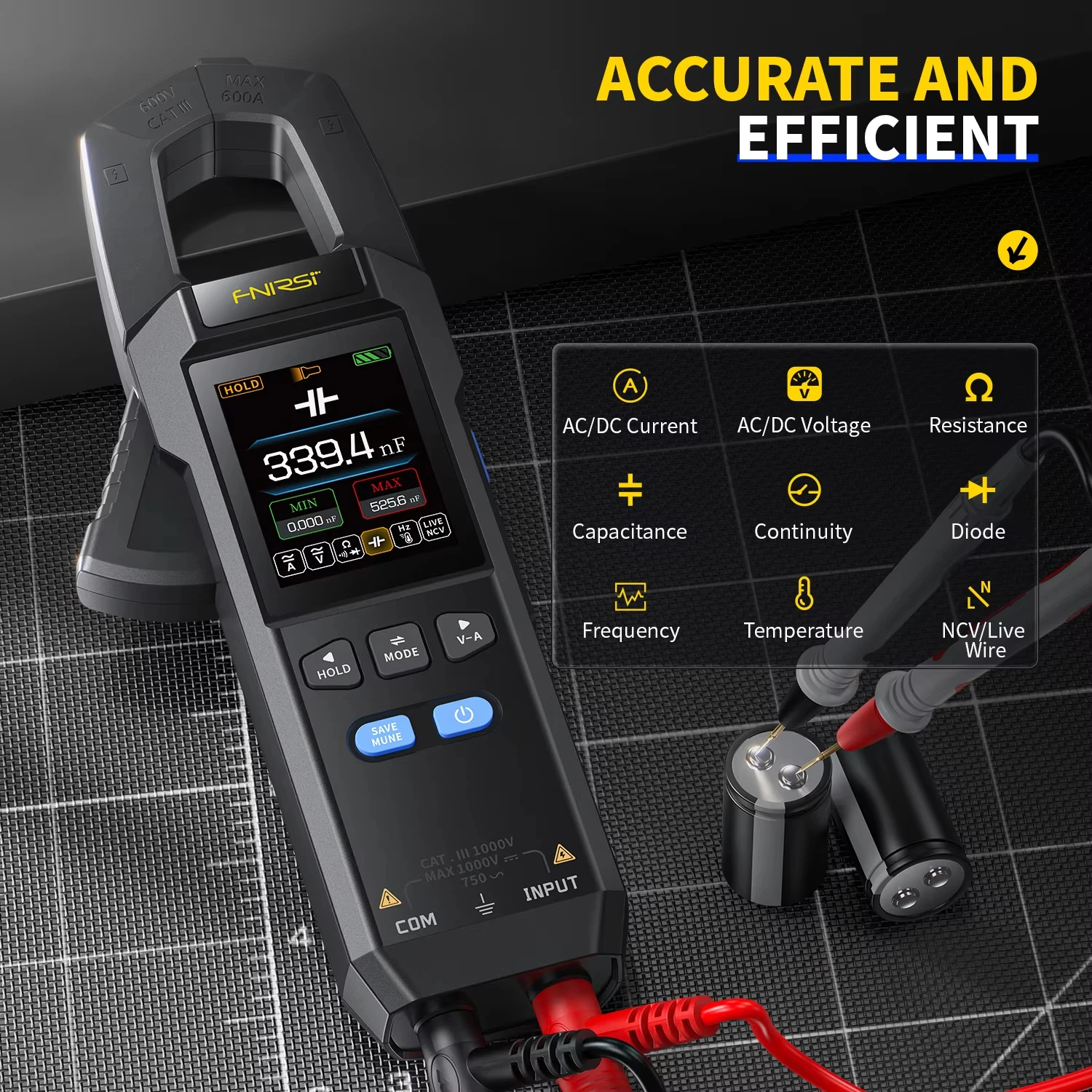

Measurement parameters

DC voltage: 9.999V/99.99V/999.9V

AC voltage: 9.999V/99.99V/750.0V

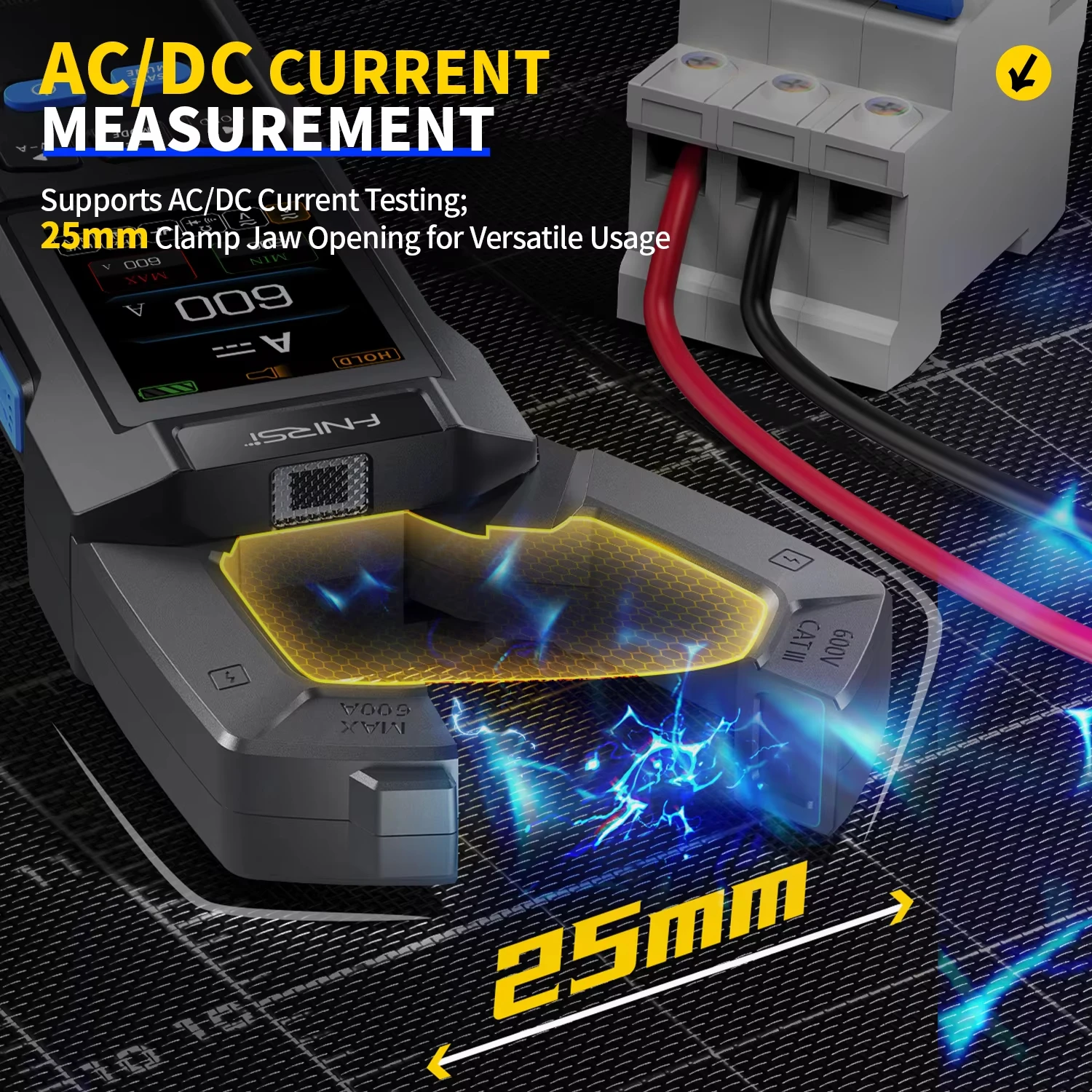

DC current/AC current: 99.99A/600.0A

Resistance: 99.99MΩ/9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω

Capacitance: 9.999mF/99.99mF/999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF

Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz

Temperature: -55~1300℃/-67~2372℉

Diode Measurement: √

On-off test: √

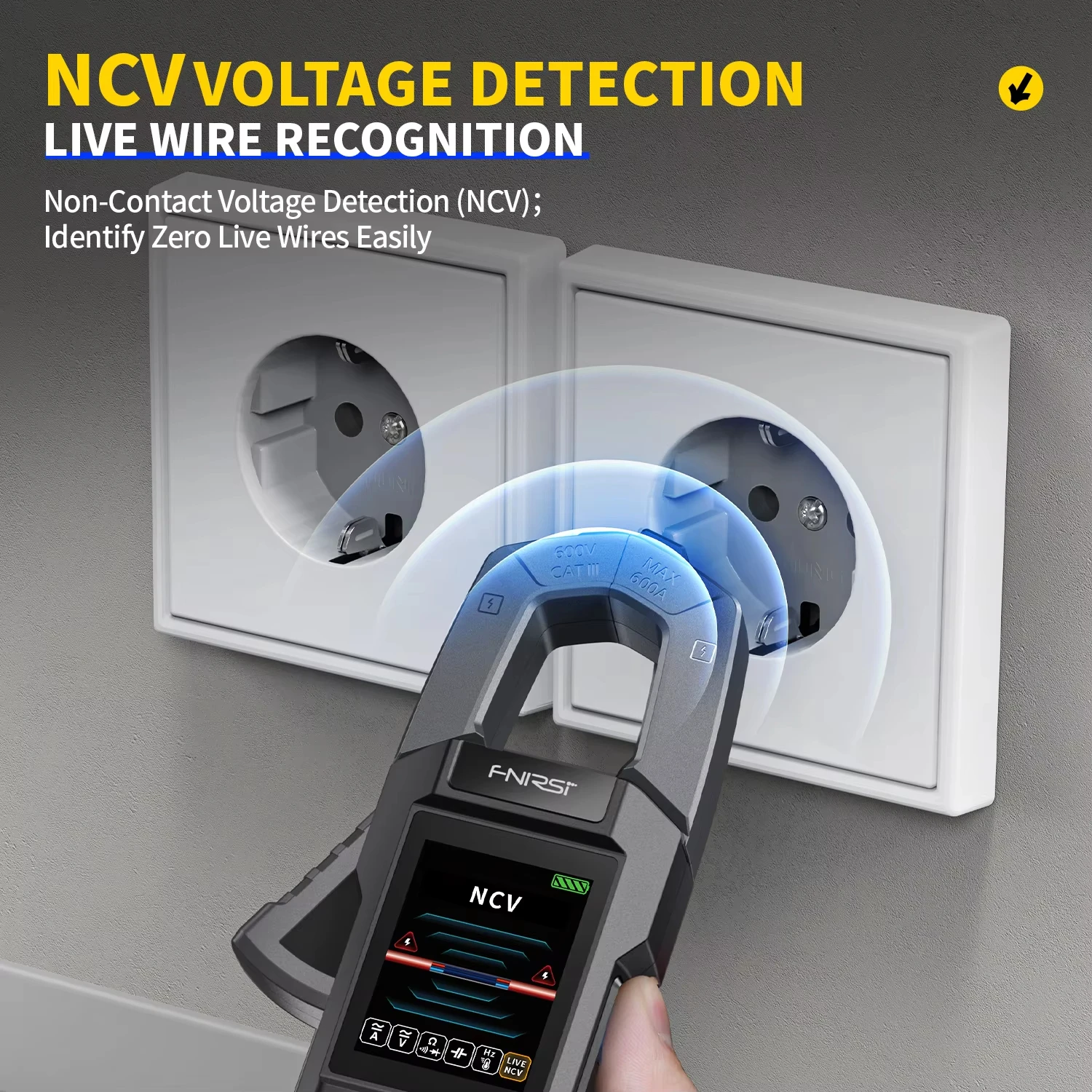

Non-Contact Voltage Check (NCV): √

Zero Fire Wire Check: √

Other Functions

Measuring Mode 1: general measurement

Measuring Mode 2: waveform display

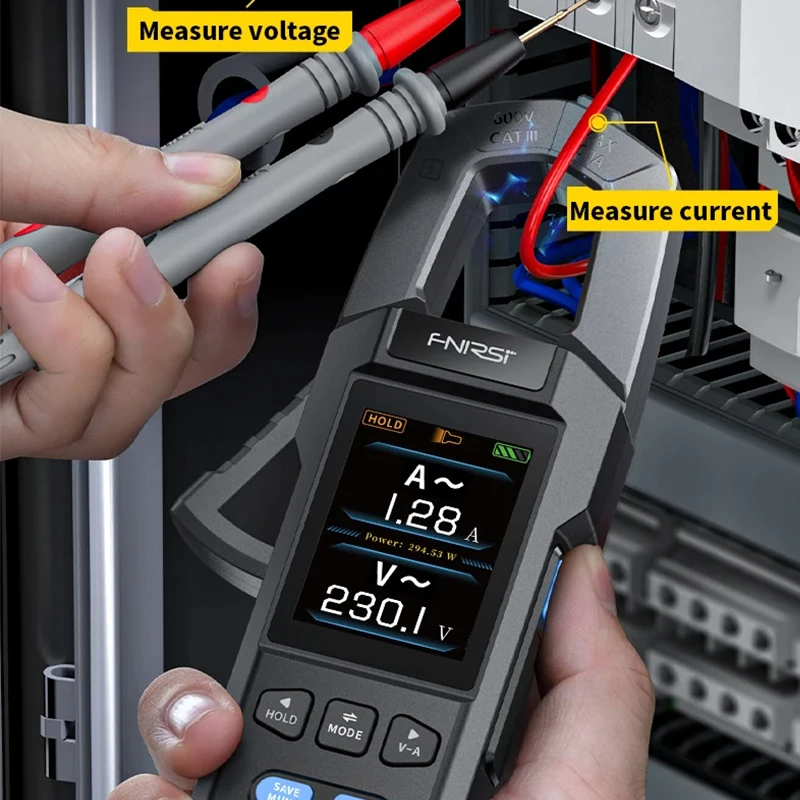

Measuring Mode 3: power measurement

Measurement gear: manual adjustment

Torch: Support

Data Zeroing: Support

Maximum/Minimum Value: Support

Waveform display: Support

Power Calculation: Support

Data Hold: Support

Data Storage and Viewing: Up to 30 groups of data

Language: Chinese/English

Brightness Adjustment: 10-speed adjustment
