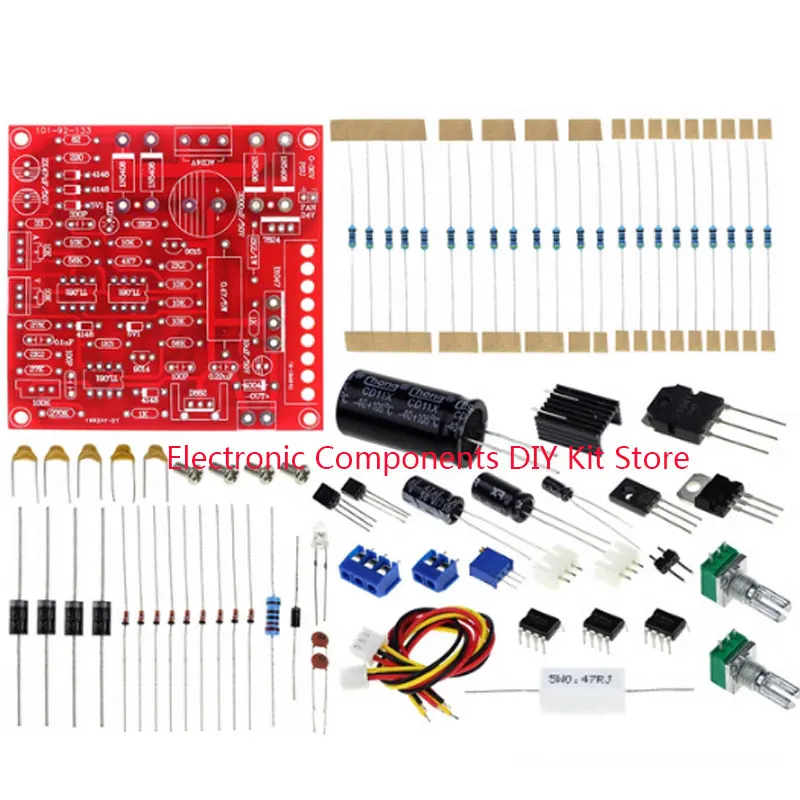

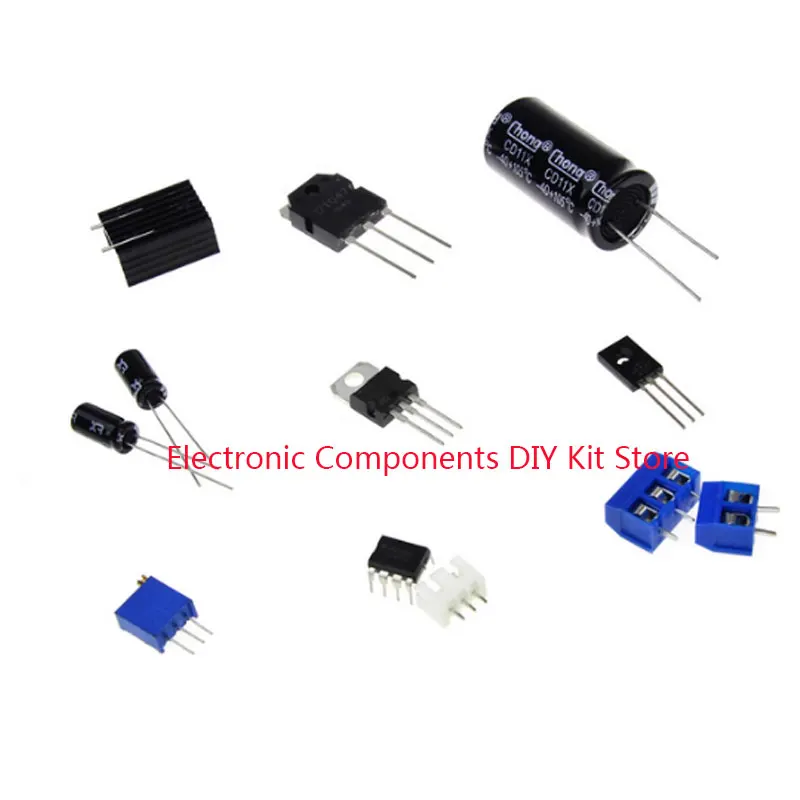

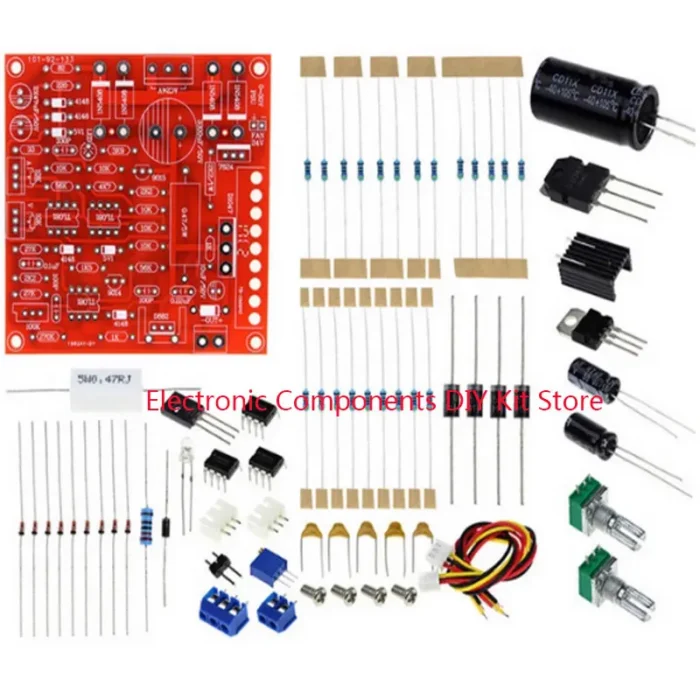

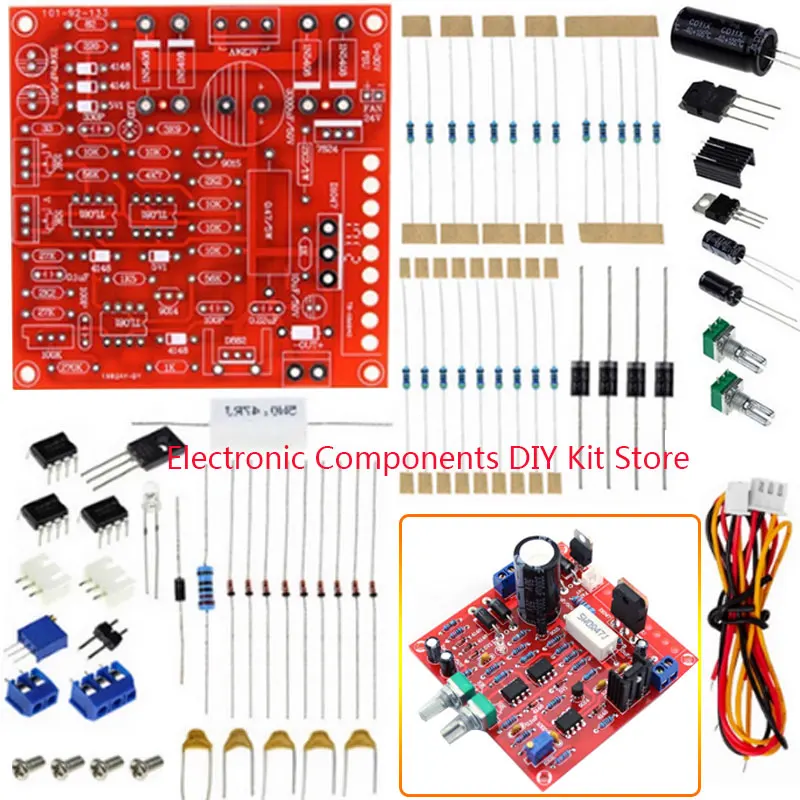

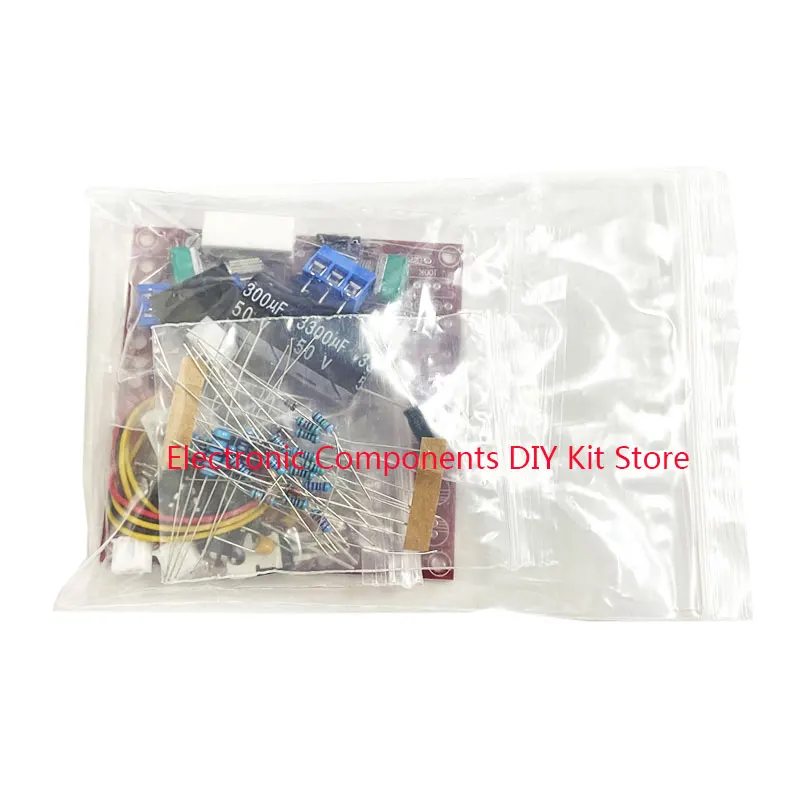

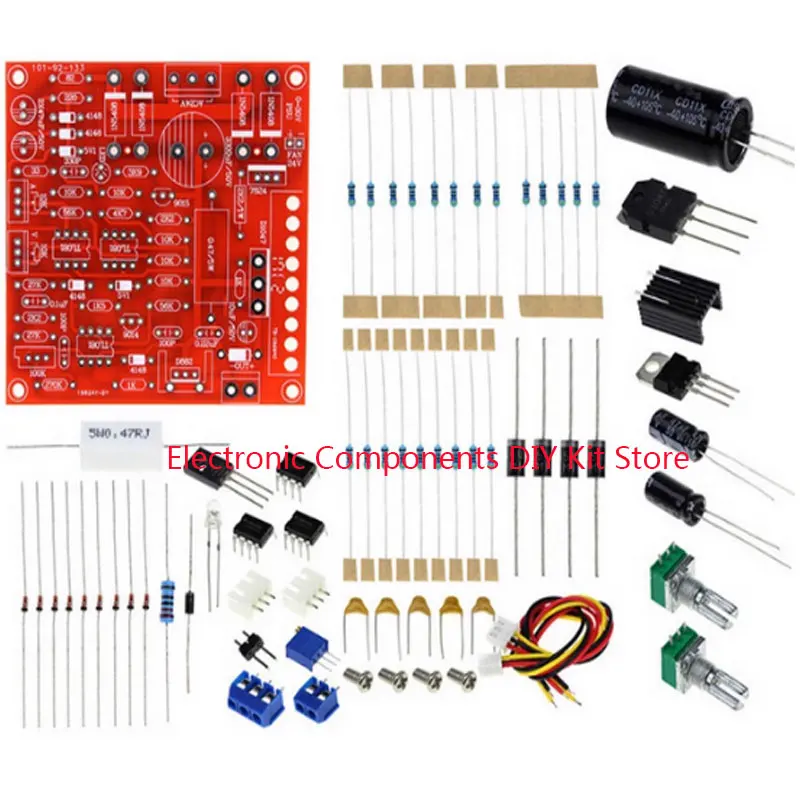

0-30V 2mA-3A DC Regulated Power Supply DIY Kit Continuously Adjustable Current Limiting Protection Voltage Regulator Set

Product Description.

This circuit is a high-quality continuously adjustable voltage regulator,

the voltage adjustment range is 0-30V, also contains a current

output

limiting circuit, effectively control the maximum output current from

2mA to 3A continuously adjustable, this feature makes this regulator

become an indispensable tool for circuit experiments, which can limit

the current to the typical maximum operating current of the

experimental circuit, and boldly turn on the power supply, do not

have to worry about It can limit the current to the typical maximum

operating current of the experimental circuit, so you can boldly

switch on the power supply without worrying about the

experimental circuit being damaged by the high current caused by

malfunction or installation error

Product Specification: 1

1. Input voltage: 24V AC (max）

2.Input current:3A(max)

3. Output voltage: 0-30V continuously adjustable

4.Output limiting current: 2mA-3A continuously adjustable

5.Output voltage ripple:0.01%(max)

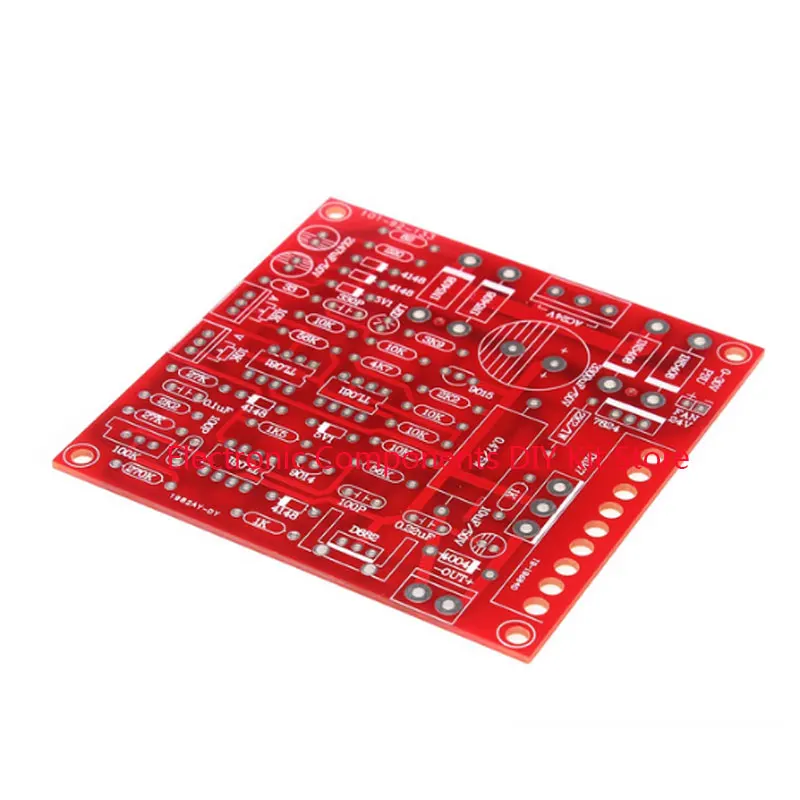

6.PCB size:84*84mm

7.Kit weight:0.086KG/set

Circuit Features.

1. All direct-plug components, simple and convenient installation

and maintenance.

2. Output voltage is easy to adjust.

3. Output current limitation status is indicated by LED.

4.When the output current exceeds the limiting current, it

automatically turns to constant current mode, providing complete

protection against overload or failure.
