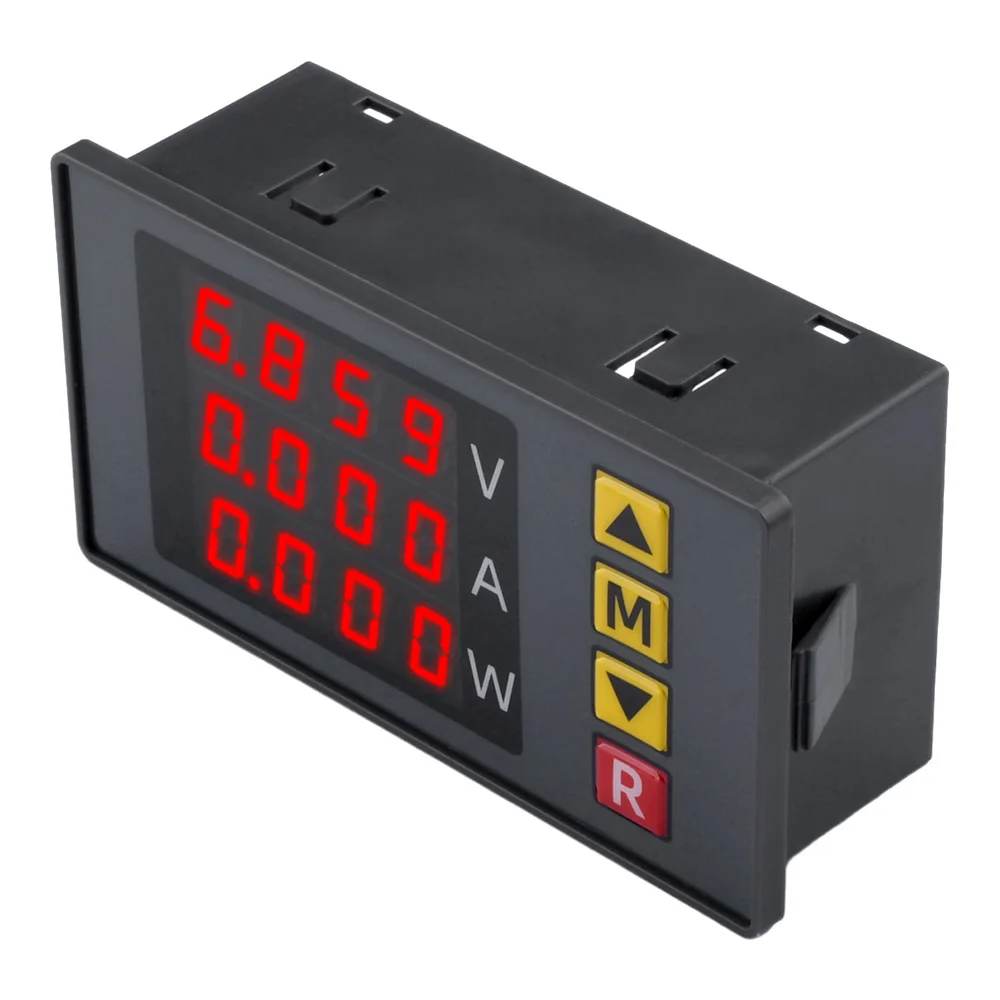

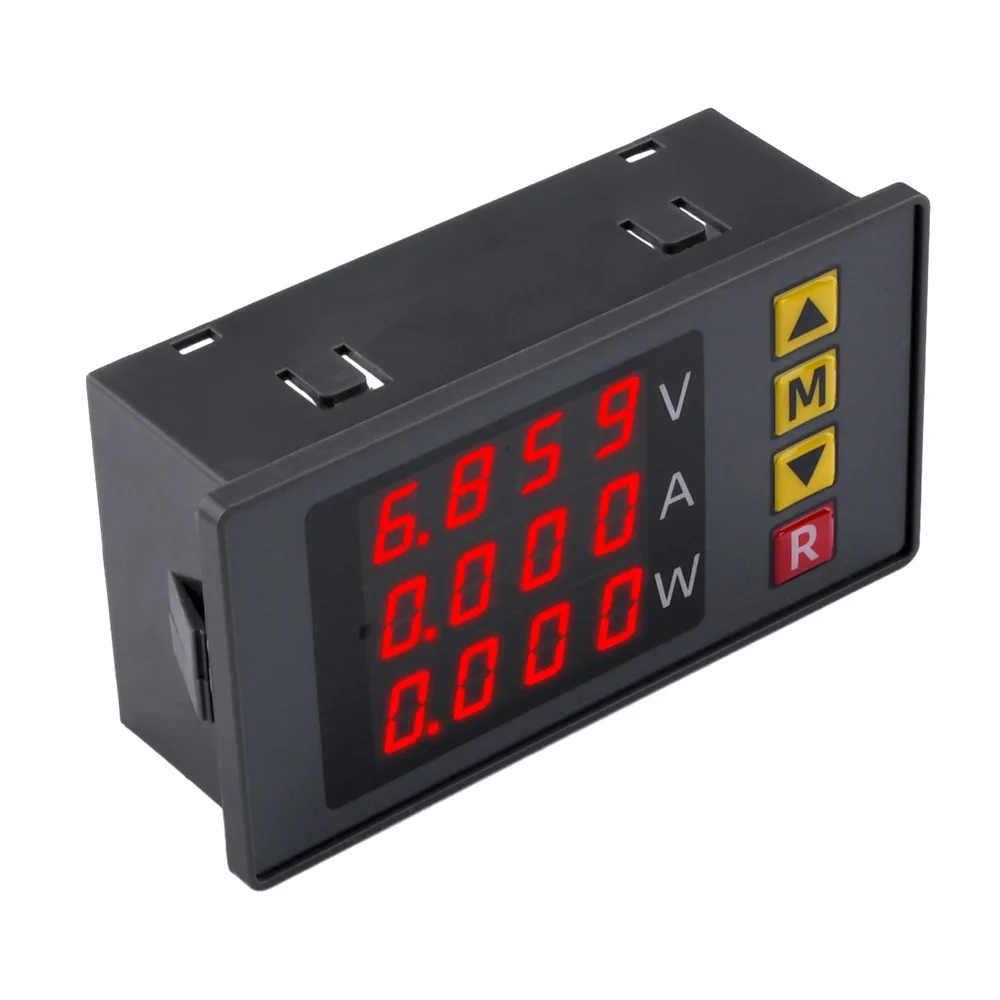

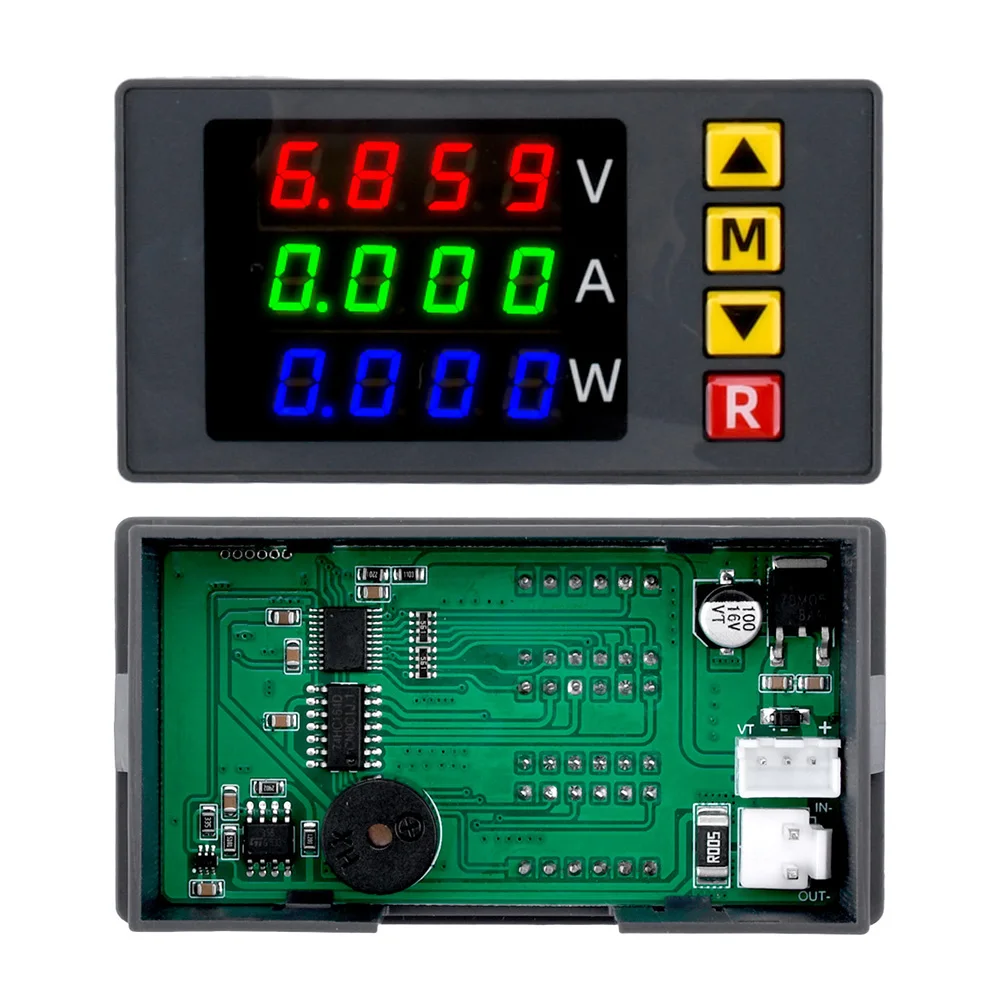

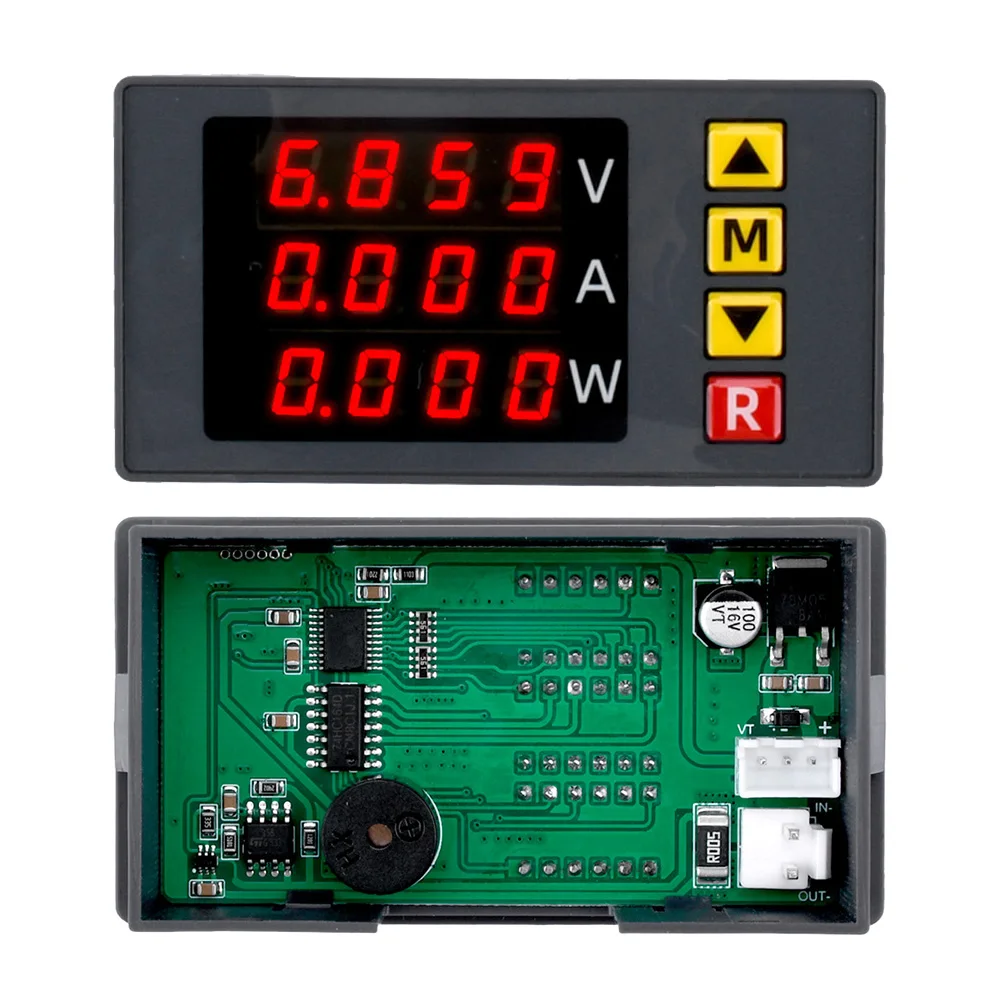

0.000~1000W 4Bit LED Digital Voltmeter Ammeter Wattmeter Current Energy Meter Detector Tester Power Supply

0.000~1000W 4Bit LED Digital Voltmeter Ammeter Wattmeter Current Energy Meter Detector Tester Power Supply

Feature:

Voltage measurement range: DC0.000~100.0V error ±1.00V 0.1V starting

Current measurement range: 0.000A~10.00A error ±0.1A, starting at 0.03A

Power measurement range: 0.000~1000W

Screen on and off function: supported, only controls the digital tube and does not affect the circuit on and off

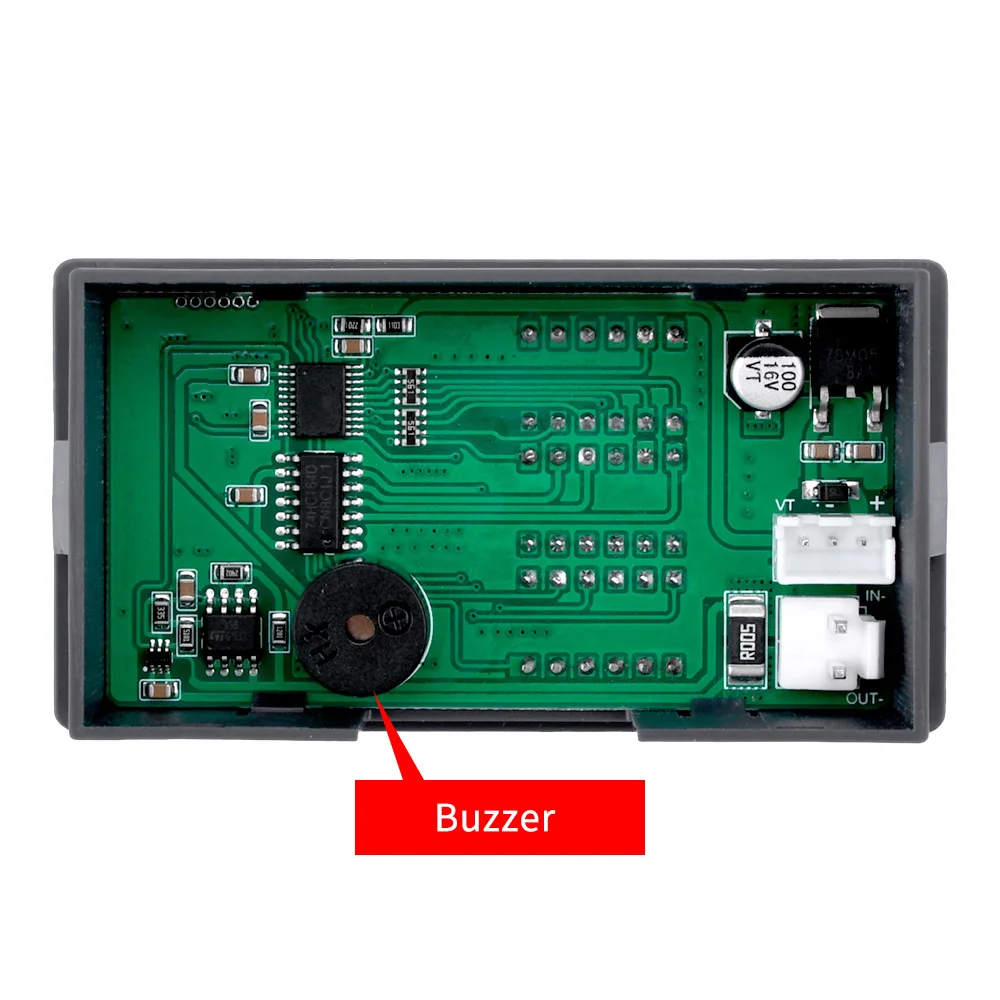

Fine-tuning of voltage and current display, audible alarm for overvoltage and overcurrent

Product parameters:

Product name: BM730-10A Voltage Voltage Current Power Meter with Audible Alarm

Instrument working voltage: DC7~30V (do not overvoltage power supply)

Voltage measurement range: DC0.000~100.0V error ±1.00V 0.1V starting

Current measurement range: 0.000A~10.00A error ±0.1A, starting at 0.03A

Power measurement range: 0.000~1000W

Working energy consumption: about 20mA

Voltage display fine-tuning: supported, 0.1V step

Current display fine-tuning: supported, 0.1A step

Low voltage audible alarm: support, 0.1V~99.9V

High voltage audible alarm: support, 0.1V~100.0V

Overcurrent audible alarm: supported, 0.1A~10.00A

Screen on and off function: Supported, it only controls the digital tube and does not affect the circuit opening and closing.

Product size: 79.3×42.1×26.2mm

Installation opening: 71.7×39.1mm

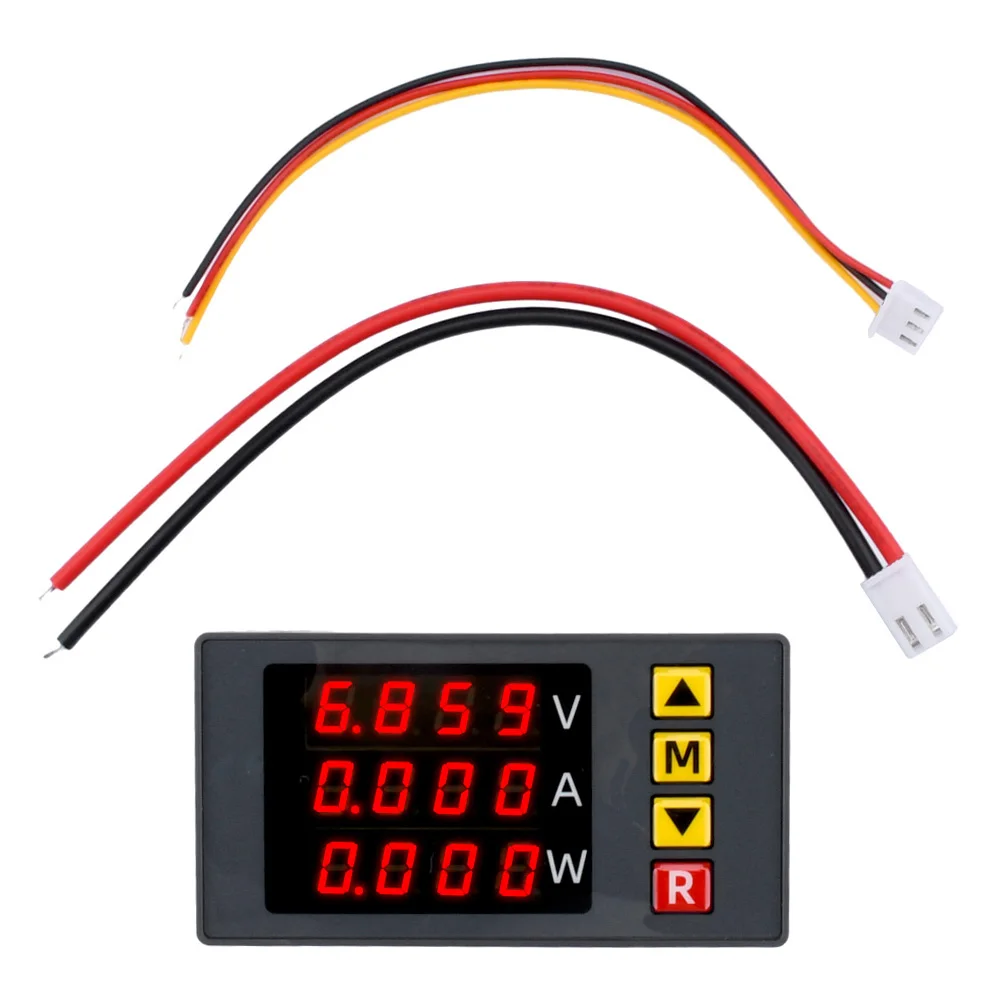

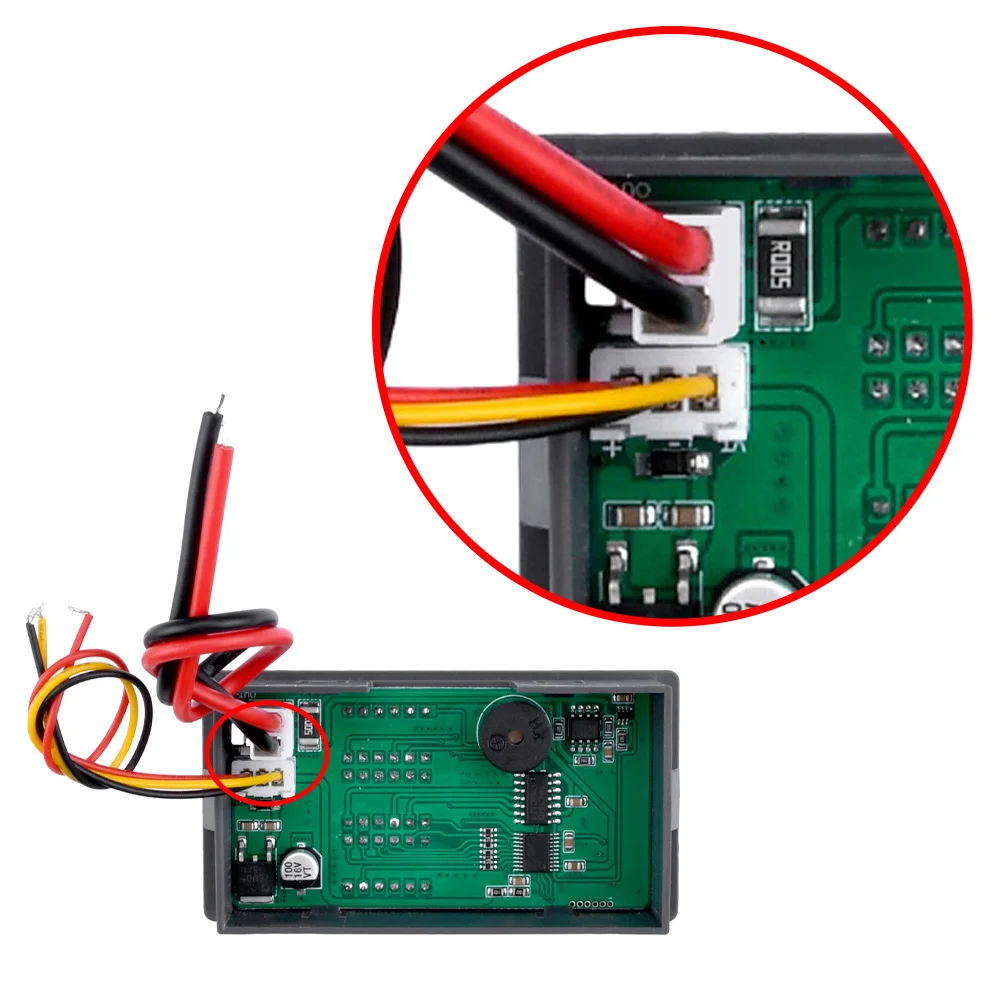

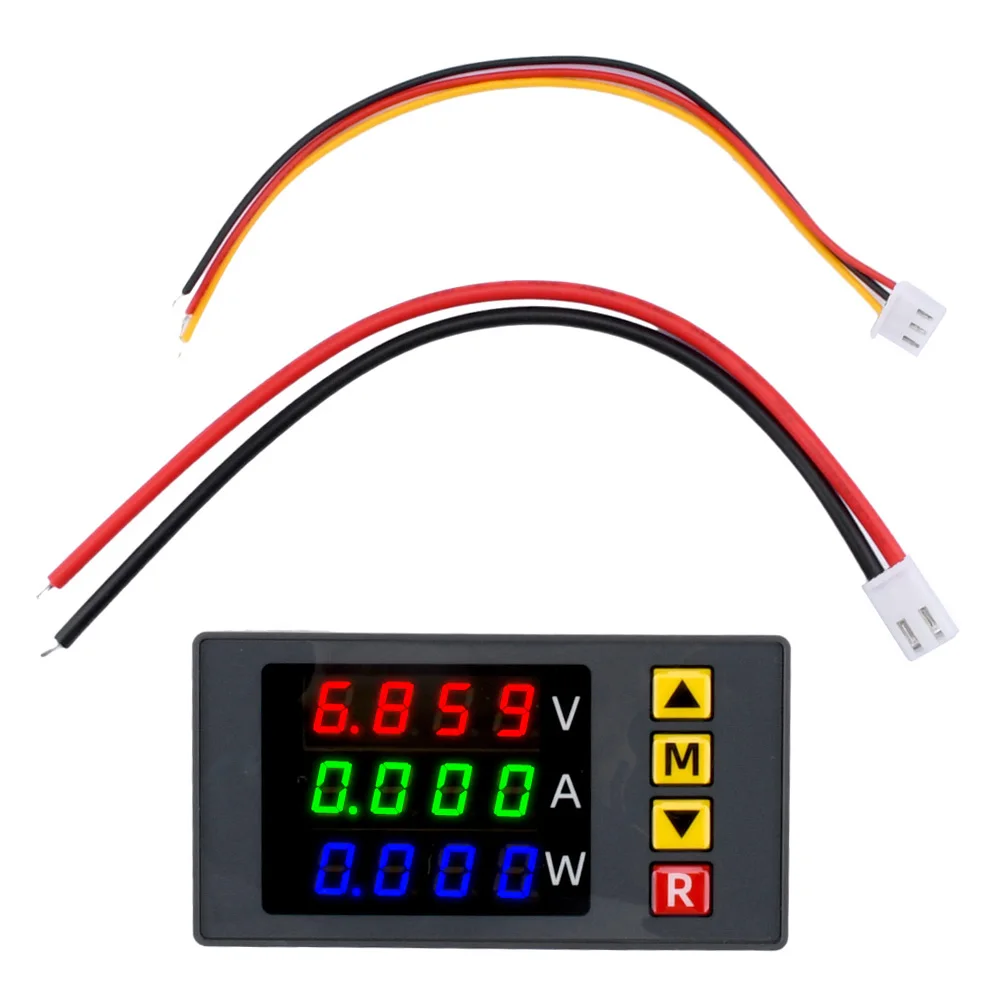

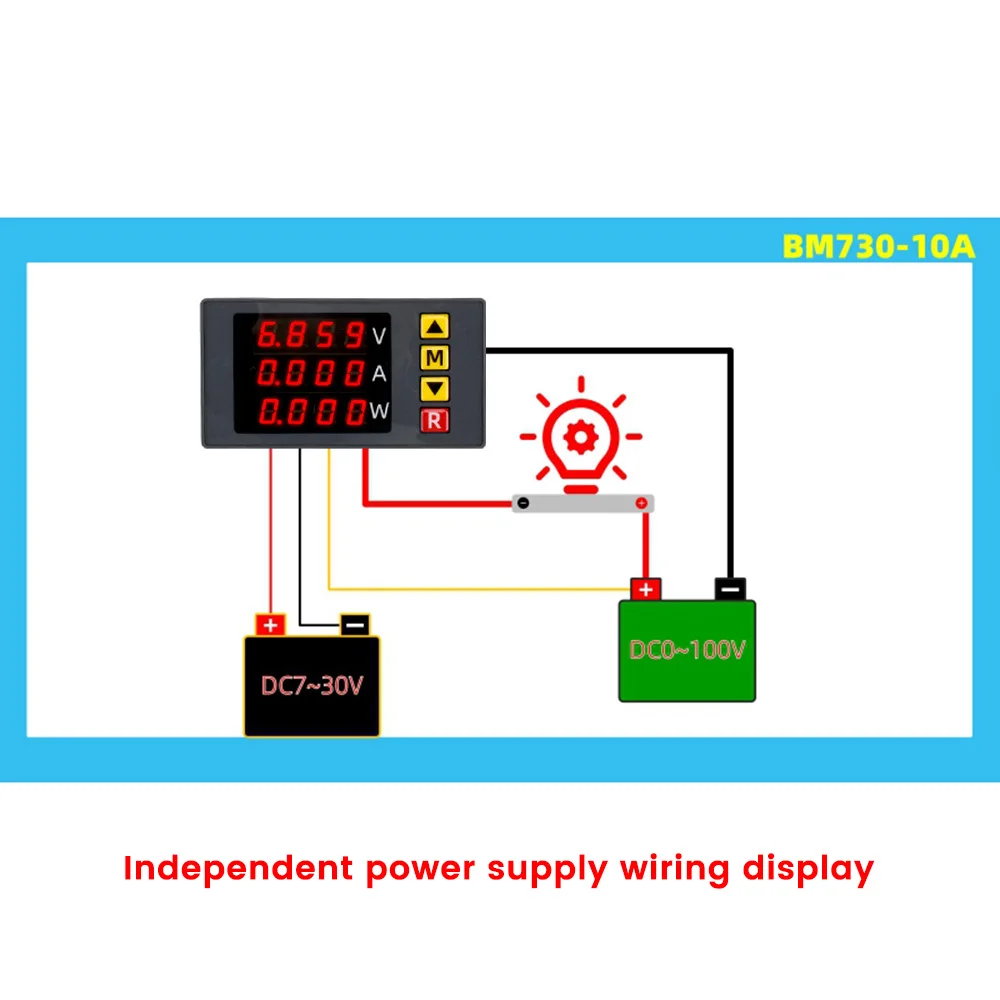

Introduction to wire definition:

XH-2.54-3P red, black, and yellow wire (thin wire, total length: 155mm)

Thin red wire: positive pole of working power supply, cannot be connected to power supply above 30V

Thin
black wire: the negative pole of the working power supply, and the
thick black wire at the construction site, do not need to be connected
when sharing the power supply

Thin yellow wire: voltage test wire, connected to the positive pole of the test circuit power supply

VH-3.96-2P thick red and black wire (thick wire total length: 165mm) current test wire

Thick
wires connected in parallel with shunt resistors cannot be directly
connected to the two poles of the power supply, as they will cause a
short circuit! ! !

Thick
red wire: The positive electrode of the current test is connected to
the back end of the negative electrode of the load. When the wire is
disconnected, connect it last and disconnect it first.

Thick
black wire: the negative pole of the current test, connected to the
negative pole of the power supply. When the wire is disconnected,
connect it first and then disconnect it.

Package list:

Voltage Ammeter*1
